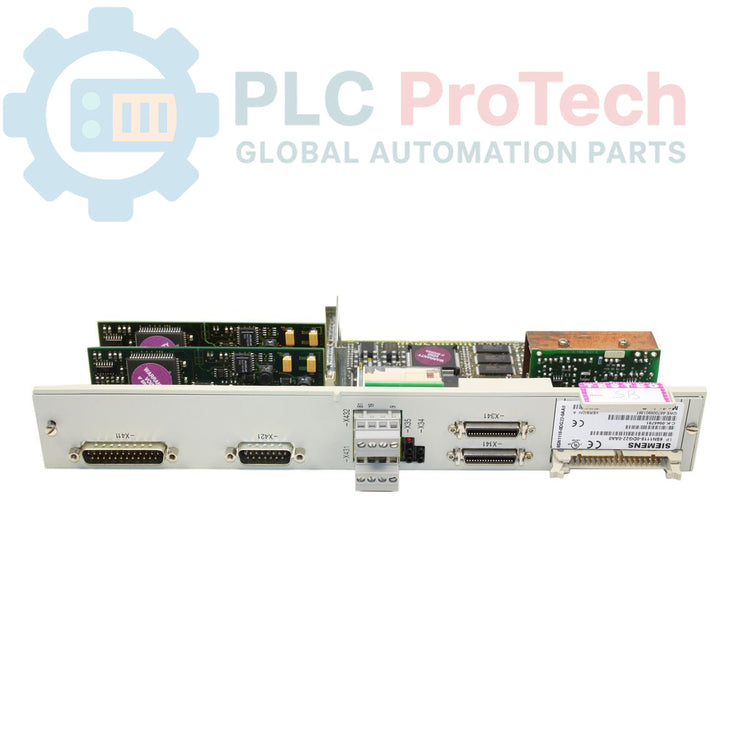

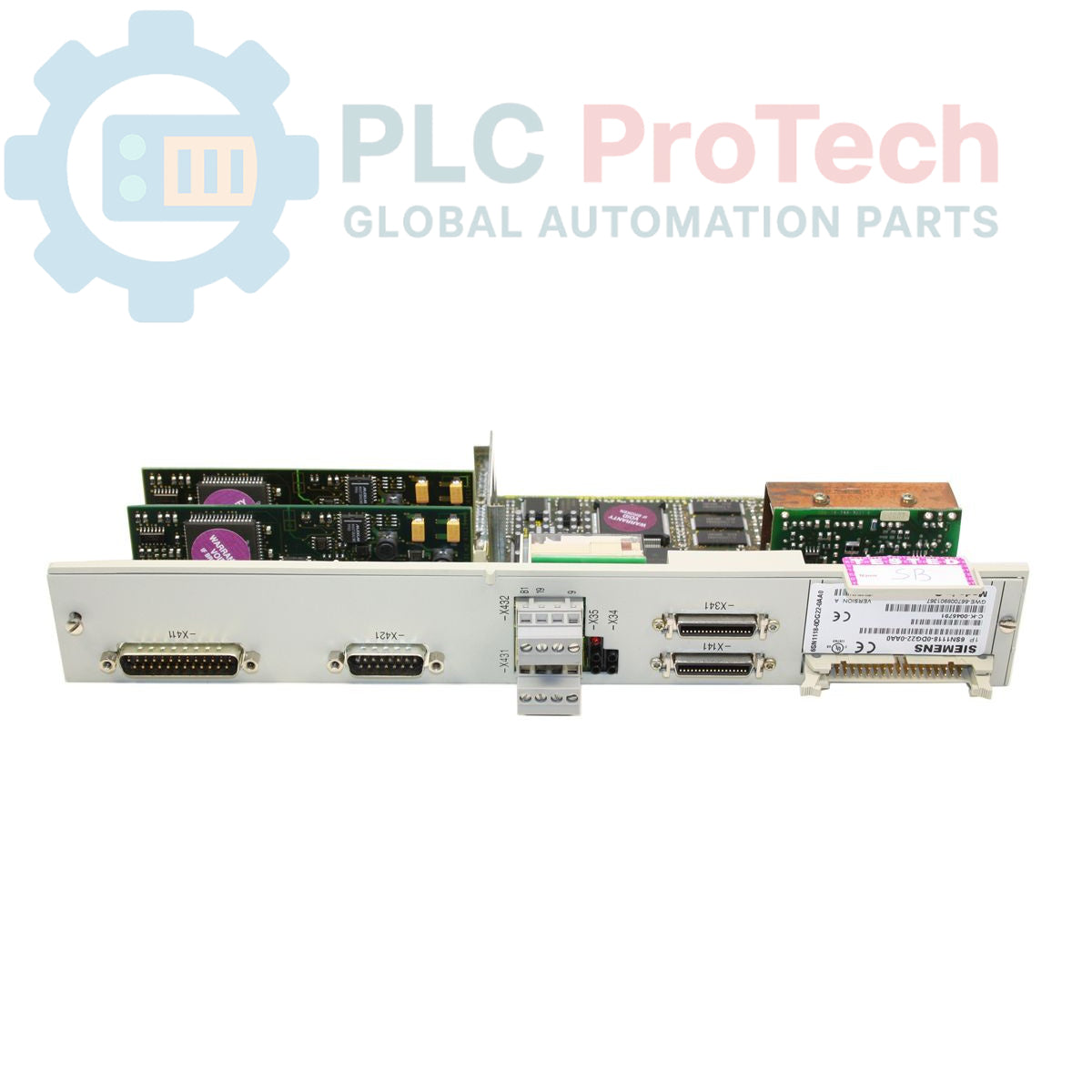

Siemens SIMODRIVE 611-D Steuereinheit 6SN1118-0DG22-0AA0

Description

The 6SN1118-0DG22-0AA0 is a high-performance SIMODRIVE 611-D closed-loop plug-in control unit, engineered by Siemens for precise single-axis management within digital drive systems. This module is specifically designed to handle both feed and main spindle drive requirements. It incorporates a direct measuring system for high-accuracy position feedback and provides advanced performance closed-loop control with integrated current signal processing. Although currently classified as a Phase-Out product (with the 6SN1118-0DG22-0AA1 as the designated successor), this unit remains a critical component for maintaining existing 611-D industrial drive architectures.

Features

• Dual-Purpose Functionality: Supports both feed and main spindle applications.
• Closed-Loop Performance: Enhanced control algorithms for high-speed, precise axis movement.
• Feedback Accuracy: Includes interface support for direct measuring systems to ensure exact positioning.
• Plug-in Architecture: Designed for easy insertion and replacement within SIMODRIVE 611-D drive racks.
• Current Signal Processing: Integrated processing for refined torque and current control.

Technical Specifications

Installation Guidelines

• Module Seating: Ensure the drive rack power is disconnected before inserting the control unit to avoid potential backplane pin damage.
• Direct Measurement: Verify that the direct measuring system cable (encoder feedback) is securely fastened to the unit and shielded against electromagnetic interference (EMI).
• Configuration: Use the SIMODRIVE parameterization tools to align the firmware settings with the specific motor and spindle requirements of the axis.
• Thermal Management: The 611-D drive rack relies on proper airflow; ensure that the control unit does not obstruct the internal ventilation channels.
• Grounding: Secure the unit's locking mechanism to the rack, as this ensures the mechanical and electrical ground bond necessary for stable current signal processing.
