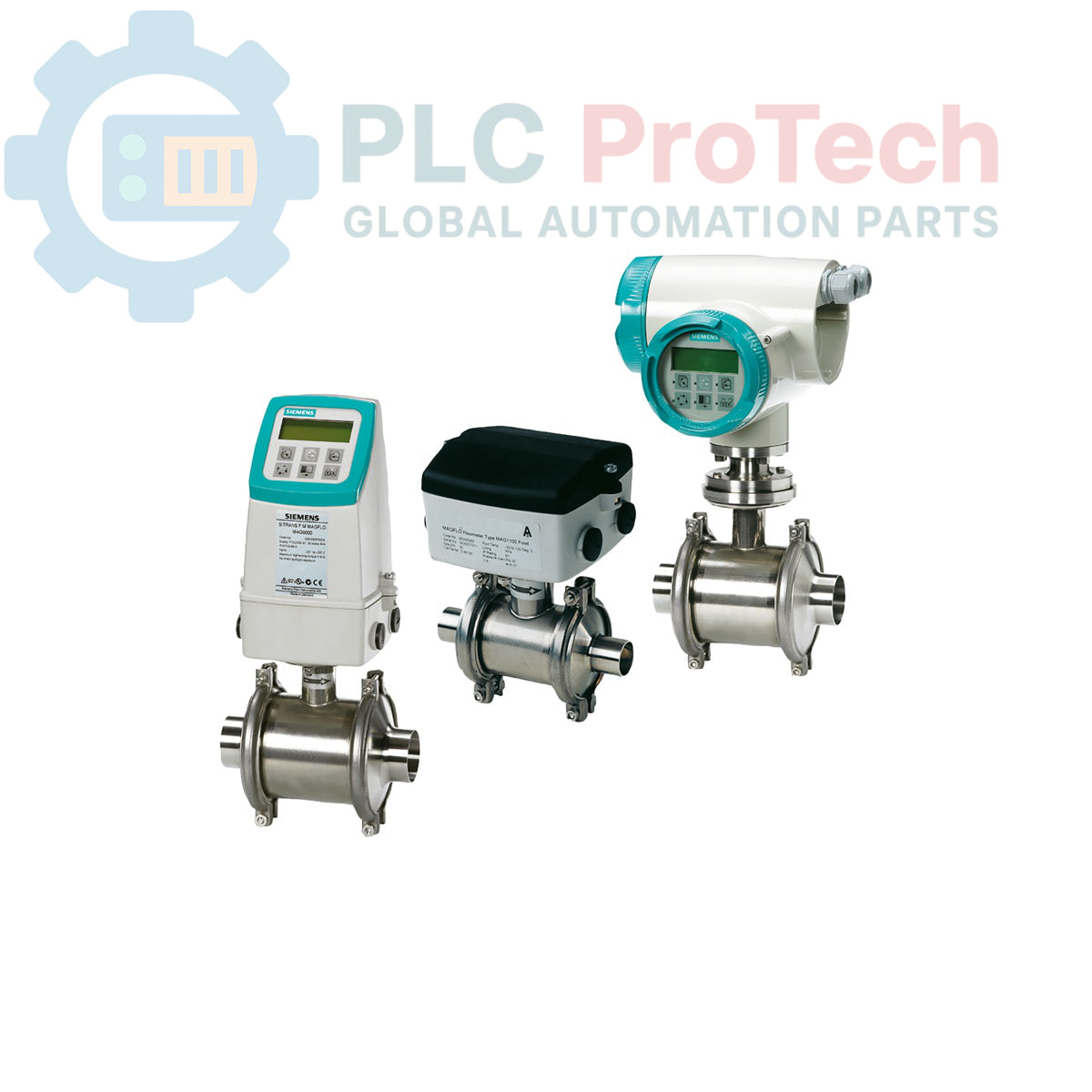

Siemens SITRANS FM MAG 1100 F Durchflusssensor (7ME6140-2DA22-2AA1)

Description

The SITRANS FM MAG 1100 F is a full-bore electromagnetic flow sensor specifically engineered for the food, beverage, and pharmaceutical industries. This 7ME6140-2DA22-2AA1 model features a robust sanitary design suitable for measuring the volume flow of conductive liquids. It is built with a ceramic liner and Platinum electrodes, ensuring exceptional chemical resistance and durability in clean-in-place (CIP) and steam-in-place (SIP) processes. As a sensor designed for remote mounting, it provides high-precision measurement while allowing the transmitter to be located in a separate, more accessible area.

Features

• Sanitary Construction: Designed for high-hygiene applications in F&B and pharmaceutical sectors.
• Material Integrity: Ceramic liner with FDA-compliant FPM/FKM gaskets and Platinum electrodes for superior resistance to aggressive media.
• Full-Bore Design: No moving parts, minimizing pressure loss and maintenance requirements.
• Remote Compatibility: Optimized for use with remote SITRANS FM transmitters.
• Operational Versatility: Suitable for DN25 (1 inch) piping systems.

Applications

• Food and beverage production (e.g., dairy, juice, beverage bottling)
• Pharmaceutical manufacturing (e.g., batch processing, dosing)
• High-hygiene chemical processing
• Conductive liquid flow measurement

Technical Specifications

Installation Guidelines

• Mounting: Ensure the sensor is installed in a pipeline section where the pipe is always completely filled with the liquid to prevent measurement errors.
• Orientation: Install the sensor in a vibration-free location, ideally with a straight pipe run of at least 3x the diameter upstream and 2x downstream.
• Grounding: Proper grounding is critical for electromagnetic flowmeters; ensure grounding rings or electrodes are used if the piping material is non-conductive.
• Hygiene Compliance: Since this model is "not 3A approved," verify it meets the specific sanitary requirements and local regulations for your process environment before installation.
• Remote Integration: Mount the remote transmitter within the cable length limitations specified for the sensor to maintain signal integrity.
