Description

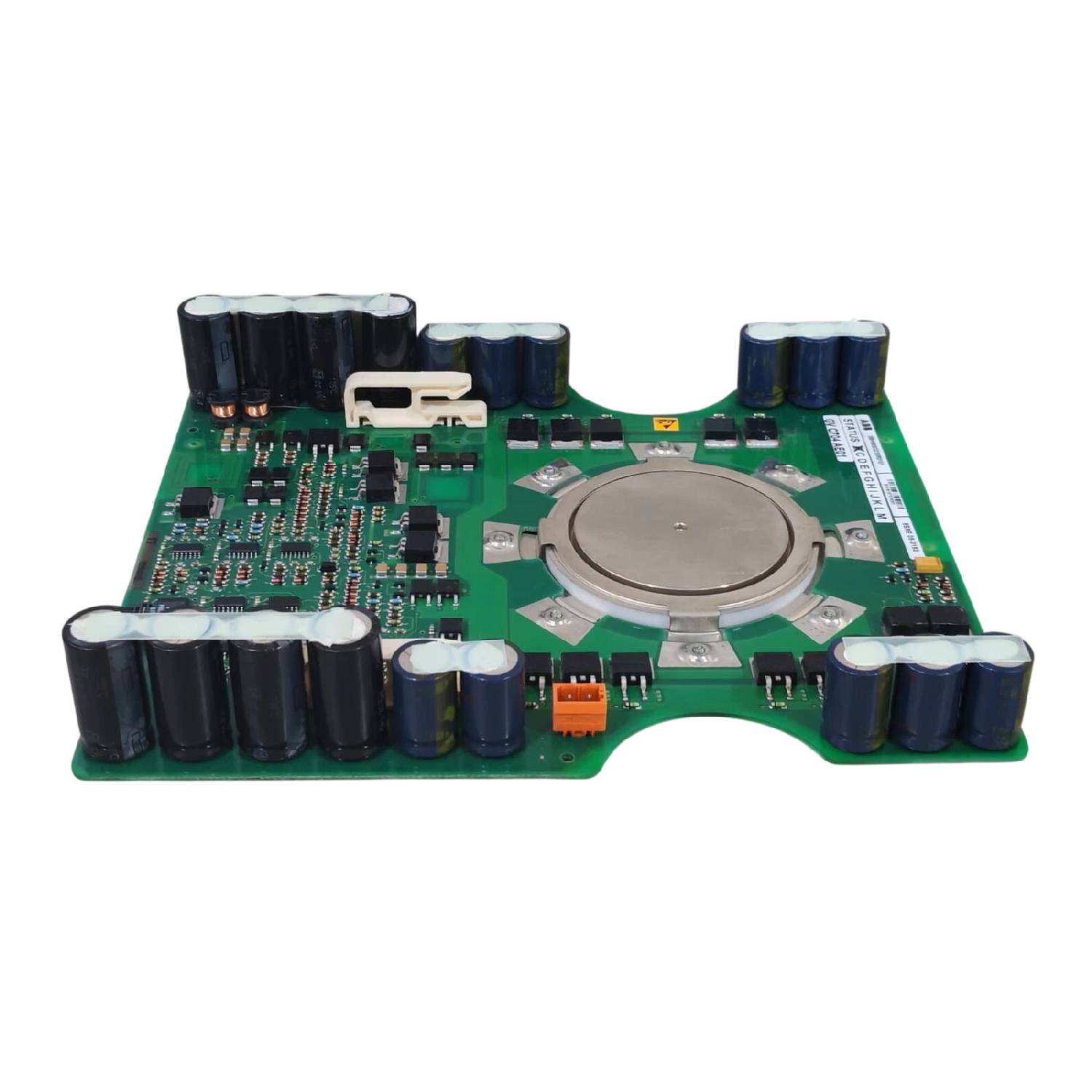

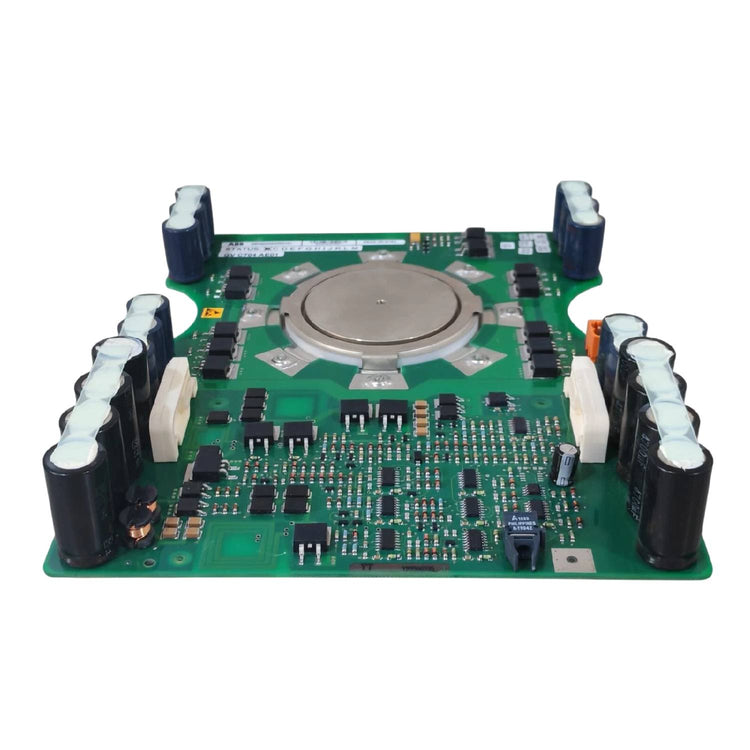

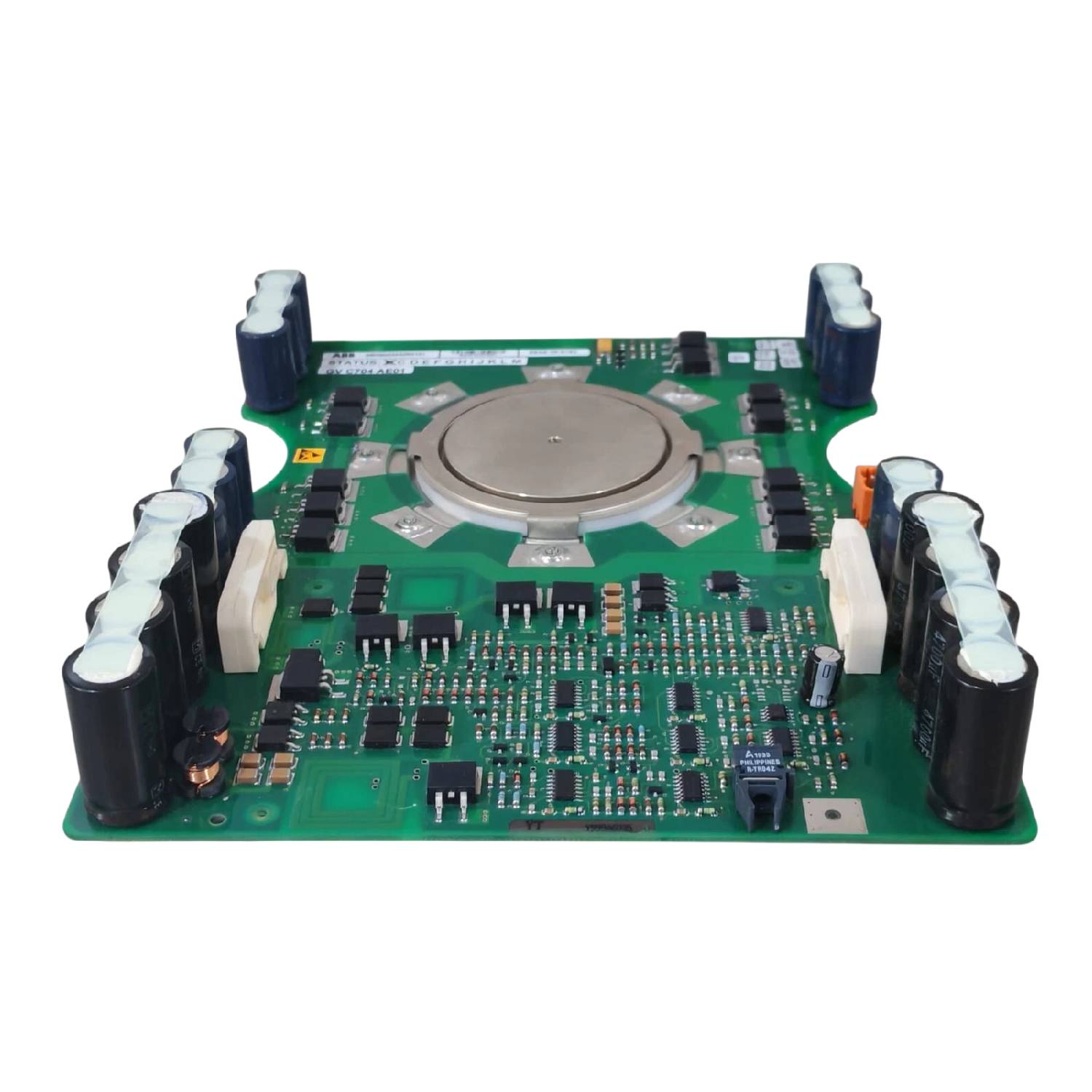

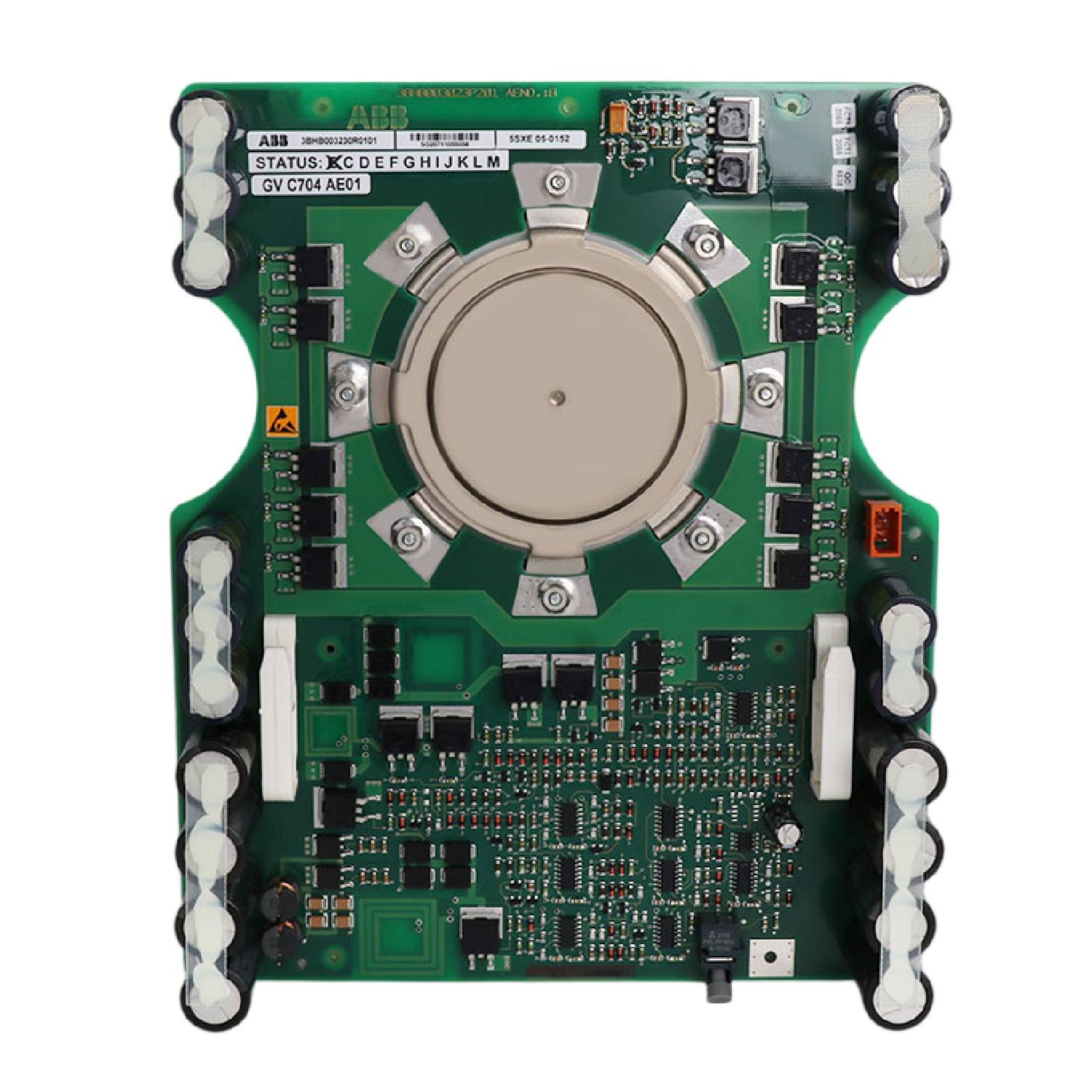

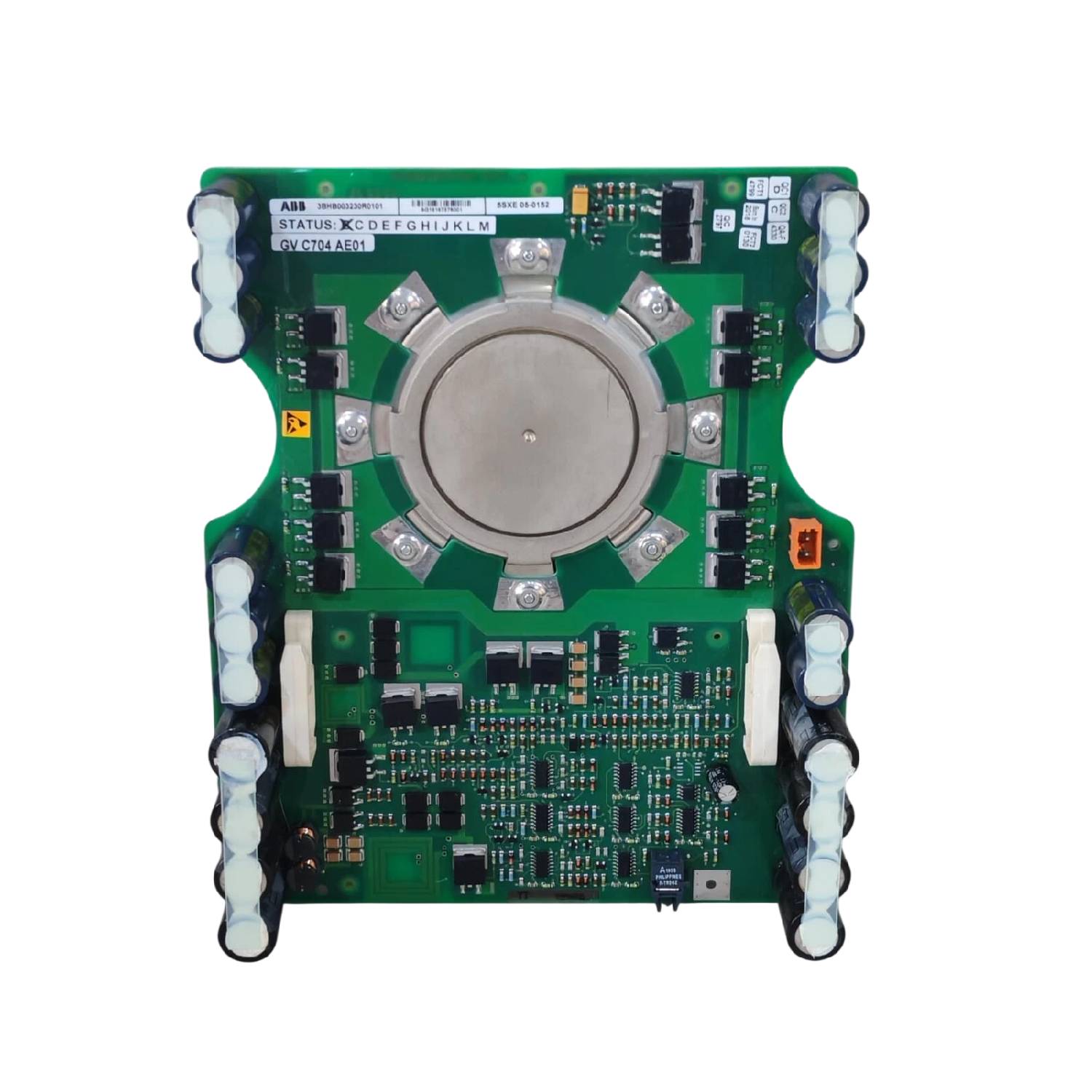

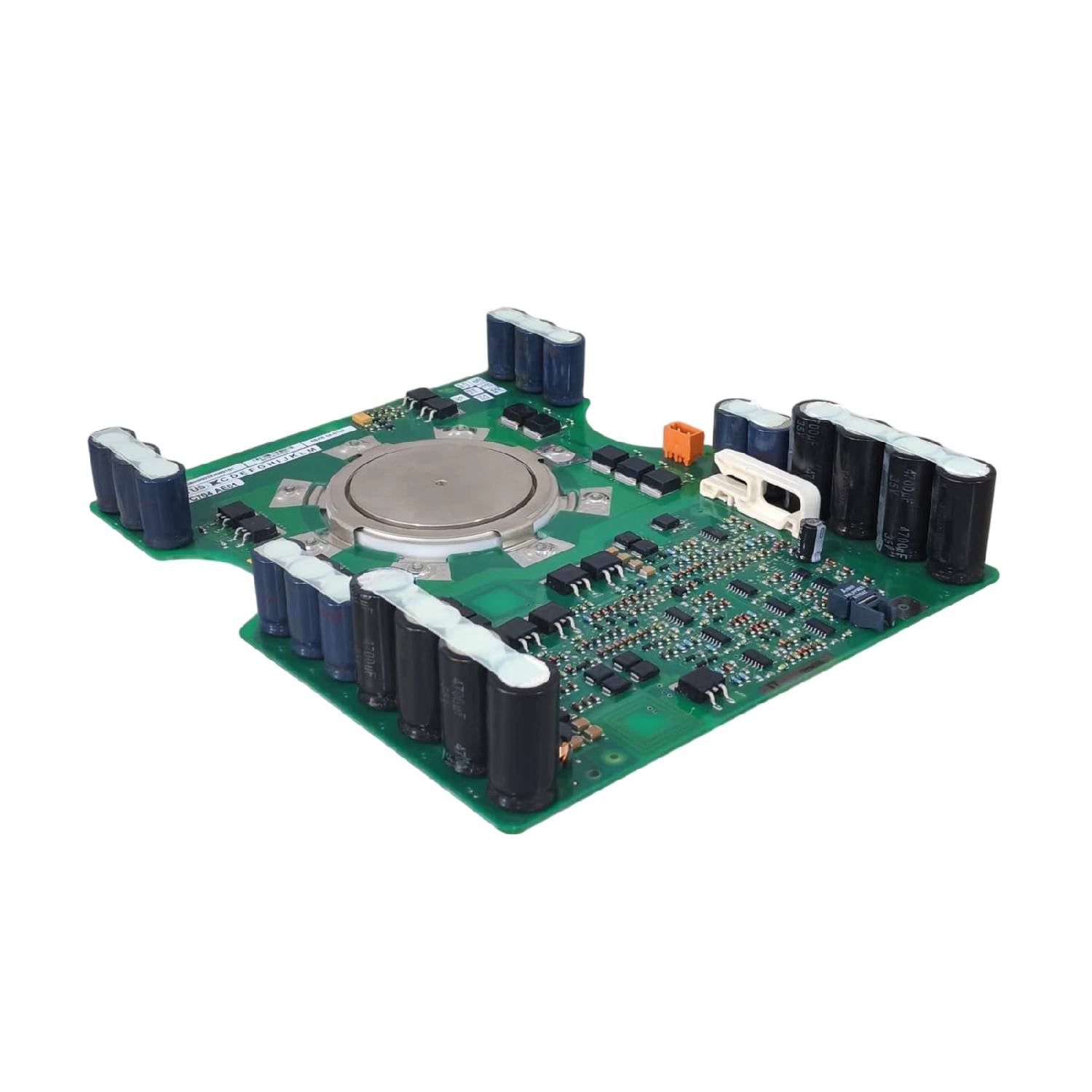

The ABB 3BHB003230R0101, officially designated with type codes GVC704 AE01 and associated spare model code 5SHX1445H0001 (part number 3BHL000391P0101), operates as a high-performance integrated gate unit and IGCT MODULE drive assembly. Engineered exclusively for medium-voltage control infrastructure, this device provides the high-energy switching pulses required to activate internal power semiconductors within ACS1000 and ACS6000 medium-voltage drives. It interfaces directly via fiber optic sub-networks to translate low-power diagnostic control commands into synchronized gating sequences for the paired 3BHL000392P0101 (5SHX 1060H0001) thyristor assembly. The gate hardware lacks internal potential separation, meaning all external supply pathways must be insulation-rated to withstand the complete high-voltage potential of the power circuit against physical ground reference points.

Features

• Interlocking gating board designed for direct pairing with medium-voltage semiconductor blocks.
• Fiber optic control receiver array providing immune signal integration against electromagnetic distortion.
• High-current gate response path engineered for heavy thyristor turn-on and turn-off transitions.

Applications

• Gating and power cell control within heavy-duty variable frequency motor drive cabinets.
• High-torque induction and synchronous machine processing loops across mining mill drives.
• Pipeline compression telemetry and extraction pump modulation in large oil and gas facilities.
• Multi-phase propulsion inverter switching paths inside marine electrical drive infrastructures.

Technical Specifications

Installation Guidelines

• Isolate the entire drive enclosure from external grids and allow all high-voltage DC-link energy storage capacitors to discharge fully before beginning removal.
• Handle the unit only within certified electrostatic discharge boundaries while wearing a properly grounded wrist strap to protect sensitive CMOS components.
• Do not bend fiber optic signal lines past a minimum operational routing radius of 30 mm to avoid severe signal attenuation.
• Secure all primary mounting fasteners to ensure the framework can handle standard structural machine vibration without shifting the contact pitch.
