ماژول ورودی آنالوگ کامپکت‌لوژیکس آلن-برادلی 1769-IF4

Description

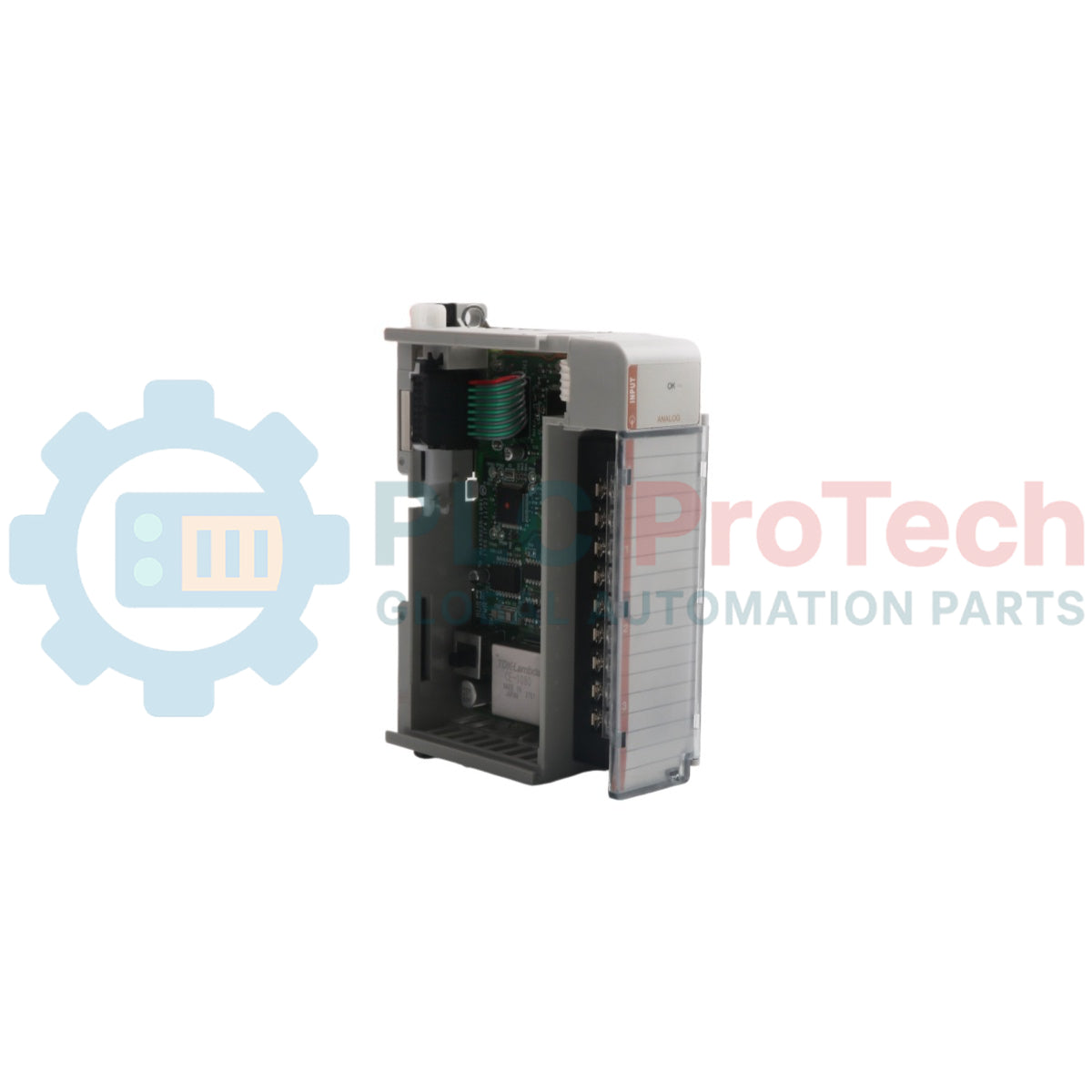

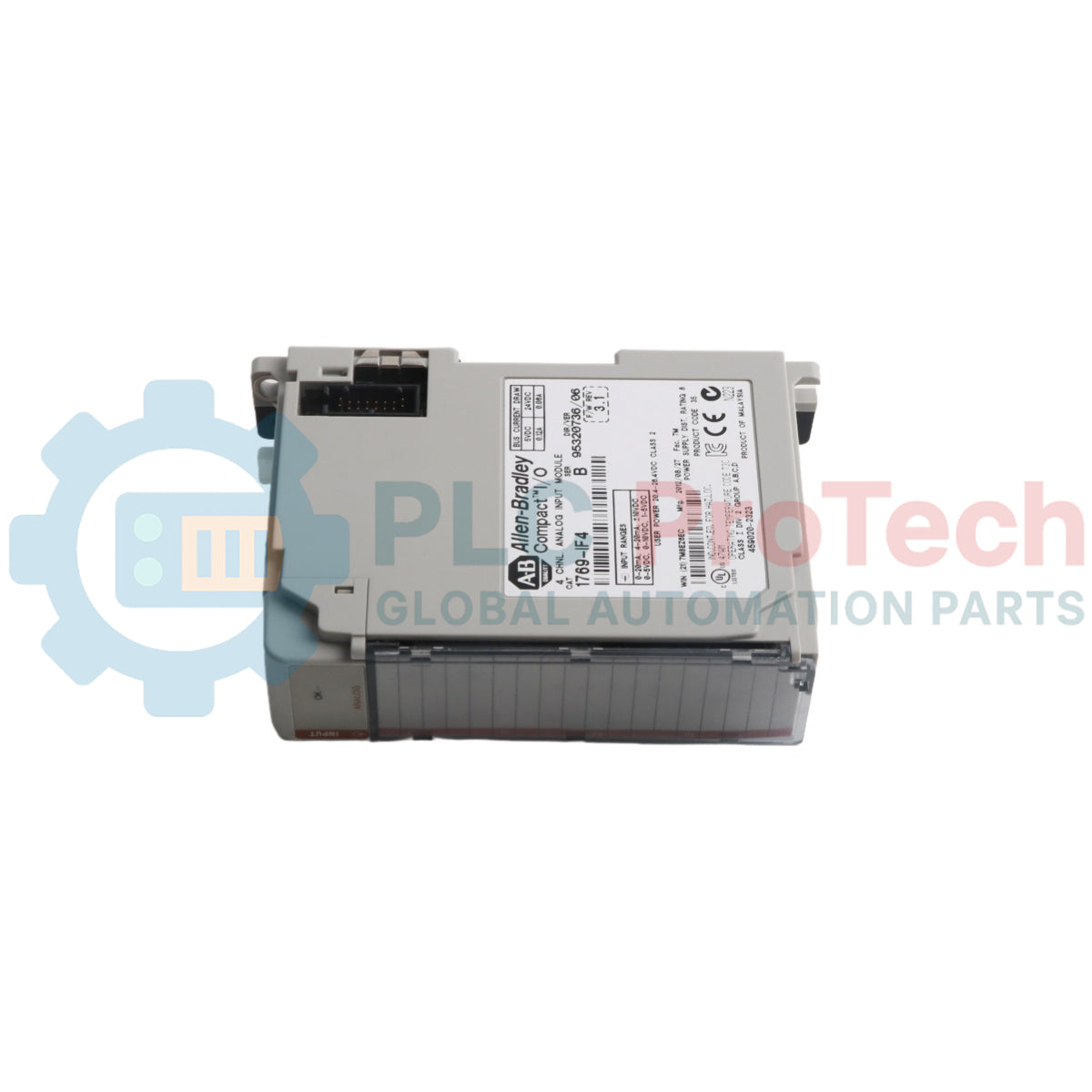

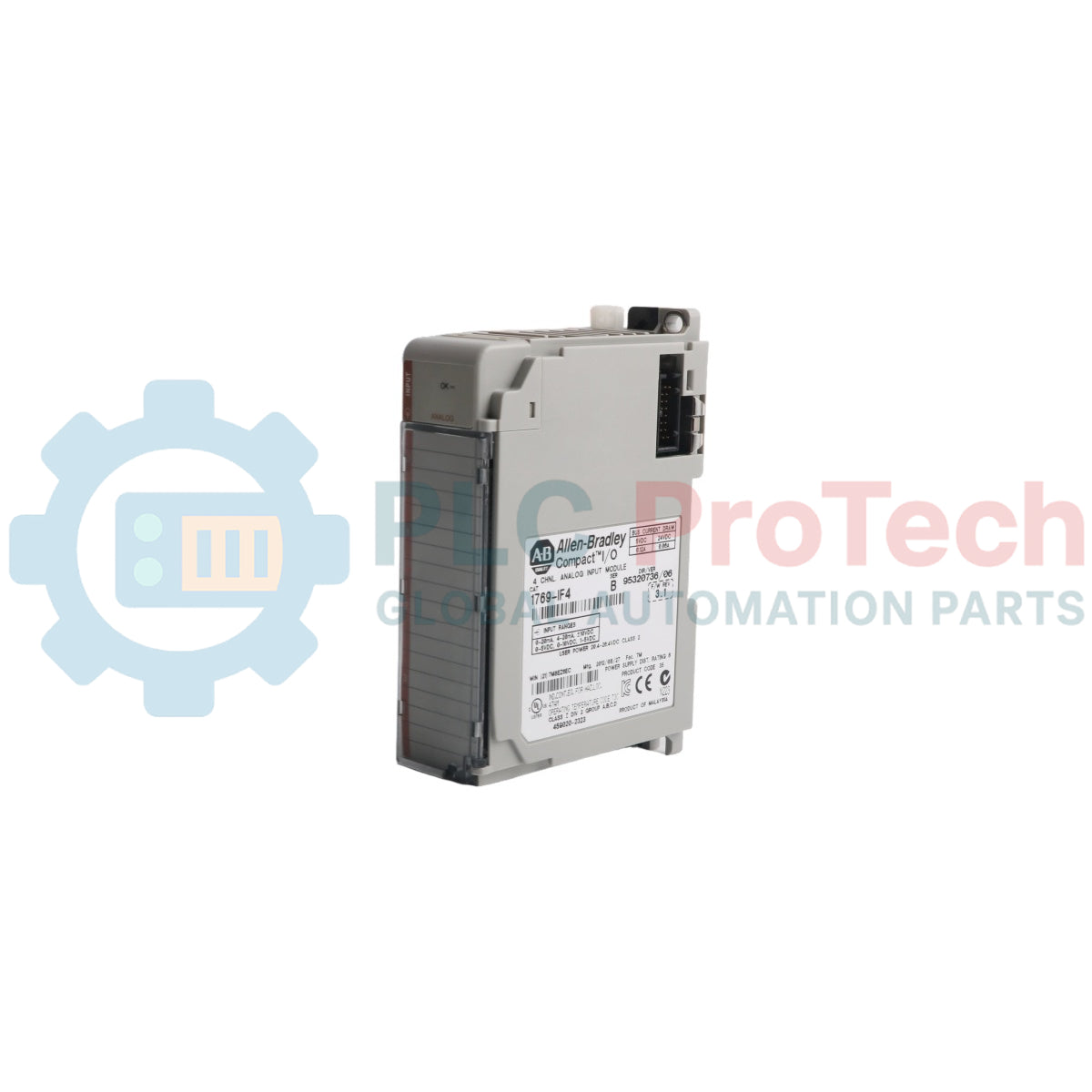

The Allen-Bradley 1769-IF4 is a 4-channel analog input module designed for CompactLogix and MicroLogix 1500 control systems. This module provides high-resolution conversion of differential analog signals into digital values for industrial automation applications. It supports both voltage and current input configurations, enabling direct interfacing with analog field instruments such as transmitters, sensors, and flow meters. The 1769-IF4 features advanced hardware filtering to attenuate electronic noise and transient disturbances, ensuring reliable data acquisition in challenging industrial environments.

Features

• Four independently configurable differential input channels.
• Selectable voltage and current signal configurations for broad field instrument compatibility.
• High-resolution analog-to-digital conversion up to 14 bits unipolar or 14 bits plus sign bipolar.
• Effective operational isolation between the backplane logic circuit and field-side inputs.
• Built-in input filtering to minimize electrical noise and transient signal variations.
• Removable terminal block allowing convenient wiring and module maintenance without disconnecting cables.

Applications

• Flow rate, pressure, and thermal processing loop control.
• Machine and process monitoring via factory sensor networks.
• Water and wastewater treatment monitoring networks.
• Integration of chemical injection and mixing control instrumentation.
• SCADA remote telemetry unit configurations.

Technical Specifications

Installation Guidelines

• Module Placement: Mount the module onto a standard DIN rail or directly to a panel using integrated mounting tabs. Maintain a secure connection with adjacent Compact I/O modules via the built-in locking mechanism.
• Power Supply Constraints: Ensure the configuration complies with distance ratings and backplane current limits. The module draws 120 mA at 5V DC and 60 mA at 24V DC from the system backplane power rail.
• Shielding and Grounding: Use high-quality twisted-pair shielded cable for all analog signal paths. Connect the cable shield to a clean ground point at the controller end only to mitigate EMI/RFI issues.
• Wiring Separation: Route low-voltage analog signal wires through dedicated conduits separated from high-voltage motor power lines and AC control wiring.
