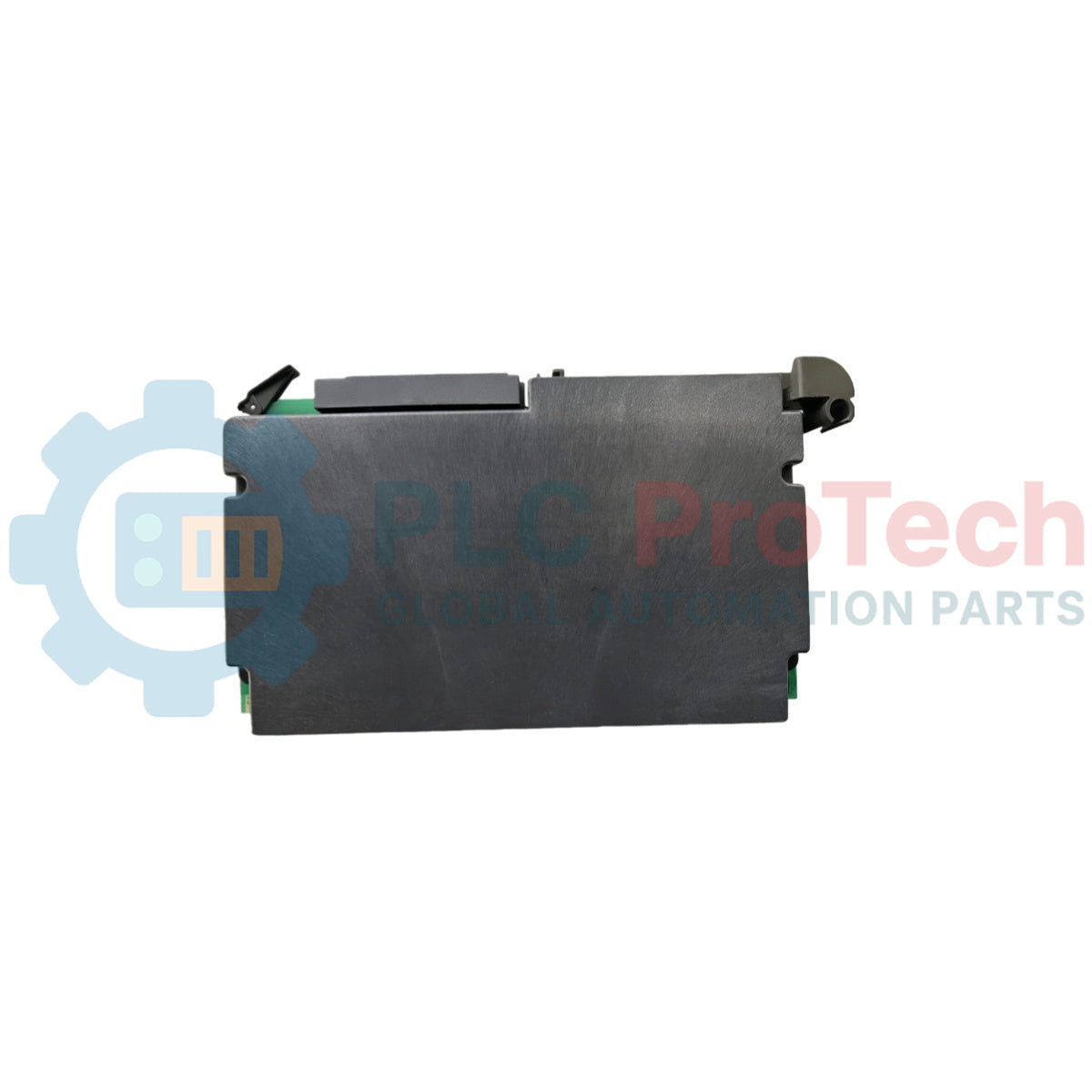

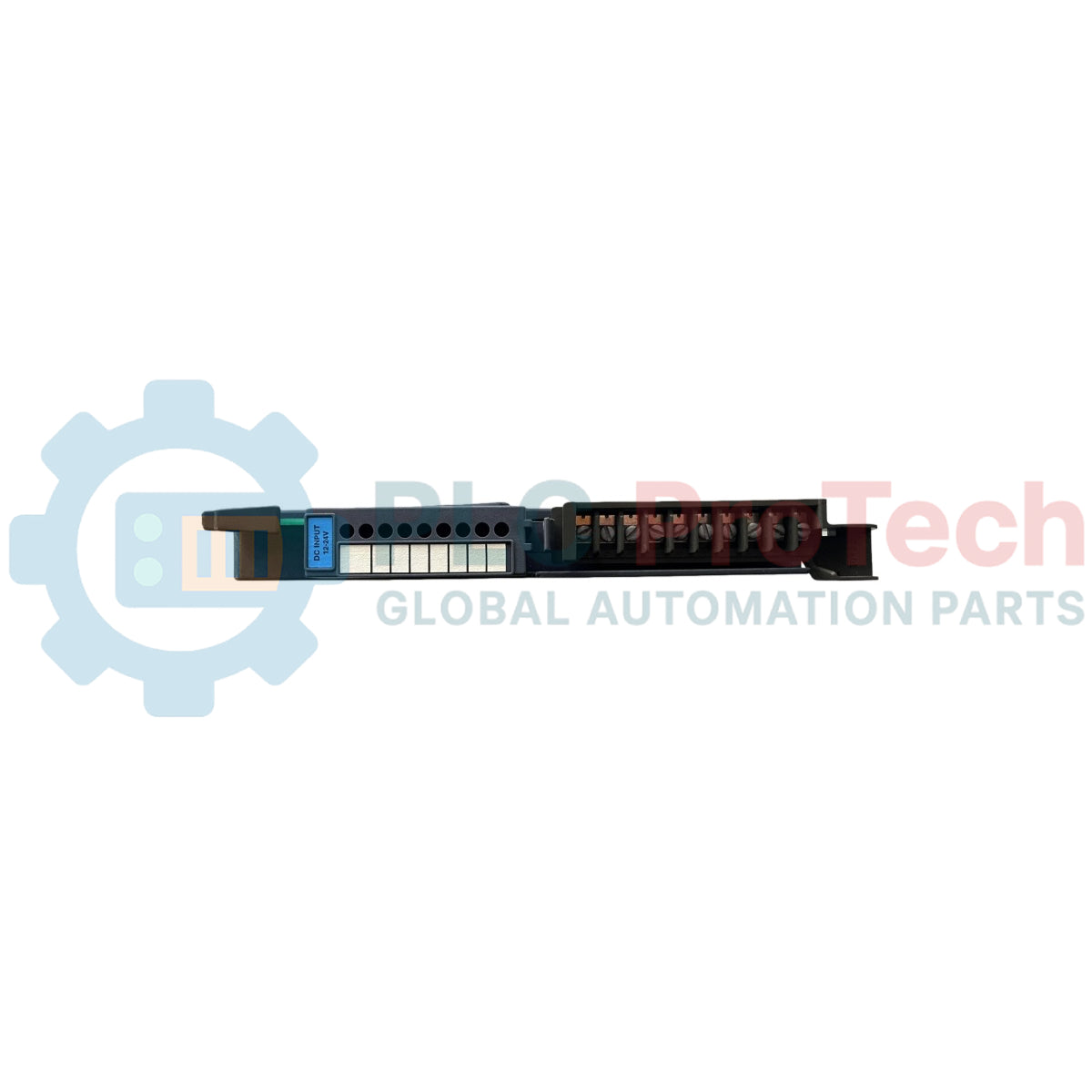

ماژول ورودی دیجیتال ۸ نقطه‌ای Allen-Bradley 1771-IB 1771

Description

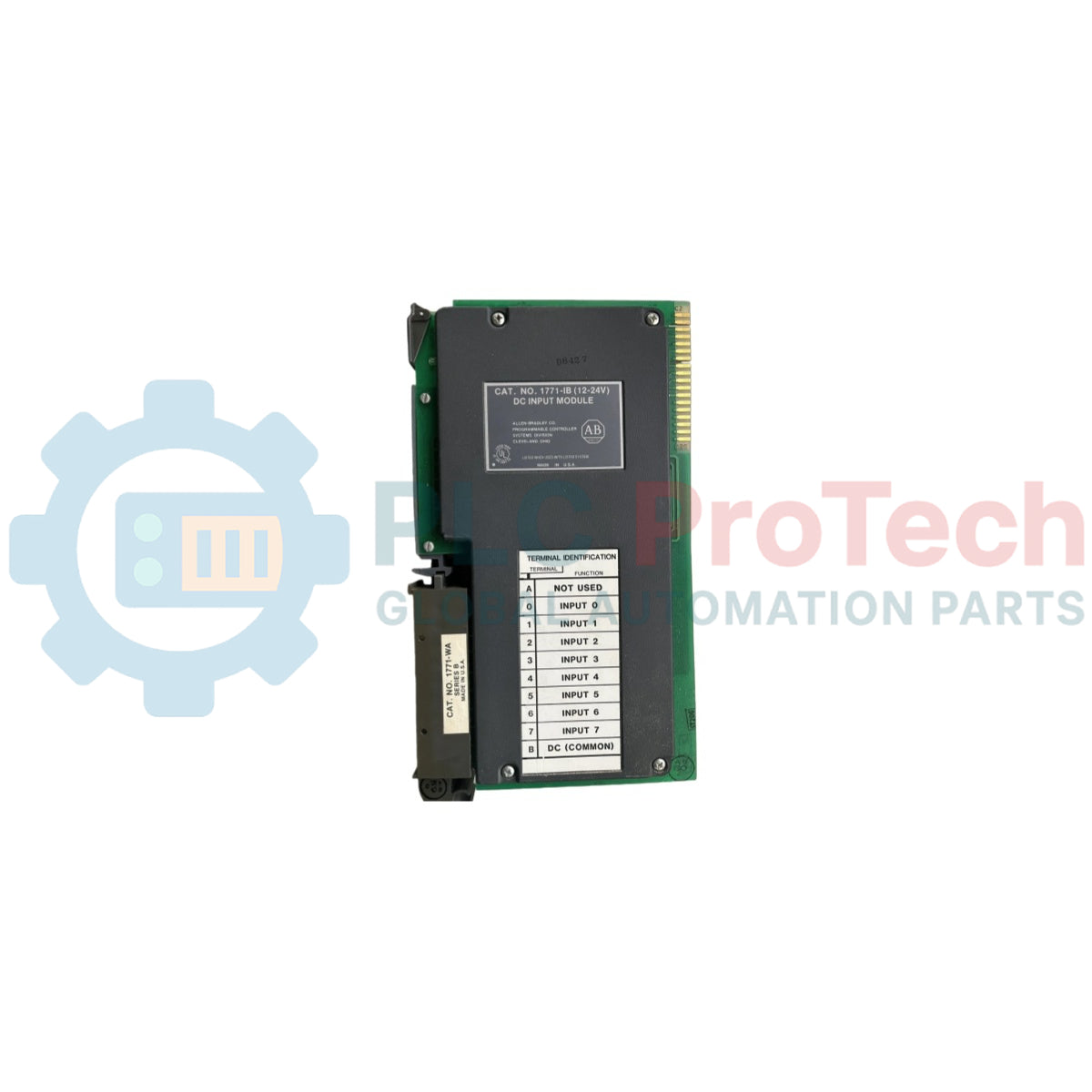

The Allen-Bradley 1771-IB is a discrete hardware component operating within the 1771 platform to interface field status inputs with a centralized processor. This device reads dual-state signals from external electrical paths, managing a density of up to 8 channels over an operating input range of 10-27V DC. This input module is fully compatible with standard 2-wire and 3-wire automation components including DC proximity switches, photoelectric sensors, pushbuttons, limit switches, float switches, and selector switches. To ensure signal clarity under harsh environments, it incorporates built-in filtering mechanisms that limit electrical fluctuations before they reach the controller logic.

Features

• Integrated input filtering logic circuit to mitigate voltage transients caused by contact bounce and radiated electrical noise.
• Native backend connectivity matching standard 1771 I/O chassis backplane lines for power distribution.
• Full structural operational compatibility across both two-wire and three-wire control path field devices.
• Shipped in specialized protective static-shielded packaging to minimize standard handling damage from electrostatic discharge.

Applications

• Interfacing discrete industrial machinery status loops with main automation units.
• Industrial sensor network synchronization using proximity or photoelectric arrays.
• Machine tool tracking and safety interlocking layouts using pushbuttons and limit switches.

Technical Specifications

Performance and Electrical Specifications

Installation Guidelines

• Power down the chassis layout before executing any attachment or disassembly of modular hardware components.
• Carefully align the device along the plastic chassis card guides during initial slot placement.
• Sum the total current draws of all combined cards to ensure the aggregate loop does not exceed the rated output capacity of the backplane power supply.
• Keep the component sealed inside its static-shielded bag until immediately before physical insertion to avoid electrostatic discharge damage.
• Verify that the off-state leakage current profile from any integrated 3-wire sensing hardware remains below 3mA.
