ماژول کنترل EtherNet/IP کینتیکس 6500 آلن-برادلی 2094-EN02D-M01-S0

Description

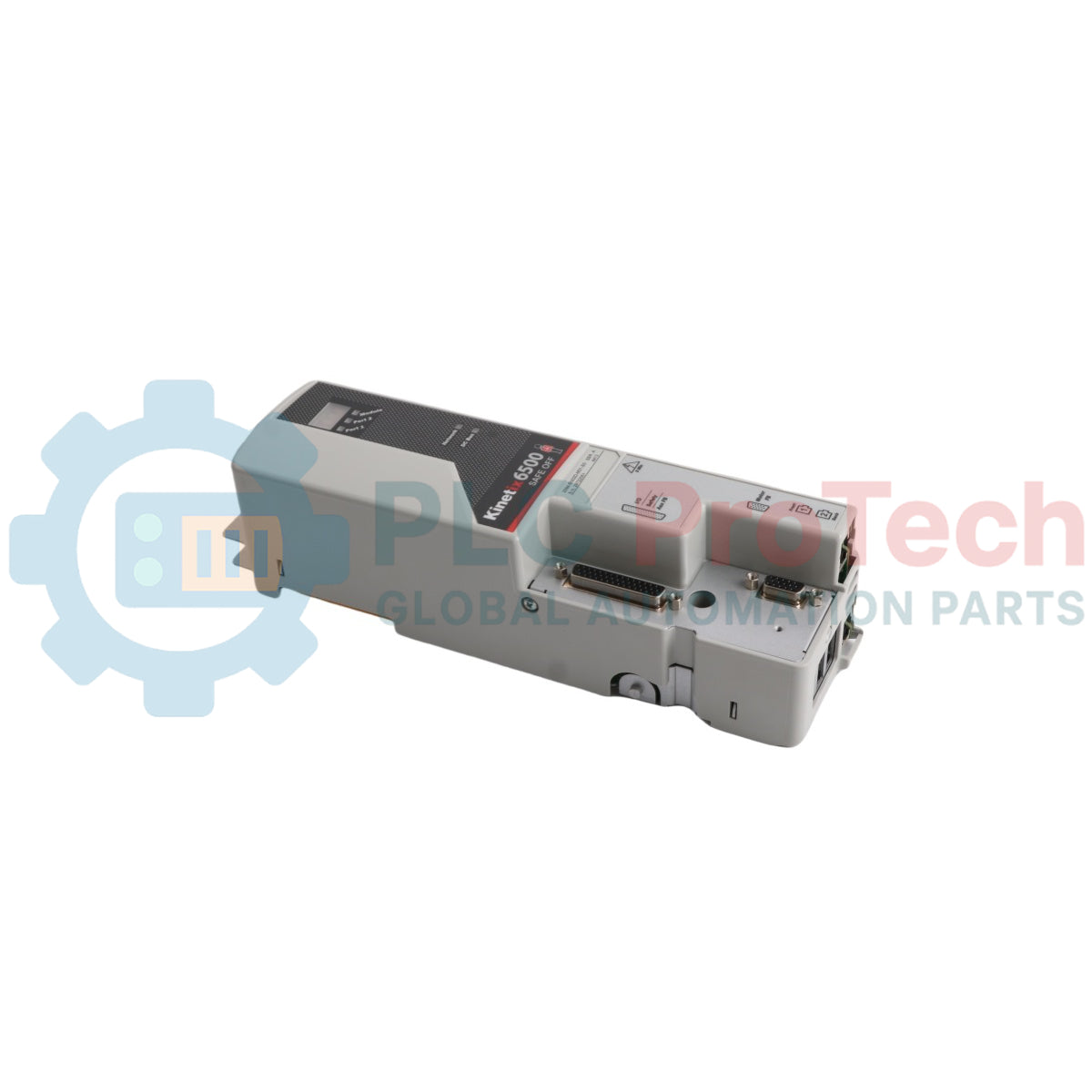

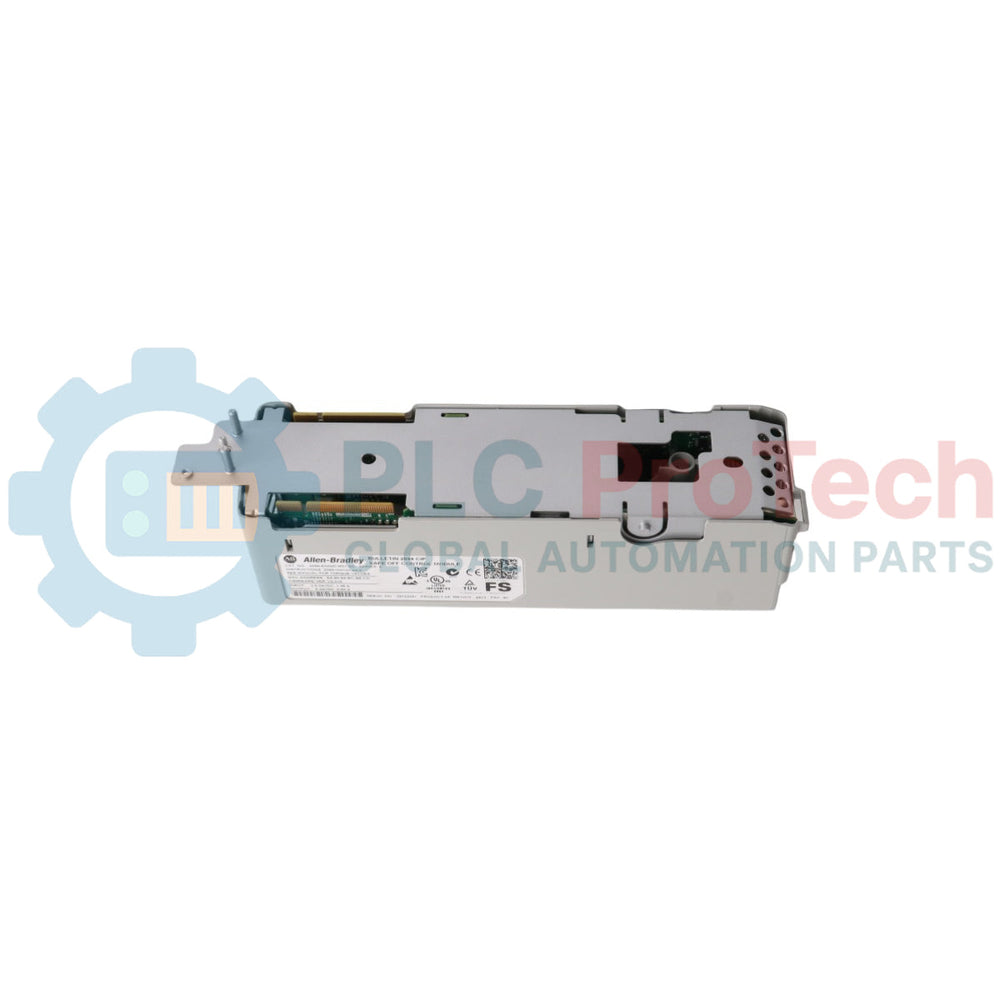

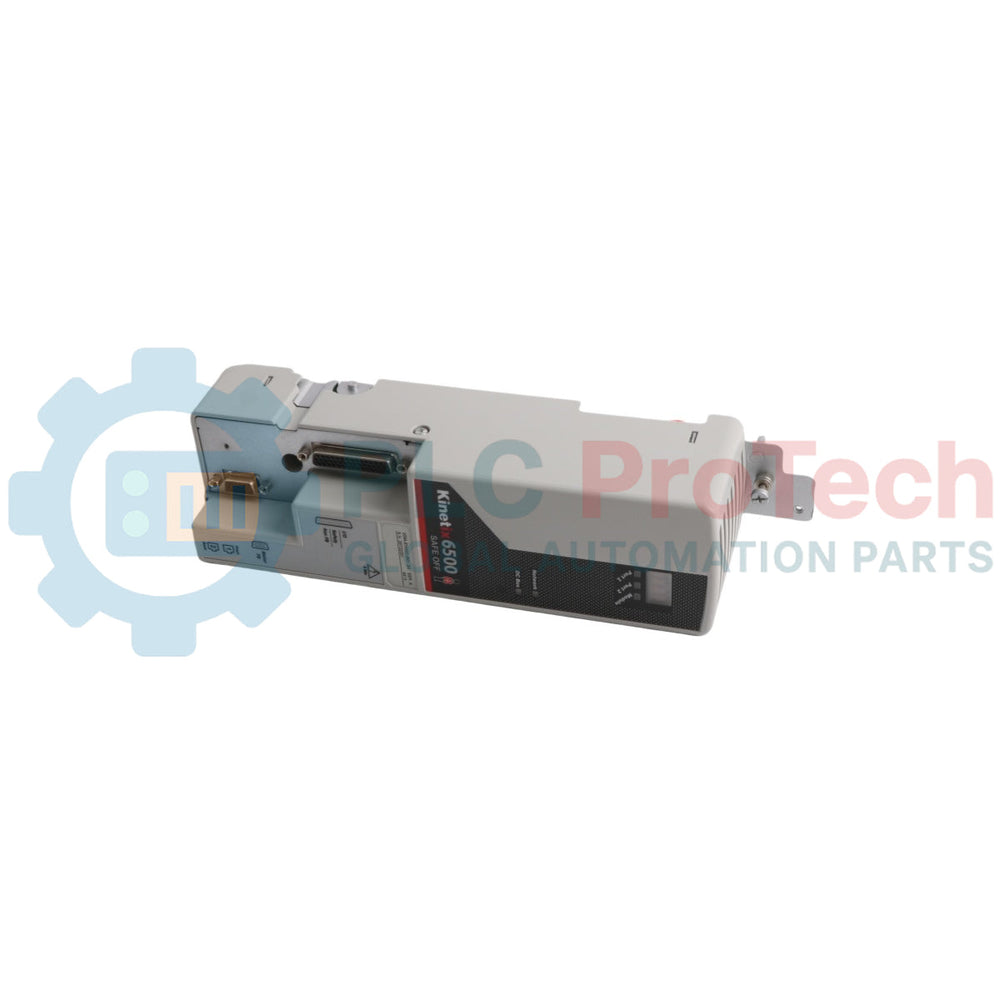

The Allen-Bradley 2094-EN02D-M01-S0 is an EtherNet/IP control module designed for the Kinetix 6500 multi-axis servo drive system. This control module interfaces directly with a Bulletin 2094 integrated axis module (IAM) power module or axis module (AM) power module, with each power axis requiring exactly one control module to operate. The 2094-EN02D-M01-S0 provides comprehensive connectivity including user digital I/O, embedded safety functions, auxiliary feedback, and motor feedback connections. Operating over an EtherNet/IP network, it enables seamless programming of the Logix5000 controller platform and facilitates direct access to safety configuration tools. This specific variant features integrated safe torque-off functionality to ensure regulated plant safety and machine protection configurations.

Features

• Integrated safe torque-off functionality for automated machine safety compliance
• Dual EtherNet/IP ports providing connections for controller programming and safety tool configuration
• Ships with one 44-pin motion-allowed plug for the IOD connector when safety functionality is unutilized
• Embedded solid-state motor overload protection algorithms running in compliance with UL 508C standards
• Dedicated multi-axis power rail mating architecture utilizing structural mounting studs and guide pins

Applications

• Multi-axis servo motor drive programming and control integration with Logix5000 controllers
• Industrial motion control applications utilizing Kinetix 6500 systems over EtherNet/IP networks
• Factory automation environments requiring certified safe torque-off protective functions

Technical Specifications

Connections/Interfaces

Installation Guidelines

• Power Module Mounting: Ensure the underlying IAM or AM power modules are fully mounted onto the Bulletin 2094 power rail prior to attaching the control module.
• De-energization Requirement: Remove all input power from the IAM power module before mounting. Verify that the Power-applied indicator is completely off to prevent component damage.
• Mechanical Alignment: Align the control module mounting studs with the power module hooks, then pivot the assembly inward to engage the signal connectors and guide pins.
• Torque Specifications: Secure the control module connection by tightening the top captive screw to a specified torque of 1.1 N-m (10 lb-in).
• Enclosure Cleanliness: Perform all enclosure modification steps (cutting, drilling, tapping) with the module removed to prevent falling metallic debris from compromising open-type circuitry.

Compliance and Certifications

• UL 508C (Solid-state motor overload protection)
