برد درایور گیت خودتأمین‌شده حلقه جریان آلن-برادلی 80190-520-01-R

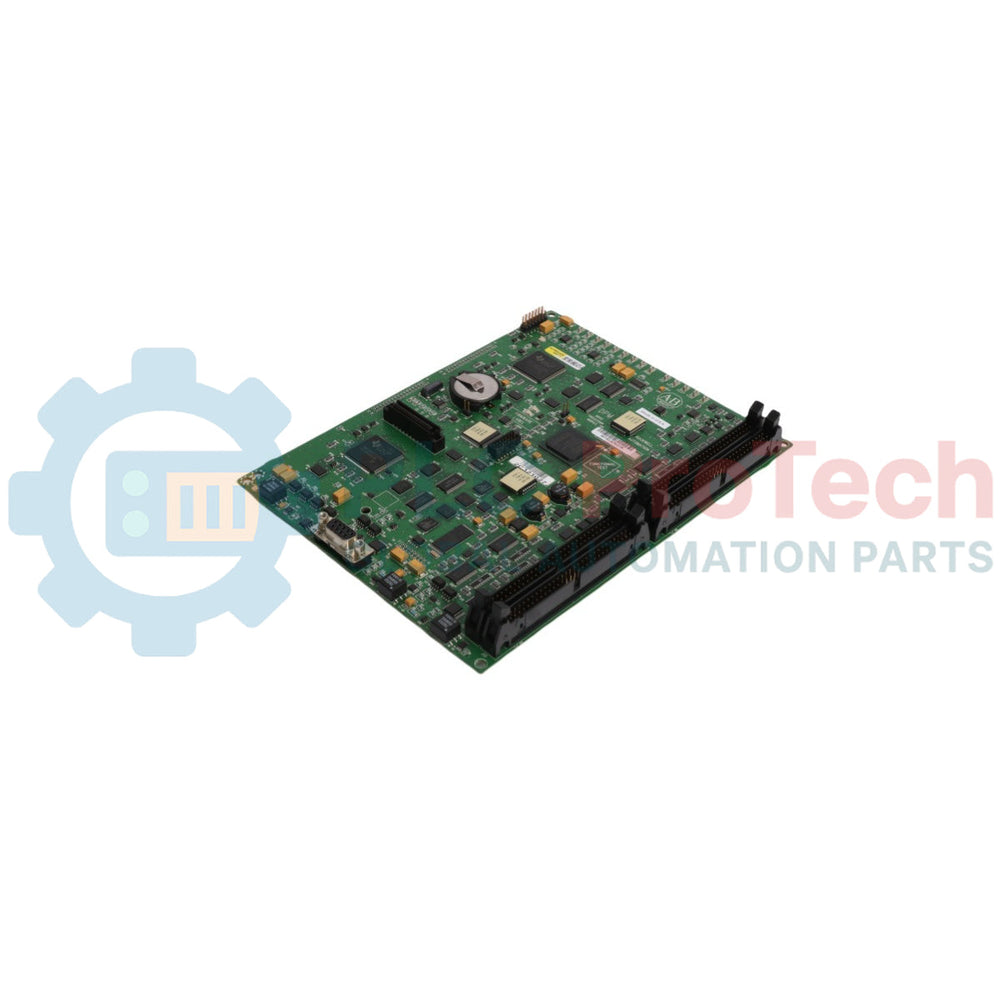

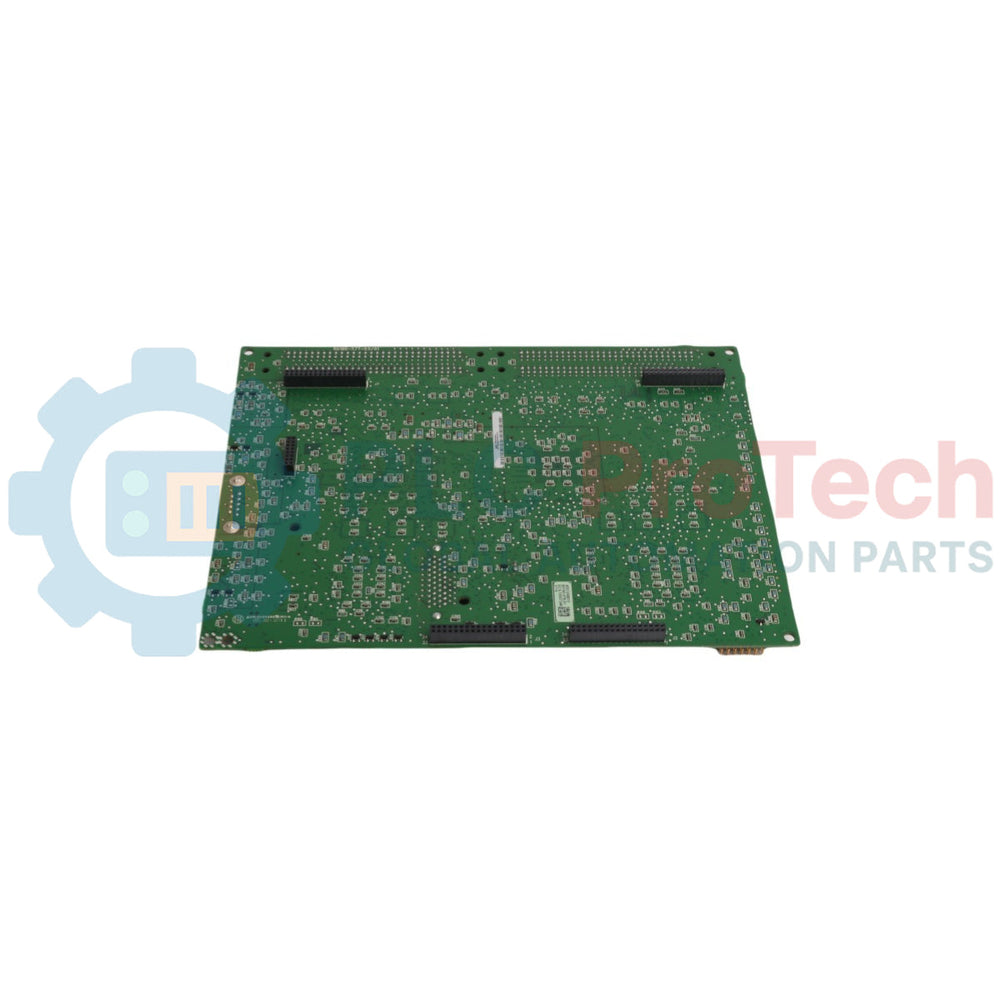

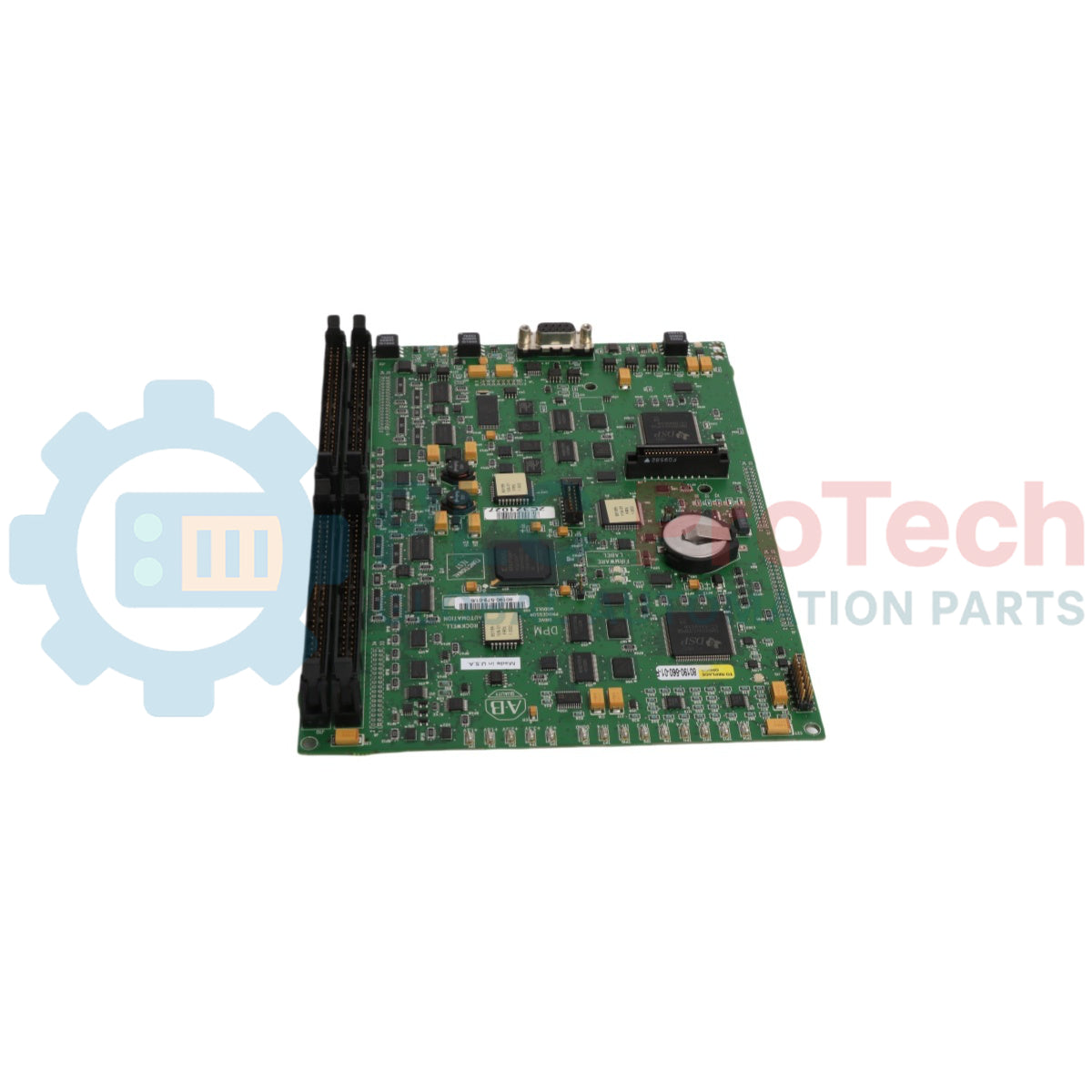

Allen-Bradley 80190-520-01-R is a current loop self-powered gate driver board (CLGD) designed for use within the CENTERLINE 1500 Medium Voltage SMC-50 Motor Controller system. The device provides the essential turn-on capability for silicon-controlled rectifier (SCR) power semiconductors by recovering energy primarily from the integrated snubber circuit, ensuring complete isolation from standard control and logic circuits. It also accepts structural connection to heatsink thermistors to continually monitor power module temperature.

Technical Specifications

Features

• Self-Powered Operation: Primarily derives internal operating power directly from the snubber circuit to achieve full electrical isolation from low-voltage logic circuits.
• Fiber-Optic Isolation: Utilizes an optical fiber interface for receiving gating source logic signals and transmitting status feedback safely across high-voltage boundaries.
• Integrated Thermal Monitoring: Interfaces directly with heatsink-mounted thermistors to halt gating operations and signal a temperature fault if the module exceeds 85 degC.
• Short-Term Backplane Power: Receives auxiliary short-term power from the integrated current loop power supply to maintain stable gate drive triggers.

Applications

• CENTERLINE 1500 Systems: Designed as a key power stack component in Bulletin 1503E, 1560F, and 1562F medium-voltage smart motor controllers.
• Industrial SCR Gating: Used in three-phase solid-state AC line controllers for managing induction motor starting and stopping configurations.

Installation Guidelines

• Static Precautions: This board contains electrostatic discharge (ESD) sensitive components; proper grounding wrist straps must be used during handling and installation.
• Fiber-Optic Handling: The fragile gray or black fiber-optic cables must be routed carefully to avoid impact or sharp bends that cause signal attenuation.
• Terminal Tightening: Secure all power assembly connections to the designated torque specification of 5.6 N-m (50 lb-in) to prevent contact resistance.
• Heatsink Mounts: Ensure the thermistor connections are properly seated to allow correct overtemperature feedback transmission via the optical links.
