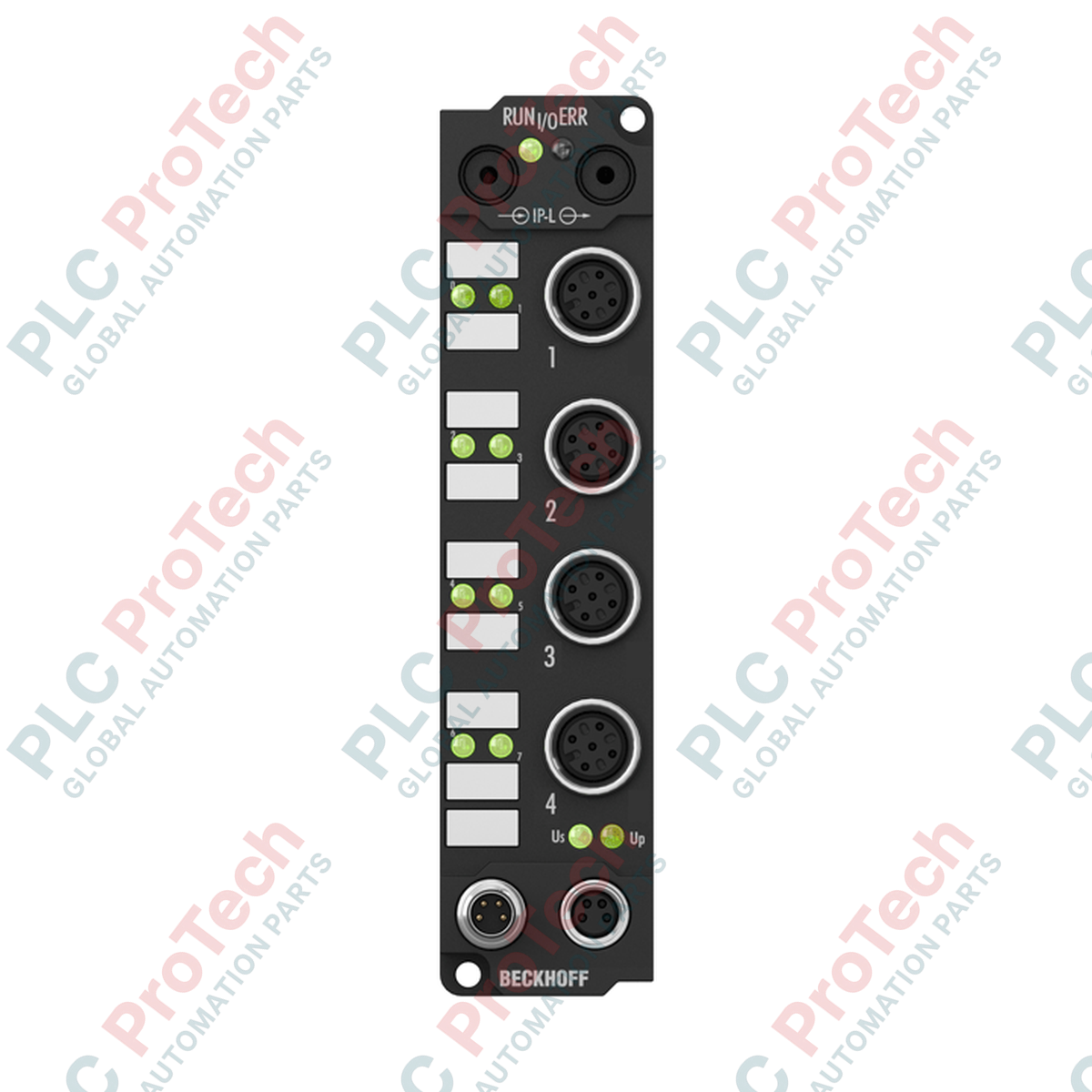

BECKHOFF IE3202 Fieldbus Box 4-Channel Analog Input Extension Box

Description

Designed for precise decentralized temperature acquisition, the BECKHOFF IE3202 Fieldbus Box extension module interfaces directly with resistive sensors in rugged, industrial environments. This IP67-rated analog input device facilitates the direct connection of up to four resistance thermometers without requiring protective control cabinets. By digitizing signals close to the physical process, it reduces noise susceptibility and cabling complexity.

The IE3202 supports a broad spectrum of RTD configurations, including standard Pt100, Pt200, Pt500, and Pt1000 sensors, alongside Ni100, Ni120, and Ni1000 variants. It also accommodates direct resistance measurements, such as those from potentiometers. Each of the four channels utilizes screw-type M12 connectors that can be wired in 2-wire, 3-wire, or 4-wire configurations (preset to 4-wire) to compensate for cable resistance errors and optimize measurement precision.

Operating as an IP-Link extension module, this device integrates seamlessly with Beckhoff Coupler Box modules, transferring digitized process data over high-speed IP-Link communication channels. The robust housing, high-resolution digitization, and configurable filtering capabilities make it an ideal choice for challenging distributed control architectures.

Features

• Four independent analog inputs dedicated to RTD and resistance measurements.
• Flexible M12 screw-type connections supporting 2-, 3-, and 4-wire configurations.
• Compatible with a comprehensive range of platinum (Pt) and nickel (Ni) sensors.
• High-resolution data acquisition at 0.1 degC per digit for sensitive thermal monitoring.
• Configurable conversion times ranging from a standard 250 ms down to 65 ms.
• Five configurable digital input filter variations for advanced noise rejection.
• IP-Link interface for fast, reliable data exchange with fieldbus couplers.
• Heavy-duty IP65/66/67 protection rating for direct mounting in harsh industrial zones.

Applications

• Decentralized process temperature tracking in plant engineering and machine construction.
• Thermal monitoring of motors, bearings, and critical mechanical assemblies.
• Food processing and washdown-heavy environments requiring direct-to-machine installation.
• HVAC, chemical processing, and environmental monitoring systems.

Technical Specifications

Connections and Interfaces

Installation Guidelines

• Mounting: Mount the unit directly onto a flat, vibration-resistant surface using appropriate fastening screws. Ensure sufficient clearance for connecting and disconnecting cables.
• Shielding & Grounding: To minimize electromagnetic interference, use shielded sensor cables. Connect the cable shields to the metal M12 connector housings wherever possible.
• Environmental Protection: To maintain the IP65/66/67 seal, tighten all M12 and M8 connectors to their specified torque limits. Seal any unused connection ports with industrial-grade protective caps.
• Cabling: Maintain separation between sensor input lines and high-power AC power cables or variable frequency drive outputs to prevent noise coupling.

Compliance and Certifications

• CE: European Conformity
• UL: Underwriters Laboratories Listed
