Bently Nevada 330908-00-16-10-01-05 3300 NSv Proximity Probe

فقط 8 قلم کالا در انبار باقی مانده است

تولیدکننده: Bently Nevada
شماره محصول: 330908-00-16-10-01-05
کشور سازنده:ایالات متحده آمریکا
نوع محصول: 3300 NSv Proximity Probes
بارکد: 8537101190
پرداخت: حواله بانکی (T/T)، وسترن یونیون
وزن: 120g
ابعاد: 45 mm x 90 mm x 90 mm (H x W x D)
بندر حمل و نقل: شیامن
گارانتی: ۱۲ ماه

Description

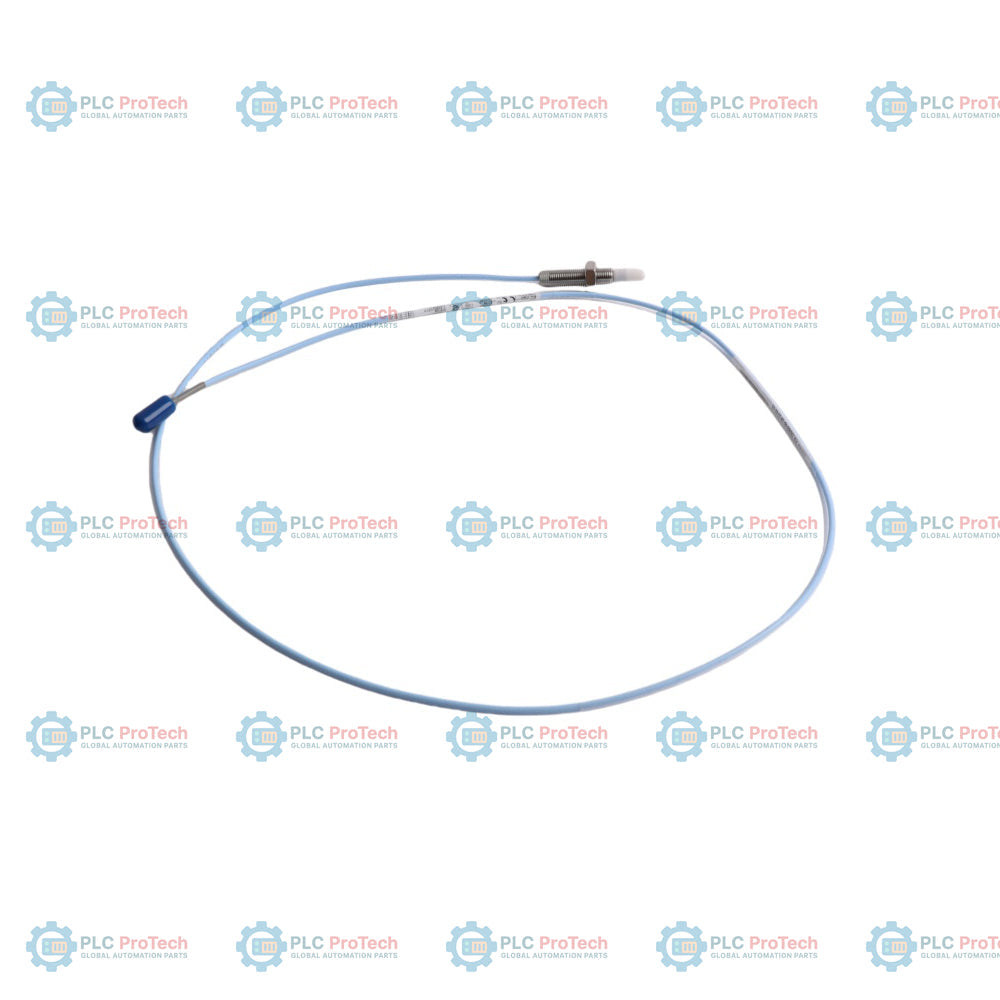

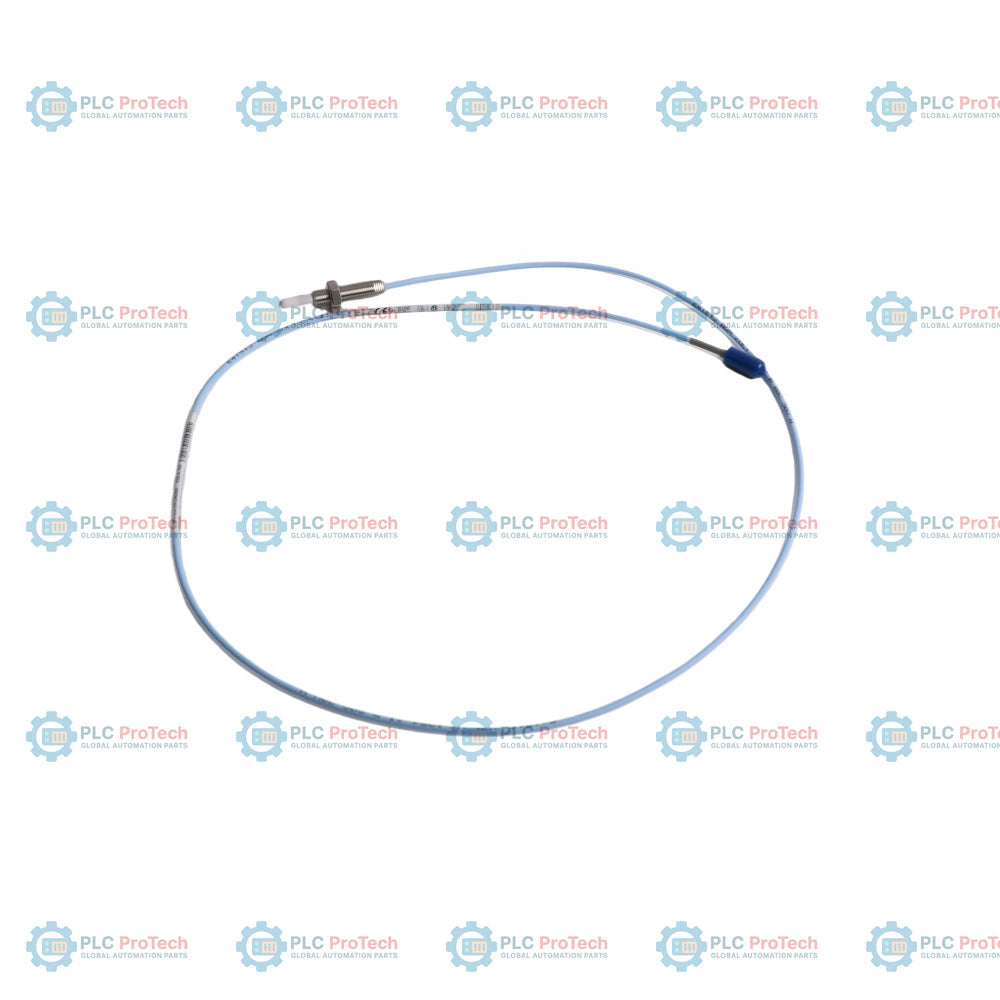

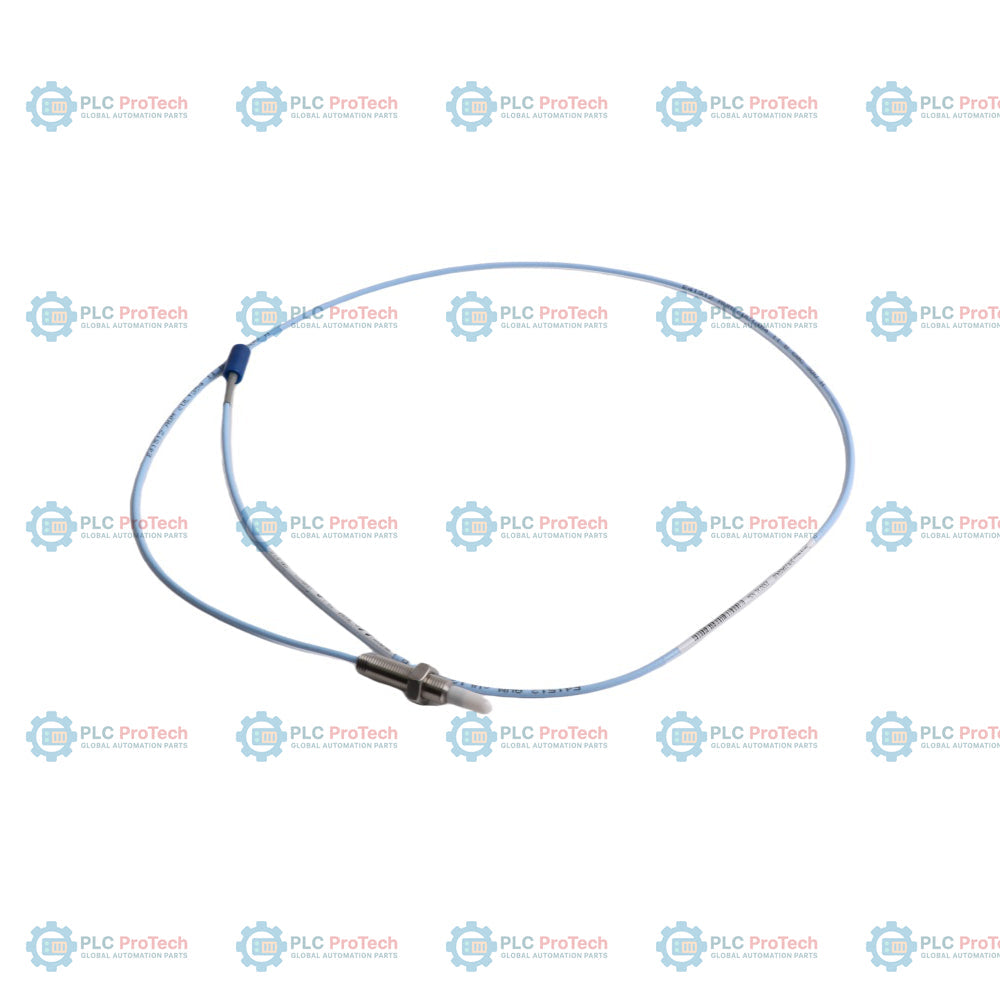

Option 00 (0.0 in unthreaded length), Option 16 (1.6 in overall case length), Option 10 (1.0 m total length), and Option 01 (miniature ClickLoc connector with connector protector) define the configuration of the 330908-00-16-10-01-05 3300 NSv Proximity Probe. This non-armored probe features a standard 3/8-24 UNF-2A thread body and is optimized for industrial rotating machinery with tight clearances or small shaft targets where standard 5 mm or 8 mm systems cannot be installed. By utilizing standard FEP-insulated coaxial cable without an outer stainless steel armor, this probe minimizes space requirements in compact or congested machine housings. This probe pairs with a 3300 XL NSv Proximitor Sensor and a 330930 extension cable to form a complete eddy-current displacement measurement system. The integrated fluorosilicone connector protector shields the ClickLoc connection joint from moisture, turbine oil, and other contaminants. Option 05 hazardous area certification provides global standard compliance for hazardous environments, enabling safe, long-term operation on high-speed centrifugal compressors, refrigeration compressors, and small-bore aeroderivative turbines.

Features

3/8-24 UNF-2A thread configuration without stainless steel armor reduces outer diameter footprint.
0.0 in unthreaded length permits full thread engagement across the entire 1.6 in case length.
1.0 m total probe lead length offers compact and direct routing inside machine casings.
Fluorosilicone connector protector pre-installed on the miniature coaxial ClickLoc connector seals out environmental contaminants.
Option 05 agency approval package simplifies multi-jurisdiction compliance across ATEX, IECEx, and North American hazardous areas.

Applications

Radial vibration and axial position monitoring on centrifugal air compressors.
Shaft displacement measurement on small-bore high-speed refrigeration compressors.
Speed and phase reference (Keyphasor) detection on aeroderivative gas turbines.
Tight clearance monitoring on fluid-filmed bearing machines with target diameters smaller than 51 mm.

Ordering Information

Option / Segment	Code on This SKU	Description
Orderable Part Number	330908-00-16-10-01-05	3300 NSv Proximity Probe, 3/8-24 UNF thread, without armor
A - Unthreaded Length	00	0.0 in unthreaded length
B - Overall Case Length	16	1.6 in (41 mm) case length
C - Total Length	10	1.0 meter (39 in) total length
D - Connector/Cable Option	01	Miniature coaxial ClickLoc connector with connector protector, standard cable
E - Agency Approval	05	Multiple Approvals (cNRTLus, ATEX, IECEx)

Technical Specifications

Parameter	Value / Specification
Manufacturer	Bently Nevada (Baker Hughes)
Model / Part Number	330908-00-16-10-01-05
Transducer System Series	3300 XL NSv Proximity Transducer System
Probe Thread Size	3/8-24 UNF-2A
Cable Construction	75 ohm coaxial, FEP-jacketed, without stainless steel armor
Linear Range	1.5 mm (60 mils), beginning at approximately 0.25 mm (10 mils) from target
Incremental Scale Factor (ISF)	7.87 V/mm (200 mV/mil) +12.5% / -20%
Deviation from Best Fit Straight Line (DSL)	Less than +/-0.06 mm (+/-2.3 mils) over 1.5 mm linear range
Recommended Gap Setting	1.0 mm (40 mils)
Power Supply Requirements	-17.5 Vdc to -26 Vdc (12 mA maximum consumption)
Probe Tip Material	Polyphenylene sulfide (PPS)
Probe Case Material	AISI 304 stainless steel (SST)
Probe dc Resistance (RPROBE)	4.2 +/- 0.5 ohms (center conductor to outer conductor)
Probe Pressure Seal	Viton O-ring
Maximum Rated Tensile Strength	220 N (50 lb) probe case to probe lead
Operating and Storage Temperature Range	-52 degC to +177 degC (-62 degF to +351 degF)
Minimum Target Requirements	Shafts smaller than 51 mm (2.0 in) for radial; flat targets smaller than 15 mm (0.6 in) for axial

Installation Guidelines

Standard mount 3/8-24 UNF-2A threads are supplied with a 9/16 inch lock nut and 5/16 wrench flats; tighten within recommended torque limits.
Ensure the target surface is composed of AISI 4140 steel or matches the specific calibration profile of your 3300 XL NSv Proximitor Sensor.
Avoid installing standard FEP cable runs near sharp edges; route through protective conduit or secure using cable clamps to prevent mechanical abrasion.
The ClickLoc coaxial connector should be mated by hand and protected with the pre-fitted fluorosilicone connector sleeve to ensure fluid-tight sealing.
Avoid exposing the Viton pressure seal to temperatures below -34 degC (-30 degF) for extended durations to maintain structural integrity.

Compliance and Certifications

EMC Directive 2014/30/EU (Standards: EN 61000-6-2, EN 61000-6-4)
RoHS Directive 2011/65/EU
Functional Safety: SIL 2 (HFT = 0), SIL 3 (HFT = 1)
Multiple Hazardous Area Approvals (Option 05): Class I, Zone 0: Ex ia IIC T5...T1 Ga; Class I, Div 1, Groups A, B, C, D (cNRTLus, ATEX, and IECEx)

Model Number / Title	Condition	Availability	Action
بنتلی نوادا 330901-00-78-10-02-00 پروب نزدیکی NSv 3300 XL	Original New	In Stock	View Details
بنتلی نوادا 330104-00-04-10-11-01 پروب نزدیکی 8 میلی‌متری 3300 XL	Original New	In Stock	View Details
بنتلی نوادا 330104-00-04-10-02-01 پروب نزدیکی 8 میلی‌متری 3300 XL	Original New	In Stock	View Details

Key Features:

#Bently Nevada 3300 NSv #Proximity Probes

Product Documentation

Technical Datasheet (PDF) Complete specifications and technical drawings.

What does the 01 connector and cable option signify for this probe?

The 01 option indicates that the probe is equipped with a miniature coaxial ClickLoc connector and a pre-installed fluorosilicone connector protector on a standard, non-armored FEP-insulated cable.

How do you select the correct extension cable for the 330908-00-16-10-01-05 probe?

Since this probe has a total length of 1.0 meter, it must be paired with a 4.0-meter extension cable (such as 330930-040) to reach the required 5.0-meter system length of the 3300 XL NSv Proximitor Sensor.

What are the unthreaded and case length dimensions for this specific SKU?

The 330908-00-16-10-01-05 has an unthreaded length of 0.0 inches (Option 00) and an overall threaded case length of 1.6 inches (Option 16).

Does this probe support installation in hazardous environments?

Yes, the Option 05 agency approval designates Multiple Approvals, allowing installation in hazardous zones under ATEX, IECEx, and cNRTLus (CSA) guidelines when properly wired with intrinsically safe barriers.
