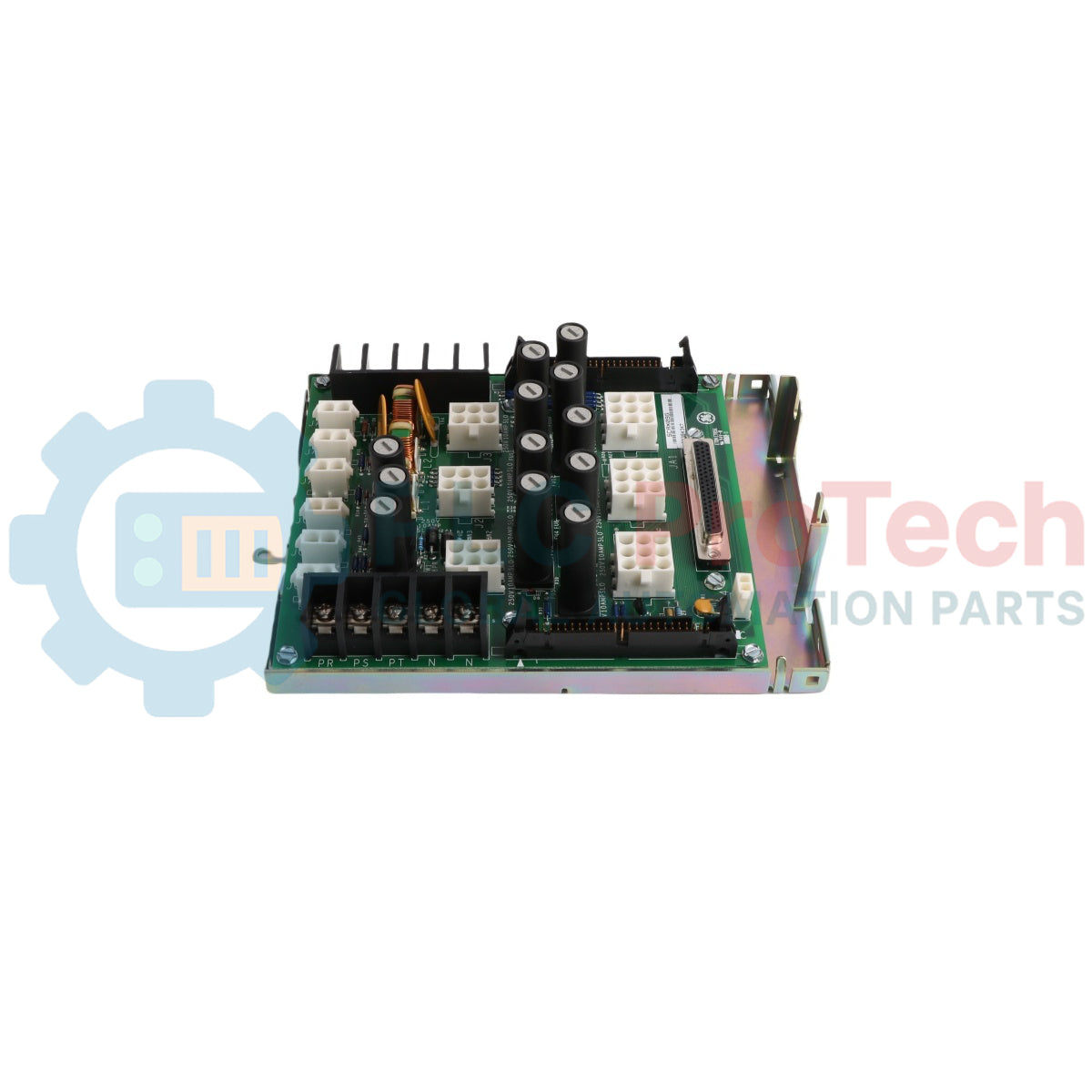

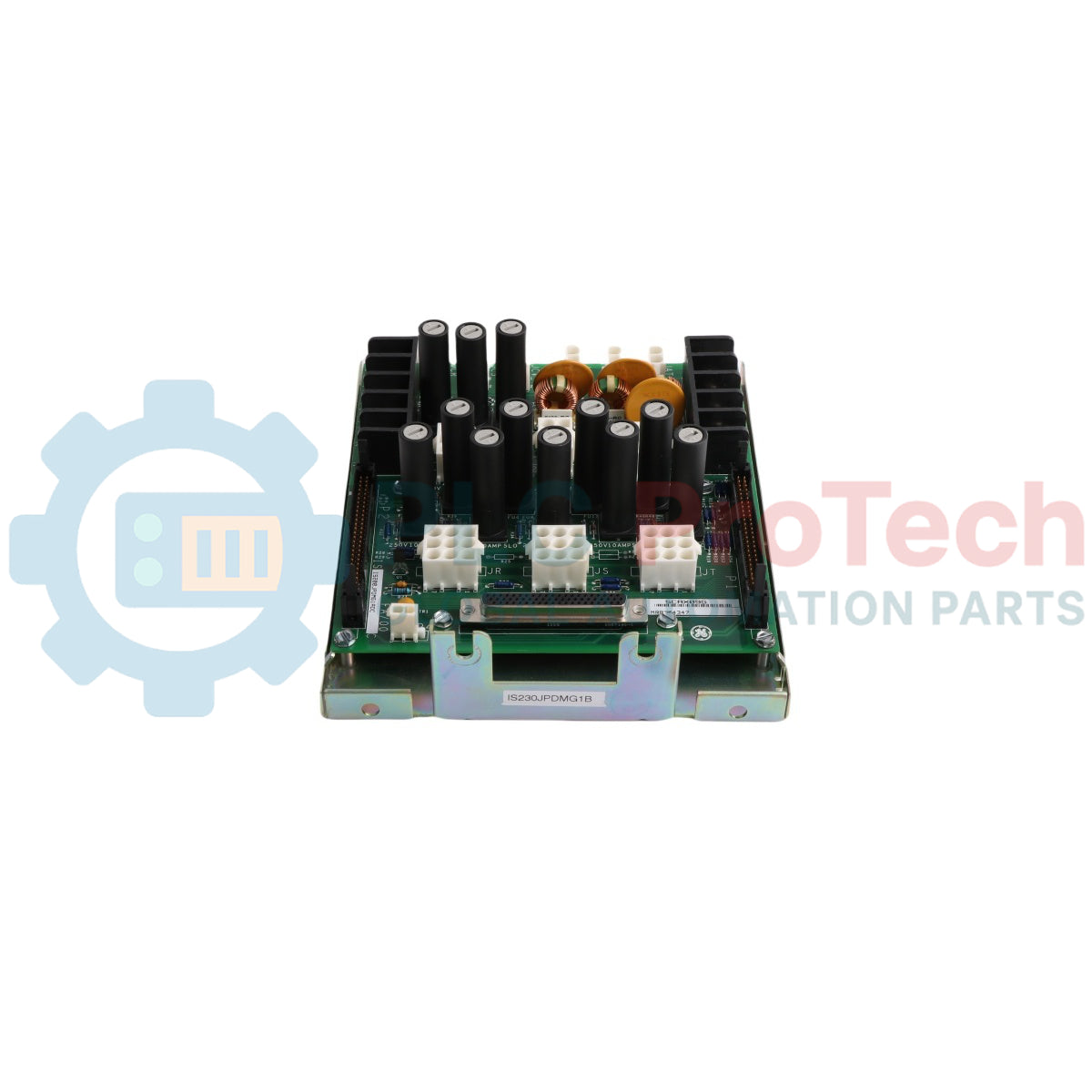

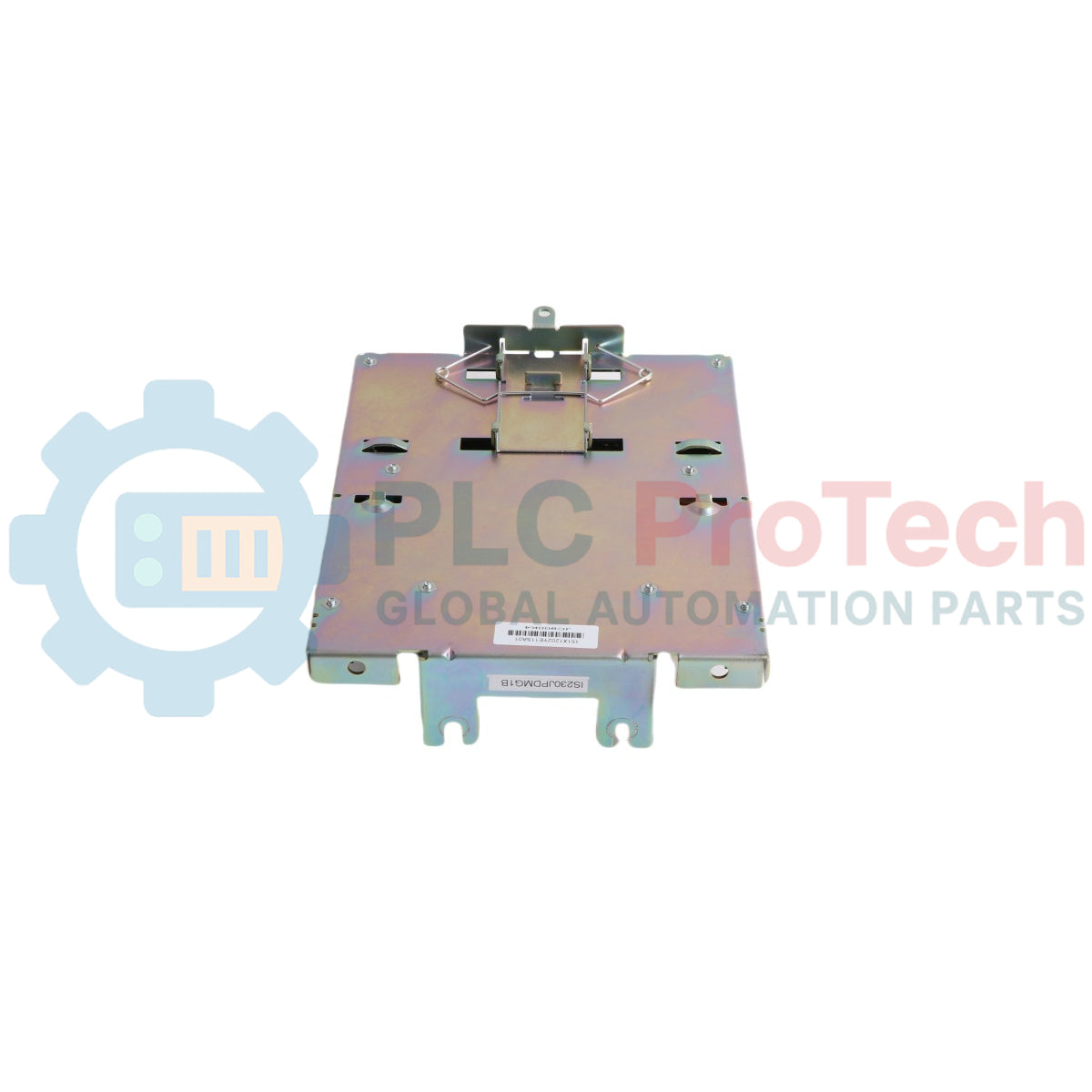

GE IS230JPDMG1B Mark VIe Power Distribution Module

Description

The IS230JPDMG1B is a core hardware component functioning as a Power Distribution Module designed for the Mark VIe control platform. It acts as a central hub for regulating and distributing operational voltage across critical system sub-assemblies. The underlying design consists of an integrated IS200JPDM power distribution board physically and electrically coupled with a PPDA I/O pack. The assembly processes 28 V dc source power supplied via external upstream AC/DC or DC/DC conversion hardware, ensuring clean bus rails for subsequent down-line system infrastructure. A specialized DC-62 interface provides high-integrity signal mapping from the board directly to the PPDA architecture, which actively manages module metrics, state verification, and diagnostics back to the master controller network.

Features

• Accepts triple-redundant (TMR) DC power distribution feeds via dedicated inputs.
• Complete branch-circuit isolation through independent on-board fuse protection.
• Active feedback routing integration for modern power distribution management.
• Interfacing compatibility with multiple external peripheral feed monitoring boards.
• Direct configuration compatibility with standard simplex hardware topologies.

Applications

• Distributed Control Systems (DCS) main panel power routing.
• Heavy duty gas and steam turbine safety control bus networks.
• Core power infrastructure filtering for critical industrial process plants.
• Thermal power generation asset management control subsystems.

Technical Specifications

Connections/Interfaces

Installation Guidelines

• Module Mounting: Attach securely into the designated enclosure footprint inside the Mark VIe hardware rack, ensuring precise alignment of heavy terminal connections.
• Grounding Protocols: Bond the chassis ground plane thoroughly to the low-impedance master cabinet ground array using an appropriate grounding strap to limit EMI exposure.
• Cable Routing: Segregate incoming heavy-gauge 28 V dc feed cabling from clean low-voltage control logic signals and network communication drops to avoid industrial cross-talk.
• Fuse Maintenance: Verify all branch circuit fuse ratings perfectly match the factory engineering requirements prior to initiating standard loop commissioning steps.
