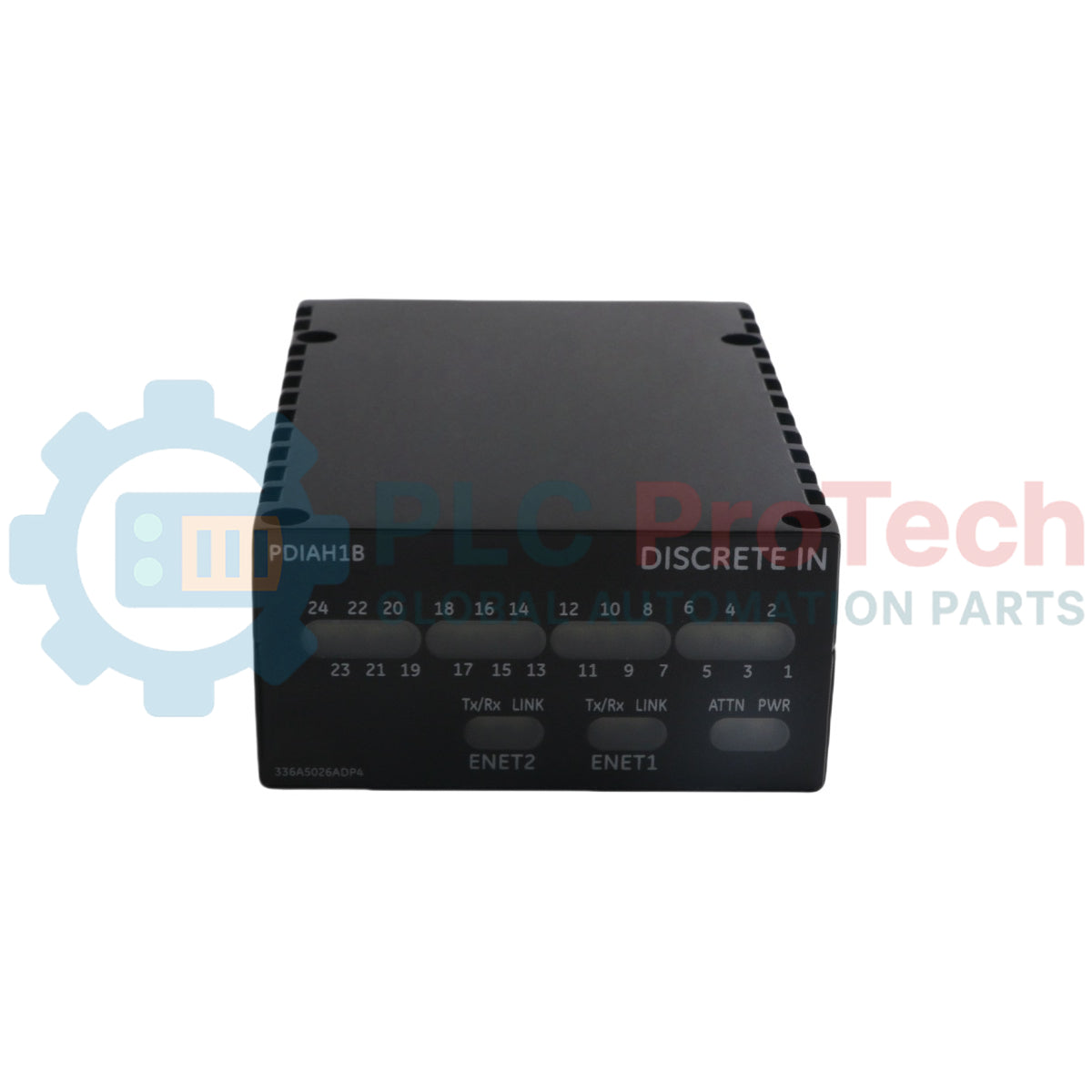

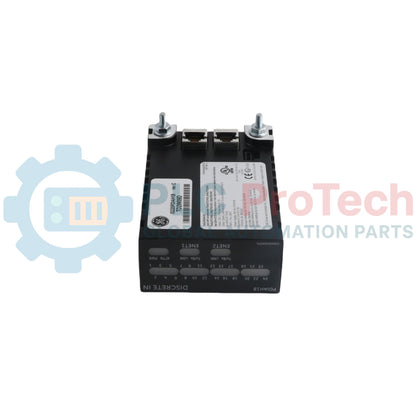

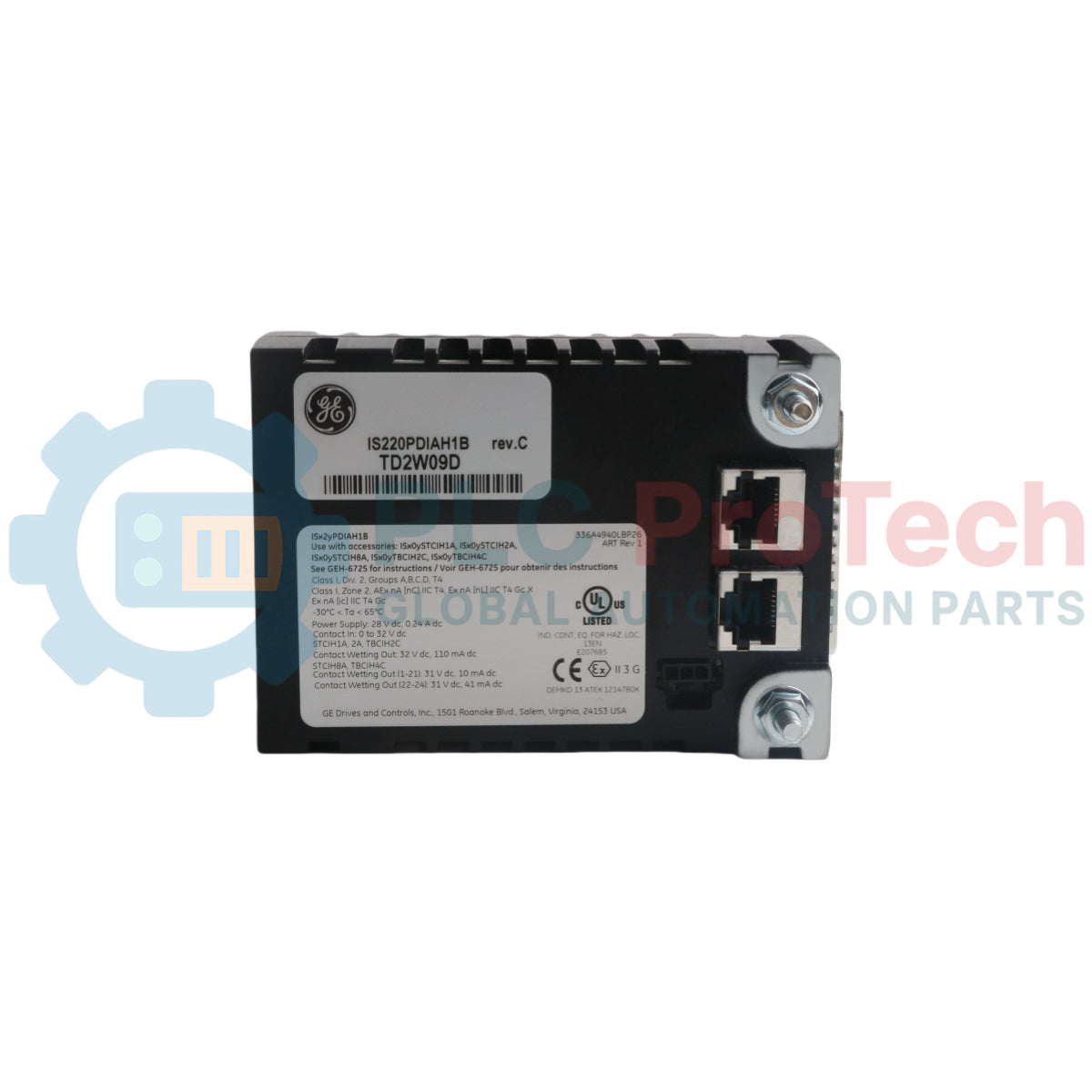

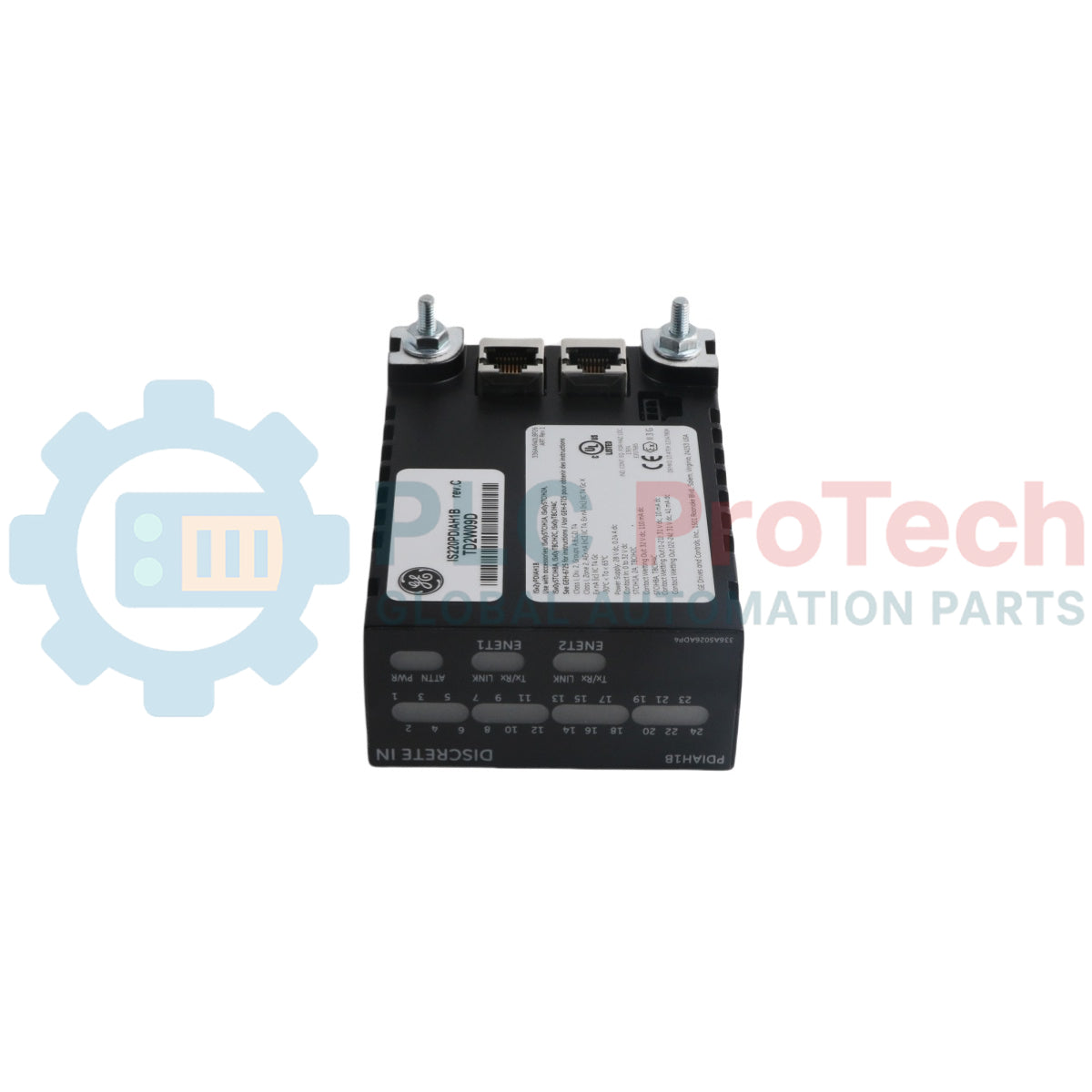

ماژول ورودی/خروجی گسسته General Electric IS220PDIAH1B Mark VIe

Description

The General Electric IS220PDIAH1B is a Discrete I/O module designed for use within the Mark VIe control system platform. This industrial component operates as a high-reliability interface for discrete input processing in critical control and automation architectures. The IS220PDIAH1B functions in coordination with certified terminal boards to process digital field signals under stringent hardware constraints. The device provides dedicated contact wetting outputs to interface securely with field switches and relay contacts. It is specifically certified for hardware applications deployed in hazardous locations.

Features

• Dedicated hardware processing for robust industrial discrete signaling.
• Integrated contact wetting power framework supporting field devices.
• Intrinsic safety "ic" compatibility when paired with designated accessory terminal boards.
• Support for multiple field connection block topologies including Euro-style and barrier blocks.
• Built-in transient voltage limiting mechanisms for reliable voltage regulation.

Applications

• High-availability industrial automation systems.
• Power generation and turbine control systems.
• Critical infrastructure and industrial process control applications.
• Distributed I/O processing networks in hazardous areas.

Technical Specifications

Connections/Interfaces

Installation Guidelines

• Enclosure Requirements: Install the open-type equipment inside a secure environmental enclosure that requires a tool or key to open.
• Transient Voltage Regulation: Ensure provisions are implemented to limit power supply transient voltages to less than 140% of the peak rated power supply voltage.
• Power Limitations: Power must be supplied through a certified power distribution board that limits the available current to 3.5 A maximum.
• Terminal Wiring: Strip field wiring insulation locally without adding intermediate components other than standard bare conductor replication parts such as ferrules.
• Wiring Standards: Apply appropriate Class I Division 2 or Zone 2 wiring methods conforming to local codes and authority regulations.
• Screw Torques (Euro Blocks): Secure connections to a nominal torque of 4 in-lb (0.45 Nm) for wire sizes from 24 AWG to 12 AWG.
• Screw Torques (Barrier Blocks): Secure connections to a nominal torque of 9.6 in-lb (1.1 Nm) for wire sizes from 22 AWG to 12 AWG.
