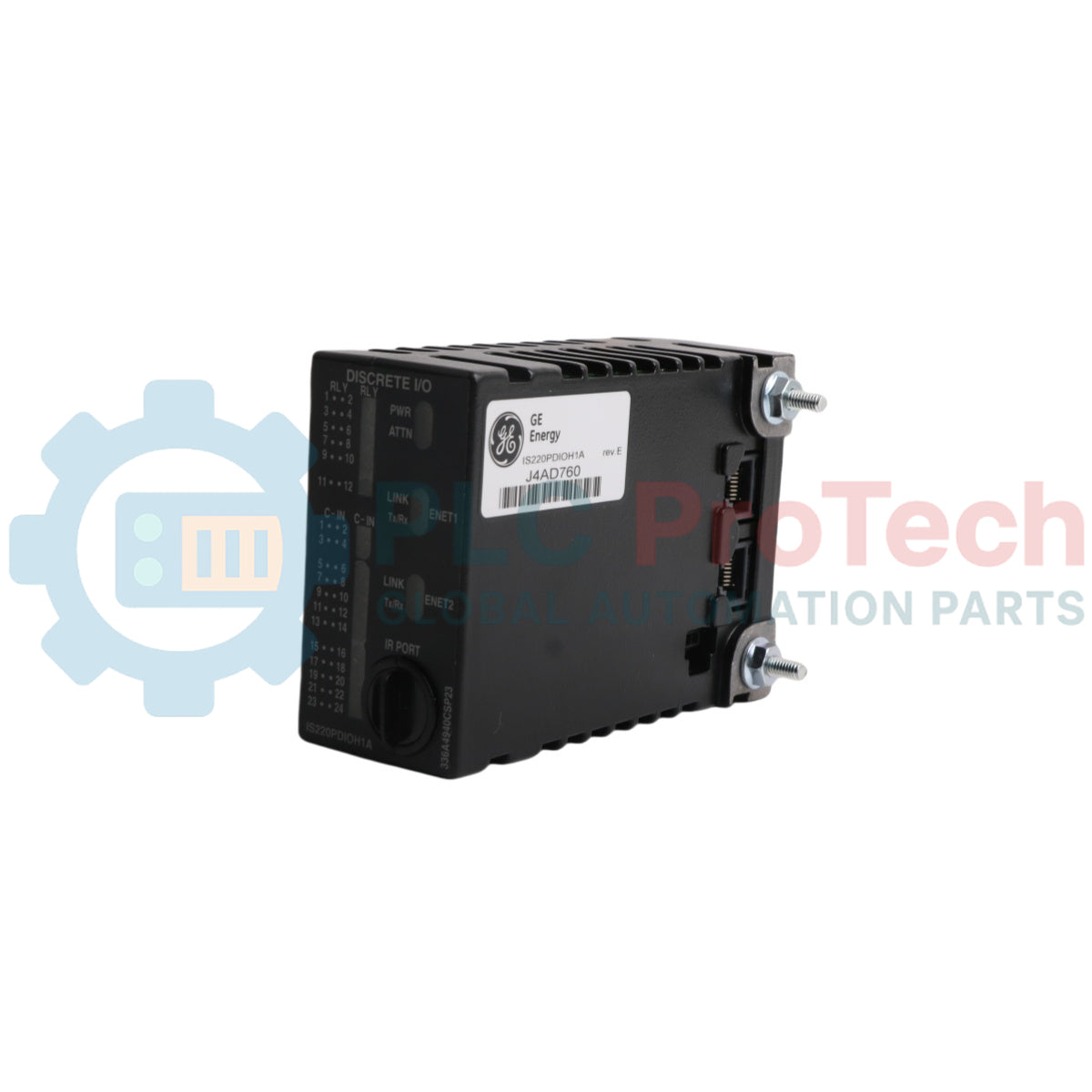

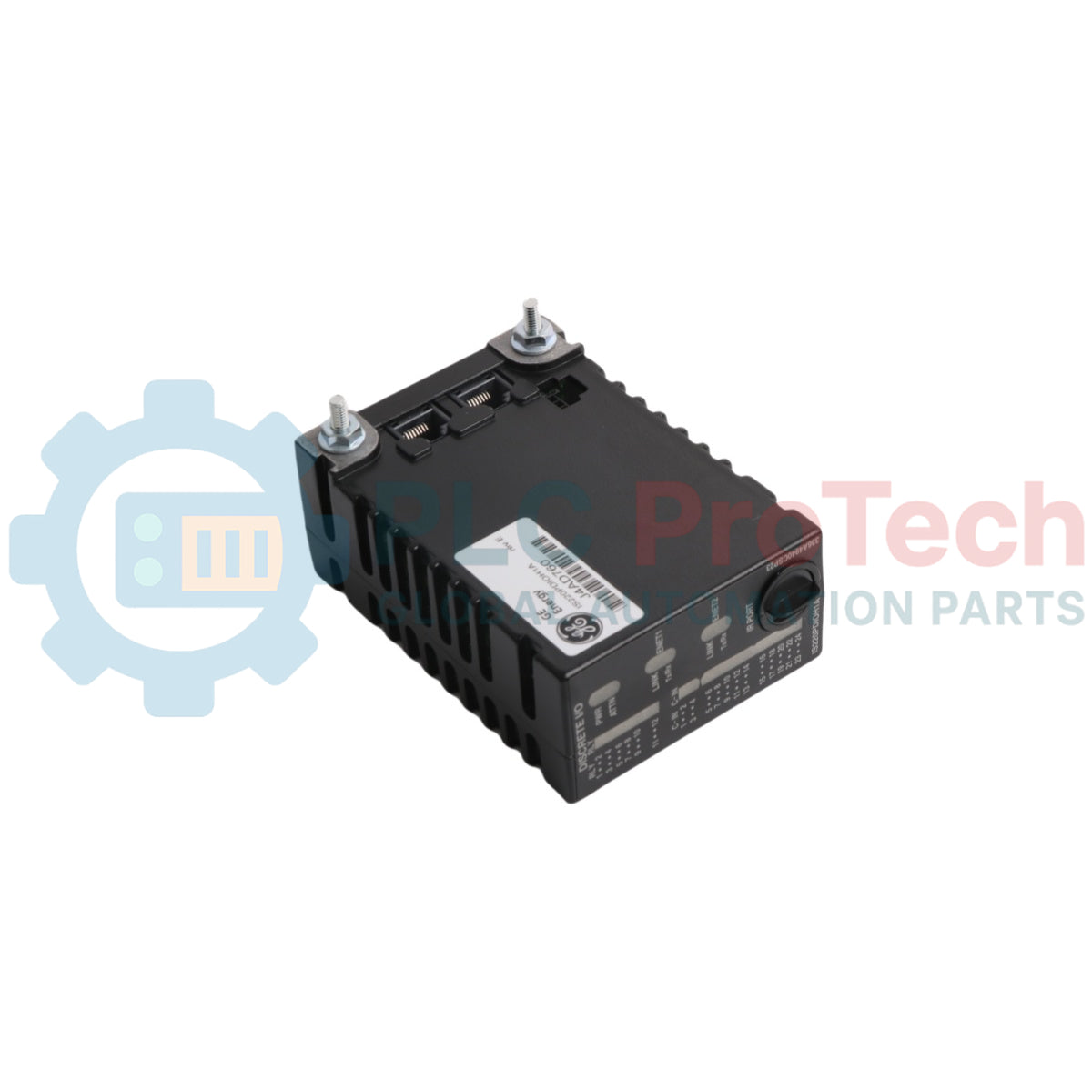

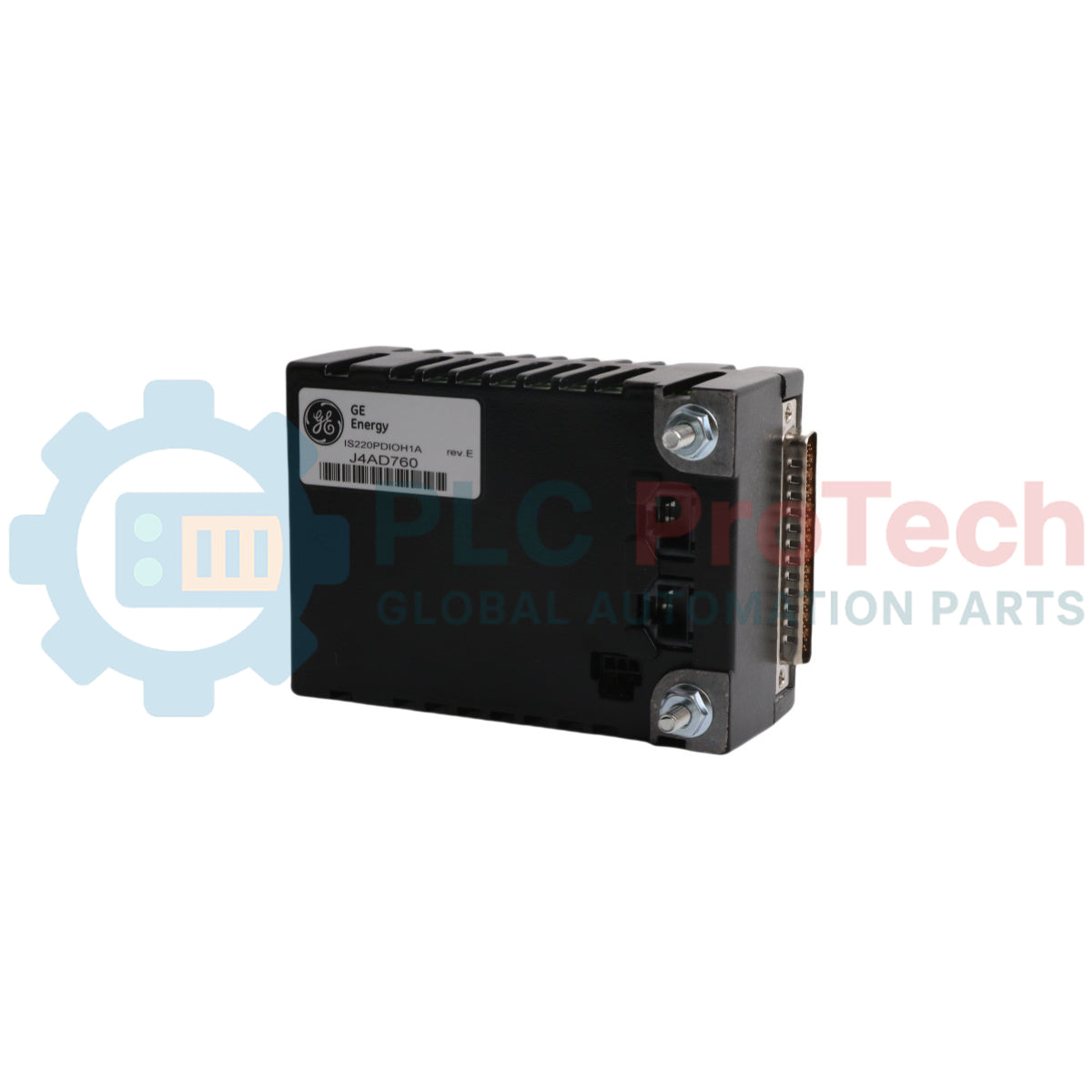

بسته ورودی/خروجی گسسته General Electric IS220PDIOH1A Mark VIe

Description

The IS220PDIOH1A is a discrete input/output pack designed for the Mark VIe control system. This device interfaces between one or two Ethernet networks and a discrete I/O terminal board to handle digital signals. It supports various discrete I/O functions and terminal board combinations to provide reliable signal conditioning and diagnostic capabilities for industrial control applications. The module provides a compact and localized interface to the controller, reducing field wiring complexity and enhancing system distribution.

Features

• Dual RJ45 Ethernet ports for redundant network communication
• Internal temperature sensor monitoring for hardware diagnostics
• Local status LEDs providing visual hardware health and communication status
• Direct mounting capabilities to compatible terminal boards
• Integrated hardware diagnostics and electronic ID reporting

Applications

• Power generation control systems
• Industrial automation and process control
• Distributed I/O network topologies
• Mark VIe system upgrades and replacements

Technical Specifications

Installation Guidelines

• Ensure the module is mounted securely to the designated compatible terminal board.
• Connect the redundant Ethernet cables to the two RJ45 ports to maintain network availability.
• Follow standard industrial grounding and shielding procedures for all connecting field wiring.
• Maintain adequate cooling clearance and ventilation within the enclosure based on the specified ambient temperature rating.
