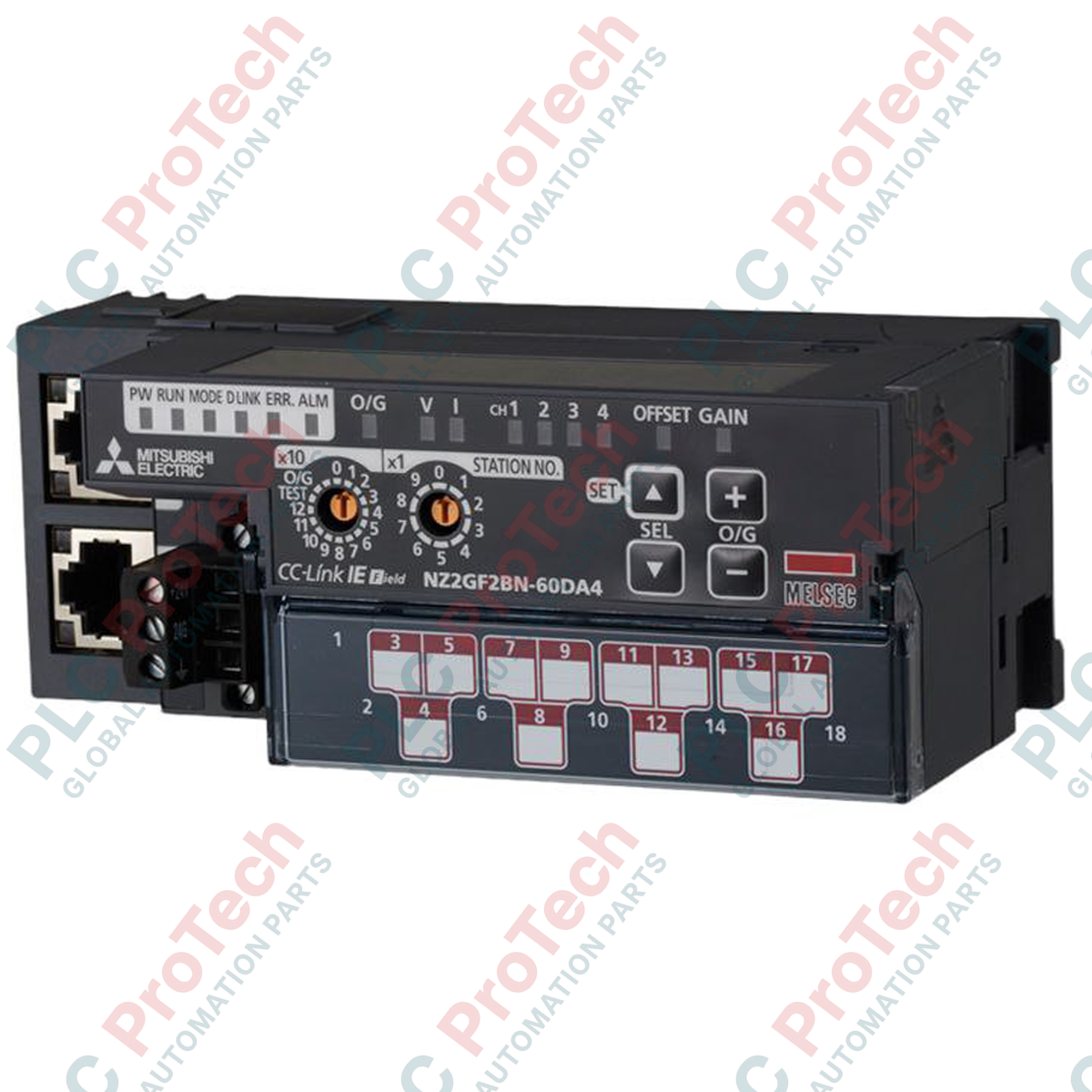

Mitsubishi Electric NZ2GF2BN-60DA4 CC-Link IE Field Analog Output Module

فقط 10 قلم(های) کالا در انبار باقی مانده است

تولیدکننده: Mitsubishi Electric
شماره محصول: NZ2GF2BN-60DA4
کشور سازنده:ایالات متحده آمریکا
نوع محصول: Analog Output Modules
پرداخت: حواله بانکی (T/T)، وسترن یونیون
وزن: 1500g
بندر حمل و نقل: شیامن
گارانتی: ۱۲ ماه

Facilitating high-speed digital-to-analog conversion within CC-Link IE Field networks, the Mitsubishi Electric NZ2GF2BN-60DA4 serves as a high-precision remote device station featuring four independent analog output channels. This module converts 16-bit signed binary digital values into precise voltage or current signals to drive field actuators, control valves, and speed regulators in complex industrial automation architectures.

Key Features

Four High-Resolution Channels: Supports independent configuration for voltage (-10 to 10 VDC) or current (0 to 20 mADC) outputs.
Robust Signal Isolation: Features photocoupler isolation between the communication system and analog outputs, alongside transformer isolation between the power supply and analog circuits.
Output Short-Circuit Protection: Integrated protection circuitry prevents module damage from field wiring faults or shorted loads.
Flexible Network Topology: Dual RJ45 ports support line, star, and ring topologies on CC-Link IE Field networks.
Removable Terminal Block: Two-piece 18-point terminal block simplifies pre-wiring, commissioning, and hot-swapping procedures.

Industrial Applications

Proportional control valve positioning in hydraulic and pneumatic systems.
Speed reference distribution to variable frequency drives (VFDs).
Setpoint transmission to SCR power controllers in industrial heating applications.
Remote signal generation for paper, steel, and textile tension control systems.

Technical Specifications

Parameter	Specification
Manufacturer	Mitsubishi Electric
Model Number	NZ2GF2BN-60DA4
Product Type	Main D/A Converter Module
Station Type	Remote device station
Analog Output Channels	4 channels (4 points)
Digital Input Resolution	16-bit signed binary (-16384 to 16383, -288 to 12287, -12288 to 12287)
Voltage Output Range	-10 to 10 VDC (External load: 1k ohm to 1M ohm)
Current Output Range	0 to 20 mADC (External load: 0 ohm to 600 ohm)
Output Protection	Short-circuit protected
Isolation (Comm to Analog)	Photocoupler isolation
Isolation (Power to Analog)	Transformer isolation
Isolation (Channel to Channel)	Non-isolated
Withstand Voltage	500 VAC for 1 minute (between power/comm and analog outputs)
Communication Interface	RJ45 connector (CC-Link IE Field)
Power Supply Terminal	M2.5 screw terminal block (Tightening torque: 0.5 to 0.6 Nm)
I/O Terminal Block	18-point two-piece terminal block, M3 screws (Tightening torque: 0.43 to 0.57 Nm)
Module Weight	0.29 kg
Shipping Weight (Calculated)	1.50 kg

Connections and Interfaces

Interface Type	Terminal / Pin Assignment	Functional Assignment
RJ45 Ports	PORT1 / PORT2	CC-Link IE Field Network connection (supports line/ring topologies)
Power Terminal Block	24V, 0V, FG	Module 24 VDC power input and Frame Ground
18-Point Terminal Block	V+, I+, COM (Channels 1 to 4)	Analog voltage/current outputs and common reference lines

Alternative Models & Compatibility

The NZ2GF2BN-60DA4 is specifically designed for CC-Link IE Field networks and is not compatible with legacy CC-Link or CC-Link IE Field Basic protocols. Ensure that the master station PLC is equipped with a compatible CC-Link IE Field Master/Local module (such as the RJ71GF11-T2 or QJ71GF11-T2) and that the correct CSP+ profile is registered in GX Works2 or GX Works3 prior to network configuration.

Application Pitfalls & Engineering Notes

Because there is no channel-to-channel isolation on this module, all analog output common (COM) terminals are internally tied together. Connecting field devices with differing ground potentials can create ground loops, resulting in signal drift, measurement errors, or hardware degradation. If channel-to-channel isolation is required by your application, external signal isolators must be installed between the module outputs and the field devices.

Commissioning & Wiring Tips

Always use high-quality double-shielded twisted-pair cables for analog signal runs. Ground the shield at only one end (typically the control panel side) to prevent ground loop currents. Ensure the Frame Ground (FG) terminal on the power supply block is connected to a dedicated class-D ground (100 ohms or less) using a minimum of 2 mm2 wire to minimize high-frequency noise interference from adjacent variable frequency drives.

Installation Guidelines

CRITICAL WARNING: Prior to commencing any installation, wiring, or maintenance activities, ensure all incoming AC and DC power sources to the control panel are completely de-energized. Verify the absence of voltage using a calibrated digital multimeter. Failure to isolate power can result in severe electrical shock, equipment destruction, or erratic control system behavior.

Mount the module securely to a 35mm DIN rail, ensuring the DIN rail hook is locked in place.

Connect the CC-Link IE Field Ethernet cables to PORT1 and PORT2, ensuring the RJ45 connectors click firmly into position.

Wire the 24VDC module power supply and FG to the dedicated M2.5 terminal block, tightening to the specified torque of 0.5 to 0.6 Nm.

Connect the analog output signal wires to the 18-point removable terminal block, ensuring M3 screws are torqued to 0.43 to 0.57 Nm, then plug the block securely into the module.

Key Features:

#Analog Output Modules #CC-Link IE Field

Does the NZ2GF2BN-60DA4 support channel-to-channel isolation?

No, the module features photocoupler isolation between communication and analog circuits, and transformer isolation between power and analog circuits, but the individual analog output channels are non-isolated from each other.

What is the maximum load resistance supported for current output mode?

In current output mode (0 to 20 mADC), the module supports an external load resistance range of 0 ohm to 600 ohm.

How do I configure this module in GX Works3?

You must import the corresponding CSP+ profile file for the NZ2GF2BN-60DA4 into GX Works3, then add the module to your CC-Link IE Field network configuration map.
