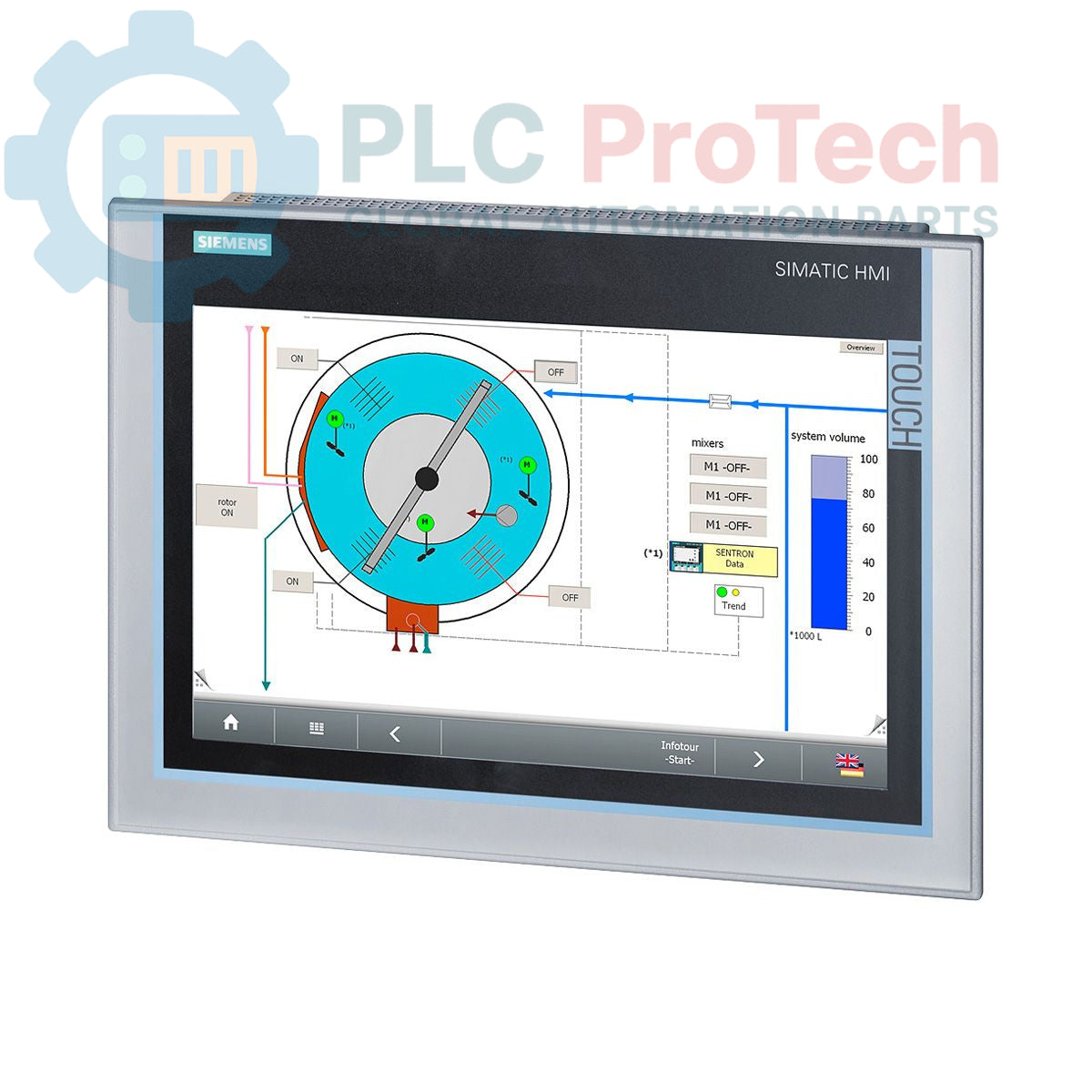

Siemens 6AV7240-3AC04-0PA0 SIMATIC IPC 477D Panel PC

Description

Features

• 12-inch Touch Display
• Intel Core i3-3217UE Processor
• 4 GB RAM
• 240 GB SSD (MLC) Storage
• Windows Embedded Standard 7, 32-bit (without SIMATIC software)
• 4x USB (rear)
• 1x Ethernet (10/100/1000 Mbps)
• 2x Gigabit Ethernet (IE/PN)
• 1x RS-232 Serial Interface
• 24 V DC Industrial Power Supply
• Designed for drive-less replacement

Applications

• Machine control and visualization
• Process monitoring and data acquisition
• Operator control stations in manufacturing environments
• Distributed control systems (DCS) integration
• Building automation and infrastructure management

Technical Specifications

Connections / Interfaces

• USB Ports: 4 ports located at the rear for connecting peripherals.
• Ethernet Ports: 1x 10/100/1000 Mbps port and 2x Gigabit Ethernet ports (IE/PN) for network connectivity and industrial communication.
• RS-232 Port: 1 serial interface for legacy device communication or specific industrial protocols.

Installation Guidelines

1. De-energize System: Before beginning installation, ensure all power to the system and associated equipment is de-energized and locked out according to safety procedures.
2. Mounting: Mount the panel PC securely into a suitable control cabinet or panel cutout. Ensure adequate clearance for ventilation and cable routing.
3. Power Connection: Connect the 24 V DC industrial power supply to the designated power input terminals. Verify correct polarity before applying power.
4. Grounding: Establish a robust protective earth (PE) connection to the panel PC chassis to ensure electrical safety and minimize electromagnetic interference.
5. Interface Connections: Connect Ethernet cables to the appropriate ports for network and industrial communication. Connect USB devices and RS-232 peripherals as required.
6. Cable Management: Route all cables to prevent strain, interference, and damage. Use cable ties and conduits where necessary.
7. Environmental Considerations: Ensure the operating environment meets the specified temperature and humidity ranges for the device. Avoid direct sunlight, excessive vibration, and corrosive atmospheres.
8. Power Up: After all connections are verified, re-energize the system.
