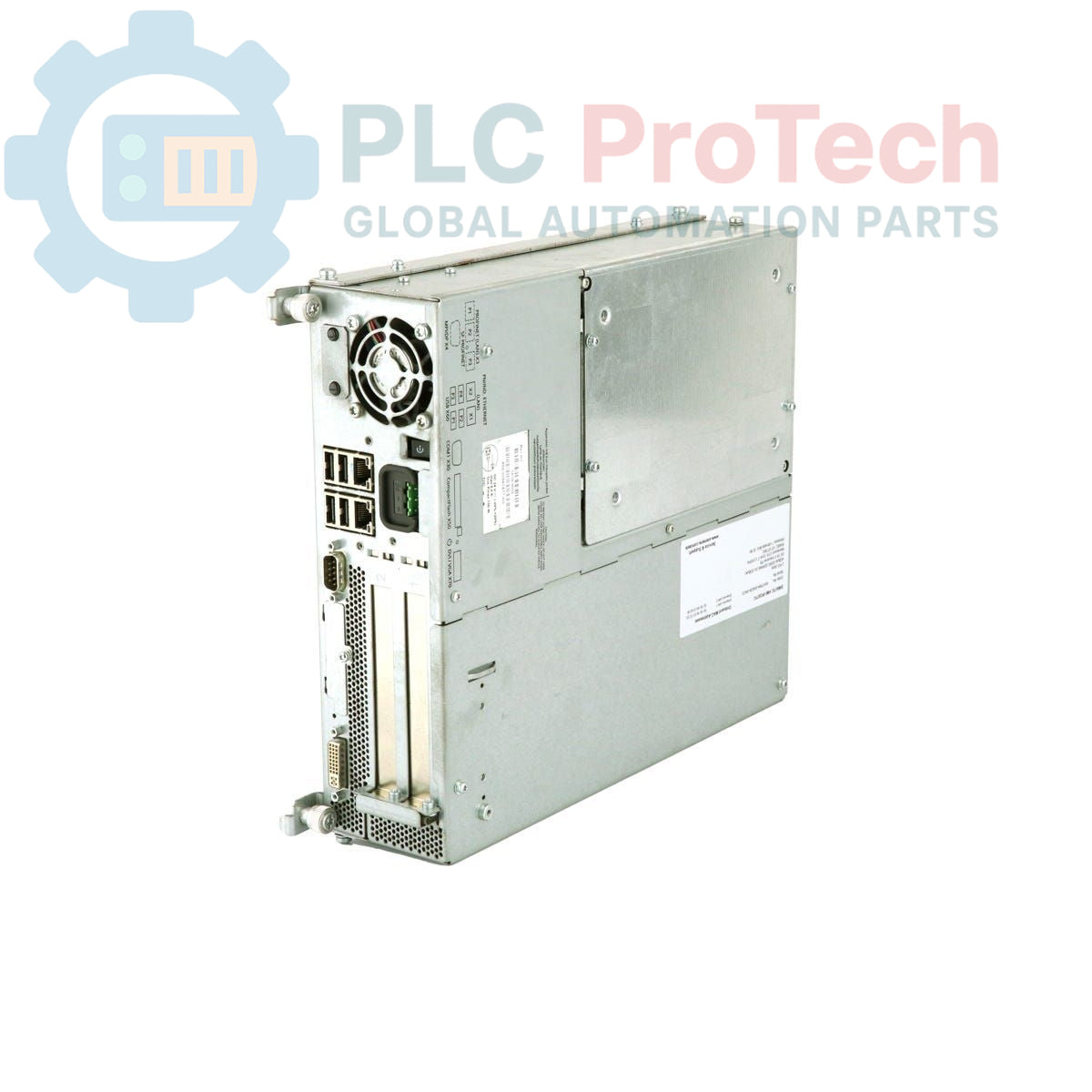

Siemens 6AV7892-0AG00-1AA0 SIMATIC IPC677C Panel PC

Description

This device is a SIMATIC HMI IPC677C series industrial Panel PC from Siemens, model 6AV7892-0AG00-1AA0. It is engineered for demanding human-machine interface (HMI) and control tasks in industrial environments. The system integrates a 15-inch touchscreen display with a 1024 x 768 resolution and is powered by an Intel Core i7-610E processor. Key features include comprehensive connectivity options, onboard system monitoring, and a rugged design suitable for factory floor deployment. This unit is supplied without a pre-installed operating system, providing flexibility for custom software configurations.

Features

• 15-inch color touchscreen display with 1024 x 768 pixel resolution.
• Powered by an Intel Core i7-610E processor (2.53 GHz, 2 Cores, 4 Threads).
• Equipped with 1 GB DDR3 1066 DIMM system memory.
• Includes a 250 GB SATA Hard Disk Drive (HDD) and a DVD±R±RW optical drive.
• Features an onboard RAID controller for data redundancy.
• Dual 10/100/1000 Mbit/s Ethernet ports for network connectivity.
• Integrated system monitoring for watchdog, temperature, and fan status.
• Convenient front-side USB interface for easy peripheral access.
• Operates on a 24 V DC power supply.

Applications

• Process visualization and control (SCADA)
• Machine-level Human Machine Interface (HMI)
• Manufacturing Execution Systems (MES) terminals
• Data acquisition and logging stations
• Industrial automation control panels

Technical Specifications

Installation Guidelines

1. 1 Ensure the mounting cutout in the control cabinet or panel is prepared to the correct dimensions and provides adequate support for the unit's weight. Verify sufficient clearance for ventilation and cable routing.
2. 2 Securely mount the Panel PC into the cutout using all provided mounting clamps. Tighten the clamps evenly to ensure a proper seal and prevent mechanical stress on the chassis.
3. 3 Connect the chassis to the panel's protective earth (PE) ground using a low-impedance conductor. A reliable ground connection is essential for operator safety and noise immunity.
4. 4 Connect the 24 V DC power supply to the designated terminals. Verify correct polarity before energizing. Use appropriately sized wiring and ensure the power source is stable and within specification.
5. 5 Connect all required communication and peripheral cables, such as Ethernet, USB, and serial devices. Ensure all connectors are fully seated and secured. Route cables away from high-voltage lines to minimize interference.
