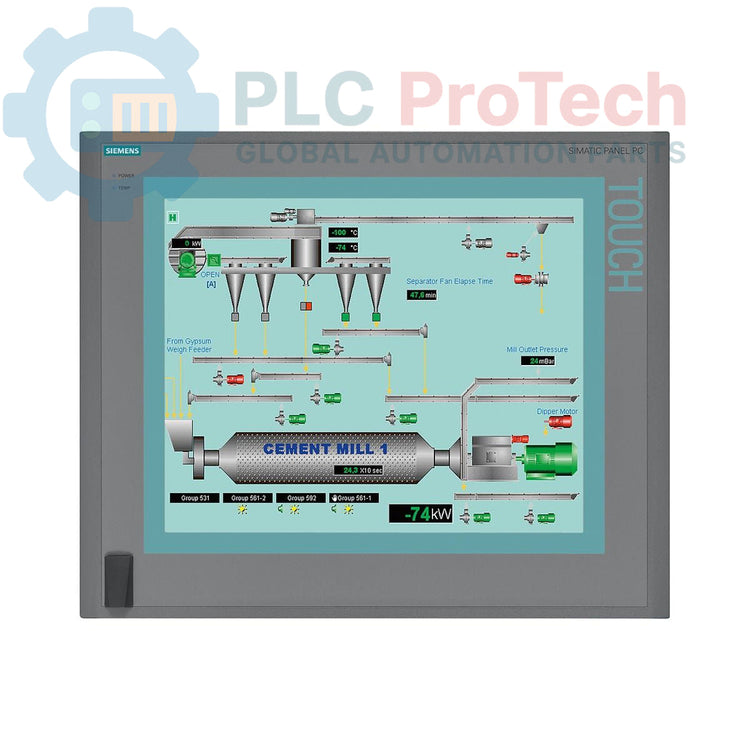

Siemens 6AV7892-0BD12-1AC0 SIMATIC HMI IPC677C Panel PC

فقط 3 قلم(های) کالا در انبار باقی مانده است

تولیدکننده: Siemens
شماره محصول: 6AV7892-0BD12-1AC0
کشور سازنده:آلمان
نوع محصول: Panel PC
بارکد: 85371098
پرداخت: حواله بانکی (T/T)، وسترن یونیون
وزن: 17350g
ابعاد: 67.00 x 55.00 x 28.00 cm
بندر حمل و نقل: شیامن
گارانتی: ۱۲ ماه

Description

The Siemens 6AV7892-0BD12-1AC0 is a SIMATIC HMI IPC677C Panel PC designed for industrial human-machine interface (HMI) applications. This unit features a 15-inch touch display with 1024x768 resolution and a front-side USB interface for convenient access. It is equipped with a Core I3-330E processor, 2 GB DDR3 RAM, and a RAID1 configuration of two 320 GB SATA hard drives for mirrored data storage. Connectivity options include two 10/100/1000 Mbit/s Ethernet ports, four USB V2.0 ports, and one serial (COM1) port. The system integrates a watchdog, temperature, and fan monitoring, along with an onboard RAID controller, and operates on a 110/230 V AC power supply unit with NAMUR compatibility. It comes pre-installed with Windows 7 Ultimate 32 bit SP1, supporting multiple user interface languages.

Features

SIMATIC HMI IPC677C Panel PC
15-inch Touch Display with 1024x768 Resolution
Core I3-330E Processor (2C/4T, 2.13 GHz, HT, VT, 3 MB cache)
2 GB DDR3 1066 DIMM RAM
RAID1 Configuration with 2x 320 GB SATA (2.5") Mirror Disks
Integrated DVD+-R+-RW Drive
Two 10/100/1000 Mbit/s Ethernet Ports
Four USB V2.0 Ports and One Front-Side USB Interface
One Serial (COM1) Port
Watchdog, Temperature, and Fan Monitoring
Onboard RAID Controller
110/230 V AC Power Supply Unit with NAMUR
Pre-installed Windows 7 Ultimate 32 bit SP1 (MUI: de, en, fr, es, it)
Two Free PCI Expansion Slots

Applications

The Siemens SIMATIC HMI IPC677C Panel PC is suitable for a range of industrial automation and control applications, including:

Machine operation and visualization in manufacturing environments.
Process control and monitoring in various industries.
Data acquisition and display in factory automation.
Human-Machine Interface (HMI) for complex machinery and systems.
Integration into control cabinets and control rooms requiring robust computing and display capabilities.

Technical Specifications

Manufacturer	Siemens
Range	Simatic Panel PC
Subrange	IPC677C
Product Type	Panel PC
Product Phase	Phase-Out
Display Size	15-inch Touch
Display Resolution	1024x768
Processor	Core I3-330E (2C/4T, 2.13 GHz, HT, VT, 3 MB cache)
RAM	2 GB DDR3 1066 DIMM
Storage	RAID1 2x 320 GB SATA (2.5" mirror disks)
Optical Drive	DVD+-R+-RW
Ethernet Ports	2x 10/100/1000 Mbit/s
USB Ports	4x USB V2.0, 1x front-side USB-Schnittstelle
Serial Port	1x serial (COM1)
Expansion Slots	2x PCI free
Operating System	Windows 7 Ultimate 32 bit SP1, MUI (de, en, fr, es, it)
Power Supply	110/230 V AC with NAMUR
Power Supply Cable	Europe
Country of Origin	Unknown
Package Dimensions (Calculated)	67.00 x 55.00 x 28.00 cm
Shipping Weight	17.35 kg
Commodity Code	85371098

Connections / Interfaces

Interface Type	Quantity / Description
Ethernet	2x 10/100/1000 Mbit/s
USB	4x USB V2.0 (rear), 1x USB (front-side)
Serial	1x COM1

Installation Guidelines

Installation of the Siemens SIMATIC HMI IPC677C Panel PC should adhere to standard industrial practices and safety regulations.

De-energization: Ensure all power to the installation area is disconnected and locked out before beginning any work.
Mounting: Securely mount the Panel PC in a suitable enclosure or panel cutout, ensuring adequate ventilation and clearance for cable routing and maintenance.
Power Connection: Connect the 110/230 V AC power supply unit using the provided Europe power supply cable. Verify correct voltage and grounding.
Grounding: Establish a proper protective earth (PE) connection to the Panel PC chassis to ensure electrical safety and minimize electromagnetic interference.
Peripheral Connections: Connect Ethernet cables to the 10/100/1000 Mbit/s ports, USB devices to the available USB V2.0 ports, and serial devices to the COM1 port as required by the application.
Cable Routing: Route all cables to prevent strain, abrasion, and interference with other components. Separate power and signal cables where possible.
Environmental Considerations: Ensure the operating environment meets the specified temperature and humidity ranges to maintain optimal performance and longevity.
Initial Power-Up: After all connections are verified, re-energize the system and observe for proper boot-up and functionality.

Key Features:

#IPC677C #Panel PC

What operating system is pre-installed on the IPC677C?

The Siemens 6AV7892-0BD12-1AC0 comes with Windows 7 Ultimate 32 bit SP1, supporting multiple user interface languages (German, English, French, Spanish, Italian).

What type of storage is included?

It features a RAID1 configuration with two 320 GB SATA (2.5-inch) hard drives, providing mirrored data storage for redundancy.

Does this Panel PC support network connectivity?

Yes, it is equipped with two 10/100/1000 Mbit/s Ethernet ports for robust network integration.

What are the display specifications?

The Panel PC has a 15-inch touch display with a resolution of 1024x768 pixels.
