مبدل دیجیتال شاسی SIMOREG DC-MASTER زیمنس 6RA7013-6DV62-0-Z

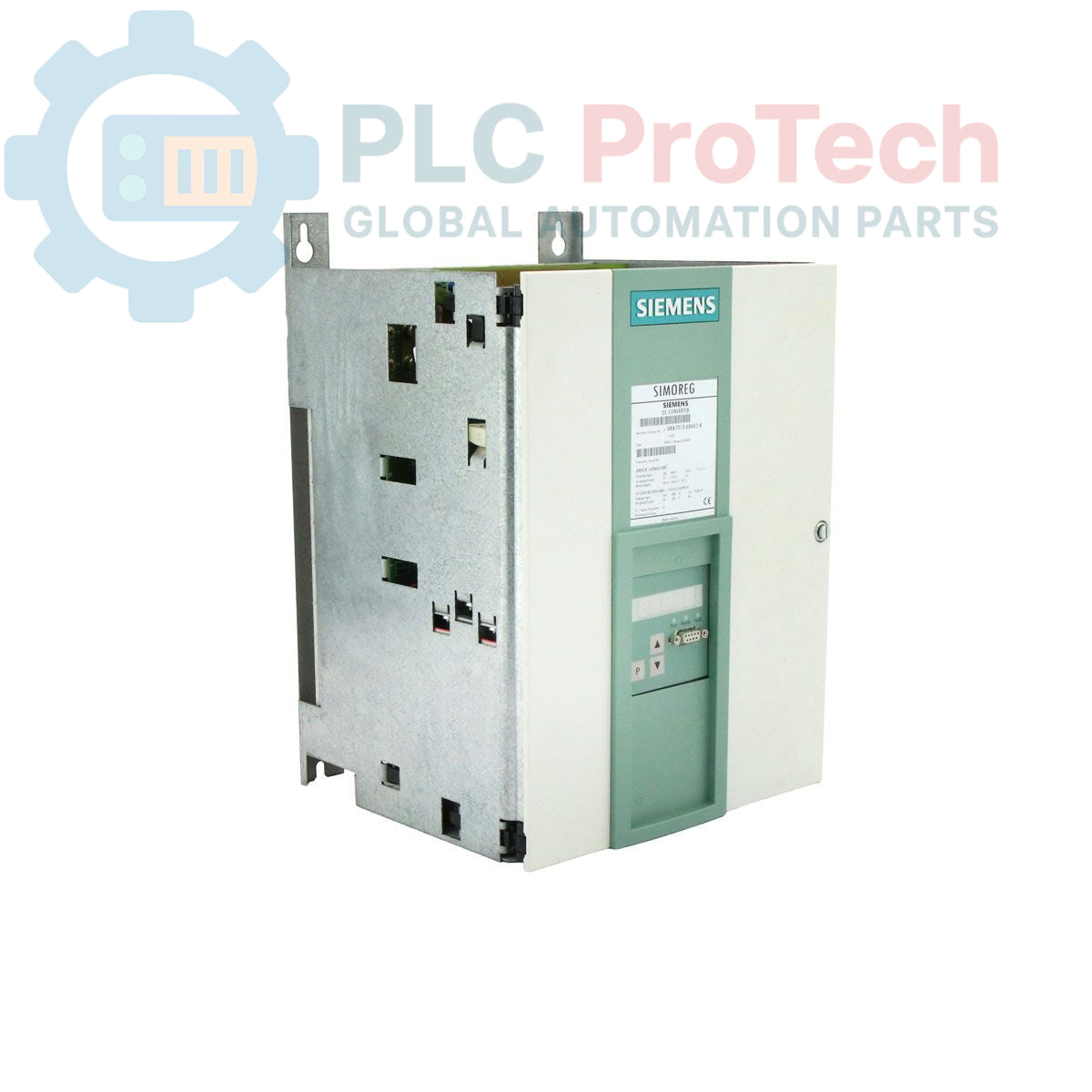

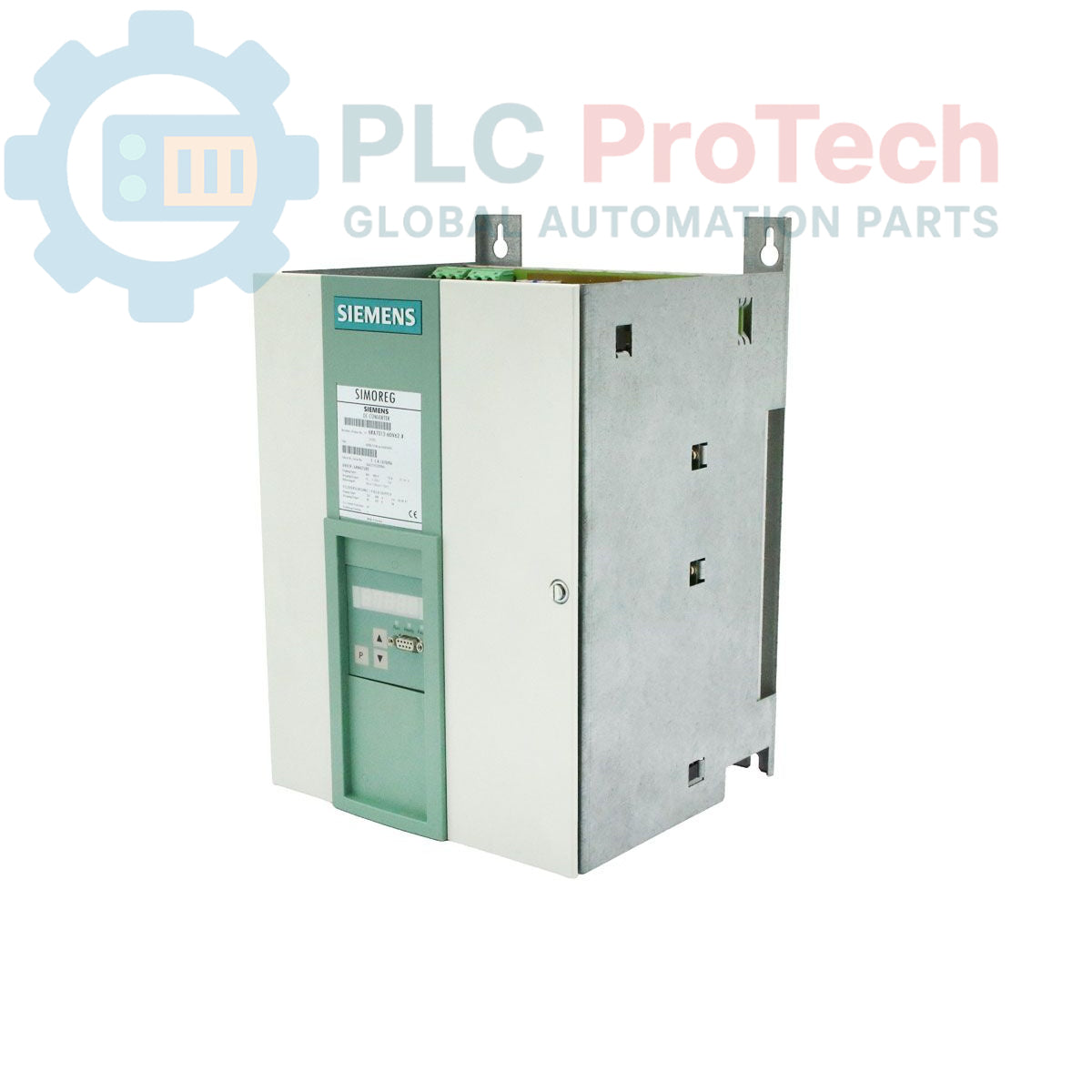

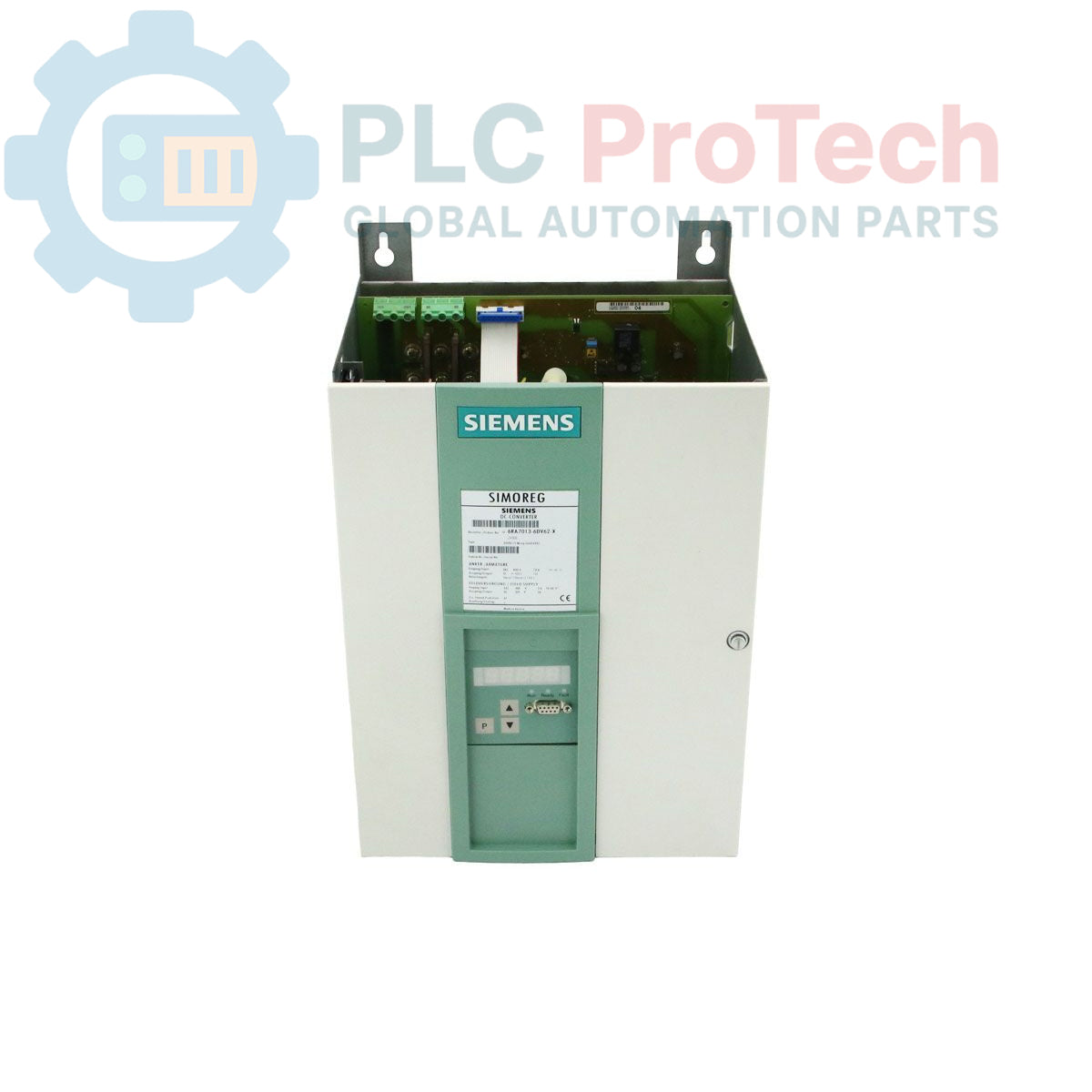

The 6RA7013-6DV62-0-Z is a SIMOREG DC-MASTER digital converter designed for high-precision four-quadrant DC motor control in industrial drive systems. This microprocessor-controlled unit features (B6) A (B6) C connection topology, providing reliable performance for demanding production line applications. It supports a 3-phase AC 400V input at 13A and includes a controllable field rectifier (D420/15 MREQ-GEG6V62), delivering a DC output of 420V at 15A.

Features

• Topology: Four-quadrant drive (B6) A (B6) C connection

• Integrated Microprocessor: Ensures precise digital control and system monitoring

• Field Rectifier: Controllable field supply (D420/15 MREQ-GEG6V62)

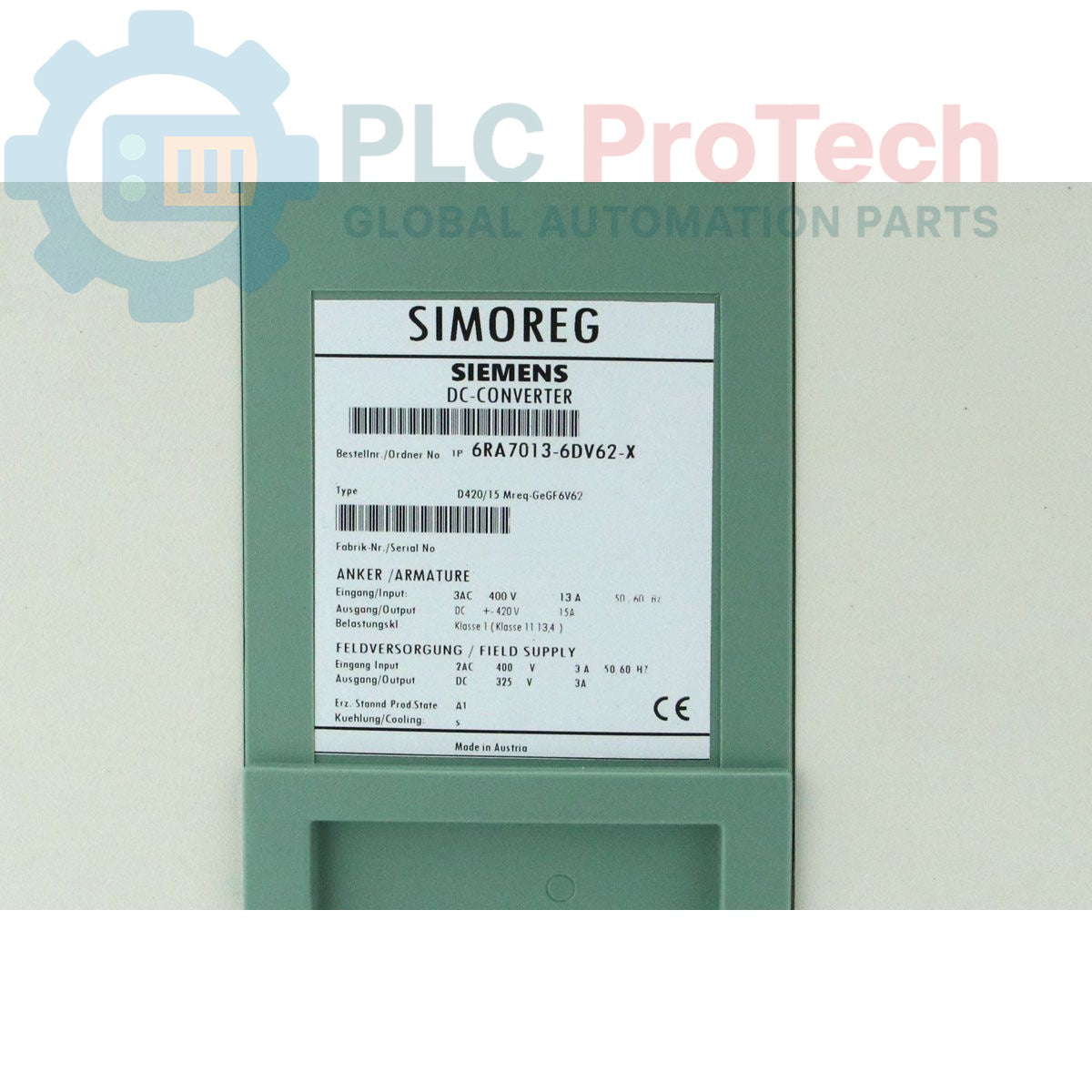

• Input Ratings: 3-phase AC 400V, 13A

• Output Ratings: DC 420V, 15A (US-rating: DC 420V, 14A)

• Field Input/Output: 400V input, 3A output

• Modular Design: Base drive configuration allows for additional system options

Applications

• Rolling mills and metal processing

• Extrusion and wire drawing lines

• Paper and printing machinery

• Material handling and crane systems

• Legacy automation infrastructure maintenance

Technical Specifications

Installation Guidelines

• Cooling: Ensure vertical mounting with adequate clearance above and below the chassis to maintain proper heat dissipation.

• Grounding: Connect the chassis ground terminal to a low-impedance protective earth (PE) busbar to prevent electrical interference.

• Shielding: Use shielded control cables and separate them from power cabling to minimize electromagnetic interference (EMI).

• Connections: Verify that all phase sequences and polarity for the armature and field circuits are correct before power-on.

• Environment: Operate in an environment free from excessive dust, conductive particles, and moisture.
