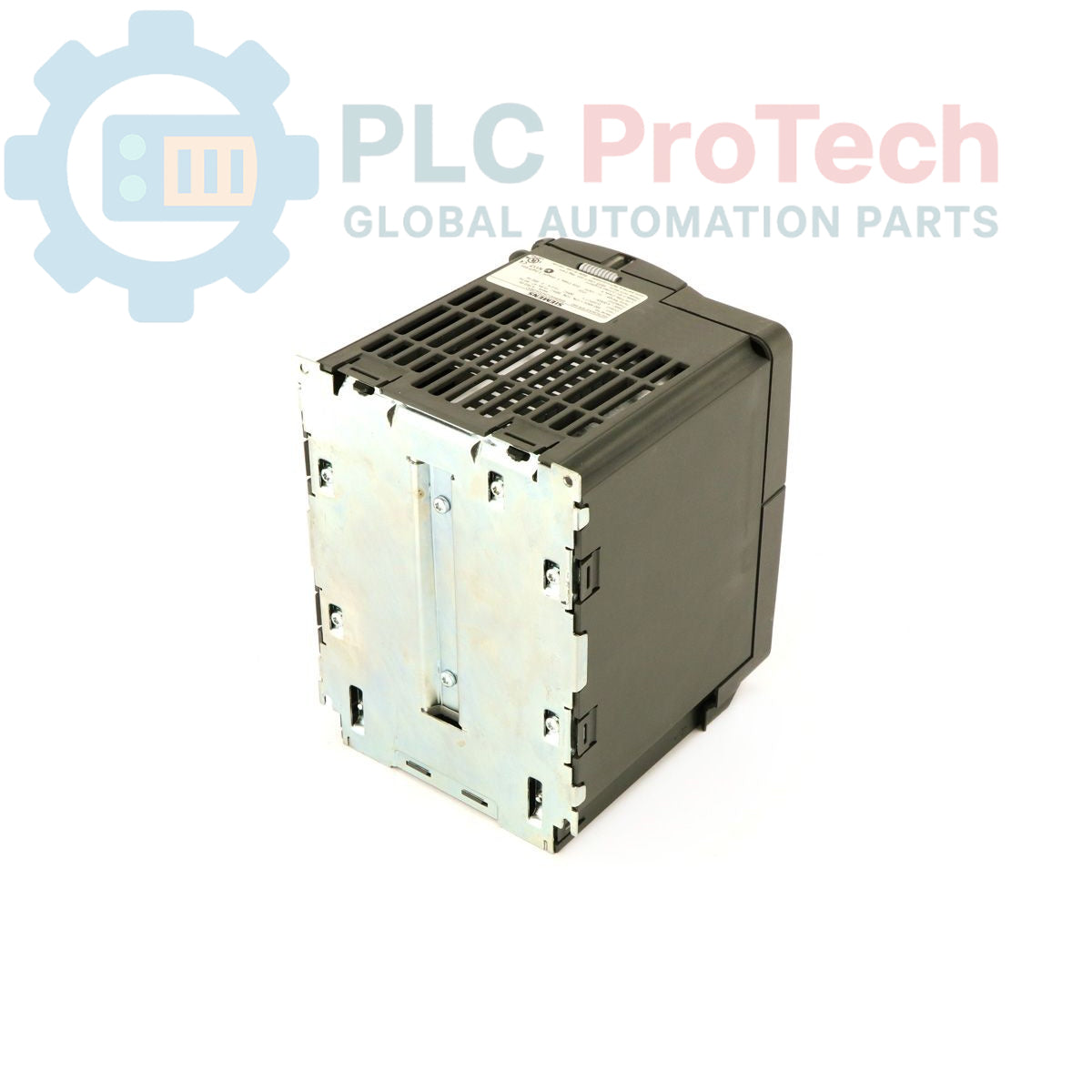

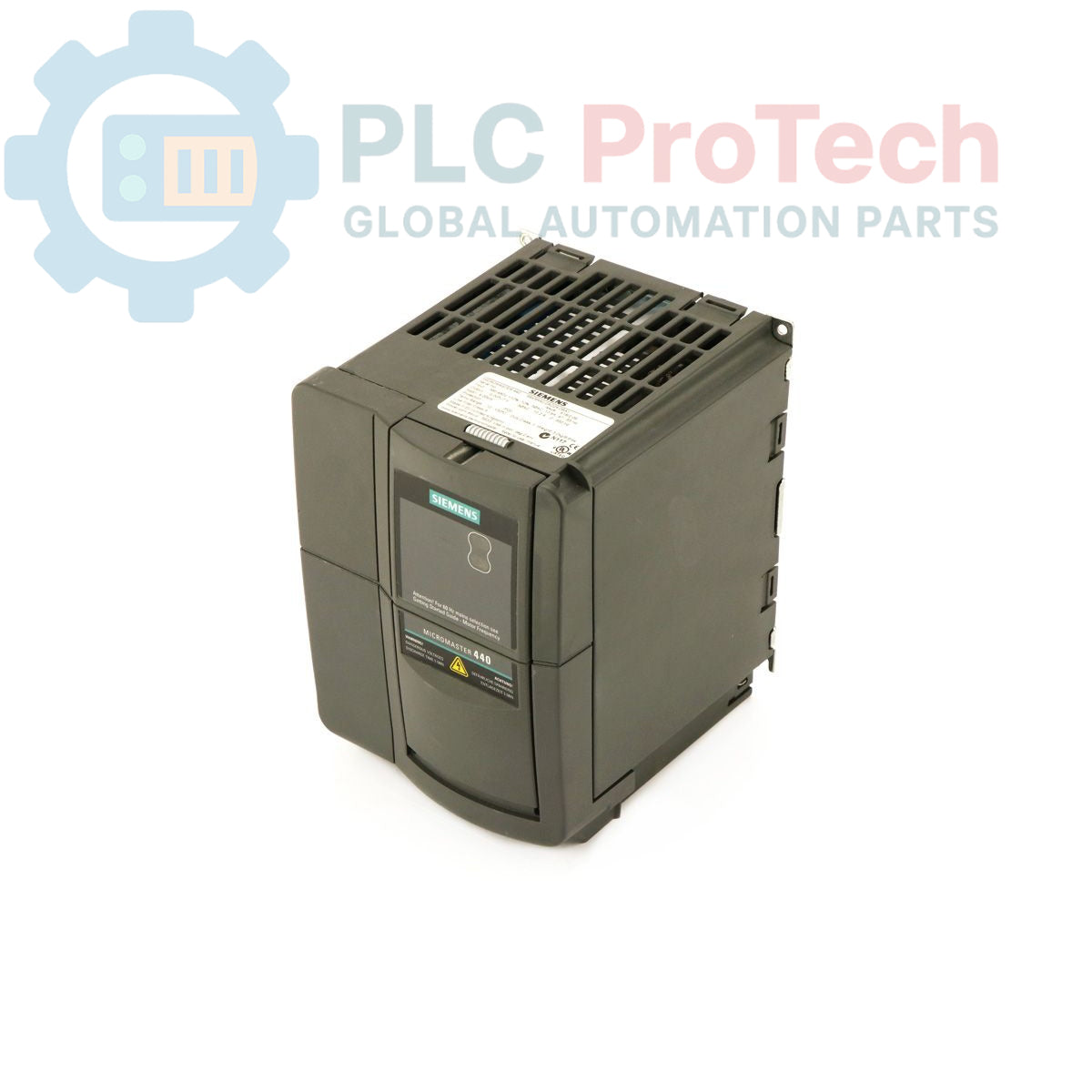

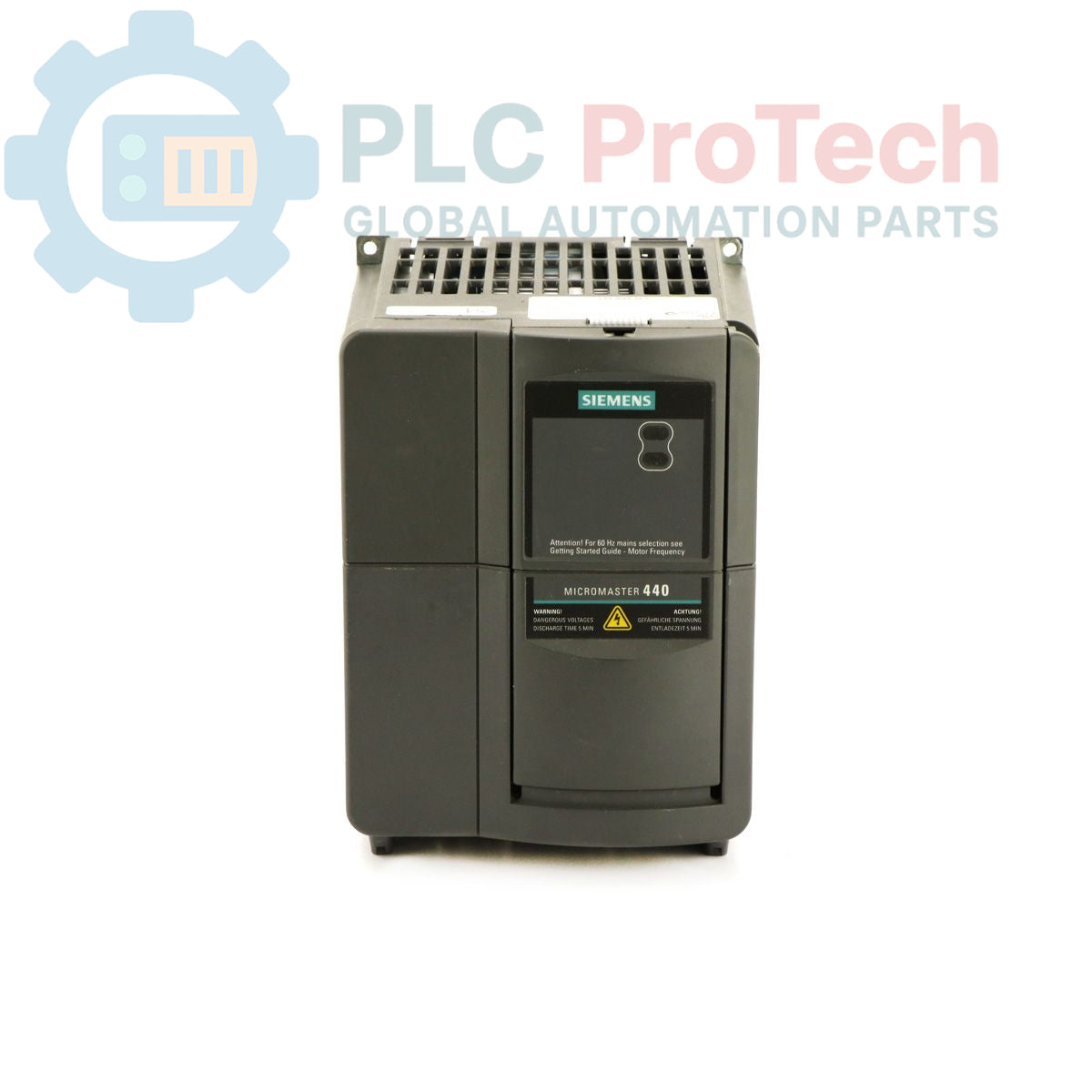

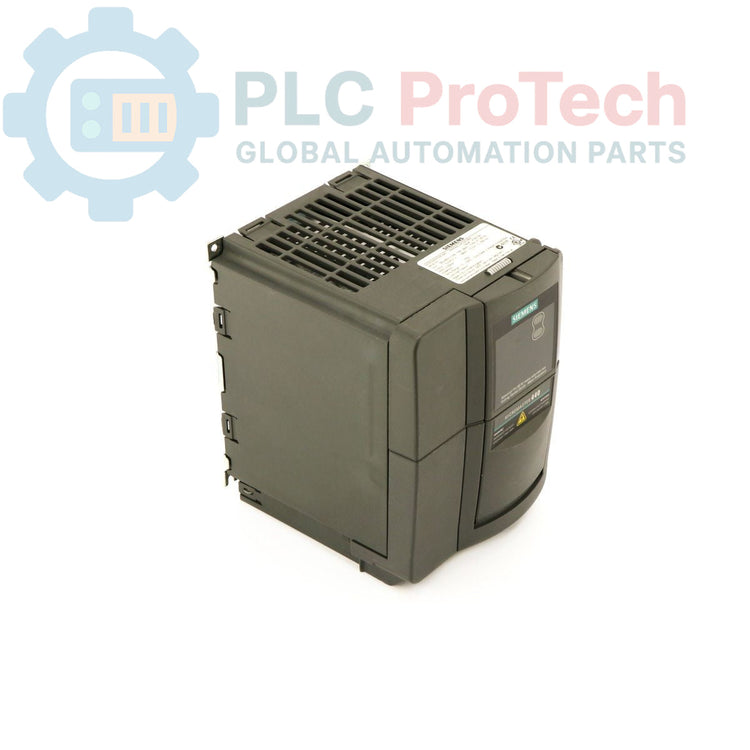

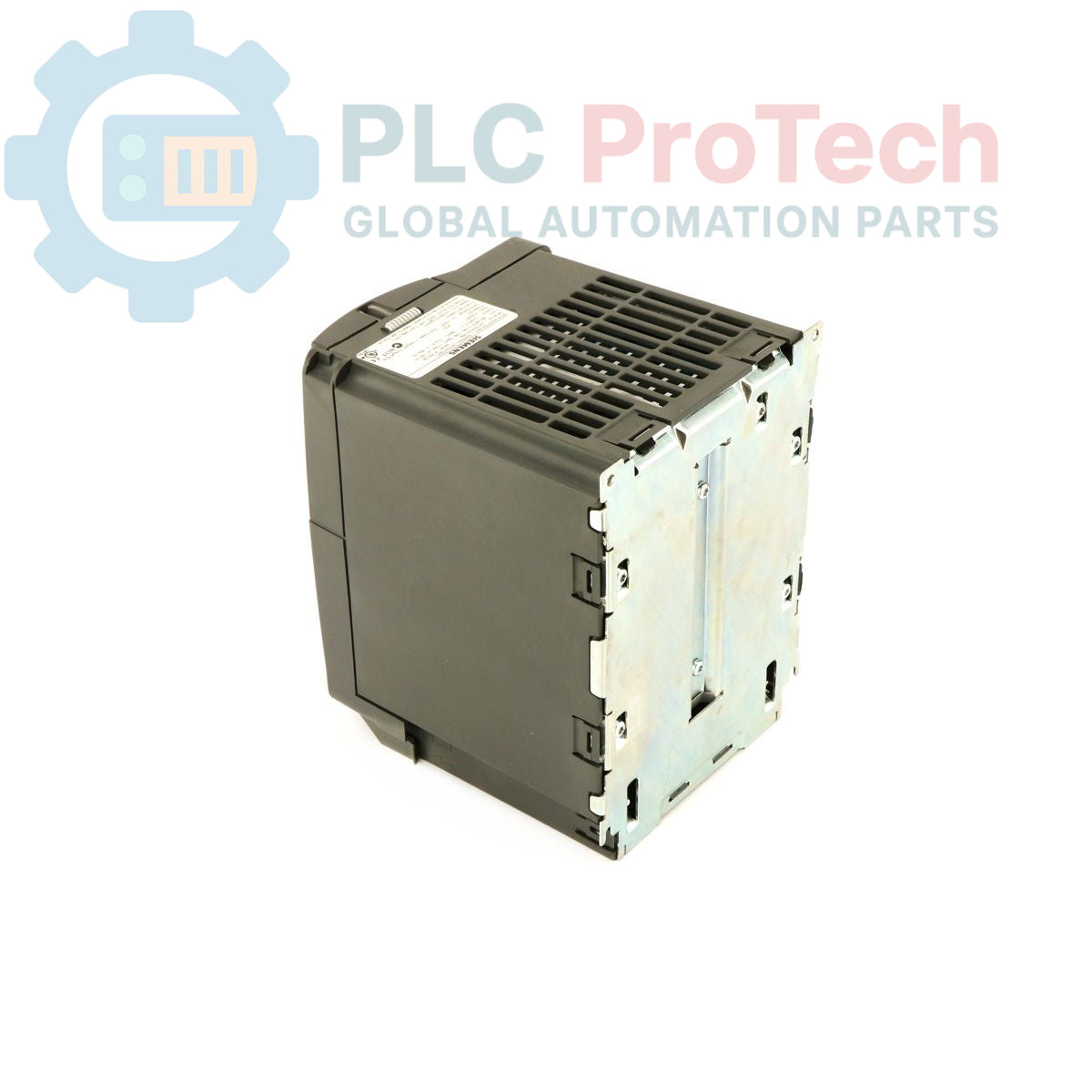

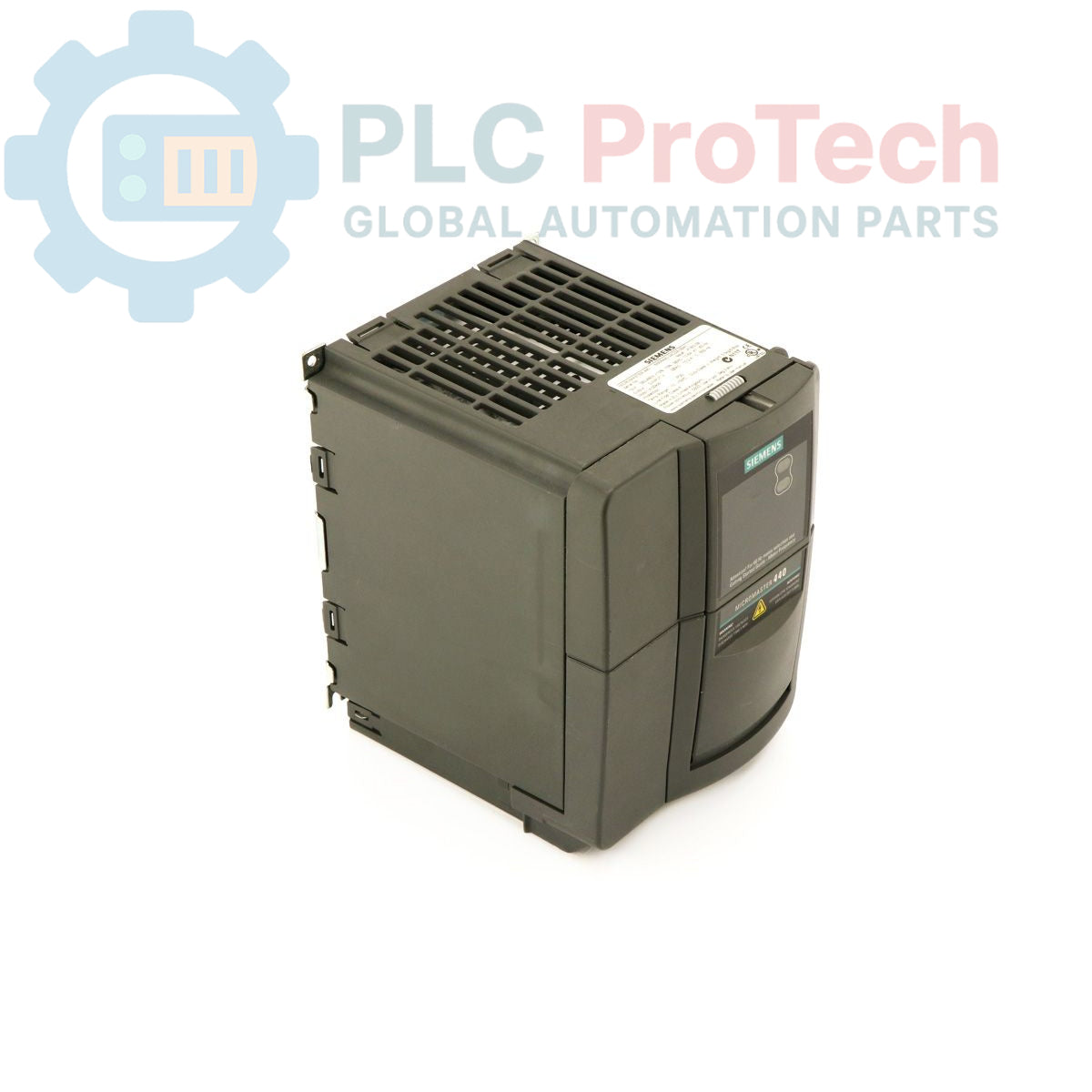

مبدل فرکانس زیمنس 6SE6440-2AD24-0BA1 MICROMASTER 440

Description

The 6SE6440-2AD24-0BA1 is a MICROMASTER 440 frequency converter designed for high-performance industrial motor control. This unit features an integrated Class A filter to reduce electromagnetic interference and is engineered for versatile applications requiring precise speed and torque regulation.

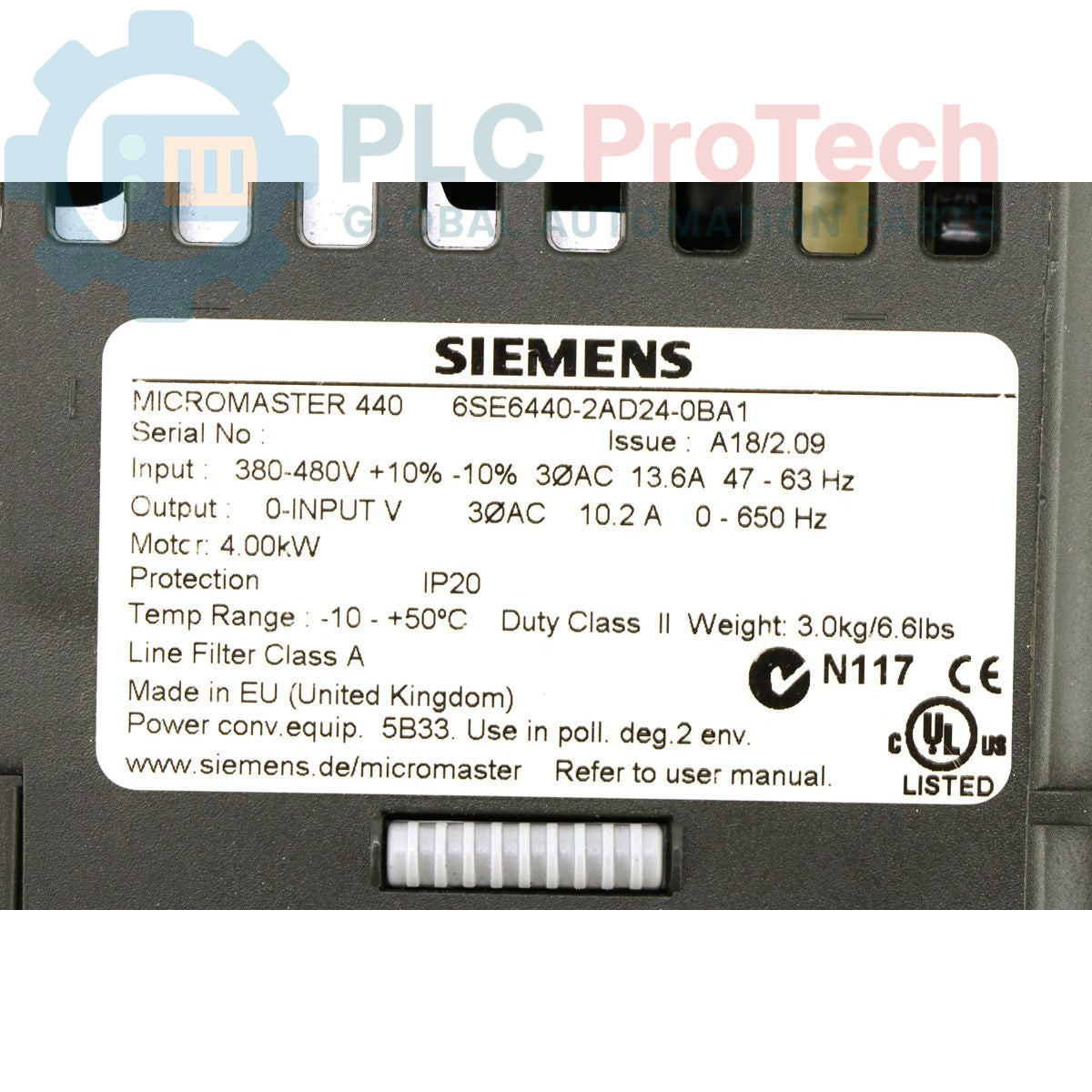

Operating on a 3-phase supply of 380 V to 480 V (±10%) at 47–63 Hz, the converter delivers a nominal power rating of 4 kW. It is designed to handle demanding load profiles, supporting a constant torque overload capacity of 150% for 60 seconds and 200% for 3 seconds. With an IP20 protection rating, the 6SE6440-2AD24-0BA1 is optimized for installation within protected control cabinets, ensuring reliable operation in ambient temperatures ranging from -10 degC to +50 degC. This base model is configured without an AOP/BOP interface, focusing on high-efficiency drive core functionality.

Features

• Integrated Class A filter for EMI suppression
• Nominal power rating: 4 kW
• High overload capability (150% for 60 s, 200% for 3 s)
• 3-phase input voltage: 380–480 V AC
• Operating frequency: 47–63 Hz
• IP20 ingress protection
• Ambient operating range: -10 degC to +50 degC

Applications

• Automated conveyor and material handling systems
• Pump and fan speed control
• Processing machinery requiring constant torque
• General industrial variable frequency drive (VFD) applications

Technical Specifications

Installation Guidelines

• Mounting: The unit must be mounted vertically on a flat, non-flammable surface inside a control cabinet.
• Cooling: Ensure sufficient clearance above and below the unit to allow for unimpeded airflow through the internal heat sink.
• Grounding: Secure a low-impedance connection to the central protective earth (PE) busbar to comply with EMC requirements.
• Cable Routing: Keep power supply cables separate from low-voltage signal and control wiring to prevent crosstalk and interference.
• Wiring: Use shielded power cables if necessary to maintain compliance with the integrated Class A filter specifications.
