کامپیوتر نانوباکس زیمنس SIMATIC IPC227E 6ES7647-8BA11-7BA1

Description

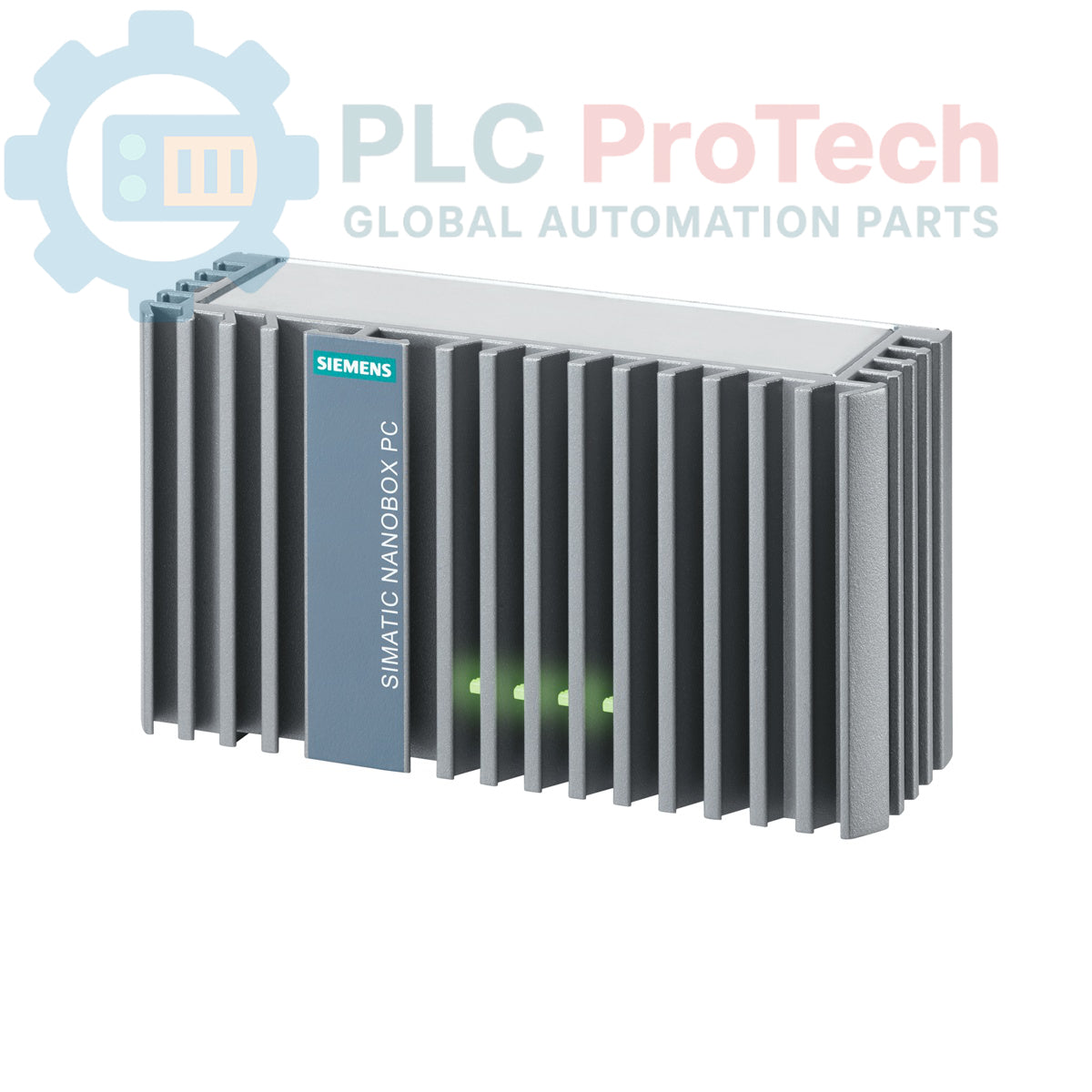

The 6ES7647-8BA11-7BA1 is a SIMATIC IPC227E Nanobox PC engineered by Siemens to provide compact, industrial-grade computing power for decentralized control tasks. This Nanobox PC features a Celeron N2807 processor (2-core/2-thread) with 2 GB of RAM and an 80 GB SSD, offering a reliable platform for local data processing and HMI applications. The unit is equipped with diverse connectivity options, including two 10/100/1000 Mbit/s Ethernet RJ45 ports, one USB 3.0 port, three USB 2.0 ports, a display port, and a CFast slot. Housed in a space-optimized enclosure designed for DIN rail mounting, this industrial PC operates on a 24 V DC power supply. It is pre-configured with Windows 10 IoT Enterprise LTSB 2016, making it a robust choice for mission-critical industrial environments requiring consistent performance.

Features

• Processor: Intel Celeron N2807 (2C/2T)
• Memory: 2 GB RAM
• Storage: 80 GB SSD
• Connectivity: 2x Gigabit Ethernet, 1x USB 3.0, 3x USB 2.0, Display Port
• Form Factor: Nanobox PC (DIN rail mounting)
• Operating System: Windows 10 IoT Enterprise LTSB 2016 (64-bit)
• Industrial-grade 24 V DC power supply

Applications

• Embedded industrial control and automation
• Data acquisition and edge gateway tasks
• Human Machine Interface (HMI) visualization
• Decentralized machine-level computing
• Industrial IoT (IIoT) data processing

Technical Specifications

Installation Guidelines

• Mount the device on a standard DIN rail in a vertical orientation to ensure proper heat dissipation.
• Maintain sufficient clearance around the cooling vents to avoid thermal throttling under heavy processing loads.
• Ensure the 24 V DC power supply is properly filtered and within the specified voltage range to prevent system instability.
• Use shielded industrial Ethernet cables to connect the RJ45 ports to the factory network to reduce electromagnetic interference.
• Adhere to proper electrostatic discharge (ESD) procedures when accessing the CFast slot or performing internal maintenance.
• Verify that all external peripherals are compatible with the USB 3.0/2.0 interface specifications before connection.
