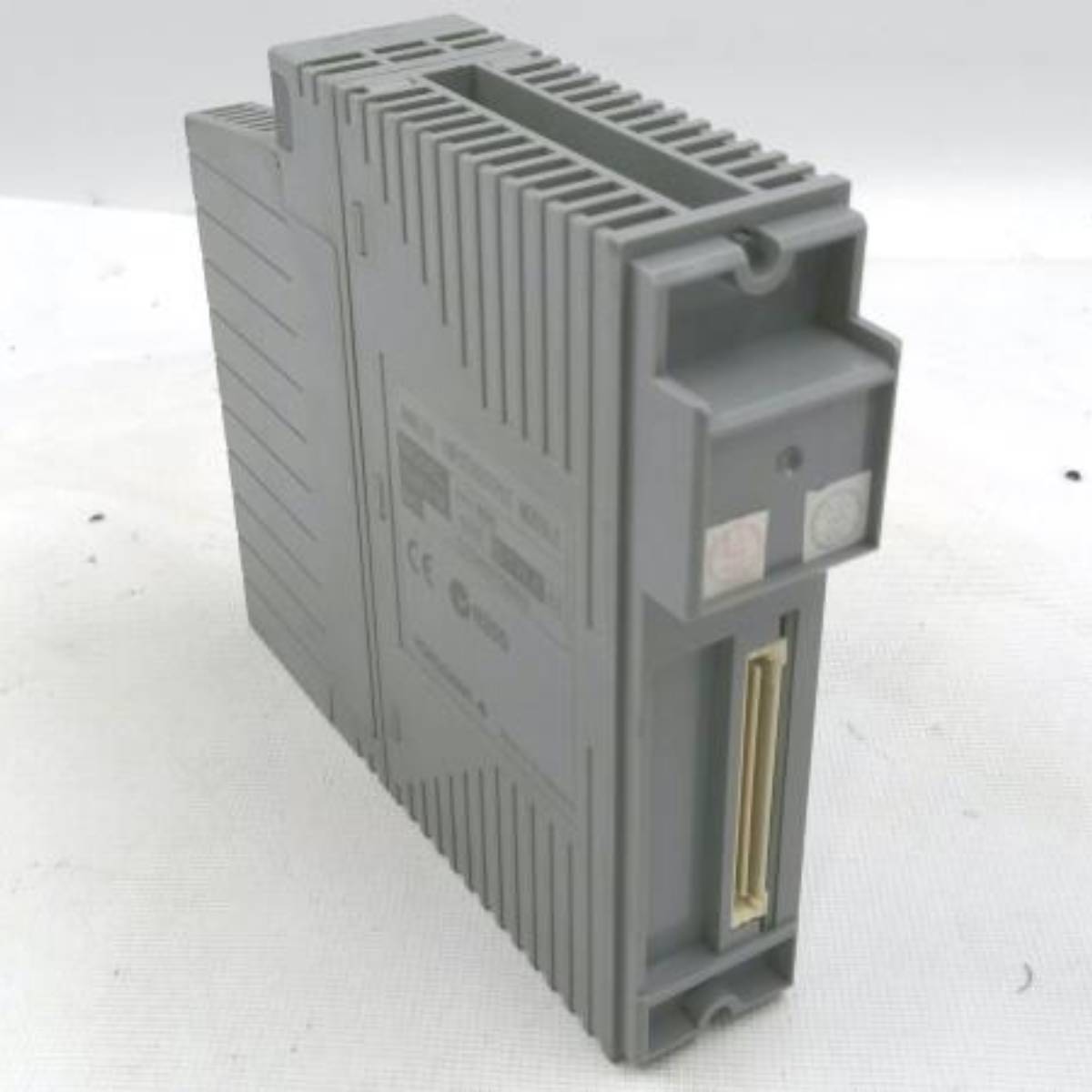

Yokogawa AAI835-S03 CENTUM VP Analog I/O Module

Description

The Yokogawa AAI835-S03 (Replaced by AAI835-S53) is a high-reliability analog input/output module belonging to the CENTUM VP distributed control system (DCS) series. Operating with standard 4 to 20 mA industrial instrumentation loops, this module provides 4 isolated input channels and 4 isolated output channels. The specific suffix layout designates this hardware as a standard type built without built-in explosion protection. To assure continuous loop execution across hazardous environments, the device is configured with an ISA Standard G3 chemical corrosion-resistant conformal coating option alongside an extended temperature endurance qualification spanning from -20 to 70 degC. Each field pathway is completely isolated from the system backplane and neighboring channels, allowing for direct installation in dual-redundant system architectures.

Features

• Part of the CENTUM VP process control platform supporting dual-redundant configurations.
• Complete channel-to-channel and field-to-system electrical isolation.
• Integrated transmitter power supply capabilities built directly into the current input loops.
• Enhanced durability featuring ISA Standard G3 conformal coating for aggressive atmospheres.
• Extended ambient thermal design qualified for operation from -20 up to 70 degC.
• Supports digital data overlays via native HART communication.

Applications

• Simultaneous valve positioning control and flow transmitter monitoring.
• High-integrity loops demanding channel-to-channel isolation to prevent ground loop faults.
• Distributed control layouts situated in corrosive environmental conditions or unconditioned areas.
• Critical process sectors requiring continuous operation via dual-redundant I/O configurations.

Ordering Information

Technical Specifications

Installation Guidelines

• Mount the module securely within its allocated slot on the CENTUM VP node backplane, ensuring complete seating of the rear multi-pin connections.
• External barriers must be observed: A Zener barrier is not allowed to be connected with this module; use an isolation barrier if implementing intrinsically safe field layouts.
• When using a MIL connector cable for field distribution, verify that the application withstanding voltage limits match the electrical boundaries of the chosen cable assembly.
• Maintain clean air boundary lanes within the marshaling cabinet to ensure ambient conditions remain inside the -20 to 70 degC operational constraints.
