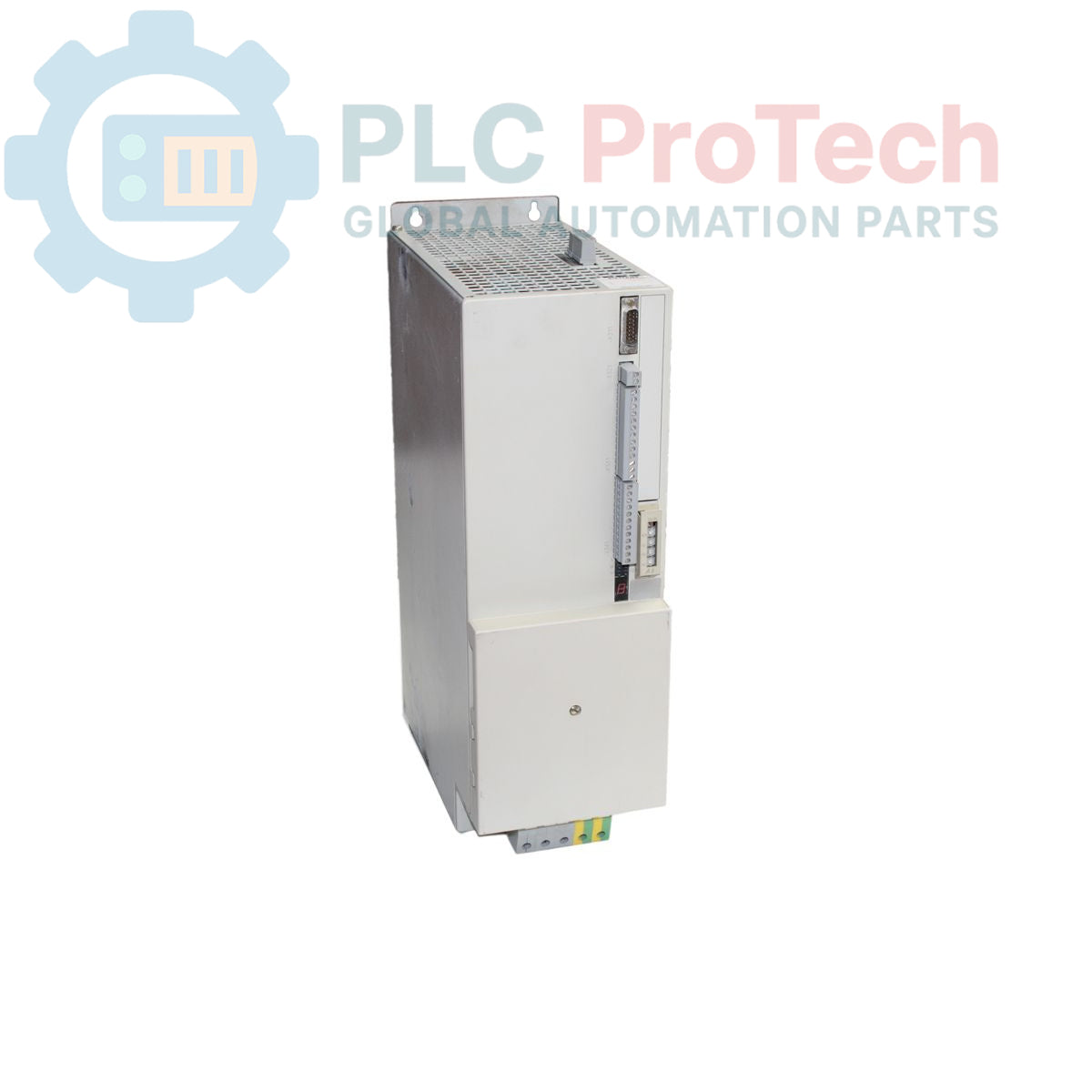

Siemens Simodrive 611 6SC6114-0AA00 Module d'alimentation

Product Overview

The Siemens 6SC6114-0AA00 (6SC61140AA00) is a high-capacity power feed module within the SIMODRIVE 611 series, specifically engineered to supply DC link power for high-performance motion control systems. Delivering a substantial current rating of 40/80 A, this module acts as the primary power stage for multiple axis drives in large-scale CNC machining centers and heavy-duty industrial robotics. The 6SC6114-0AA00 is designed to maintain consistent voltage stability during peak load demands, which is critical for preventing synchronization errors in complex production lines. Its robust construction ensures exceptional durability in harsh manufacturing environments, effectively reducing unplanned downtime and supporting the long-term operational integrity of legacy Siemens drive architectures.

Technical Configuration

The 6SC6114-0AA00 is optimized for high-density integration within the modular SIMODRIVE 611 system rack.

• Dual-Current Logic: Engineered for a continuous current rating of 40 A with a peak pulsed capability of 80 A to handle the high inrush demands of rapid acceleration cycles.

• Bus Integration: Provides the central DC bus connection that feeds power to adjacent LT-Modules (power sections) via a standardized parallel busbar system.

• Thermal Management: Features a specialized chassis designed for internal cabinet cooling, utilizing optimized airflow paths to protect sensitive power electronics from overheating.

• Diagnostic Monitoring: Includes internal status tracking that interfaces with the drive's central control logic to provide real-time feedback on current consumption and DC link stability.

• High Load Capacity: Housed in a double-width format to accommodate heavy-duty rectifiers and smoothing capacitors, ensuring clean power delivery even under fluctuating mains conditions.

Technical Specifications

Technical FAQs

Can the 6SC6114-0AA00 be used in systems with high regenerative energy?This feed module is designed for standard power supply. In applications with heavy braking or high inertia, ensure that your system configuration includes an appropriately sized braking resistor or that you are using a regenerative feedback unit if returning energy to the grid is required.

Is this module a direct replacement for newer 6SN series modules?The 6SC6114-0AA00 is a legacy 6SC series module. While the SIMODRIVE 611 system is highly modular, always verify the backplane connector compatibility and terminal locations when replacing a 6SC series unit with a newer 6SN series equivalent.

What causes the DC link voltage to fluctuate in this module?Voltage fluctuations are typically caused by either unstable incoming mains power or excessive load peaks from the motor modules. Check the input line reactors and ensure the total current demand of all connected axes does not exceed the 80 A peak rating.

Engineering & Installation Guide

• Busbar Connection Integrity: Given the high current (up to 80 A), it is vital that the DC link busbars (top of the module) are cleaned of any oxidation and torqued to Siemens standard specifications. Loose connections will lead to localized heating, arcing, and catastrophic failure of the drive lineup.

• Commutating Reactor Requirement: To protect the 6SC6114-0AA00 from mains voltage spikes and to reduce harmonic feedback into the factory grid, an external line reactor must be installed. Operating the module without a correctly sized reactor will significantly shorten the lifespan of the internal bridge rectifiers.

• Safety Grounding: Ensure the module is securely bonded to the system rack and the rack itself is connected to a low-impedance earth ground. This is essential for the effective suppression of electromagnetic interference (EMI) and to ensure the safety of maintenance personnel during high-voltage operation.
