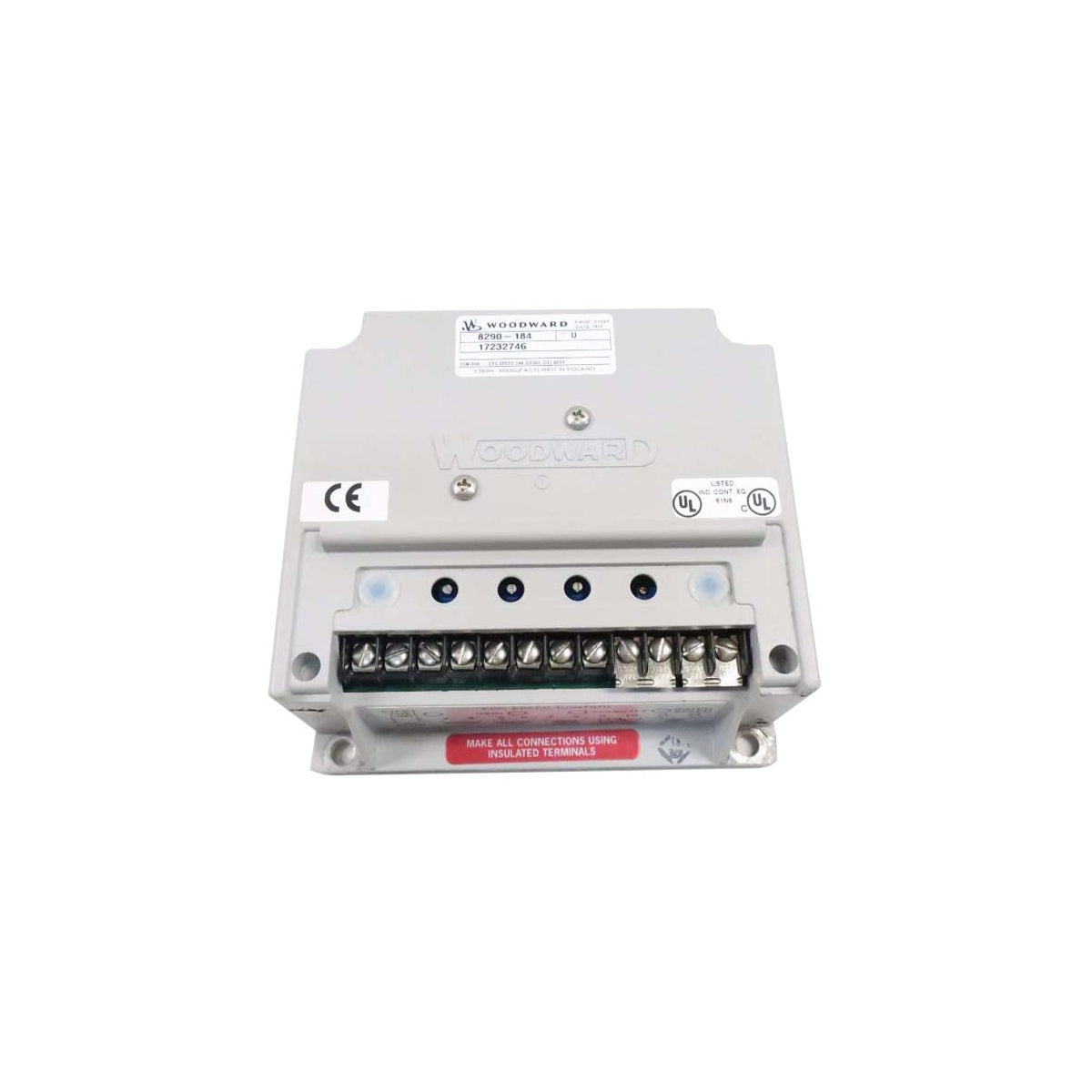

The Woodward 8290-184 is an Electrically Powered Governor (EPG) isochronous speed control designed for use with diesel engines or gas turbines. This specific model is engineered for systems requiring precise speed regulation and is compatible with 524 or 1724 series actuators. Its core function is to maintain constant engine speed regardless of the load applied, provided the engine has the capacity to handle the load.

Technical Specifications

Key Features & Functions

• Isochronous Operation: Maintains steady-state speed at $\pm 0.25\%$ of the rated speed. It is ideal for applications where frequency stability is critical, such as generator sets.

• Start Fuel Limit: This feature limits the maximum actuator position during engine cranking and startup. This prevents excessive smoke, over-fueling, and "flooding" before the engine reaches its operating speed.

• Rugged Design: Built to be mounted directly on the engine or in a control cabinet, featuring a cast aluminum housing that protects the internal electronics from vibration and humidity.

Installation & Calibration Guidelines

• Wiring: Use shielded, twisted-pair cables for the Magnetic Pickup (MPU) signal and the actuator drive lines. Ensure the shield is grounded at the control end only to prevent noise interference.

• Start Fuel Limit Adjustment: Rotate the Start Fuel Limit potentiometer to the point where the engine starts cleanly without excessive black smoke or significant overshoot of the idle speed.

• MPU Sensitivity: The unit requires a minimum of $1.5 \text{ VAC}$ from the magnetic pickup during cranking to properly sense engine speed.

• Mounting: Install the unit in a location where the temperature does not exceed the rated limits. Ensure the wiring enters from the bottom of the unit to prevent moisture from traveling down the wires into the internal circuitry.

Frequently Asked Questions (FAQs)

What does "Isochronous" mean in this context?

It means the controller will force the engine to return to its exact set speed after a load change, resulting in "zero droop." This is essential for maintaining a constant 50Hz or 60Hz frequency in power generation.

Can I use this with a 12V battery system?

No. The 8290-184 is strictly a 24 VDC unit. Running it on 12V will result in insufficient power to drive the actuator, likely causing erratic behavior or a failure to start.

How do I know if I should use a 524 or 1724 actuator?

This depends on the force required to move your engine's fuel rack. The 524 is for smaller engines, while the 1724 provides higher torque for larger diesel engines or turbines. The 8290-184 is electronically tuned to drive either one.

Why is my engine hunting (speed oscillating)?

Hunting is usually caused by the "Gain" or "Stability" pots being set too high. Slowly turn the Gain counter-clockwise until the engine stabilizes, then fine-tune the Stability for the best transient response.
