Module bus d'alimentation B&R X20BM23 X20

Product Overview

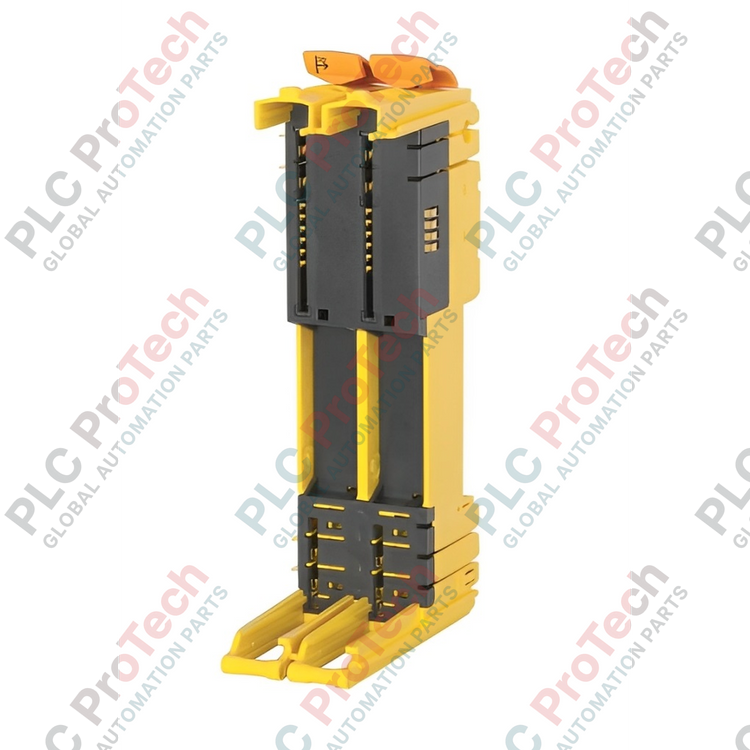

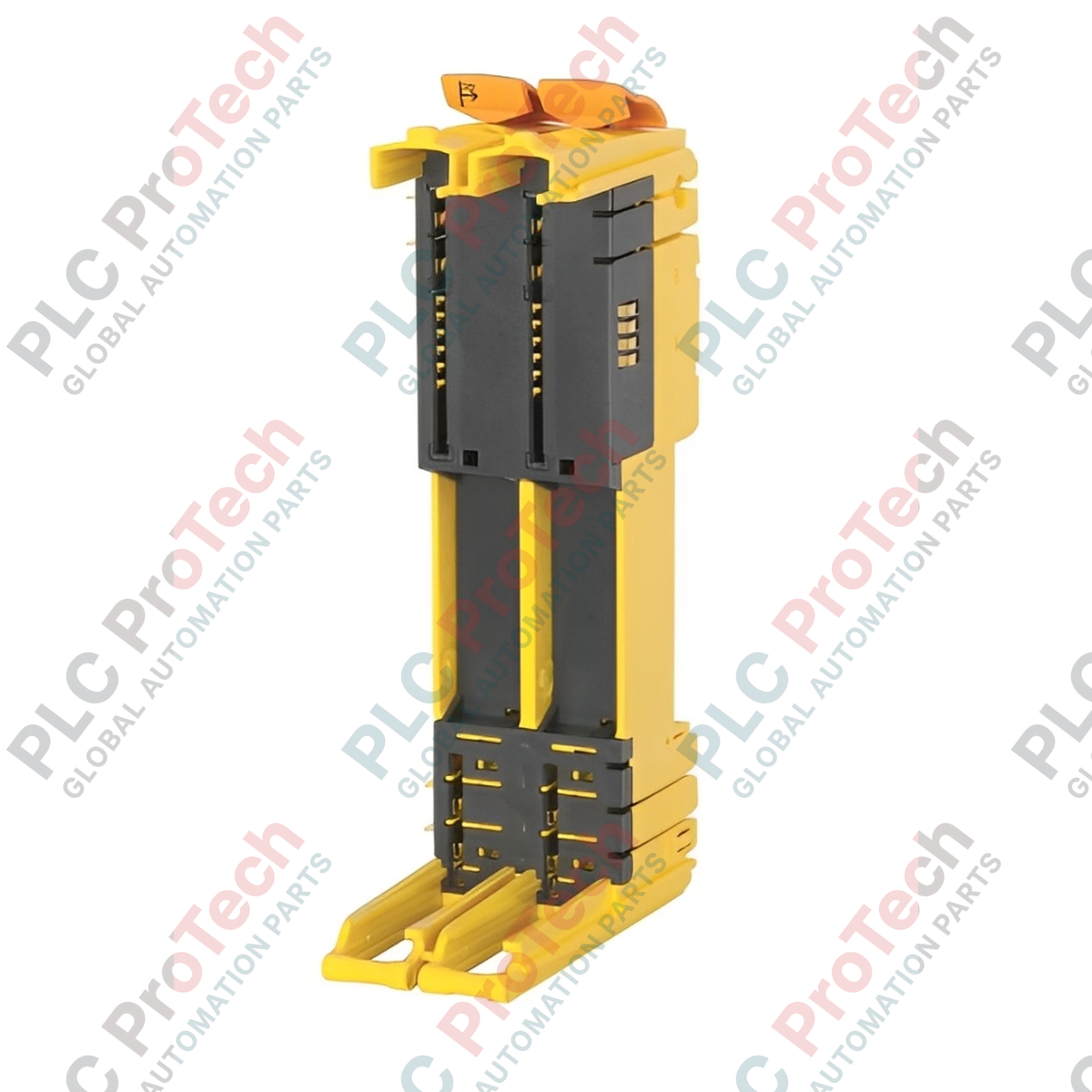

The X20BM23 (X20BM23) serves as a specialized power supply bus module within the high-performance B&R X20 System architecture. Engineered for demanding industrial environments such as precision CNC machining, food processing, and large-scale power distribution, this module is specifically designed to accommodate X20 SafeIO power supply units. Its critical functional design ensures that the internal I/O power supply is interrupted to the left, allowing for strategic electrical isolation and segmented power management across the backplane. By facilitating precise voltage distribution and protecting downstream safety circuits, the X20BM23 plays a vital role in minimizing unplanned system downtime and ensuring functional safety compliance in complex automated lines.

Hardware Architecture and Power Segmentation

The X20BM23 is more than a simple mounting rail; it is a fundamental component of the X20 system's modularity. Its primary technical distinction lies in the interrupted internal I/O power supply to the left. This allows engineers to create independent potential groups within a single I/O station.

• Potential Isolation: Prevents electrical noise or faults from propagating across the entire backplane.

• SafeIO Integration: Optimized for B&R functional safety modules where redundant power paths are mandatory.

• Bus Integrity: Maintains high-speed data communication across the X2X Link while strictly managing the physical power distribution layer.

Technical Specifications

Technical FAQs

How does the "interrupted to the left" feature affect my cabinet layout?

The X20BM23 effectively starts a new power circuit for the I/O modules plugged into it and the modules to its right. It mechanically and electrically breaks the 24 VDC internal bus coming from the left-hand side, allowing you to inject fresh power or a different voltage potential without interfering with previous segments.

Can this module be used with standard non-safety X20 modules?

While specifically designed to support SafeIO power supply modules, it is physically compatible with the X20 system. However, its primary engineering value is realized when used in safety-instrumented functions (SIF) where segregated power zones are required by ISO 13849-1 standards.

What is the maximum current capacity for the feed-through contacts?

The module is rated for a permissible contact load of 10 A. Exceeding this limit can lead to thermal degradation of the bus connectors. Always calculate the total current consumption of downstream modules to ensure the 10 A threshold is not breached.

Field Engineering & Installation Best Practices

• Module Alignment: When snapping the X20BM23 onto the DIN rail, ensure the side interlocking slide is fully retracted. Forcing the module can damage the gold-plated X2X Link pins, which are sensitive to misalignment.

• Thermal Management: In high-density cabinets, maintain at least 20 mm of clearance above and below the X20 station. Since the module supports up to 10 A, localized resistive heating can occur; ensure ambient air temperature does not exceed 55 deg C.

• Grounding Continuity: Ensure the DIN rail is made of zinc-plated steel or copper (avoid aluminum) to provide a low-impedance path to ground via the module's rear grounding contact.

Industrial Endurance & Reliability

The X20BM23 is built for the rigors of heavy industry. Its housing is constructed from high-grade thermoplastics resistant to chemical vapor and vibration. The non-condensing humidity tolerance (up to 95%) makes it suitable for offshore applications and tropical climates, provided the enclosure maintains an appropriate IP rating. Furthermore, the 10 A contact rating provides a significant safety margin for high-density I/O configurations, ensuring long-term stability in 24/7 continuous manufacturing cycles.
