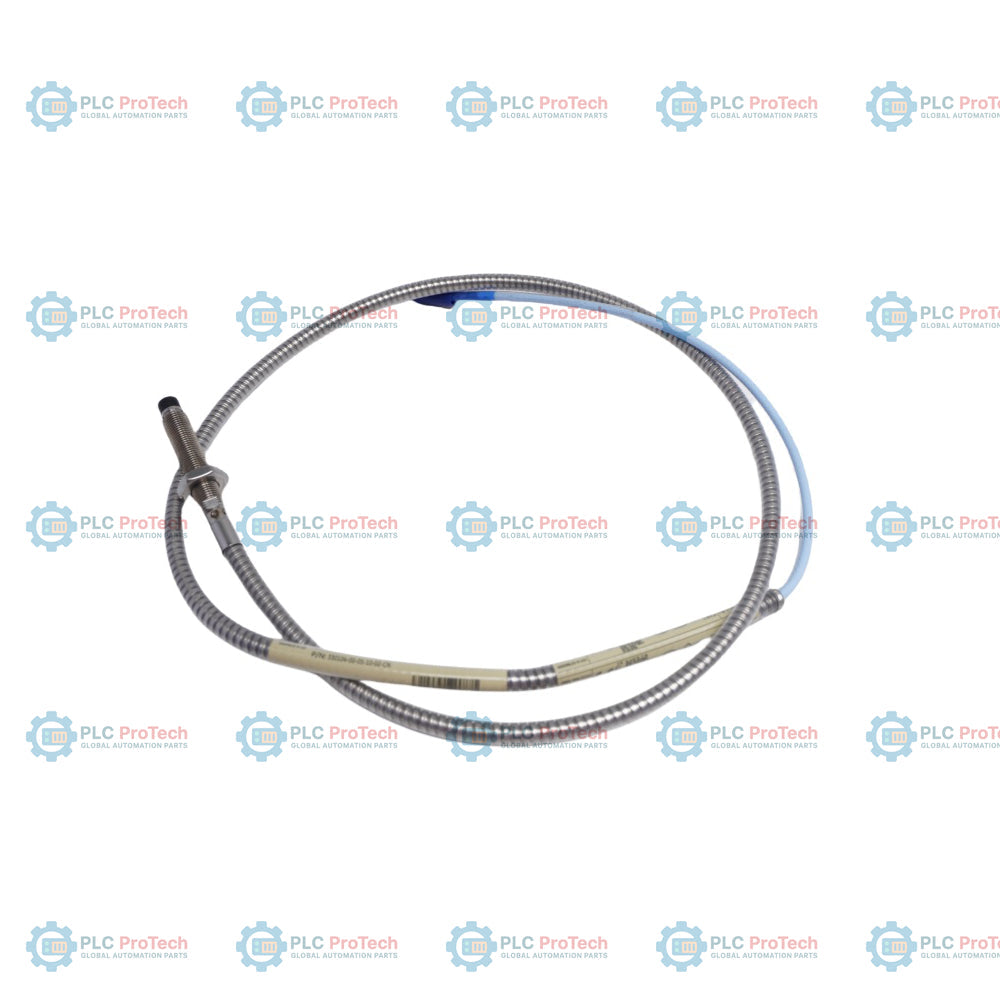

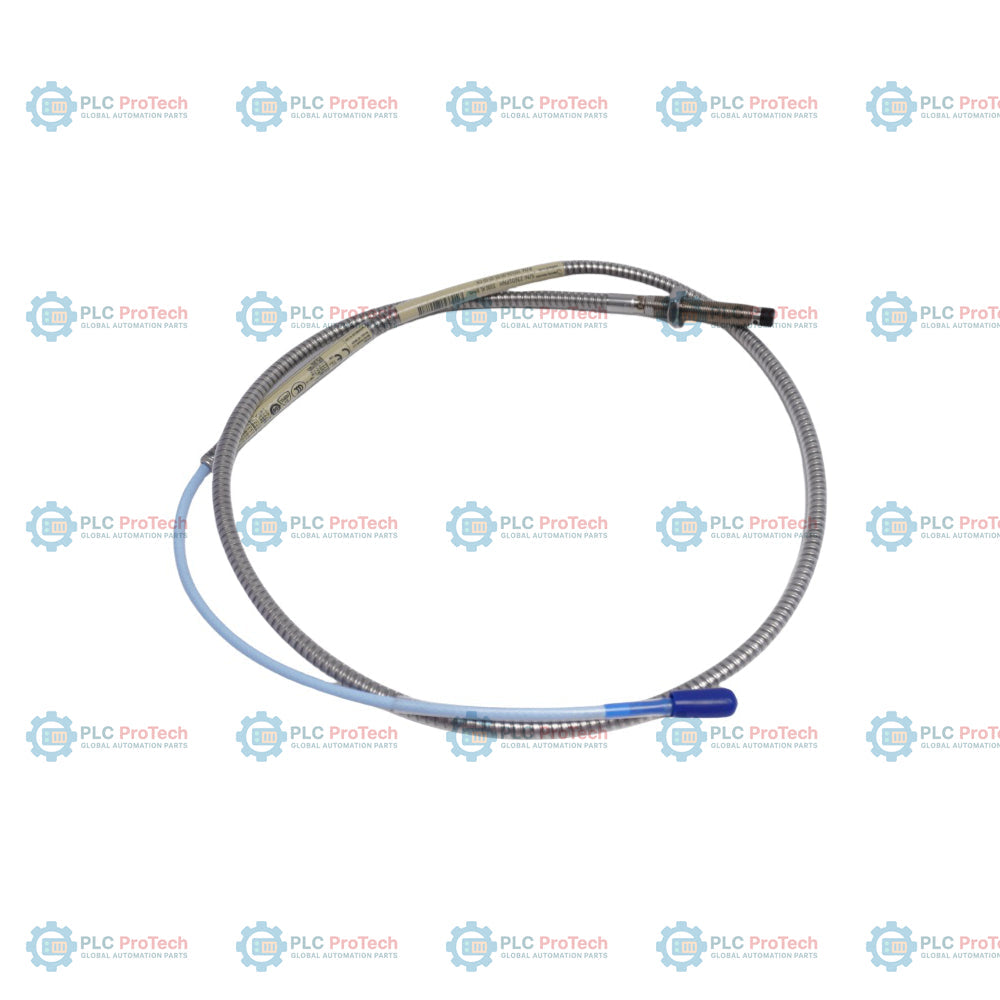

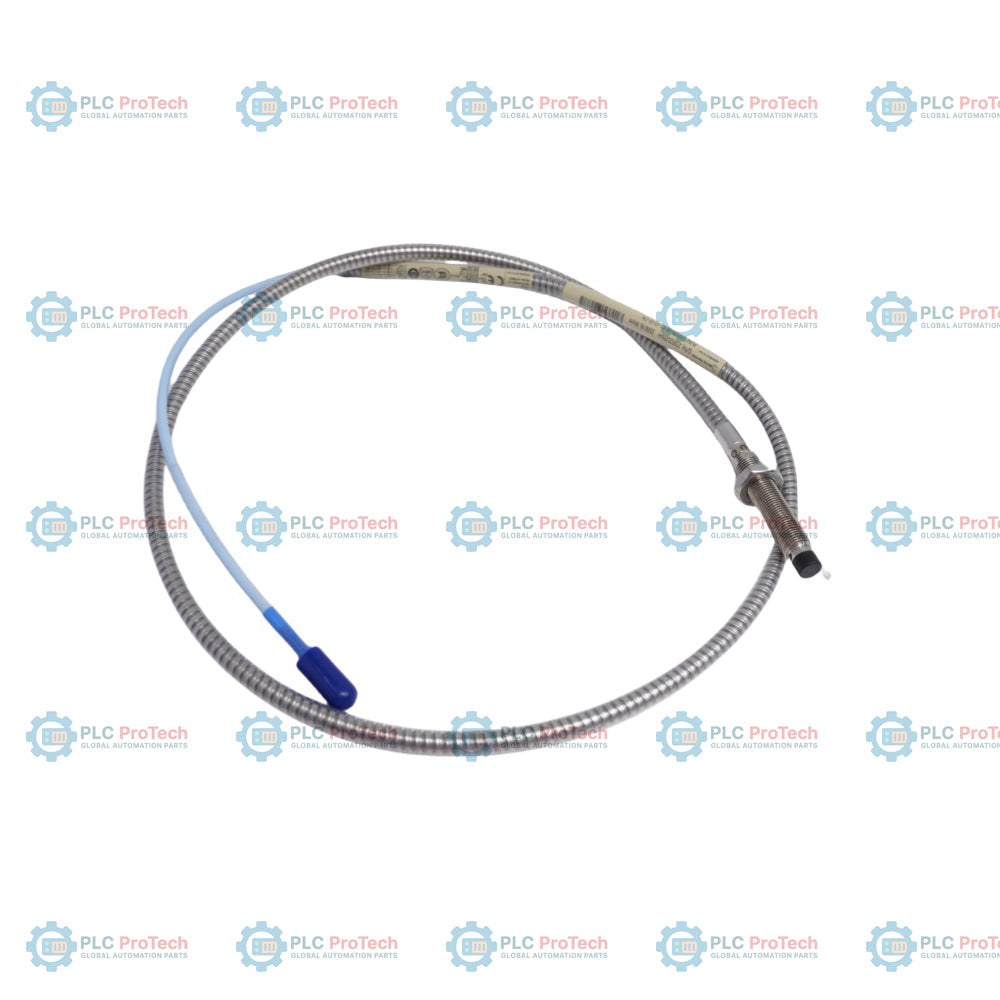

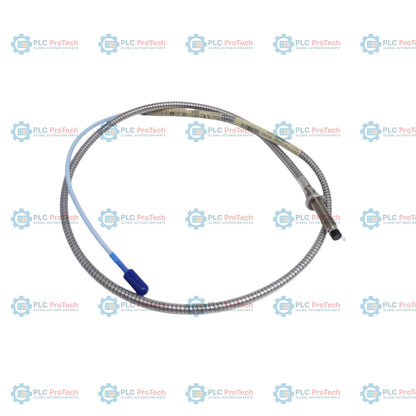

Bently Nevada 330104-00-05-10-02-CN 3300 XL 8 mm Proximity Probe

Description

Option 00 (0.0 mm unthreaded length), Option 05 (50 mm overall case length), and Option 10 (1.0 m total length) specify this metric 3300 XL 8 mm proximity probe configuration - 330104-00-05-10-02-CN. This 3300 XL 8 mm standard proximity probe utilizes an M10 x 1 metric thread and includes stainless steel armor with an FEP outer jacket to provide robust mechanical protection against physical wear and fluid contamination. The probe is equipped with a miniature coaxial ClickLoc connector and standard cable. The trailing -CN suffix integrates the China hazardous area approval package, including NEPSI and CCC certifications, making it suitable for hazardous process environments in China.

This configuration is designed to pair with the 3300 XL Proximitor sensor and an optional extension cable to measure static (position) and dynamic (vibration) distances between the probe tip and the observed target. The 330104-00-05-10-02-CN features a fully threaded body (Option 00) and lacks a pre-installed connector protector (Option 02), which distinguishes it from sibling variants like Option 01 that include a connector protector on the probe lead.

Features

• M10 x 1 metric thread body with integrated stainless steel armor and FEP outer jacket for robust mechanical wear protection.
• Option 00 specifies a 0.0 mm unthreaded length, providing a fully threaded probe body.
• Option 05 specifies a 50 mm overall case length for precise positioning in standard metric housings.
• Option 10 provides a 1.0 meter (3.3 feet) total coaxial cable length.
• Option 02 features a miniature coaxial ClickLoc connector with standard FEP-jacketed coaxial cable.
• Trailing suffix -CN incorporates the China hazardous area approval package, featuring NEPSI and CCC safety markings.
• Operating temperature range of -52 degC to +177 degC for stable long-term operation in thermal industrial environments.
• Sealed tip design prevents fluid penetration up to 7.0 bar (100 psi) differential pressure.

Applications

• Shaft vibration and axial dynamic position measurement on critical industrial machinery.
• Thrust position and casing expansion tracking on large steam and gas turbines.
• Speed and Keyphasor reference measurements on high-speed rotating shafts.
• Vibration monitoring in petrochemical refineries, power generation plants, mining operations, and water treatment facilities.

Ordering Information

Technical Specifications

Installation Guidelines

• Do not exceed the maximum thread engagement torque of 15 N-m (11 ft-lb) during installation to prevent thread damage.
• Ensure the minimum bend radius of the armored cable is kept above 25.4 mm (1.0 in) to protect internal coaxial structures.
• Provide a target side clearance of at least 15 mm around the probe tip to avoid cross-talk or inaccurate eddy-current readings.
• Secure ClickLoc connectors hand-tight to maintain the integrity of the gold-plated pins.

Compliance and Certifications

• NEPSI: National Supervision and Inspection Centre for Explosion Protection and Safety of Instrumentation
• CCC: China Compulsory Certification (Hazardous Area approvals)
• RoHS: Lead-free and hazardous substance restriction compliant
