Bently Nevada 3500/05-01-02-00-00-00 Baie système 3500

Description

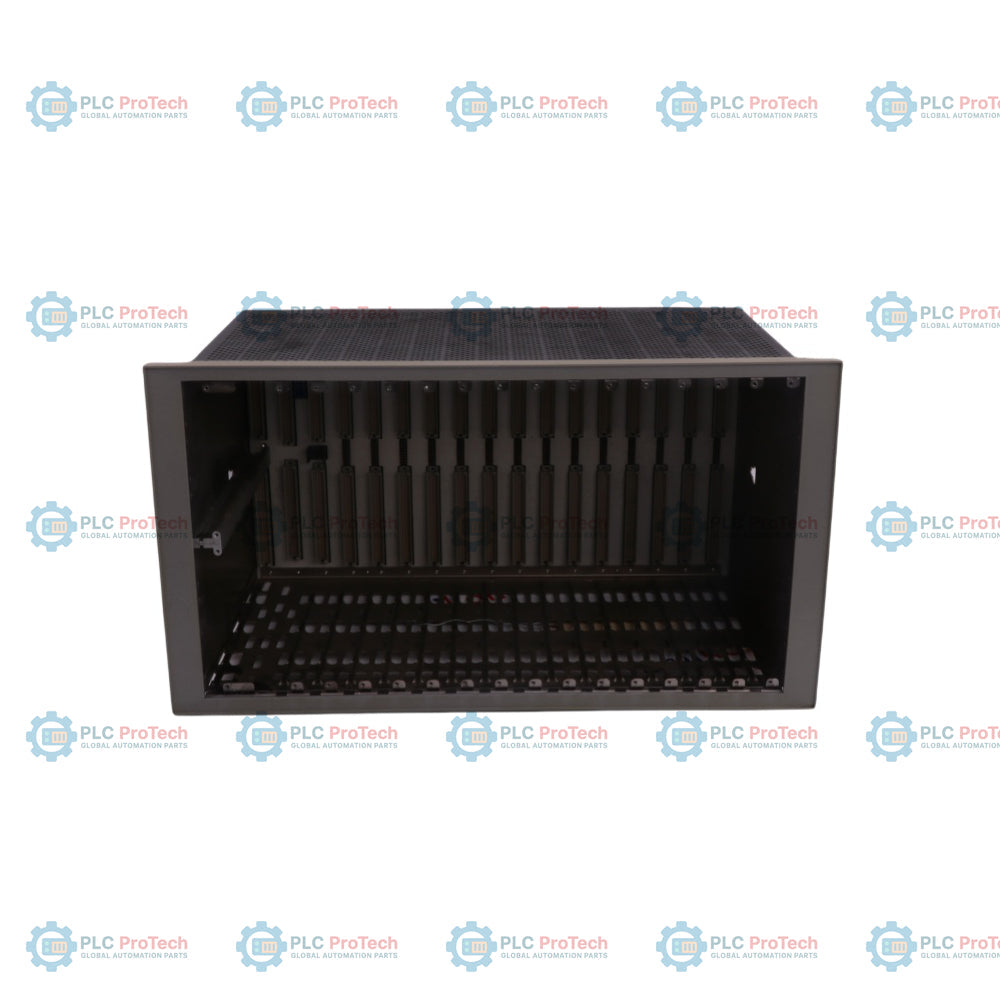

The 3500/05-01-02-00-00-00 functions as a full-size 19-inch system rack designed by Bently Nevada for the 3500 Machinery Condition Monitoring System. This hardware framework provides structural mounting positions for all 3500 series monitor modules and power supply units, facilitating high-speed backplane communication and clean power distribution between adjacent components. This specific model configuration features 14 available module slots and uses a 19-inch EIA rack mount format, which permits secure attachment to standard equipment rails.

Engineered to optimize panel layout efficiency, the 3500/05-01-02-00-00-00 positions all field wiring terminations and input/output (I/O) modules at the rear of the chassis structure for accessible maintenance. The design mandates that primary power supplies and the rack interface module occupy the far-left slot positions, reserving the remaining slots for custom operational combinations of monitoring, protection, and display hardware.

Features

• High-Density Chassis Layout: Incorporates a full-size 19-inch EIA rack infrastructure provisioning 14 dedicated slots for monitoring and control modules.
• Standard Rail Interfacing: Utilizes the option 02 rack mount format to integrate directly into conventional industrial 19-inch EIA hardware enclosures.
• Rear I/O Accessibility: Configured to expose all critical wiring paths and input/output modules on the rear plane for streamlined serviceability.
• Integrated Communication Backplane: Enables adjacent modules to intercommunicate across high-speed bus lines built directly into the rear panel.
• Organized Power Distribution: Built to securely host core system power modules at the far-left edge to regulate and balance supply lanes across the chassis.

Applications

• Enclosure mounting for 3500 series machinery condition monitoring hardware loops
• Centralized rack hosting for vibration, position, and speed modules
• Standard 19-inch cabinet deployment in refining, petrochemical, and power generation control rooms

Ordering Information

Technical Specifications

Installation Guidelines

• Module Positioning Restriction: Ensure that core system power supplies and the primary rack interface module are locked exclusively into the far-left locations of the chassis framework.
• EIA Rail Attachment: Line up the chassis mounting brackets with standard 19-inch EIA rails and secure using structural screws to withstand physical machinery vibrations.
• Barrier Depth Adjustments: If planning to plant internal barriers within the assembly, adjust clearance dimensions to accommodate an expanded depth baseline of 422.91 mm (16.650 inches).
• Rear Space Requirements: Provide sufficient clear workspace behind the mounting enclosure to ensure unhindered field wire termination and manual I/O card attachment.

Compliance and Certifications

• FCC: Complies with part 15 of the FCC Rules regarding industrial signal interference.
• EMC Standards: Evaluated under EN 61000-6-2 (Industrial Immunity) and EN 61000-6-4 (Industrial Emissions).
• Electrical Safety: Certified in alignment with the Low Voltage Directive 2014/35/EU and EN 61010-1 standards.
• Maritime Approvals: Formally qualified under American Bureau of Shipping (ABS) rules and DNV GL classification guidelines.
