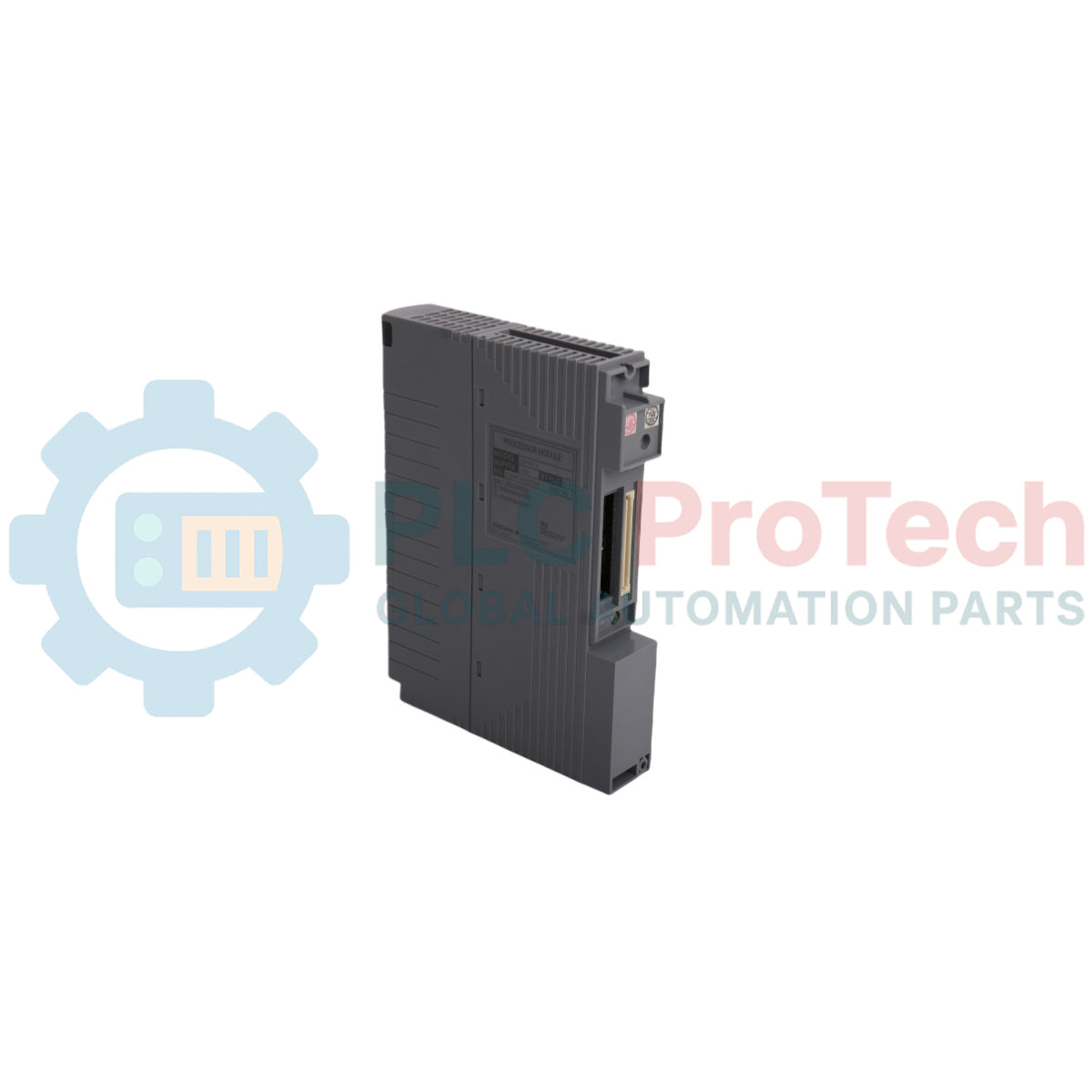

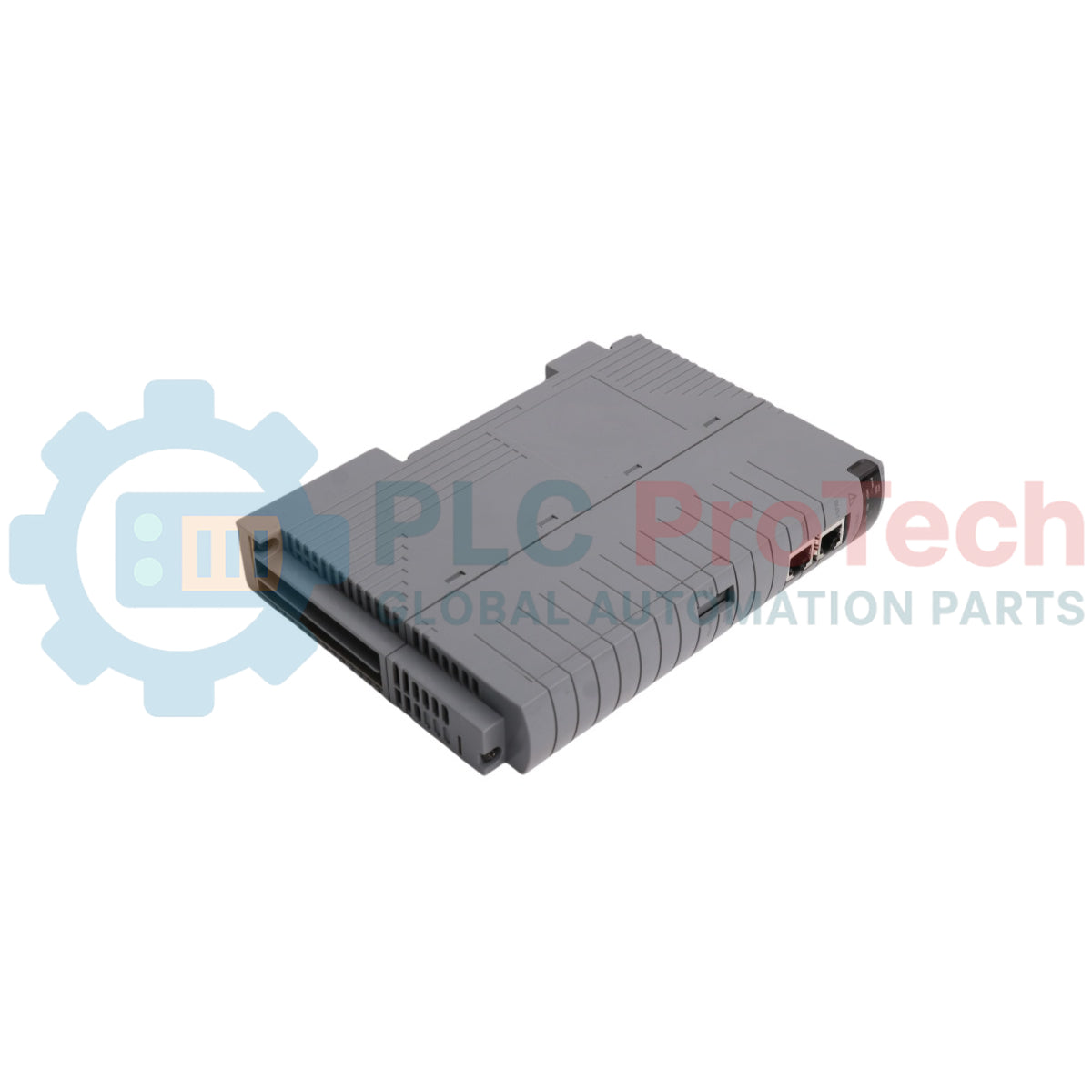

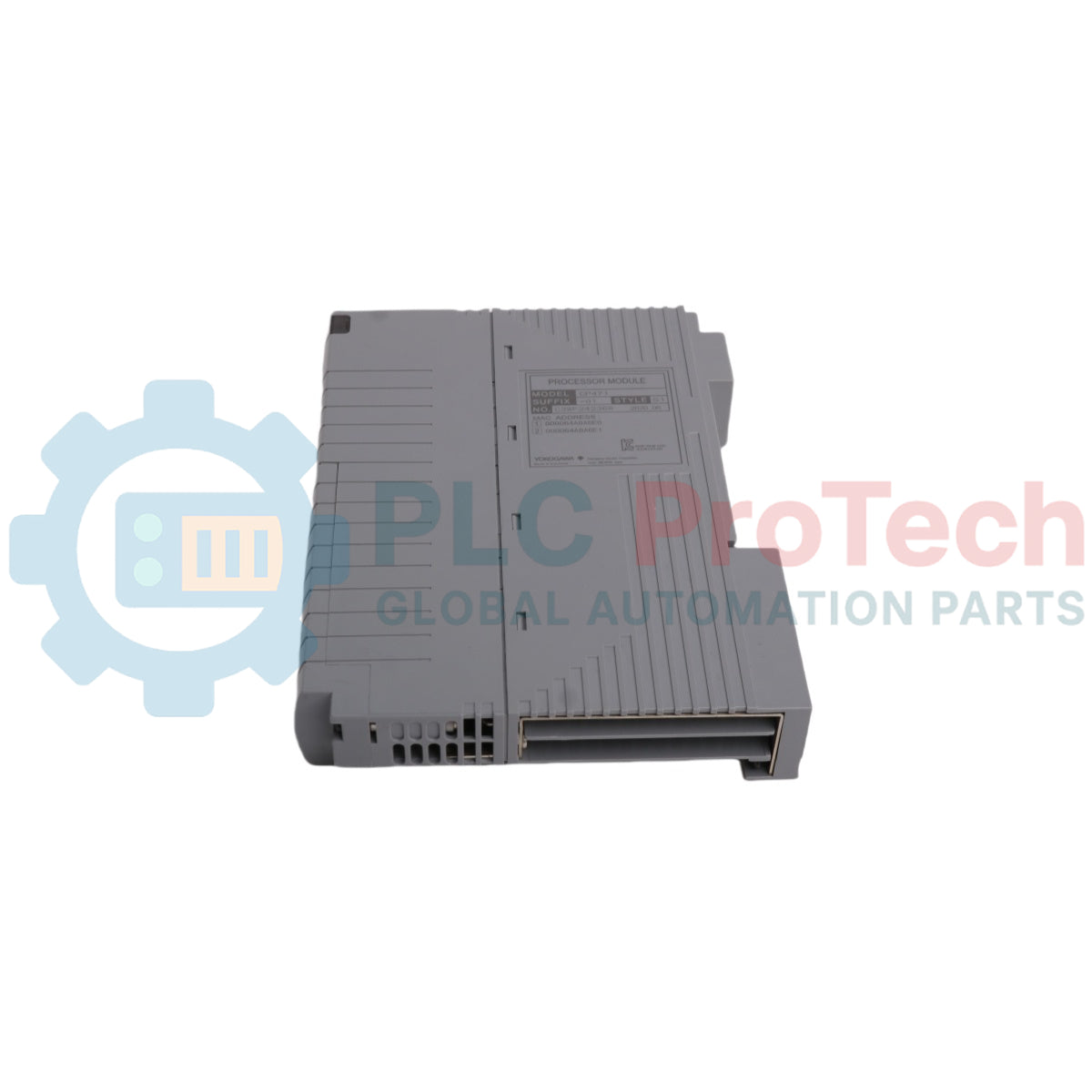

Module processeur CENTUM VP Yokogawa CP471-00 S1

Product Overview

The Yokogawa CP471-00 S1 (CP471-00 S1) is a high-performance Field Control Unit (FCU) processor module engineered for the CENTUM VP Distributed Control System (DCS). Operating as the centralized computational engine within AFV30, AFV40, A2FV50, and A2FV70 field control units, this module executes highly complex control algorithms, batch sequences, and safety interlocks. This standard-performance processor is extensively deployed in demanding process industries—such as chemical plants, LNG terminals, and baseline power generation facilities—where execution speed and control-loop integrity are vital. By supporting seamless dual-redundant hot-standby configurations, the module protects plants against computational hardware faults. Its active diagnostics and automatic bumpless transfer protect the continuous signal path, eliminating process trips, preventing hazardous system restarts, and reducing total downtime.

Suffix Breakdown

The system ordering matrix for the CP471-00 S1 processor module specifies its internal hardware safety profile and style revisions:

• CP471: Base model designator for the high-reliability Field Control Unit Processor Module.

• -0: Configured with no specialized explosion protection standards (intended for general safe-area control rooms or purged system cabinets).

• 0: Basic type functional hardware architecture.

• S1: Style 1 hardware revision, engineered for standardized installation backplanes.

Technical Specifications

Technical FAQs

• Q: Can a single CP471-00 S1 run alongside an existing older CP461 processor in a duplexed pair?

  A: No. A CP471 module cannot co-exist with a CP461 module within the same dual-redundant slot pair. However, a running dual-redundant pair of CP461 processors can be replaced online with a new pair of CP471 modules, provided the software and firmware criteria are met.

• Q: What are the software and hardware prerequisites when upgrading a station from CP461 to CP471?

  A: First, the Control Function software version for the Field Control Station must be R6.05 or later. Second, the companion ESB bus coupler modules (EC401) must be at Style S3 or later. Finally, the hardware upgrade process from CP461 to CP471 must be executed by an authorized Yokogawa service engineer; it is not classified as a user-serviceable procedure.

• Q: Is on-line replacement allowed for the CP471-00 S1?

  A: Yes. If the modules are running in a dual-redundant configuration, on-line replacement of a single faulted CP471 module can be safely performed by the user without interrupting the active process control loop.

Engineering & Installation Guide

• Mandatory Upgrade Safety Warning: Do not attempt to replace a running single-channel or duplexed CP461 processor with a CP471 without manufacturer authorization. If done incorrectly or on unsupported software versions (prior to R6.05), the station will undergo an immediate hard reset, causing a loss of control-loop outputs and triggering a complete unit shutdown.

• Maintaining Module Clearances & Heat Dissipation: The CP471 processor has a total height of 199.5 mm, requiring proper vertical spacing inside the control rack to ensure unrestricted airflow. Maintain at least 100 mm of clear space above and below the card cage assembly to prevent thermal pocket formation.

• Style-Matching for EC401 Bus Couplers: Always check the style markings on the adjacent EC401 ESB bus coupler modules prior to powering up the newly installed CP471. If an older style EC401 (prior to S3) is detected, the CP471 may fail its initial power-on self-test (POST) or generate persistent bus sync faults.
