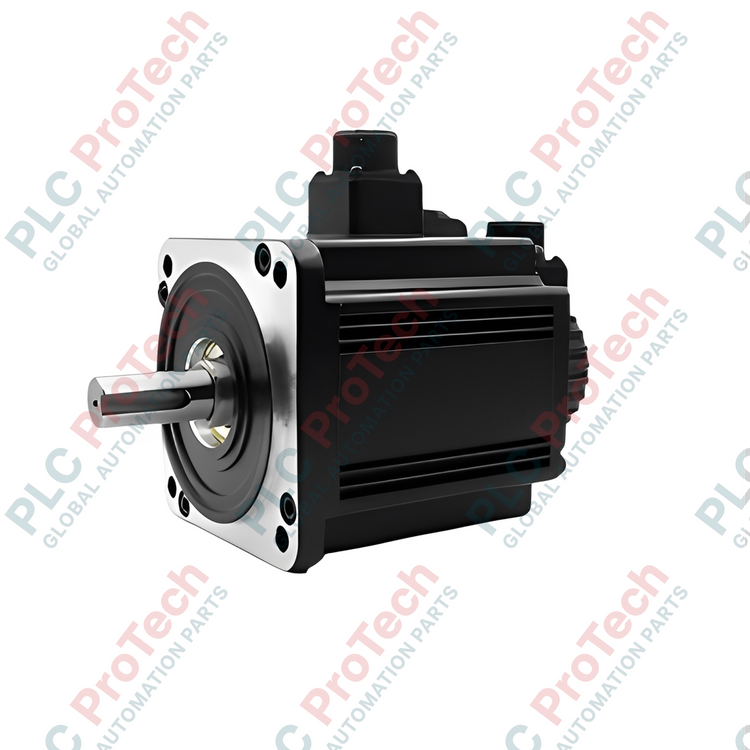

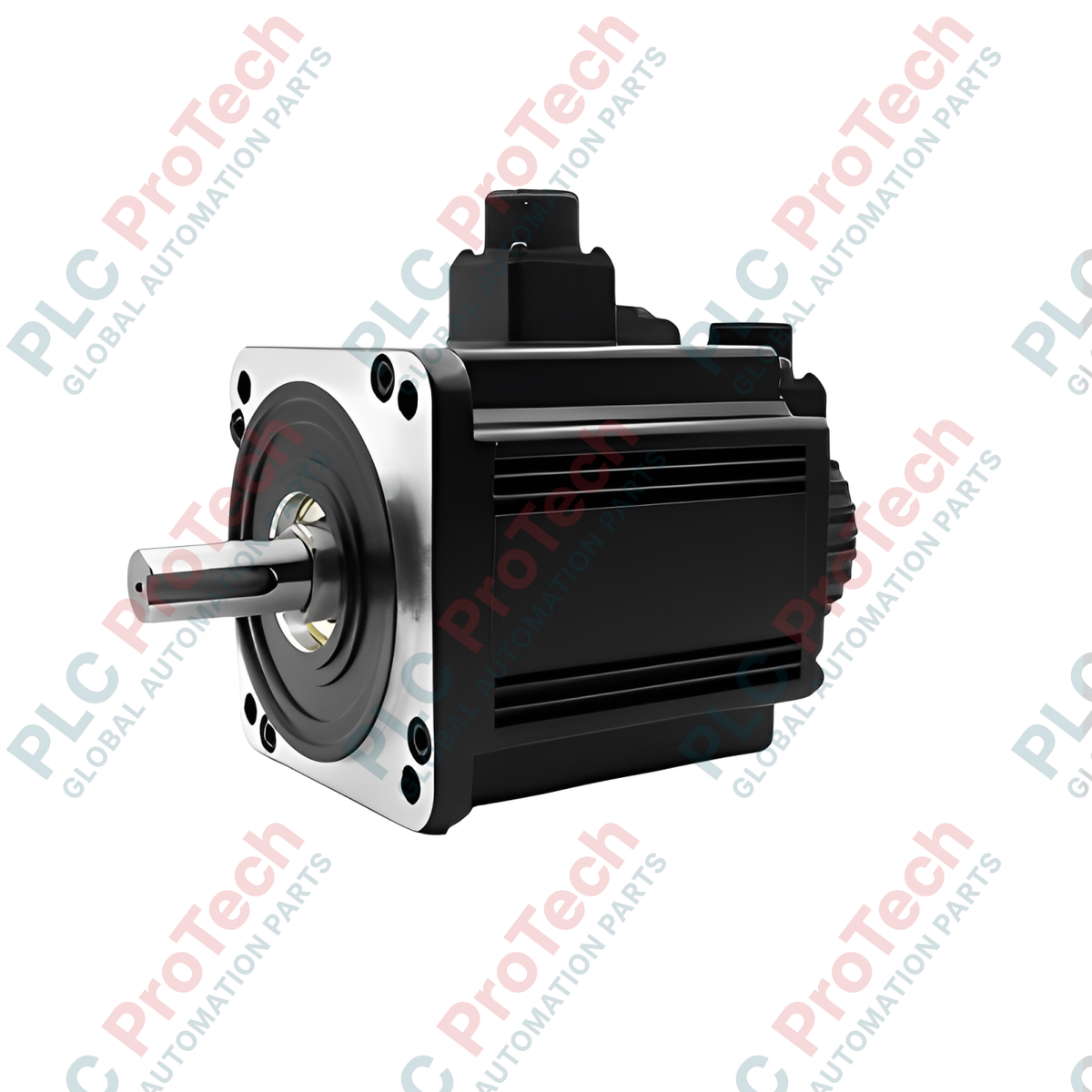

Moteur servo à inertie moyenne série DELTA ECM-B3M-E21320RS1 B3

Product Overview

The ECM-B3M-E21320RS1 (ECMB3ME21320RS1) is a high-performance industrial AC servo motor belonging to Delta's advanced B3 series. This Electronic Commutation Motor (ECM) delivers a 2 kW rated power output and operates at a nominal speed of 2000 rpm on a 220 V electrical supply.

Engineered for precision motion control in heavy-duty automation systems—including multi-axis CNC machining centers, automated packaging lines, high-speed material handling systems, and injection molding machinery—the medium-inertia design provides the mechanical stability necessary to balance high torque demands with smooth dynamic response. Equipped with a high-resolution 24-bit optical encoder, the motor delivers exceptionally accurate feedback to the servo drive, minimizing position hunting and dropping cycle delays to prevent costly production downtime.

Part Number Suffix Breakdown

The alphanumeric designation of the ECM-B3M-E21320RS1 represents specific factory configuration parameters tailored for industrial synchronization:

• ECM: Electronic Commutation Motor (AC Brushless Servo Design).

• B3: Product Series identifier (Generation B3 high-performance platform).

• M: Medium inertia rotor classification, delivering high mechanical stability under fluctuating load characteristics.

• E: Rated Voltage and Operational Speed profile designated for 220 VAC at 2000 rpm.

• 2: 24-bit Incremental Optical Encoder, supplying a resolution of 16,777,216 pulses per revolution for advanced positioning accuracy.

• 13: Motor Frame Size matching a standard 130 mm square flange configuration.

• 20: Rated Output Power capacity indicating 2.0 kW (2000 W) continuous capacity.

• R: Shaft Type and Sealing configuration; features a Keyway with fixed screw holes, is built without an internal mechanical brake, and includes an integrated industrial Oil Seal.

• S: Shaft Diameter and Electrical Interfacing standardized to regular production specifications.

• 1: Special Code allocation designating the unit as a catalog-standard mass-production product.

Technical Specifications

Product FAQs

What specific field applications benefit most from choosing a medium-inertia motor like the ECM-B3M over a low-inertia variant?

Medium-inertia motors are selected for systems that experience fluctuating load forces or high structural mass mismatches, such as gantries, ball-screw drives, and belt-driven conveyors. Low-inertia motors accelerate faster but are highly sensitive to load changes, which can lead to structural resonance and tuning instability in heavy-duty machinery.

How does the 24-bit incremental optical encoder improve machining surfaces?

The 24-bit encoder splits a single 360-degree shaft rotation into over 16.7 million distinct points. This high-density feedback resolution allows the corresponding Delta servo drive to make microscopic torque adjustments, smoothing out velocity ripples and achieving precise surface tracking under changing cutting or forming loads.

Can this motor be installed upside down or vertically without leaking lubricants?

Yes. The "R" configuration contains a specialized, continuous-contact industrial oil seal around the output shaft. This configuration allows the motor to be installed at variable angles—including vertical, shaft-up, or shaft-down layouts—while preventing oil or coolant ingress from neighboring gearboxes or wet machining bays.

Engineering Installation and Shaft Alignment Standards

• Coupling and Concentricity Tolerances: When mating the 130 mm servo motor shaft to a gearbox or ball screw, utilize a high-quality flexible coupling. Ensure that radial alignment deviation stays within 0.03 mm and angular misalignment is limited to less than 1 degree. Tighten the keyway locking screws to the specified manufacturer torque. Direct mechanical hammering on the shaft during assembly is strictly prohibited, as mechanical impact can shatter the internal glass disk of the 24-bit optical encoder.

• Thermal Protection and Air Clearance: Secure the motor to a metallic mounting frame that acts as a primary heat sink. Ensure ambient temperatures immediately surrounding the polycarbonate wiring connectors remain within standard limits. Allow at least 50 mm of unobstructed air clearance around the perimeter of the motor housing to facilitate passive convection cooling across the stator fins.

• Power and Feedback Cable Strain Relief: Route the high-voltage power lines separate from the low-voltage encoder feedback cables by a minimum clearance gap of 10 cm to suppress electromagnetic crosstalk. Provide continuous mechanical strain-relief loops on both cables immediately adjacent to the motor connectors. This layout ensures that high-speed multi-axis machine movements do not transfer mechanical pulling forces directly into the terminal pins.
