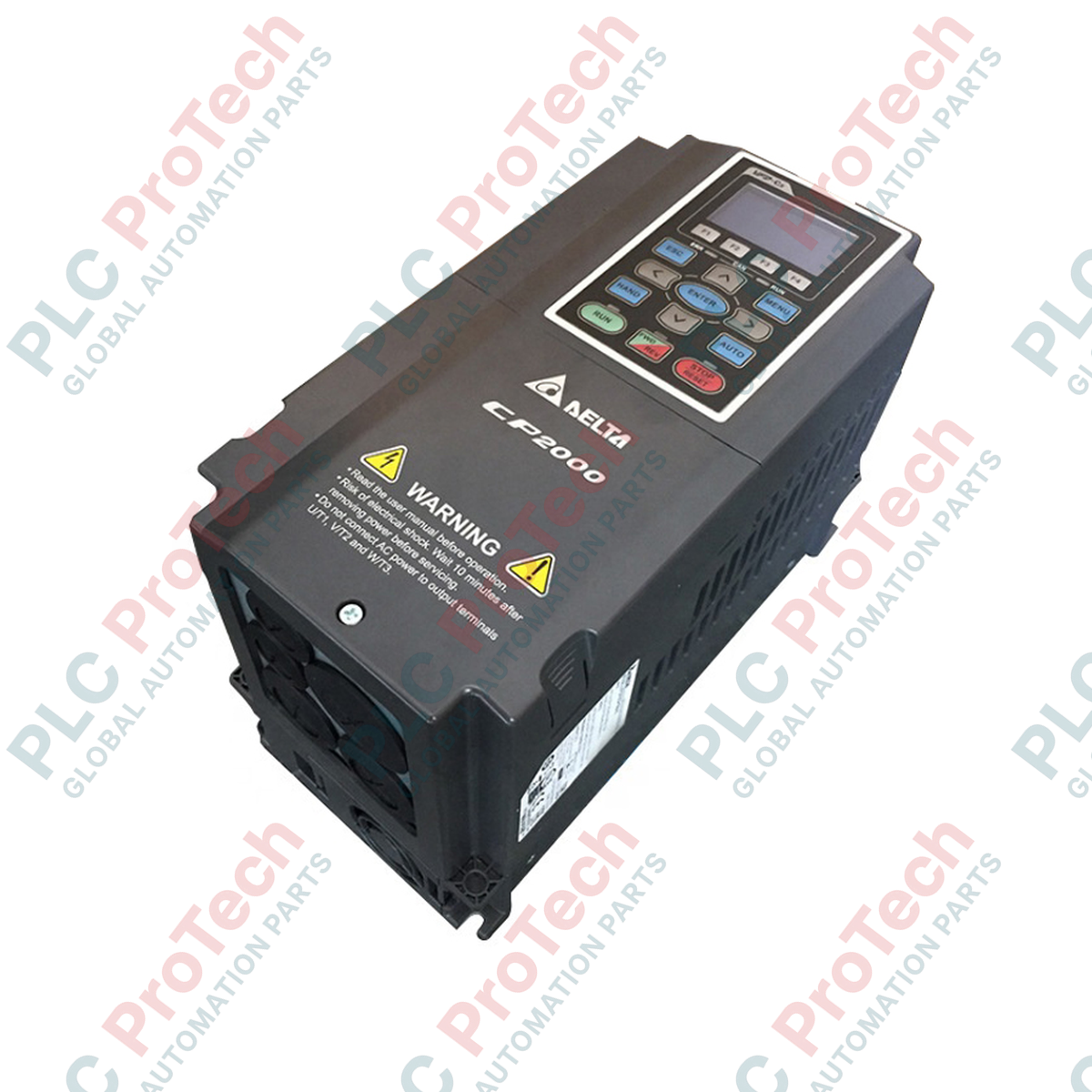

Variateur vectoriel pour ventilateur et pompe Delta VFD150CP43B-21 série CP2000

Product Overview

The Delta VFD150CP43B-21 (VFD150CP43B21) is a high-efficiency 15 kW (20 HP) Variable Frequency Drive specifically engineered for the CP2000 series. Designed primarily for the HVAC, water treatment, and building automation sectors, this drive is optimized for fan and pump applications where energy savings and precise fluid control are paramount. By utilizing advanced sensorless vector control, the VFD150CP43B-21 provides superior torque performance and motor protection. Its integrated PID controller and multi-pump control logic allow for seamless pressure and flow management, drastically reducing energy consumption and mechanical wear on piping systems.

Technical Configuration

The VFD150CP43B-21 is built on the robust CP2000 platform, tailored for 460V 3-Phase power environments. It features a NEMA 1 / IP20 rated enclosure suitable for wall-mount installation within a controlled electrical room or cabinet.

A standout feature of this drive is its "Fire Mode" and "Bypass" functionality, ensuring that in emergency scenarios (such as smoke extraction), the drive can continue operating to protect life and property. It also includes a built-in 10k-step PLC, allowing for customized logic control without the need for an external controller. The drive supports a wide range of communication protocols, including BACnet and MODBUS, making it easy to integrate into existing Building Management Systems (BMS).

Technical Specifications

Technical FAQs

Q1: What is the benefit of the "Fire Mode" in fan applications?

A1: In the event of a fire, the VFD150CP43B-21 can be programmed to ignore standard protection faults (like over-temperature). This forces the fan to continue running for smoke extraction or pressurization until the drive physically fails, prioritizing safety over equipment protection.

Q2: Can I control multiple pumps with a single VFD150CP43B-21?

A2: Yes. The CP2000 series features a built-in multi-pump control function. It can manage fixed-amount and fixed-time circulating control, allowing one drive to coordinate several auxiliary motors to maintain constant pressure in a water supply system.

Q3: Does this drive require an external DC reactor?

A3: The "B" type installation usually includes a built-in DC reactor to suppress harmonics and improve the power factor. However, always check the specific local electrical codes to determine if additional line reactors are required for your specific installation site.

Engineering & Installation Guide

• Energy Savings Optimization: Utilize the "Auto Energy Saving" (AES) function in the parameter settings. This allows the VFD150CP43B-21 to automatically adjust the output voltage based on the load torque, which can yield an additional 5% to 10% energy savings in centrifugal pump applications.

• Harmonic Mitigation: Since this drive operates at 460V, ensure that the input power cables are kept separate from the control and signal cables. Using shielded motor cables is mandatory to comply with EMC directives and to prevent electromagnetic interference with nearby building sensors.

• Cooling and Clearance: For wall-mount installations, ensure at least 50 mm of lateral clearance and 120 mm of vertical clearance. The CP2000 series relies on vertical airflow; blocking the top or bottom vents will lead to premature aging of the electrolytic capacitors and frequent over-temperature tripping.

Engineering Advantages

The VFD150CP43B-21 stands out for its high power density and specialized firmware. Its ability to handle 20 HP motors in a compact 6 kg frame makes it ideal for retrofit projects where cabinet space is limited. The integrated BACnet support eliminates the need for expensive gateway converters, allowing direct connection to the building’s automation backbone. Furthermore, the drive's PCB is treated with a conformal coating (3C3 class) as standard, protecting the internal electronics from the corrosive gases and high humidity often found in wastewater treatment plants and cooling tower environments.
