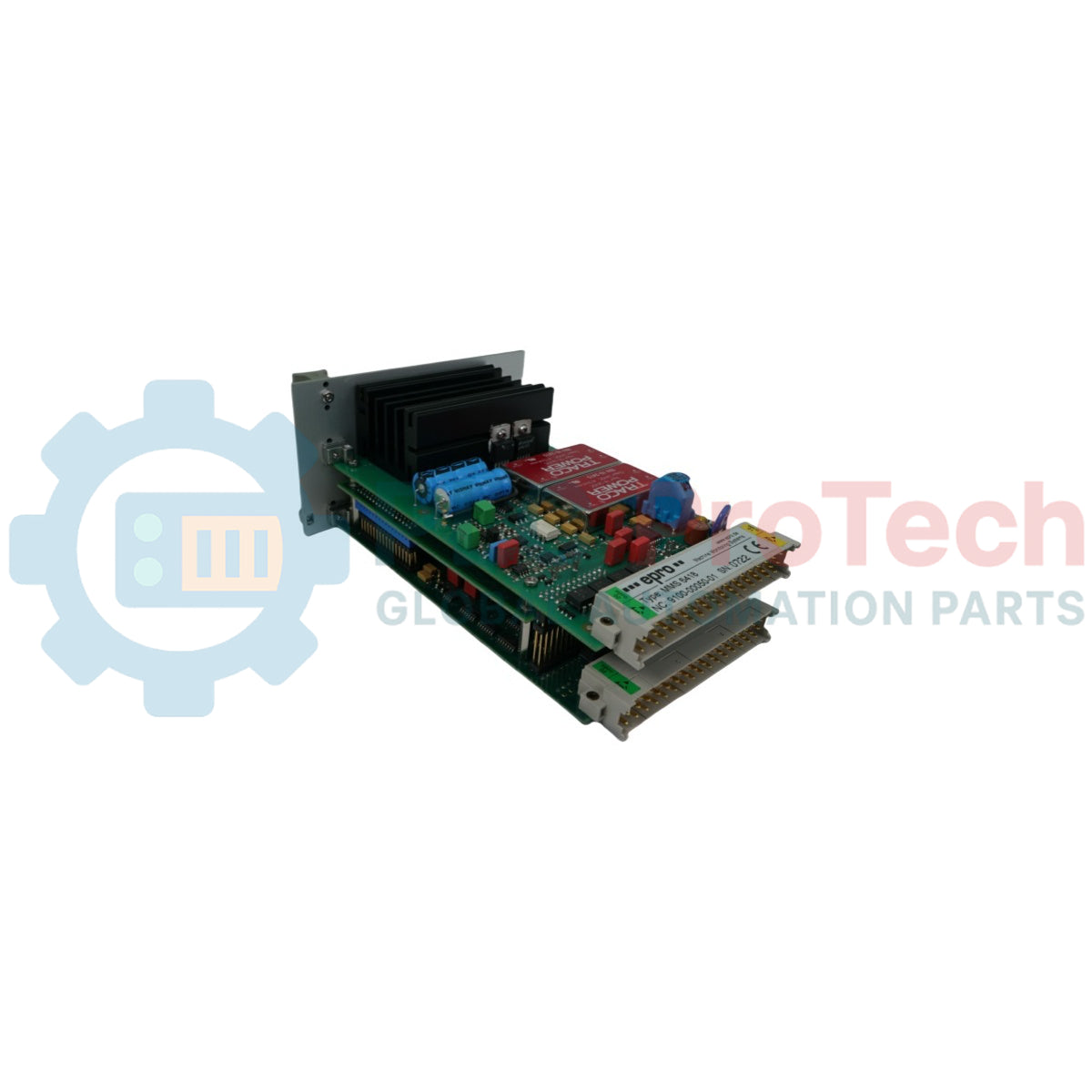

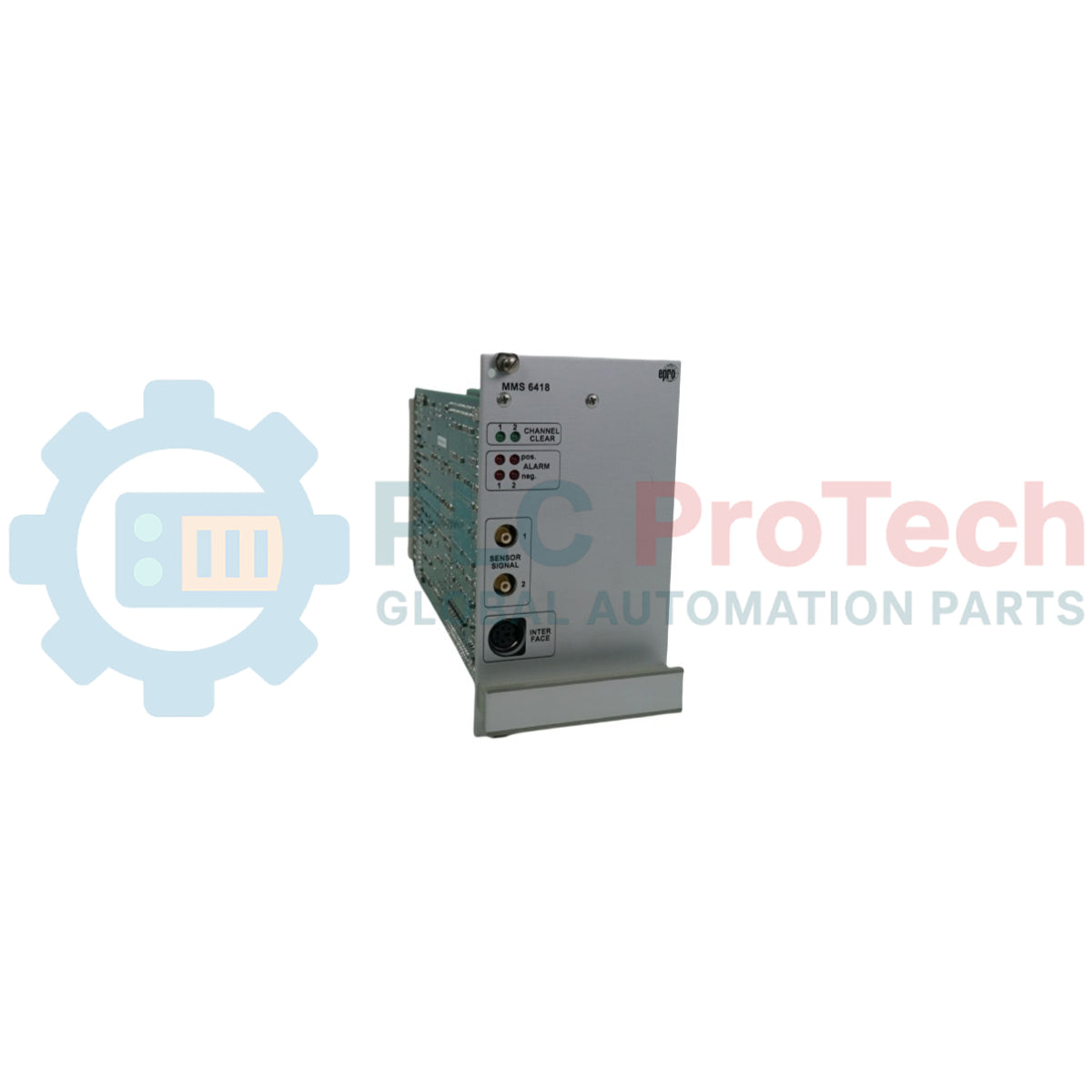

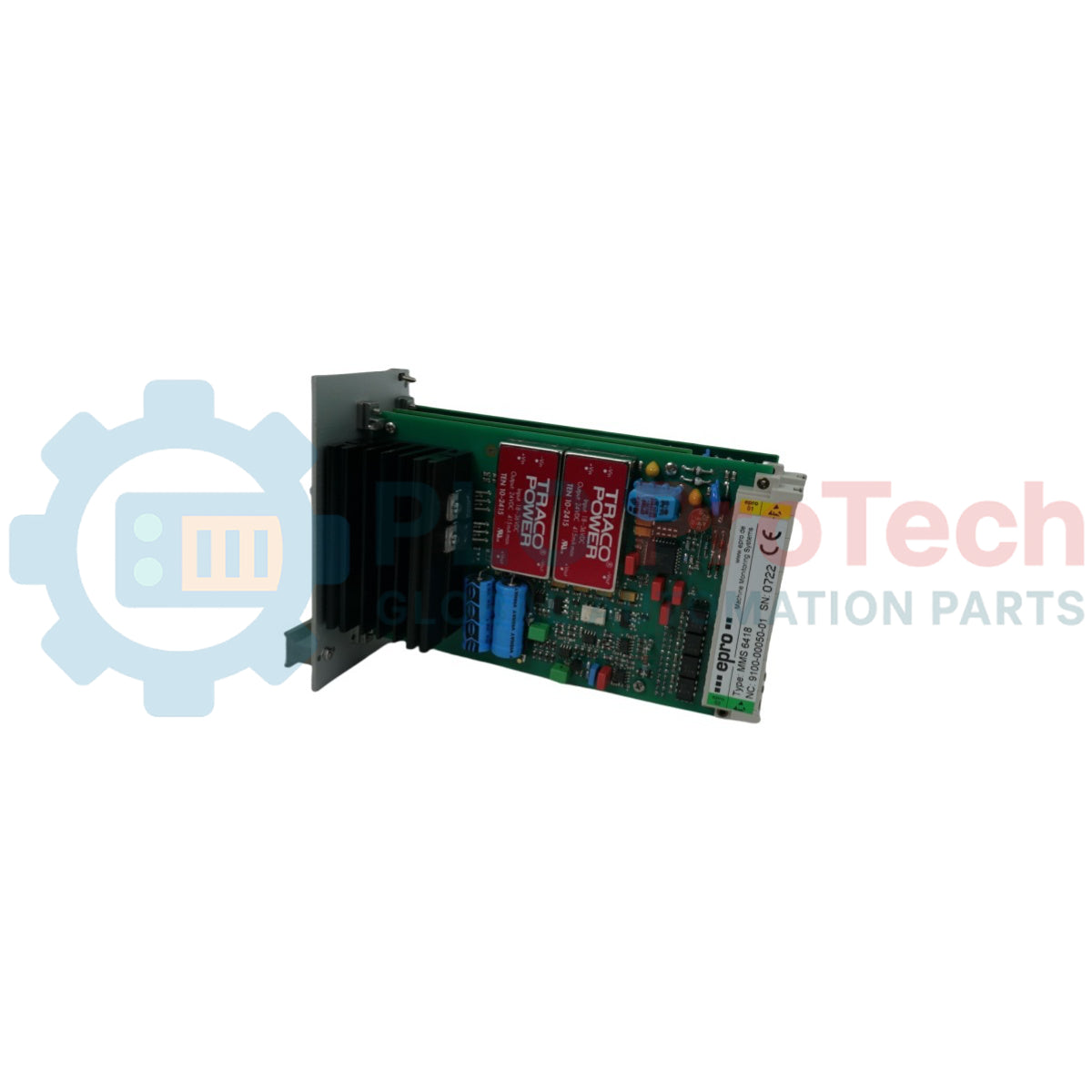

Amplificateur de mesure de déplacement double canal Emerson EPRO MMS 6418

Product Overview

The MMS 6418 (MMS6418) is a specialized dual-channel measuring amplifier belonging to the Emerson (formerly EPRO) MMS 6000 Machine Monitoring System. This module is specifically engineered for high-precision shaft displacement and absolute expansion measurements on critical rotating machinery, such as steam turbines, gas turbines, and large centrifugal compressors. By utilizing inductive transducers in half- or full-bridge configurations, the MMS 6418 provides the essential data required for Turbomachinery Protection (TSI), ensuring that thermal expansion or mechanical shifts do not lead to catastrophic machine contact. Its "Hot-Swap" capability and redundant power inputs make it a staple in high-availability power plants and refineries where monitoring continuity is non-negotiable.

Technical Configuration

The MMS 6418 operates as a stand-alone monitor or as part of a networked system. It features a signal frequency range up to 100 Hz, making it ideal for slow-motion displacement tracking rather than high-frequency vibration. A key technical advantage is its ability to combine results from both channels internally to calculate sum and difference values, which is critical for complex differential expansion monitoring. The sensor supply is balanced to ground to suppress industrial electromagnetic interference (EMI), and the module includes extended self-checking facilities to ensure the integrity of the safety loop at all times.

Technical Specifications

Technical FAQs

Can the MMS 6418 be replaced while the machine is running?Yes, the module is designed for "Hot-Swapping," allowing for replacement during operation without interrupting the power supply to other modules in the MMS 6000 rack. However, ensure that the bypass or protection logic is managed at the DCS level to avoid accidental trips.

What is the difference between this and a standard vibration module?Standard vibration modules (like the MMS 6110) measure velocity or acceleration at high frequencies. The MMS 6418 is a displacement amplifier focused on "DC-like" movements (absolute expansion), tracking how much a machine grows or shifts due to thermal changes.

How do I configure the measuring range?Configuration is handled via the front-facing RS 232 interface using a dedicated laptop or via the RS 485 bus. The module allows for independent zero-adjustment and zero-shift regardless of the chosen measuring range.

Engineering & Installation Guide

• Transducer Calibration: Since the MMS 6418 relies on inductive bridge configurations, it is vital to perform a "Cold Zero" calibration during machine standstill. Ensure the inductive sensor (e.g., PR 9268) is mechanically centered within its linear range before final electrical zeroing in the software.

• Shielding and Grounding: To prevent "Signal Drift" caused by industrial noise, the sensor cable shield must be continuous and grounded only at the rack side (Common Ground). The balanced-to-ground sensor supply of the MMS 6418 is robust, but ground loops can still introduce measurement errors in 4-20mA loops.

• Redundancy Wiring: For mission-critical TSI (Turbine Supervisory Instrumentation), always utilize the redundant power input pins on the backplane. This ensures that a failure in a single power supply unit does not lead to a "Protection Loss" alarm for the expansion monitoring loop.
