KL1382 BECKHOFF Bornier de bus de surveillance thermistance PTC 2 canaux

Product Overview

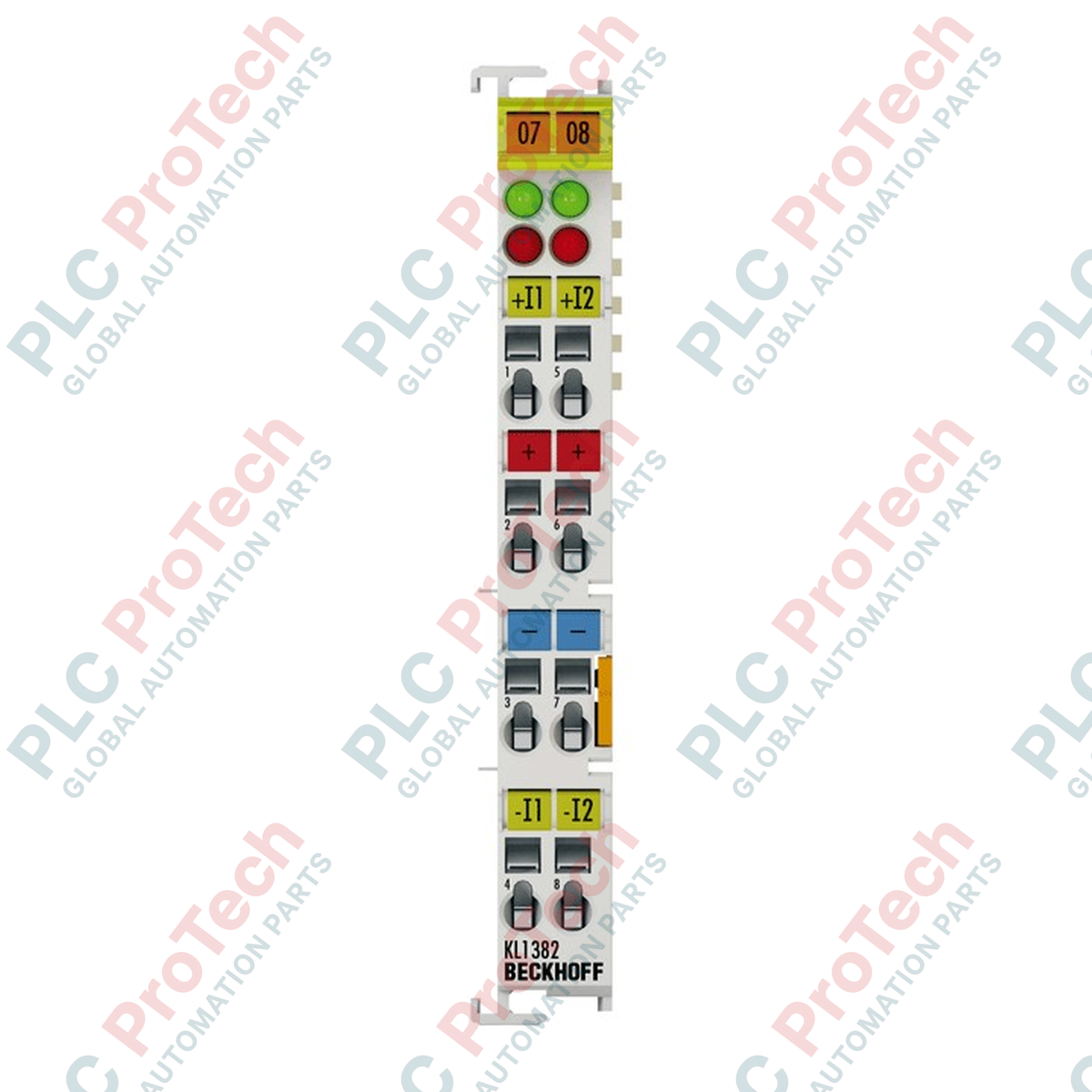

The KL1382 (KL1382) is a specialized 2-channel digital input terminal designed for comprehensive thermal machine protection via PTC thermistors. Unlike standard digital inputs, the KL1382 is engineered to monitor the resistance of thermistors embedded in motor windings, bearings, or transformer coils. It identifies critical "Excess Temperature" states when the resistance crosses predefined thresholds, providing a reliable hardware-based defense against thermal overload. With its multi-industry certifications including ATEX, IECEx, and DNV GL, the KL1382 is a critical component for B2B applications in hazardous industrial environments, maritime engineering, and heavy-duty motor protection systems.

Hardware Architecture and Diagnostic Logic

The KL1382 utilizes 2-wire connection technology to interface directly with PTC sensors. It operates by applying a low sensing voltage (≤ 5 V) and measuring the resulting resistance. The module features integrated logic to distinguish between four distinct states per channel, which are mapped directly into the 4-bit process image:

1. Normal Operation ("0"): Resistance ≤ 1.5 kΩ.

2. Excess Temperature ("1"): Resistance ≥ 3 kΩ.

3. Short-Circuit: Detected when resistance drops below 25 Ω.

4. Open-Circuit (Wire Break): Detected when resistance exceeds 8 kΩ.

The 30 ms input filter ensures that transient resistance fluctuations or electrical noise do not trigger nuisance thermal trips. The terminal provides 500 V galvanic isolation between the K-bus logic and the field potential, ensuring that high-voltage motor faults do not propagate to the central PLC.

Technical Specifications

Technical FAQs

Does the KL1382 require software configuration?

No. The KL1382 is designed for "Plug and Play" operation. It requires no address or parameter settings; the resistance thresholds are factory-set to comply with standard PTC characteristic curves used in motor protection.

Can I connect multiple thermistors to a single channel?

Yes, typically up to 3 or 6 PTC thermistors can be connected in series to a single channel of the KL1382, provided the total cold resistance does not exceed the 1.5 kΩ "0" signal threshold.

What is the significance of the "Ex ec" marking?

The Ex ec (Increased Safety) marking indicates that the terminal is suitable for installation in Zone 2 hazardous areas. It is designed to prevent sparks or excessive temperatures during normal operation, making it ideal for the chemical and oil and gas industries.

Engineering & Installation Guide

• Wiring Integrity: Use shielded cables for PTC connections, especially if the sensor leads run parallel to high-power motor supply cables. Ground the shield at the cabinet entry point to prevent inductive noise from causing false "Excess Temp" readings.

• Diagnostic Mapping: Ensure your PLC program monitors the specific bits for short-circuit and open-circuit. Distinguishing between a "Real" overheat (3 kΩ) and a "Wire Break" (> 8 kΩ) is essential for rapid troubleshooting and preventing unnecessary motor downtime.

• Marine & Offshore Use: Due to the DNV GL approval, this terminal is certified for use in maritime environments. Ensure it is mounted in an enclosure that meets the specific environmental requirements of the vessel’s classification society.

Engineering Advantages

The KL1382 provides a superior safety layer compared to software-based thermal models. By measuring the physical temperature-dependent resistance of the motor directly, it accounts for cooling failures (e.g., blocked fans) that a software model might miss. Its ultra-compact 12 mm width allows for high-density motor protection blocks in the control cabinet. With ATEX and IECEx compliance, it offers a globally recognized safety standard, ensuring that machines equipped with the KL1382 can be exported and operated in regulated hazardous zones worldwide.
