CJ1W-ID262 | Omron | Unités d'entrée DC série CJ

Description

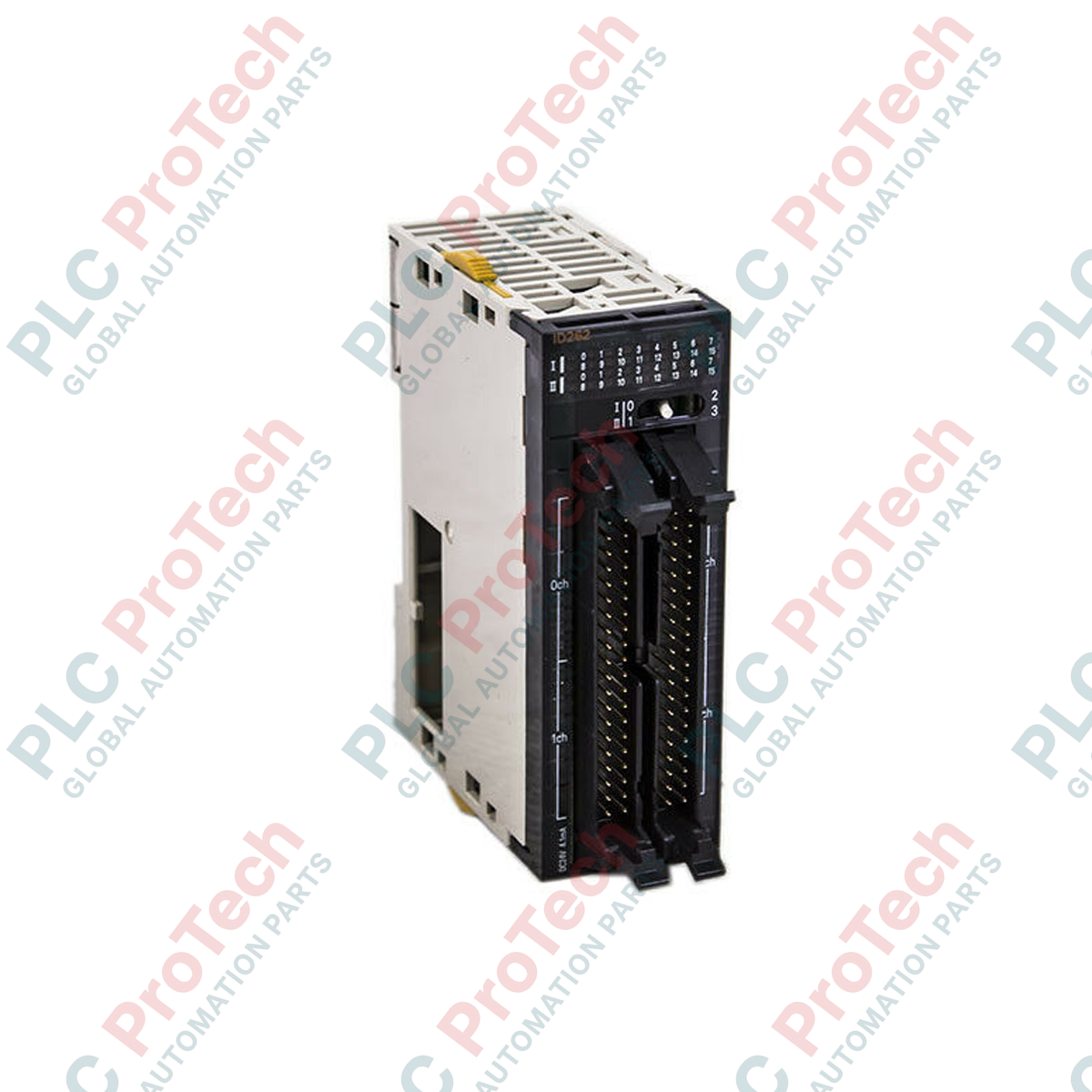

Interfacing high-density field sensors with the Sysmac control architecture, the Omron CJ1W-ID262 provides 64 discrete DC inputs within a single-slot form factor. This high-density module is engineered for space-constrained enclosures in automated assembly, material handling, and packaging machinery. Operating at 24 VDC with a low 4.1 mA input current, the module optimizes power distribution across extensive I/O networks. Its rapid ON/OFF hardware response time ensures high-speed signal registration, making it suitable for fast-cycling industrial processes.

Key Features

• 64-Point High-Density Layout: Maximizes I/O density per slot, significantly reducing PLC rack footprint and control panel space.
• Dual 40-Pin MIL Connectors: Utilizes standardized military-spec connectors for secure, fast connection to external terminal blocks or pre-assembled wiring harnesses.
• Fast Hardware Response: Features a high-speed ON/OFF propagation delay of 120 microseconds or less, enabling precise tracking of rapid sensor cycles.
• Sectioned Commons: Organized into 4 isolated common groups (16 points per common) to allow flexible wiring across different power distribution runs.
• Low Current Footprint: Consumes only 90 mA at 5 VDC from the backplane, preserving power budget for other specialty modules.

Applications

• Multi-Axis Packaging Machinery: Real-time processing of optoelectronic sensors, limit switches, and proximity detection devices.
• Automated Assembly Lines: Consolidation of discrete pneumatic valve feedback signals and part-present sensors.
• Semiconductor Processing Equipment: High-density sensor mapping within compact tool footprints.
• Automotive Test Stands: High-speed tracking of discrete mechanical and limit relays.

Technical Specifications

Empirical Engineering Insights

Alternative Models & Compatibility

The CJ1W-ID262 features 4.1 mA input currents and is optimized for standard sensors, whereas the CJ1W-ID261 has a slightly different internal schematic. Be sure to verify wiring compatibility when upgrading or swapping. This module can be used on CJ1, CJ2, NJ, and NX series platforms provided they use a compatible CJ-series bus extension or bus coupler.

Application Pitfalls & Engineering Notes

Due to the extremely high density of 64 points in a single-slot module, thermal management is key. If all 64 inputs are energized simultaneously at 24 VDC inside a sealed panel operating at its upper limit (55 degC), ensure adequate vertical convection airflow. Avoid routing sensor cables adjacent to high-voltage motor drive lines to prevent electromagnetic induction from triggering false states on the high-speed 120-microsecond hardware input circuits.

Commissioning & Wiring Tips

Direct hand-wiring to 40-pin MIL connectors is highly error-prone and not recommended in production. Commissioning engineers should pair the module with Omron's pre-wired cable assemblies (such as the XW2Z series) and a compatible DIN-rail terminal conversion unit (such as the XW2R-J40G-T or XW2D-40G6). This approach isolates field connections, speeds up loop checks, and simplifies future diagnostic tracing.
