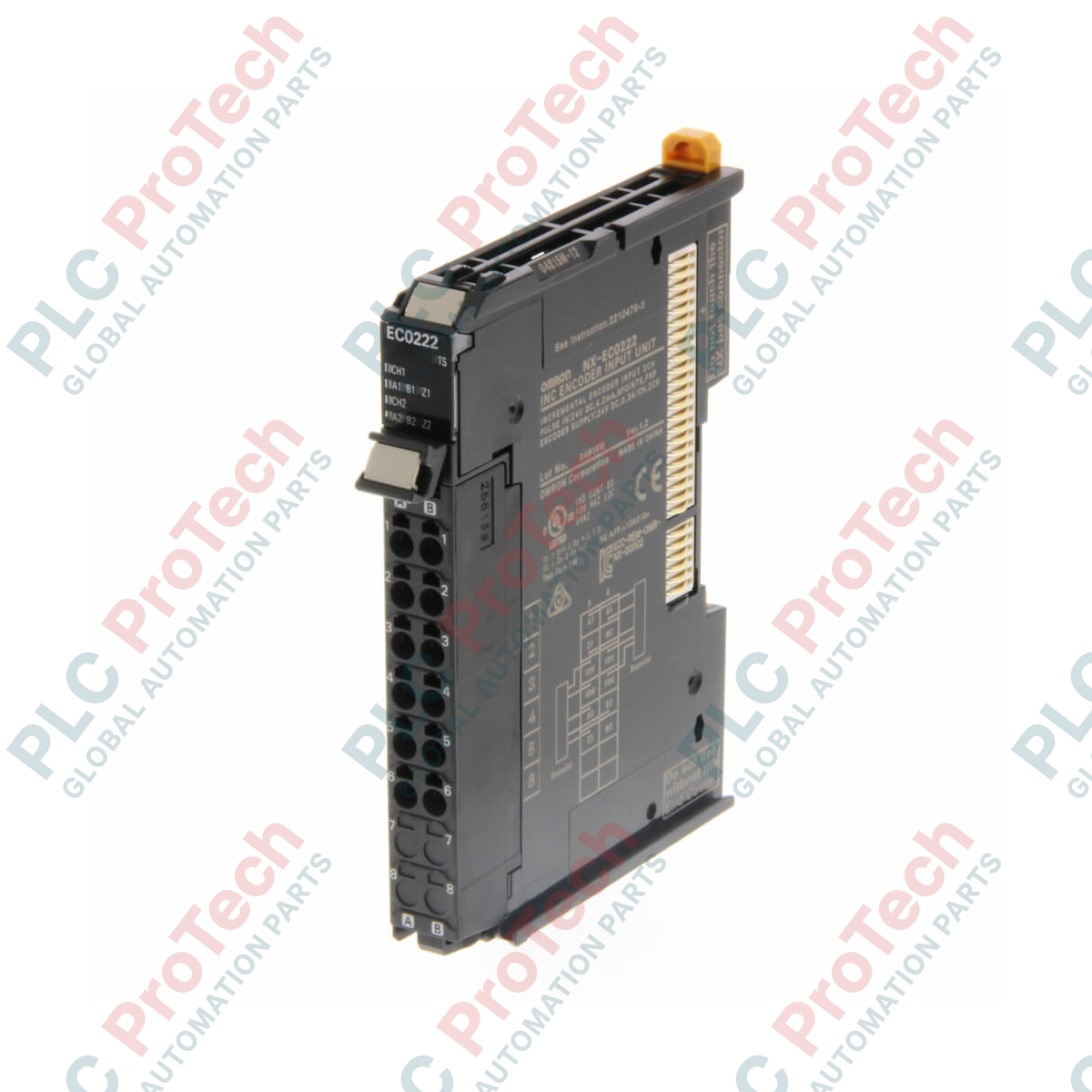

NX-EC0222 | Omron | Unité d'entrée codeur incrémental série NX

Description

Designed for high-precision position and velocity tracking, the Omron NX-EC0222 functions as a high-performance incremental encoder input unit within the modular NX-series I/O platform. This module accepts high-speed pulse inputs from incremental encoders, enabling accurate closed-loop control and monitoring in highly synchronized motion applications.

The NX-EC0222 features two independent channels that support standard phase A, B, and Z encoder signals. By integrating seamlessly with Sysmac NJ/NX safety and machine automation controllers, the unit utilizes synchronous I/O refreshing to align encoder capture cycles directly with the primary controller task period. Isolation is achieved via integrated photocouplers to safeguard internal electronics against electrical noise and industrial transients.

Features

• Two independent incremental encoder input channels.
• Supports multiple pulse input methods: phase difference pulse (multiplication x2 or x4), pulse + direction inputs, and up/down pulse inputs.
• Equipped with a 12-terminal screwless push-in terminal block for rapid, reliable wiring without tools.
• Flexible I/O refreshing methods including synchronous, task-period prioritized, and free-run refreshing.
• Robust photocoupler isolation between the input channels and the internal bus.
• Accepts 24 VDC voltage inputs for compatibility with standard industrial sensors and encoders.

Applications

• Closed-loop servo motor position and velocity feedback.
• High-speed conveyor tracking and synchronization.
• Rotary indexing table control in packaging and assembly lines.
• Electronic gearing and registration mark detection systems.

Technical Specifications

Installation Guidelines

• Mount the unit on a standard 35 mm DIN rail inside an enclosure rated for IP54 or higher to protect against airborne contaminants.
• Always use shielded, twisted-pair cables for encoder connections to minimize external electromagnetic interference.
• Connect the shield of the encoder cable directly to the functional ground terminal of the control panel.
• Ensure all power is switched off before mounting, removing, or wiring the module to prevent electrical shock or component damage.
