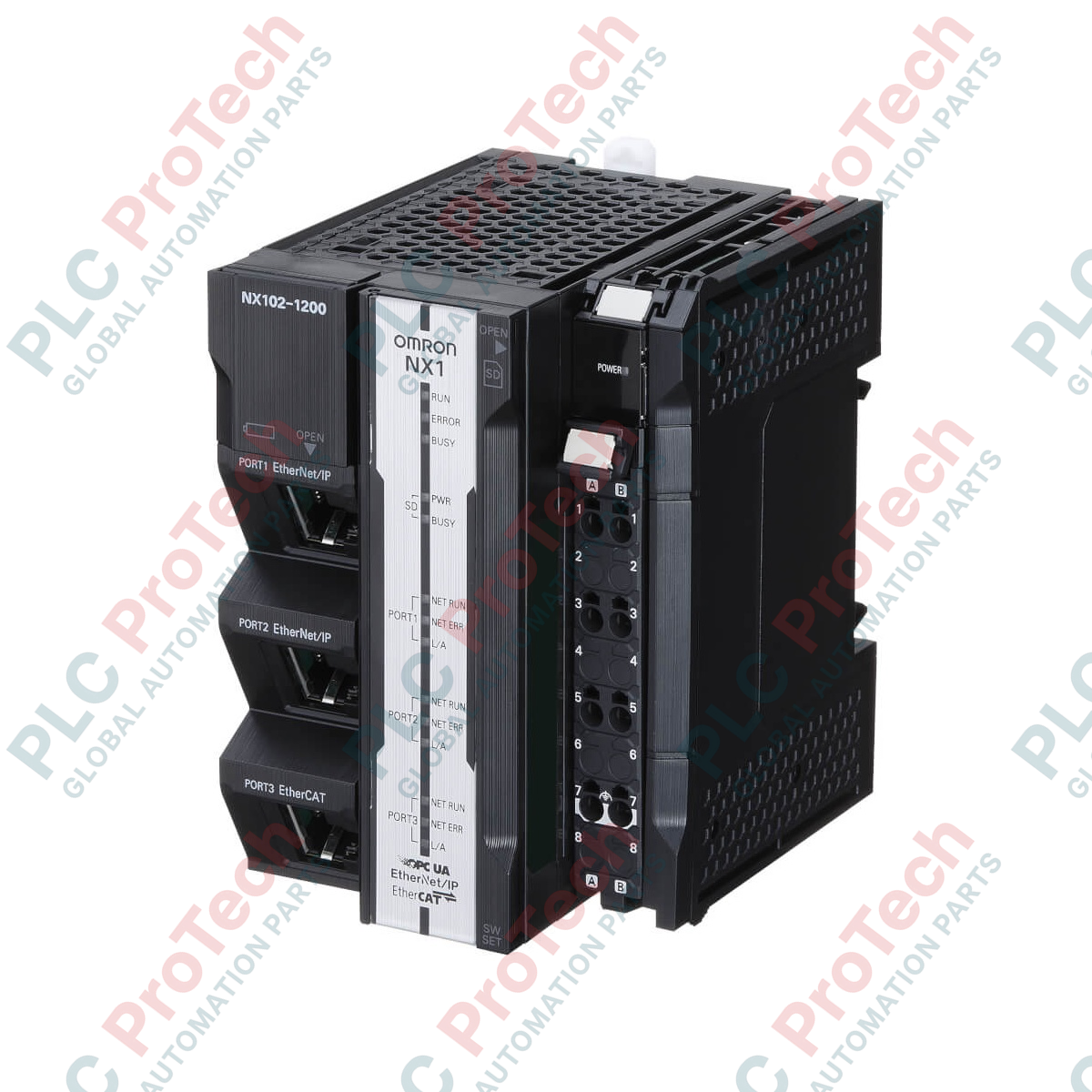

NX102-1200 | Omron | CPU modulaire Sysmac NX1

Description

Engineered for high-performance machine control and seamless IT/OT connectivity, the NX102-1200 modular CPU unit integrates sequence, motion, and industrial networking tasks within a single compact device. This controller is designed for Sysmac platform architectures, providing deterministic control over complex automated systems. It enables native OPC-UA server communication to bridge the gap between physical factory-floor equipment and enterprise-level database applications without requiring intermediate gateway hardware.

The unit features robust synchronization capabilities for multi-axis motion control, handling high-speed data transmission through built-in physical EtherNet/IP and EtherCAT ports. By managing logic operations and complex motion profiles on a single hardware clock, the controller minimizes communication latency and enhances overall machine efficiency in high-throughput production environments.

Features

• Native integration of sequence control, motion control, and high-speed communication interfaces.
• Built-in OPC-UA server functionality, facilitating secure data exchange with MES, ERP, and cloud-based systems.
• Synchronous execution of EtherCAT motion networks and local I/O operations.
• Expandable local I/O configurations using standard NX-series digital, analog, and specialty modules.
• Robust housing design optimized for DIN-rail mounting with efficient heat dissipation pathways.

Applications

• High-speed packaging machinery requiring synchronized multi-axis servo systems.
• Semiconductor fabrication equipment requiring precise position control and environmental data logging.
• Automotive assembly systems requiring continuous data exchange with factory MES layers.
• Material handling and sorting lines operating on high-speed EtherCAT networks.

Technical Specifications

Installation Guidelines

To ensure reliable operation and proper thermal management, mount the CPU unit vertically on a standard 35 mm DIN rail. Maintain a minimum clearance of 50 mm above and below the controller to allow adequate convection cooling. Ensure the system ground terminal is connected to a dedicated class-D ground (100 Ohms or less) using a minimum wire gauge of 2.0 mm square. Use shielded twisted-pair (STP) cabling category 5e or higher for all EtherCAT and EtherNet/IP connections to prevent electromagnetic interference from surrounding power lines.

Compliance and Certifications

• CE compliant (EMC Directive, Low Voltage Directive)
• cULus Listed
• KC (Korean Communications Commission) Certification
