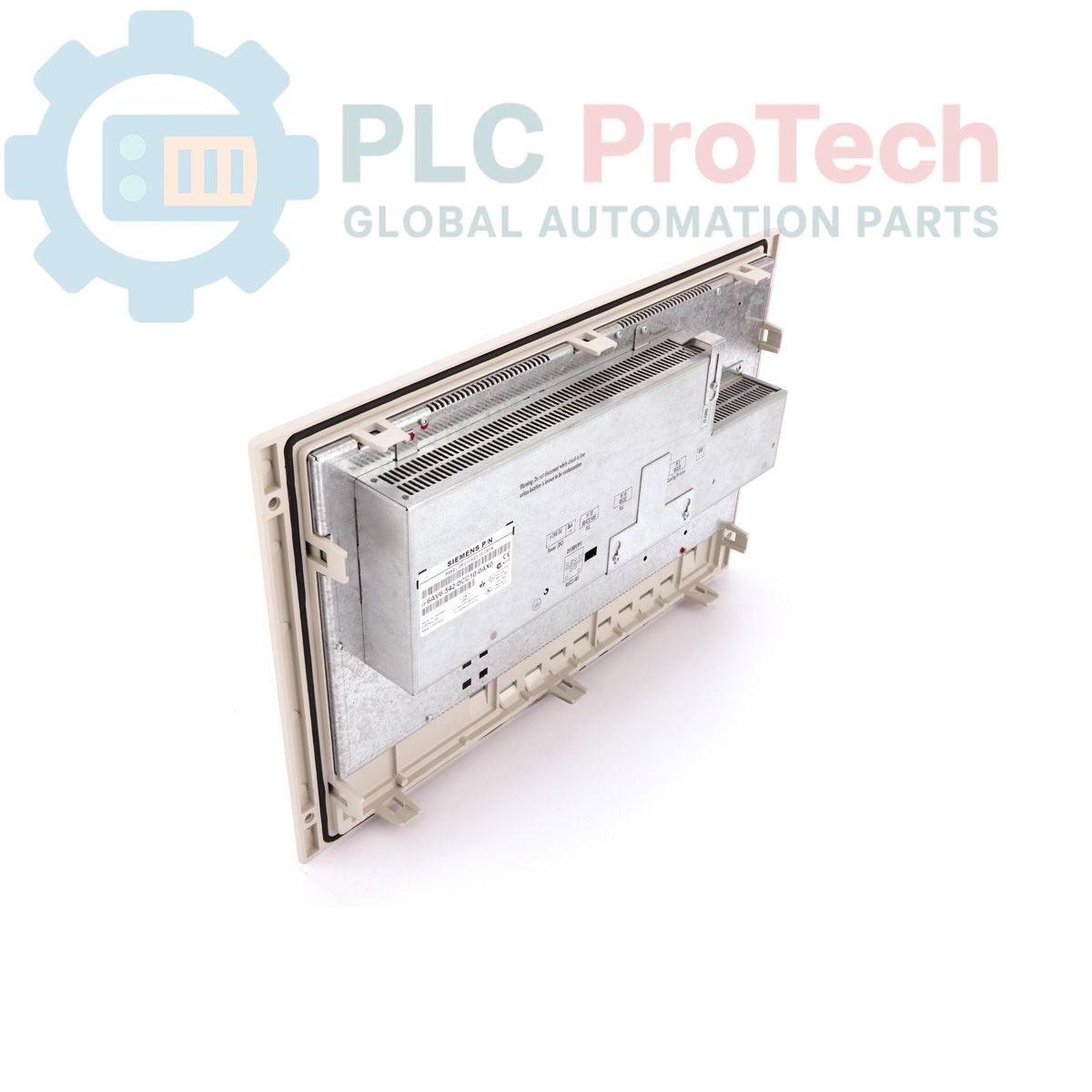

Siemens 6AV6542-0CC10-0AX0 SIMATIC HMI OP270 Operator Panel

Il ne reste que 6 article(s) en stock

Fabricant : Siemens
N° de produit : 6AV6542-0CC10-0AX0
Pays d'origine :Allemagne
Type de produit : HMI Operator Panel
Code-barres : 85371091
Paiement : Virement bancaire, Western Union
Poids : 6360g
Dimensions : 41.00 x 61.00 x 18.00 cm
Port d'expédition : Xiamen
Garantie : 12 mois

Description

The Siemens 6AV6542-0CC10-0AX0 is an industrial-grade SIMATIC OP270 operator panel designed for efficient and reliable control in production environments. This unit features a 10.4-inch STN color display, providing clear visualization of process data and intuitive operation. Equipped with 2 MB of configuring memory, the 6AV6542-0CC10-0AX0 supports flexible configuration using ProTool software from version V6.0 and higher. Its robust construction ensures consistent performance in demanding industrial settings, making it suitable for a wide range of automation applications.

Features

10.4-inch STN Color Display
2 MB (2048 kbyte) Configuring Memory
Configurable with ProTool Software (from V6.0)
640 x 480 Pixel Display Resolution
256 Display Colors
Key-based Operation

Applications

The Siemens 6AV6542-0CC10-0AX0 operator panel is suitable for deployment in various industrial automation scenarios requiring human-machine interface capabilities. Typical applications include:

Process visualization and control in manufacturing plants
Machine operation and monitoring
Data entry and parameter adjustment in production lines
Supervision of automated systems in demanding industrial environments

Technical Specifications

Manufacturer	Siemens
Country of Origin	Germany
Range	SIMATIC HMI
Subrange	Operator Panels 270 series
Type of Product	Operator Panel
Product Phase	Obsolete
Supply Voltage	24V DC
Screen Diagonal	10.4 inch
Display Type	STN Color Display
Display Resolution	640 x 480 pixels
Type of Operation	Keys
Display Colors	256
Configuring Memory	2048 kbyte (2 MB)
Package Dimensions (Calculated)	41.00 x 61.00 x 18.00 cm
Shipping Weight	6.36 kg
Commodity Code	85371091
Export Control Regulations (ECCN)	5D002

Installation Guidelines

Proper installation of the Siemens 6AV6542-0CC10-0AX0 operator panel is crucial for reliable operation and system integrity. Adhere to the following general guidelines:

Power De-energization: Before commencing any installation work, ensure that all power to the control cabinet or mounting location is disconnected and secured against accidental re-energization.
Mounting: Mount the operator panel securely into a prepared panel cutout. Ensure adequate clearance for ventilation and cable routing. Use appropriate mounting hardware to prevent vibration and ensure a stable fit.
Power Connection: Connect the 24V DC supply voltage to the designated power terminals, observing correct polarity. Use shielded cables for power supply if recommended by system design to minimize electrical interference.
Grounding: Ensure the panel's protective earth (PE) connection is properly bonded to the system's main ground. A low-impedance ground connection is essential for safety and electromagnetic compatibility.
Cable Routing: Route signal and communication cables separately from power cables to prevent interference. Ensure cables are secured, properly terminated, and do not obstruct cooling airflow.
Environmental Considerations: Verify that the operating environment's temperature, humidity, and vibration levels are within the specified limits for the device to ensure long-term performance.
Initial Power-Up: After installation, carefully re-energize the system and observe the panel for proper startup and functionality.

Key Features:

#Operator Panel #SIMATIC HMI

What software is required to configure the 6AV6542-0CC10-0AX0?

The panel is configurable with Siemens ProTool software, specifically from version V6.0 or higher.

What type of display does this operator panel feature?

It features a 10.4-inch STN (Super-Twisted Nematic) color display with 256 colors and a resolution of 640 x 480 pixels.

What is the supply voltage for the Siemens 6AV6542-0CC10-0AX0?

The required supply voltage for this operator panel is 24V DC.

How much configuring memory does the panel have?

The panel is equipped with 2 MB (2048 kbyte) of configuring memory.
