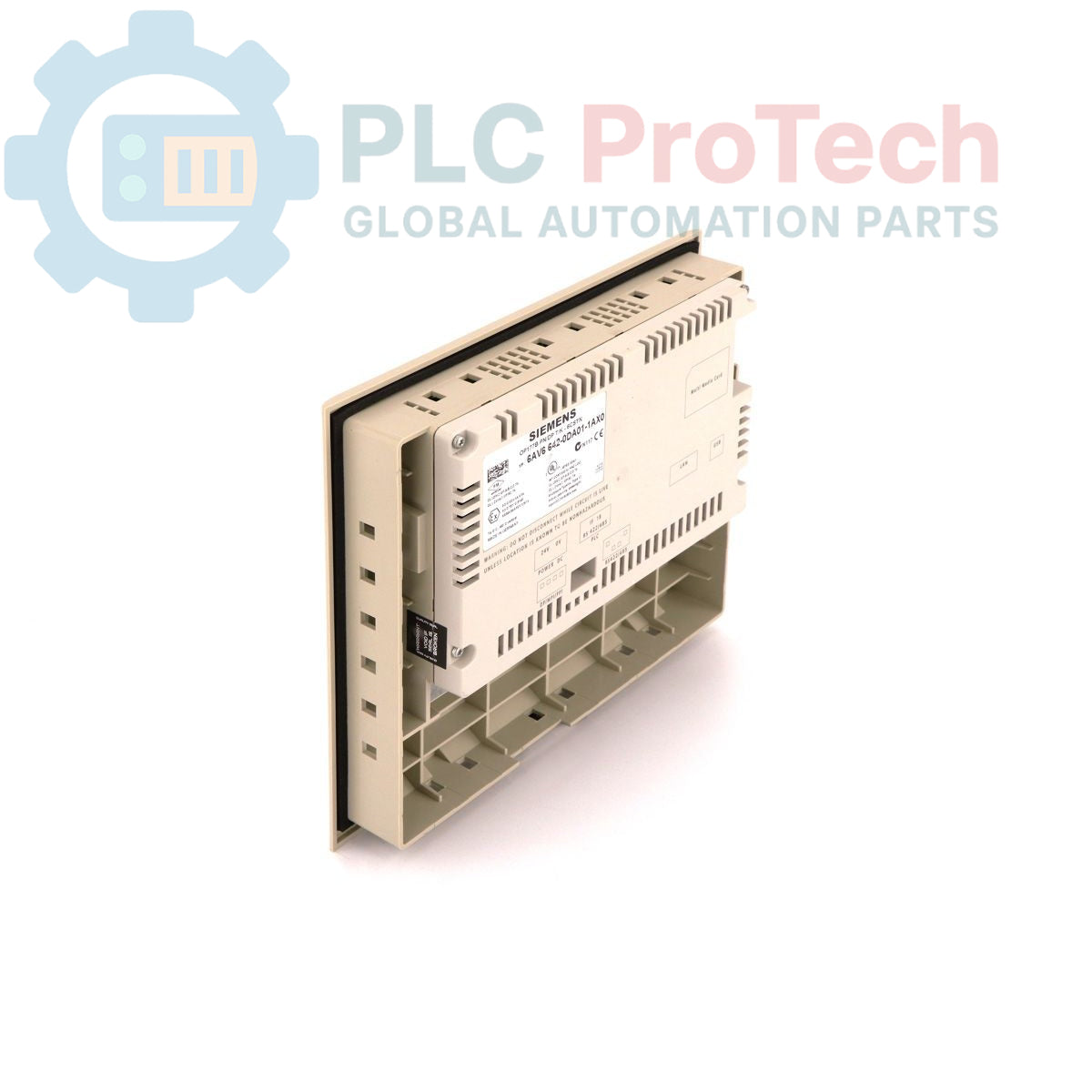

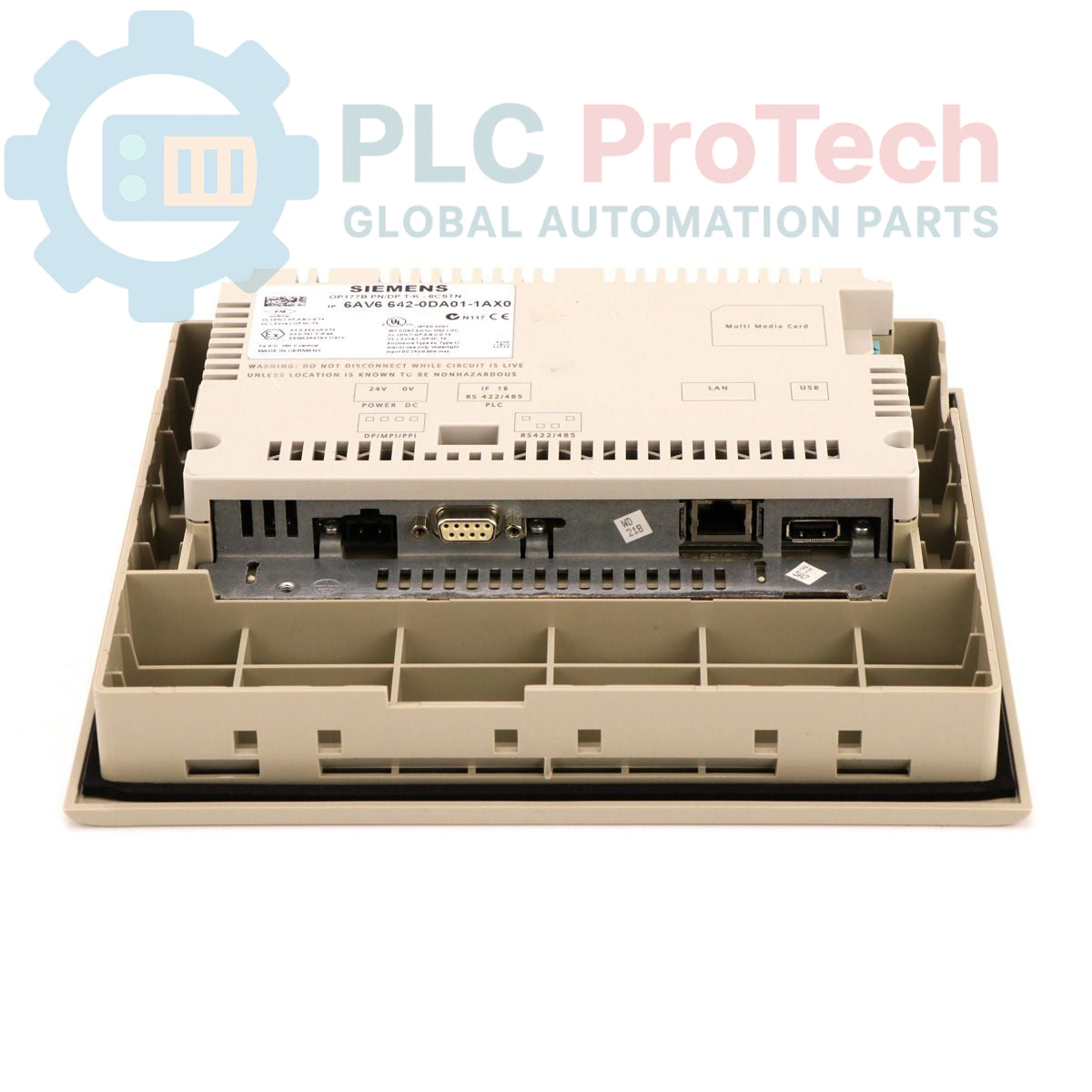

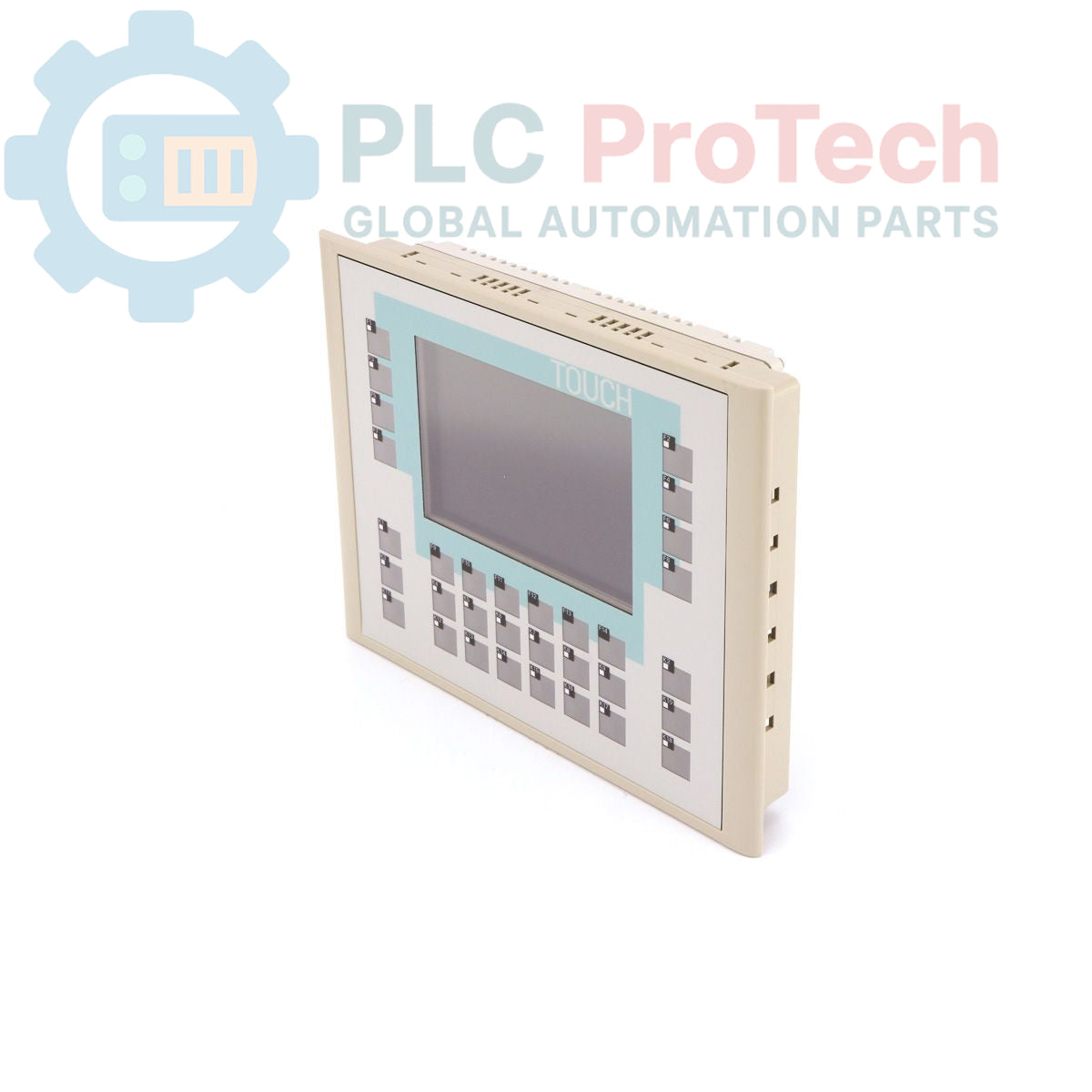

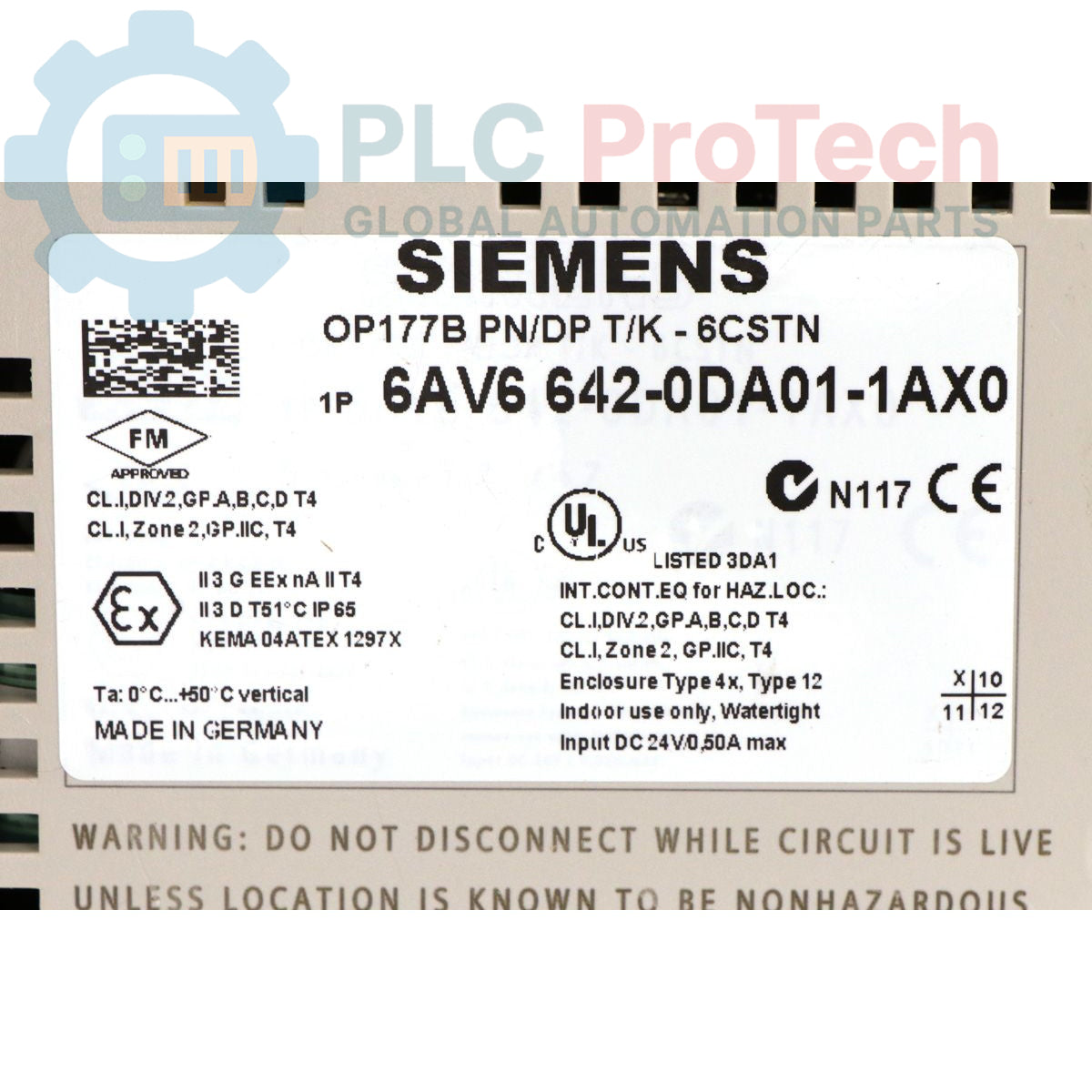

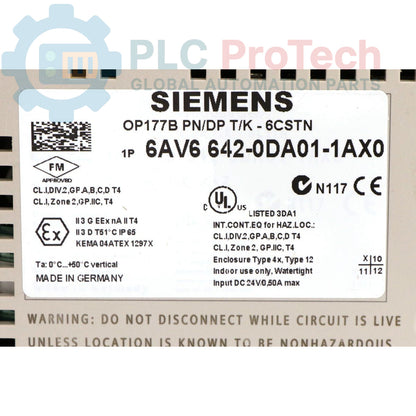

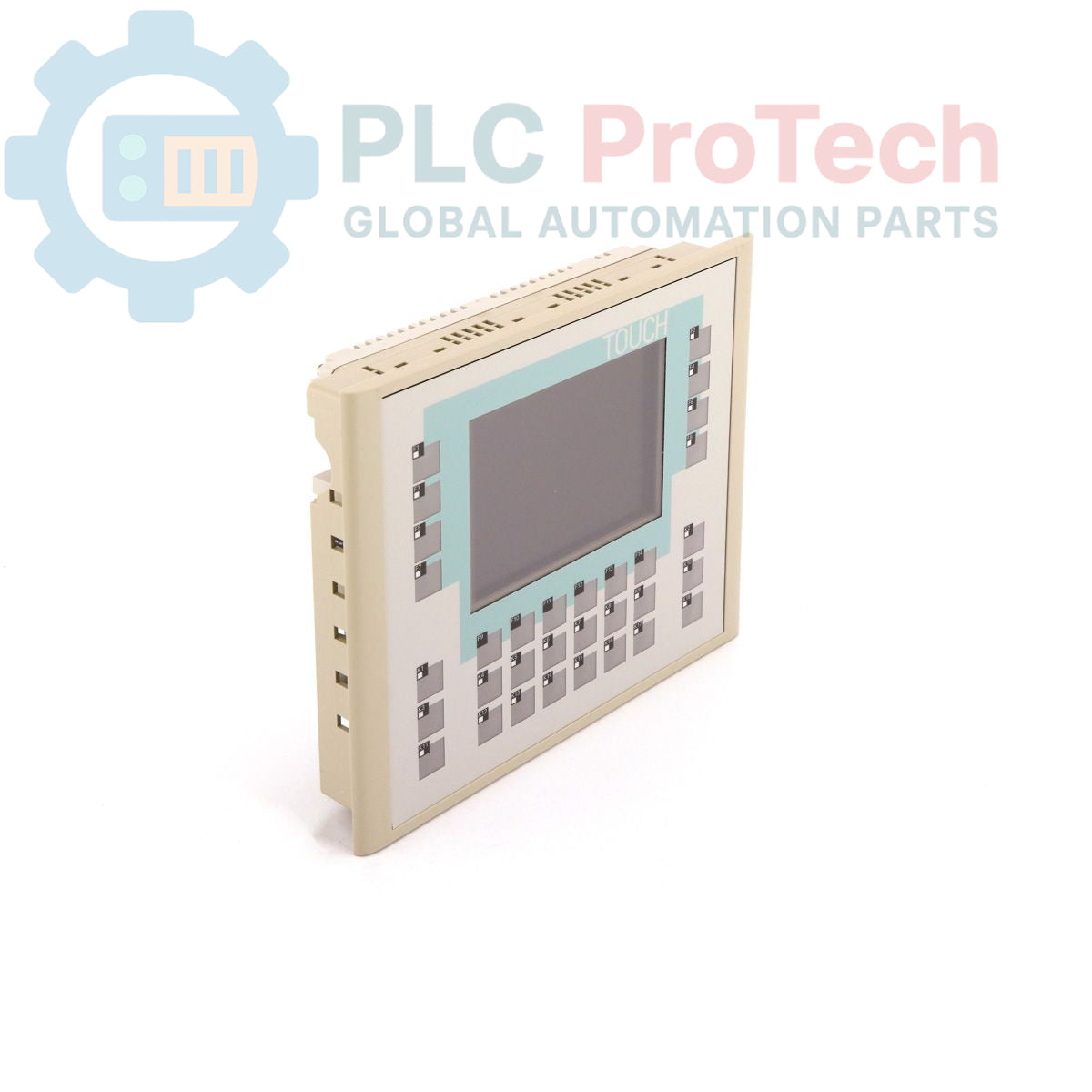

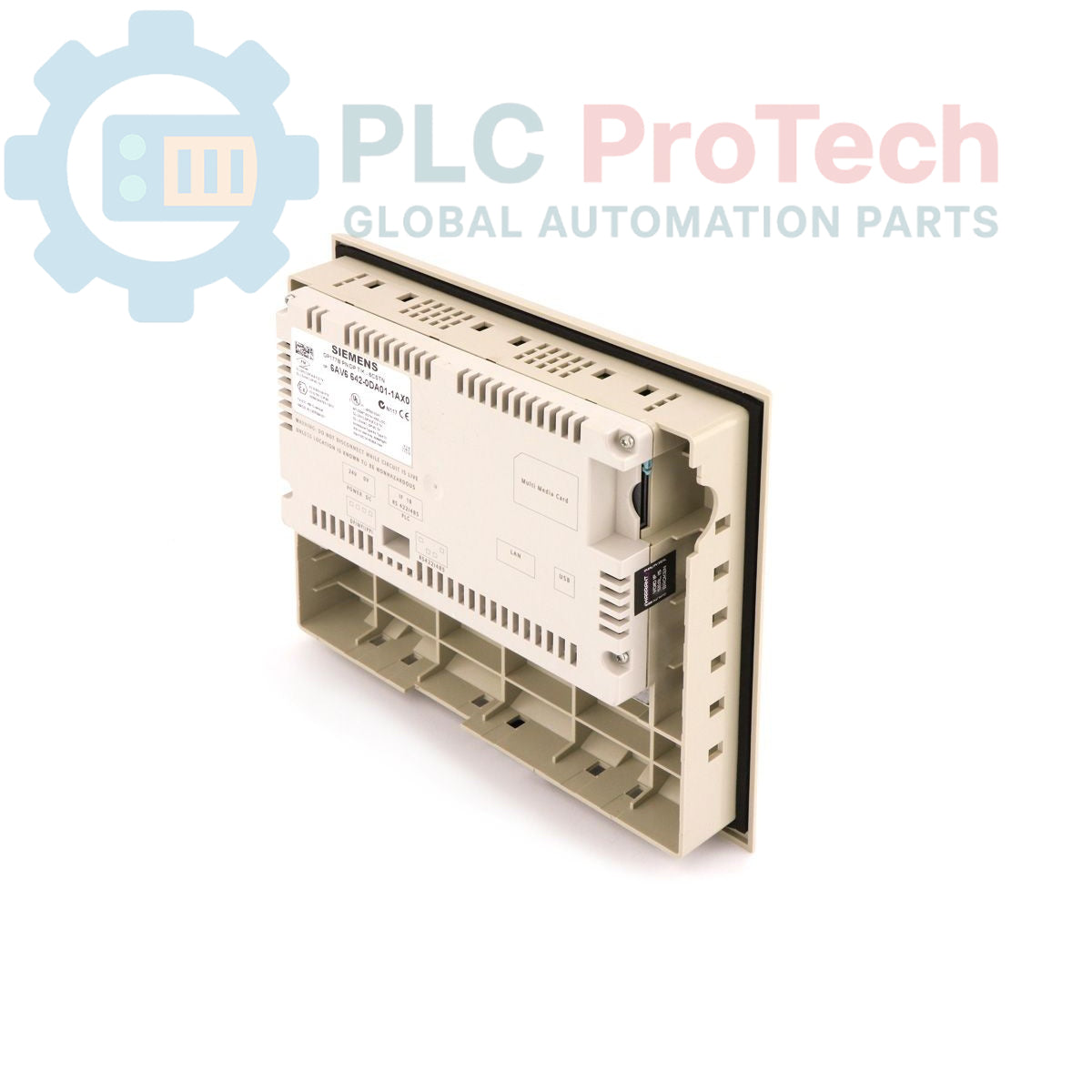

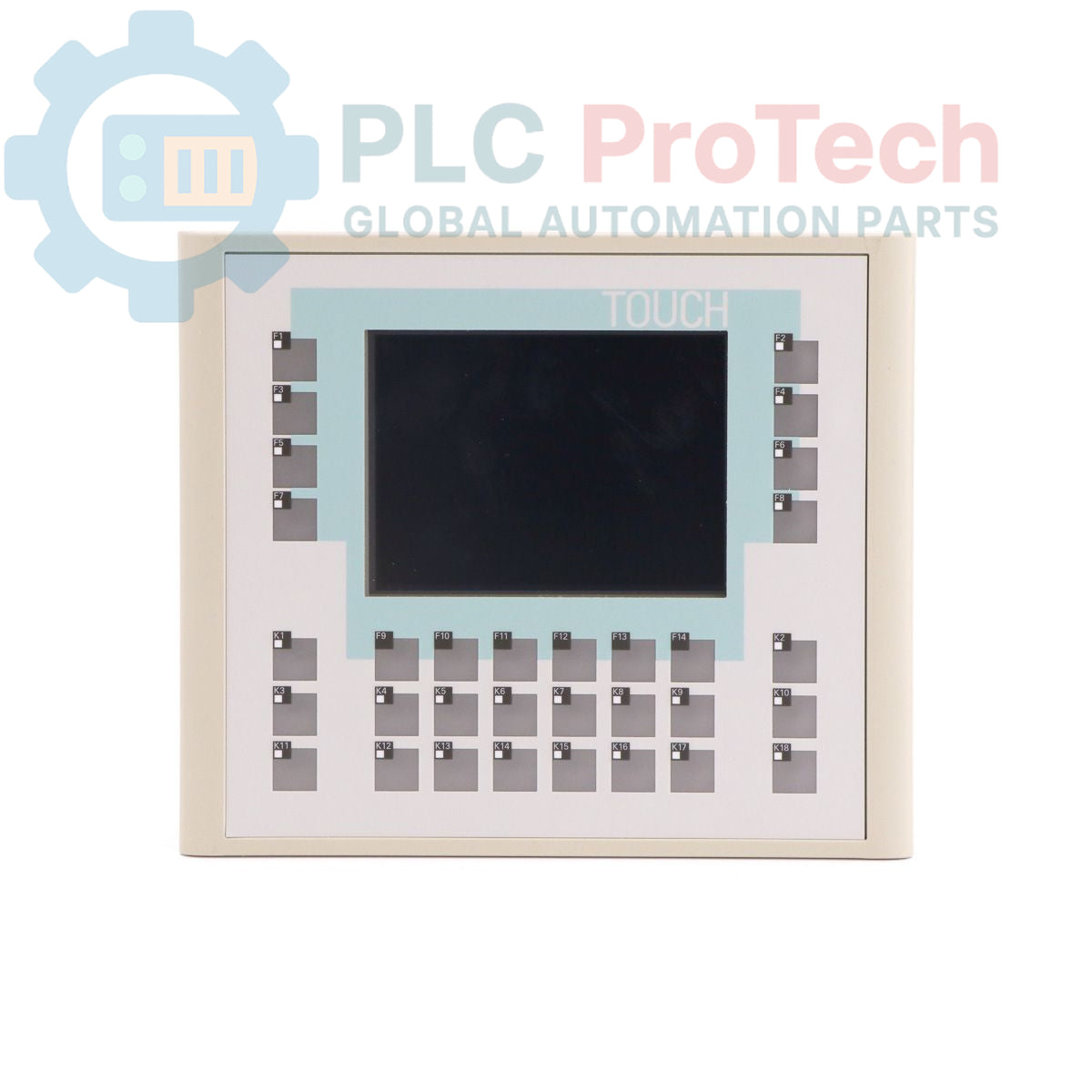

Siemens 6AV6642-0DA01-1AX0 SIMATIC HMI OP 177B PN/DP Operator Panel

Il ne reste que 5 article(s) en stock

Fabricant : Siemens
N° de produit : 6AV6642-0DA01-1AX0
Pays d'origine :Allemagne
Type de produit : Operator Panel
Code-barres : 85371091
Paiement : Virement bancaire, Western Union
Poids : 1g
Dimensions : 25.0 x 23.0 x 8.0 cm
Port d'expédition : Xiamen
Garantie : 12 mois

Voir les détails complets

Description

This device is a Siemens SIMATIC HMI OP 177B PN/DP operator panel, part number 6AV6642-0DA01-1AX0, designed for machine-level visualization and control. It features a 5.7-inch STN color display with a resolution of 320 x 240 pixels and supports 256 colors. Operator interaction is facilitated through a combination of a resistive touchscreen and physical membrane keys. The panel is equipped with a comprehensive set of communication interfaces, including MPI/PROFIBUS-DP, RS485/RS422, USB, and an integrated Ethernet port. For data logging and recipe management, it includes a slot for a MultiMediaCard (MM-Card). Configuration and project development for this HMI are performed using WinCC flexible 2005 software.

Features

5.7-inch STN display with 256-color capability
Dual input method with touchscreen and tactile keys
Integrated MPI, PROFIBUS-DP, and Ethernet (PN) interfaces
Serial communication via RS485 and RS422 ports
USB interface for peripheral connection
Expansion slot for a MultiMediaCard (MM-Card)
2048 kbyte of available user memory
Powered by a standard 24V DC supply

Applications

Machine control and process monitoring
Factory and process automation systems
Data entry and visualization at the plant floor level
Standalone machine operation interfaces
Integration into PROFIBUS and PROFINET networks

Technical Specifications

Specification	Value
Brand	Siemens
Model	OP 177B PN/DP
Part Number	6AV6642-0DA01-1AX0
Product Family	SIMATIC HMI
Series	Operator Panels 170 Series
Supply Voltage	24V DC
Display Type	STN, Color
Screen Diagonal	5.7 inch
Display Resolution	320 x 240 pixels
Display Colors	256
Operator Input	Touchscreen and Keys
User Memory	2048 kbyte
Configuration Software	WinCC flexible 2005
Interfaces	MPI, PROFIBUS-DP, RS485, RS422, USB, Ethernet, Printer
Expansion Slot	1 x MM-Card Slot
Product Lifecycle Status	Obsolete
Successor Part Number	6AV6642-0DA01-1AX1
Manufacturer	Siemens
Country of Origin	Germany (Estimated)
Package Dimensions (Calculated)	25.0 x 23.0 x 8.0 cm
Shipping Weight	1.00 kg
Harmonized Tariff Code	85371091
ECCN	5D002

Installation Guidelines

CRITICAL WARNING: Electrical Hazard. Installation, wiring, and maintenance must be performed by qualified personnel only. Failure to comply with safety procedures can result in equipment damage, serious injury, or death. Always de-energize and apply Lockout/Tagout (LOTO) procedures before accessing electrical components.

1 Panel Cutout: Prepare the mounting cutout in the enclosure door according to the dimensions specified in the product's installation manual. Ensure all edges are smooth and free of burrs to guarantee a proper seal.
2 Mounting: Insert the HMI into the cutout from the front of the panel. Secure it from the rear using the provided mounting clamps. Tighten the clamp screws evenly in a diagonal pattern to ensure uniform pressure on the gasket for a proper IP rating.
3 Grounding: Connect the functional earth (FE) terminal on the HMI chassis to the enclosure's main ground point using a short, low-impedance conductor. A proper ground connection is critical for noise immunity and operator safety.
4 Power Connection: Connect a stable, protected 24V DC power source to the designated power supply terminals. Verify correct polarity (+/-) before applying power. Use appropriately sized wiring and ensure the power supply is SELV/PELV compliant.
5 Communication Wiring: Connect PROFIBUS, Ethernet, and other communication cables to their respective ports. Use shielded, twisted-pair cabling for serial and bus communications. Ensure cable shields are properly terminated at one end to the ground to prevent ground loops. Route communication cables separately from high-voltage power lines.

Key Features:

#Operator Panel #SIMATIC HMI

What are the main communication interfaces on this HMI?

It includes MPI/PROFIBUS-DP, RS485/RS422, USB, and an Ethernet interface for versatile connectivity in industrial networks.

What software is used to configure the OP 177B?

The panel is configured using Siemens WinCC flexible 2005 engineering software.

What is the display size and resolution?

The device features a 5.7-inch STN color display with a resolution of 320 x 240 pixels and supports 256 colors.

Is this product still in production?

No, this product is marked as obsolete. The direct successor model is the 6AV6642-0DA01-1AX1.

Does this panel support external memory?

Yes, it is equipped with a slot for a MultiMediaCard (MM-Card) which can be used for backing up projects, recipes, and data logs.
