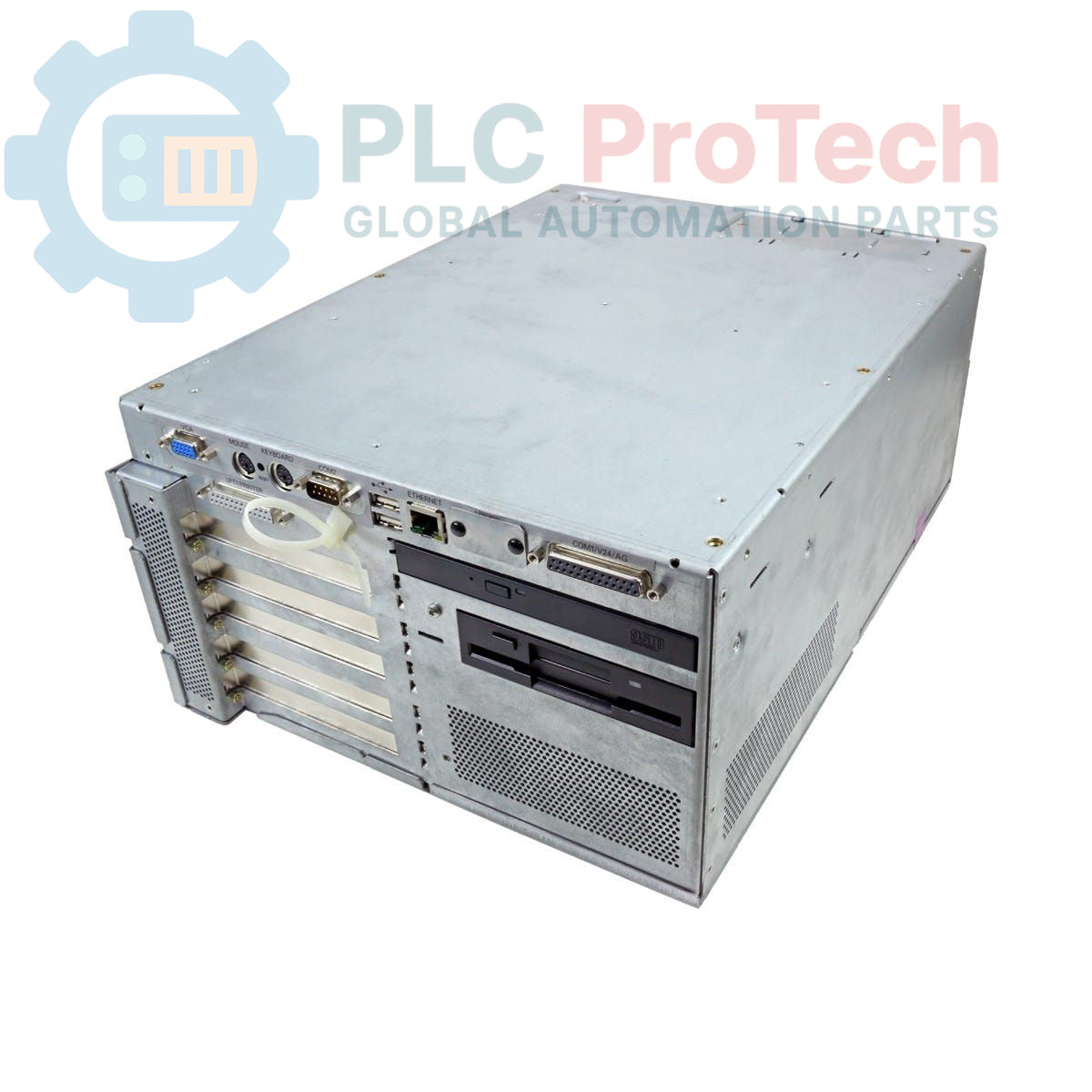

Siemens 6AV7704-1CC10-0AA0 SIMATIC Panel PC 870

Il ne reste que 6 article(s) en stock

Fabricant : Siemens
N° de produit : 6AV7704-1CC10-0AA0
Pays d'origine :Allemagne
Type de produit : Panel PC
Code-barres : 85371091
Paiement : Virement bancaire, Western Union
Poids : 19g
Dimensions : 38.00 x 33.00 x 10.00 cm
Port d'expédition : Xiamen
Garantie : 12 mois

Description

The Siemens 6AV7704-1CC10-0AA0 is a SIMATIC Panel PC 870, a standard configuration industrial panel PC designed for reliable operation in automation environments. This unit features a 15.1-inch color TFT touchscreen, enabling clear and intuitive interaction for Human Machine Interface (HMI) and control applications. Powered by a 1.2 GHz Intel Celeron processor and equipped with 128 MB of RAM, the 6AV7704-1CC10-0AA0 provides responsive performance. Storage is facilitated by a 40 GB EIDE hard disk drive, complemented by an integrated CD-ROM drive for media access. The device operates on 230V and includes a mains cable with a European plug. It is supplied without a pre-installed operating system, allowing for customized software deployment.

Features

15.1-inch Color TFT Touch Display
1.2 GHz Intel Celeron Processor
128 MB RAM
40 GB EIDE Hard Disk Drive
Integrated CD-ROM Drive
230V Power Supply with European Mains Cable
Designed for industrial automation environments
Supplied without an operating system

Applications

Human Machine Interface (HMI) for industrial processes
Industrial control and monitoring systems
Process visualization and data acquisition
Machine operation and diagnostics
Embedded control applications requiring a display and processing unit

Technical Specifications

Manufacturer	Siemens
Product Series	SIMATIC Panel PC 870
Model Number	6AV7704-1CC10-0AA0
Display Type	15.1" Color TFT Touch Display
Processor	Intel Celeron 1.2 GHz
RAM	128 MB
Storage	40 GB EIDE HDD
Optical Drive	CD-ROM
Input Voltage	230V
Mains Cable	Included, with European Plug
Operating System	Not included
Product Phase	Obsolete
Package Dimensions (Calculated)	38.00 x 33.00 x 10.00 cm
Shipping Weight	19.00 kg
Commodity Code	85371091
Export Control Regulations (ECCN)	N

Installation Guidelines

Power Connection: Connect the provided mains cable to a 230V AC power source. Ensure the power supply is de-energized before making connections.
Mounting: Securely mount the Panel PC in its intended industrial enclosure or panel cutout, ensuring adequate ventilation for heat dissipation.
Peripheral Connections: Connect any necessary peripherals such as keyboards, mice, or external storage devices to the available ports.
Operating System Installation: As the unit is supplied without an operating system, install the desired industrial-grade OS and necessary drivers from the CD-ROM drive or other media.
Software Configuration: Install and configure HMI or control software applications according to system requirements.
Environmental Considerations: Ensure the operating environment adheres to the Panel PC's specified temperature, humidity, and vibration limits for reliable long-term operation.

Key Features:

#Panel PC #SIMATIC Panel PC

What is the display size and type of the Panel PC?

The unit features a 15.1-inch color TFT touchscreen display.

What processor and RAM are included with the 6AV7704-1CC10-0AA0?

It is equipped with a 1.2 GHz Intel Celeron processor and 128 MB of RAM.

Does this Panel PC come with an operating system?

No, the Siemens 6AV7704-1CC10-0AA0 is supplied without a pre-installed operating system.

What are the power requirements for this device?

The Panel PC operates on 230V and includes a mains cable with a European plug.

What storage options are integrated into the unit?

It includes a 40 GB EIDE hard disk drive and an integrated CD-ROM drive.
