Siemens 6AV7861-2AB10-2AA0 Écran plat SIMATIC FP 15 pouces

Description

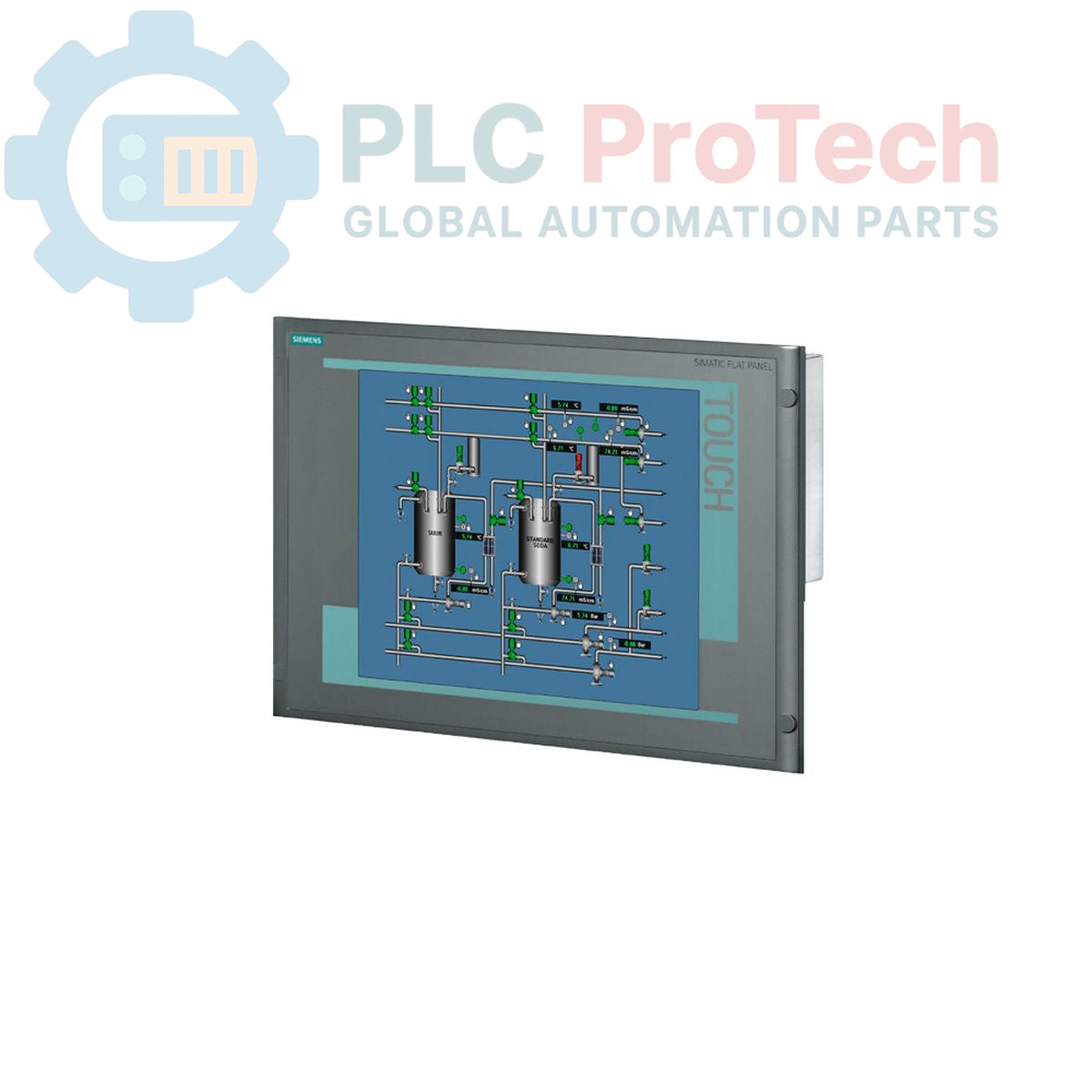

The Siemens 6AV7861-2AB10-2AA0 is a SIMATIC Flat Panel 15 extended industrial monitor designed for robust visualization in demanding environments. This unit features a 15-inch TFT screen with a native resolution of 1024 x 768 pixels, providing clear and detailed process views. It offers flexible power compatibility with inputs for both 24 V DC and 120/240 V AC systems. Video connectivity is provided through standard VGA and DVI-D interfaces, and the monitor can be installed up to 30 meters away from the video source, allowing for versatile placement in control rooms or on the plant floor.

Features

• 15-inch TFT color display
• 1024 x 768 pixel screen resolution
• Dual power supply compatibility: 24 V DC and 120/240 V AC
• Standard video inputs: VGA and DVI-D
• Supports remote installation up to 30 meters from the source computer
• Designed for industrial panel mounting

Applications

• Human-Machine Interface (HMI) for industrial machinery
• Process visualization in manufacturing and utility control rooms
• Data monitoring stations on production lines
• Supervisory Control and Data Acquisition (SCADA) systems

Technical Specifications

Installation Guidelines

1. 1 Ensure the control cabinet is fully de-energized and verified with a multimeter before beginning work. Follow all site-specific Lockout/Tagout (LOTO) procedures.
2. 2 Verify the panel cutout dimensions match the monitor's mounting requirements. Ensure the mounting surface is clean, flat, and can support the weight of the unit.
3. 3 Insert the monitor into the panel cutout. Secure it evenly from the rear using the provided mounting clamps or hardware. Do not overtighten the clamps, as this can distort the bezel.
4. 4 Connect a dedicated protective earth (PE) or grounding conductor to the designated grounding terminal on the monitor's chassis for safety and noise immunity.
5. 5 Connect the VGA or DVI-D video cable from the source device to the corresponding port on the monitor. Secure the connector screws to prevent accidental disconnection.
6. 6 Connect the appropriate power supply (24 V DC or 120/240 V AC) to the power input terminal. For DC connections, verify correct polarity (+/-) before energizing.
7. 7 Organize and secure all cables using ties or routing channels, ensuring they are not under tension and are separated from high-voltage lines to minimize electrical noise.
