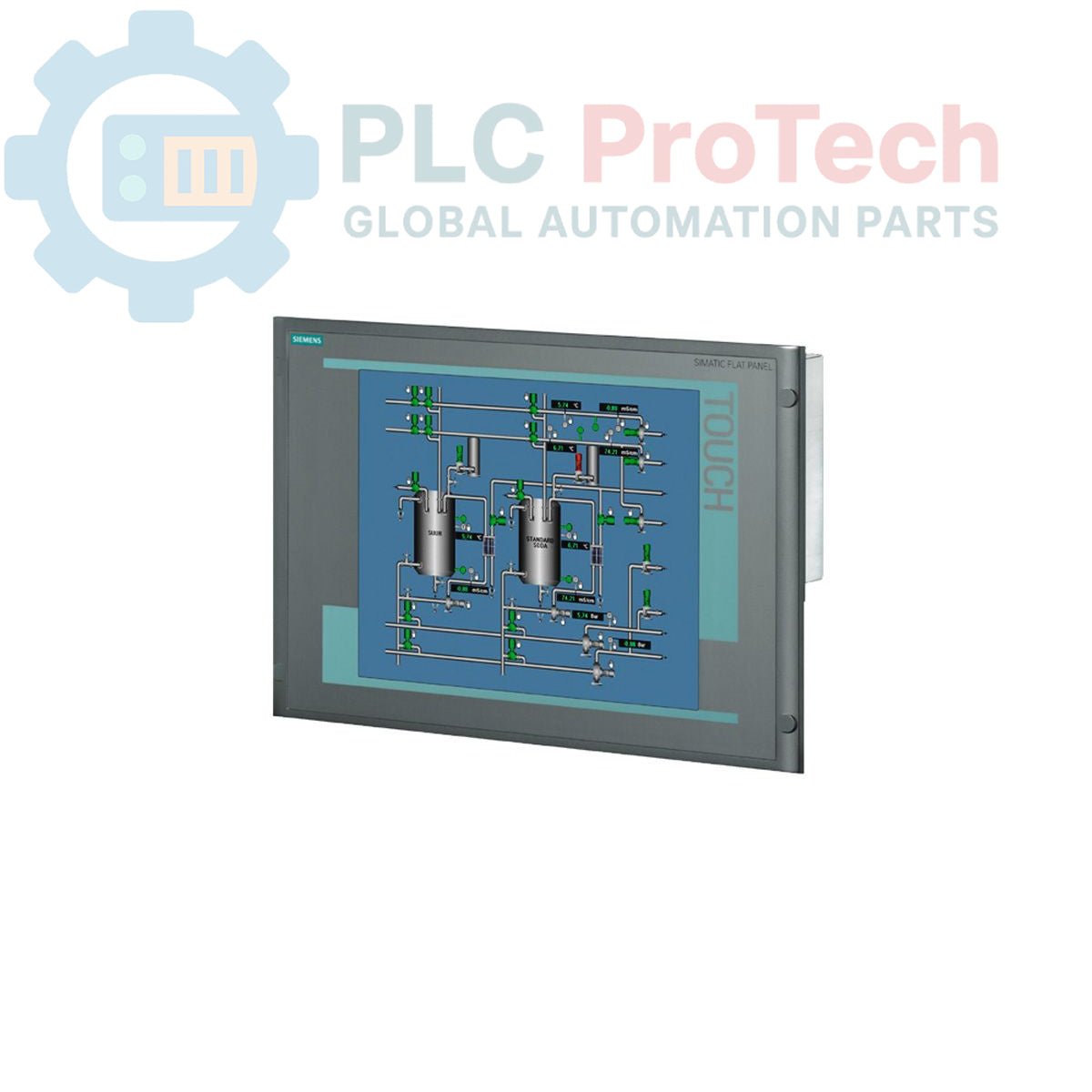

Siemens 6AV7861-2TA00-0AA0 SIMATIC FP77-15T Flat Panel Display

Description

The Siemens 6AV7861-2TA00-0AA0 is a SIMATIC FP77-15T 15-inch touch TFT-display, engineered for robust human-machine interaction in industrial environments. This high-quality flat panel display features a 15-inch touch-sensitive TFT display with a 1024x768 pixel resolution, providing clear visuals and precise touch control for efficient operation of production systems. The Siemens 6AV7861-2TA00-0AA0 supports both VGA and DVI-D interfaces, offering flexible connectivity options for seamless integration with various industrial computers and control systems. Operating at 24V DC, it is compatible with standard industrial power supplies. The product includes a 1.8-meter VGA cable, simplifying installation and setup within control panels or operator stations. Siemens ensures reliability and long-term support for this model, making it a dependable choice for automation infrastructure.

Features

• 15-inch Touch TFT Display
• 1024x768 Pixel Resolution
• VGA and DVI-D Interface Support
• 24V DC Power Input
• Includes 1.8m VGA Cable
• Designed for Industrial Environments

Applications

• Industrial Human-Machine Interface (HMI)
• Control Panel Integration
• Operator Stations
• Production System Monitoring and Control
• Automation Infrastructure

Technical Specifications

Installation Guidelines

1. De-energize System: Before commencing installation, ensure all power to the control system and mounting area is completely de-energized and locked out to prevent electrical hazards.
2. Mounting: Securely mount the flat panel into the designated control panel cutout or operator station. Ensure proper ventilation clearances are maintained around the unit.
3. Power Connection: Connect the 24V DC power supply to the appropriate terminals on the flat panel, observing correct polarity. Verify the power source meets the specified voltage requirements.
4. Interface Connection: Connect the VGA cable (1.8m cable included) or a DVI-D cable from the industrial computer or control system to the corresponding interface port on the flat panel. Ensure connections are firm.
5. Cable Routing: Route all power and interface cables to prevent strain, interference, and damage. Use cable ties and conduits where necessary to maintain an organized and protected wiring path.
6. Grounding: Ensure the flat panel and the control panel enclosure are properly grounded according to local electrical codes and manufacturer recommendations to minimize electrical noise and ensure safety.
7. Power-Up and Test: After all connections are verified, re-energize the system and perform functional tests to confirm the display and touch functionality are operating correctly.
