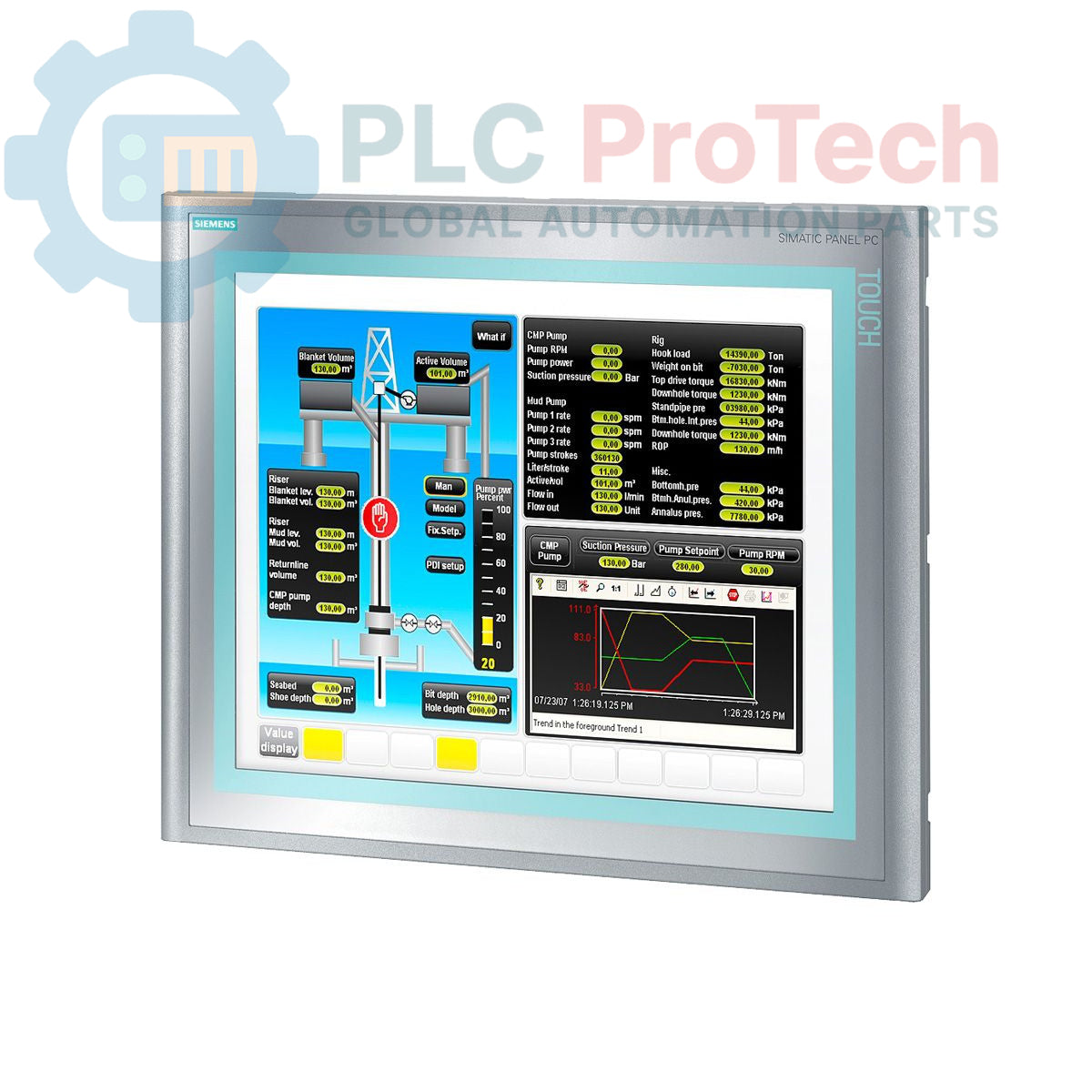

Siemens 6AV7883-7AH30-4EV0 SIMATIC HMI IPC477C PRO Panel PC

Il ne reste que 6 article(s) en stock

Fabricant : Siemens
N° de produit : 6AV7883-7AH30-4EV0
Pays d'origine :Allemagne
Type de produit : Industrial Panel PC
Code-barres : 85371098
Paiement : Virement bancaire, Western Union
Poids : 11g
Dimensions : 100.5 x 36.5 x 27.5 cm
Port d'expédition : Xiamen
Garantie : 12 mois

Description

The Siemens 6AV7883-7AH30-4EV0 is a SIMATIC HMI IPC477C PRO, an industrial panel PC designed for demanding visualization and control tasks. This unit features a 19-inch touch display with a 1280x1024 resolution and is powered by an Intel Core2Duo 1.2 GHz processor. It comes equipped with 4 GB of DDR3 SDRAM and an 8 GByte CompactFlash card for storage. This specific bundle includes a preinstalled Windows Embedded Standard 7 SP1 operating system and a WinCC RT Professional V11 SP2 software license for 2048 PowerTags, providing a comprehensive platform for HMI applications right out of the box.

Features

19-inch resistive touch display
Intel Core2Duo 1.2 GHz processor for robust performance
4 GB DDR3 system memory
Pre-installed Windows Embedded Standard 7 SP1
Bundled with WinCC RT Professional V11 SP2 (2048 PowerTags license)
Integrated PROFIBUS DP12 and dual Gigabit Ethernet ports
Four external USB 2.0 ports for peripheral connectivity
Operates on a standard 24V DC power supply

Applications

Process visualization and SCADA systems
Machine-level operator control and monitoring
Data acquisition and logging in manufacturing environments
Factory automation and plant floor information systems

Technical Specifications

Specification	Value
Product Type	SIMATIC HMI IPC477C PRO Panel PC
Processor	Intel Core2Duo 1.2 GHz
Memory (RAM)	4 GB SDRAM (DDR3)
Storage	8 GByte CompactFlash (CF) Card
Display	19-inch Touch Display
Resolution	1280 x 1024 pixels
Power Supply	24V DC
Operating System	Windows Embedded Standard 7 SP1 (Preinstalled)
Software Bundle	WinCC RT Professional V11 SP2
Software License	2048 PowerTags
Ethernet Ports	2 x 1 Gbit/s
Fieldbus Port	1 x PROFIBUS DP12
USB Ports	4 x USB 2.0 (500mA)
Serial Port	1 x RS232 (COM1)
Expansion Slots	1 x free CF-slot
PLM Product Phase	Obsolete
Shipping Weight	11.00 kg
Commodity Code	85371098
ECCN	5D002
Manufacturer	Siemens
Country of Origin	Germany (Estimate)
Package Dimensions (Calculated)	100.5 x 36.5 x 27.5 cm

Installation Guidelines

CRITICAL WARNING

Disconnect all power sources before installation or maintenance. This device contains components sensitive to electrostatic discharge (ESD). Use proper ESD protection, including wrist straps and grounded mats, when handling internal components. Failure to comply can result in equipment damage.

1 Ensure the mounting surface or enclosure is clean, flat, and can support the weight of the panel PC (11.00 kg). Verify that the panel cutout dimensions match the unit's specifications for a secure fit.
2 Secure the panel PC into the cutout using all provided mounting clamps. Tighten the clamps evenly to ensure a uniform seal against the enclosure gasket. Do not overtighten.
3 Connect the 24V DC power supply to the designated power input terminals. Verify correct polarity (+/-). Use appropriately sized wiring for the load and ensure the power source is stable and filtered.
4 Connect the chassis to the system's protective earth (PE) ground using a low-impedance conductor. A reliable ground connection is essential for safety and noise immunity.
5 Connect Ethernet, PROFIBUS, USB, and serial cables as required by the application. Ensure all connectors are fully seated. Route communication cables separately from high-voltage power lines to prevent interference.

Key Features:

#Industrial Panel PC #SIMATIC IPC477C

What operating system is pre-installed on the 6AV7883-7AH30-4EV0?

This panel PC comes with Windows Embedded Standard 7 SP1 pre-installed on the 8 GByte CompactFlash card.

What is the included software license?

The unit is bundled with a Siemens WinCC RT Professional V11 SP2 license, which supports up to 2048 PowerTags for HMI applications.

What are the primary communication interfaces on this device?

It includes two 1 Gbit/s Ethernet ports, one PROFIBUS DP12 port, four USB 2.0 ports, and one RS232 serial port.

What is the required input power for this panel PC?

The device requires a 24V DC power supply for operation.

Is this product a current model?

No, the PLM (Product Lifecycle Management) status for the 6AV7883-7AH30-4EV0 is listed as Obsolete.
