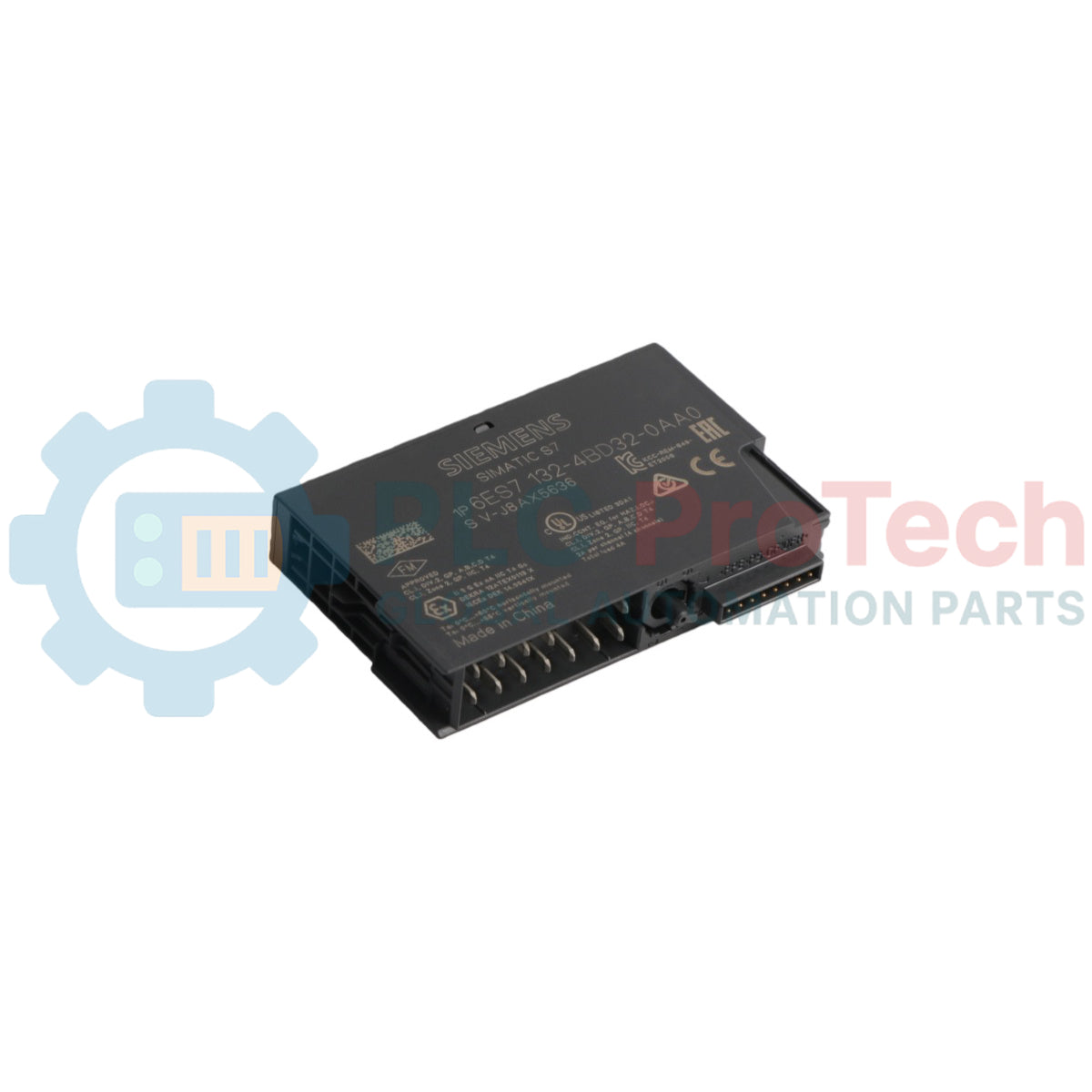

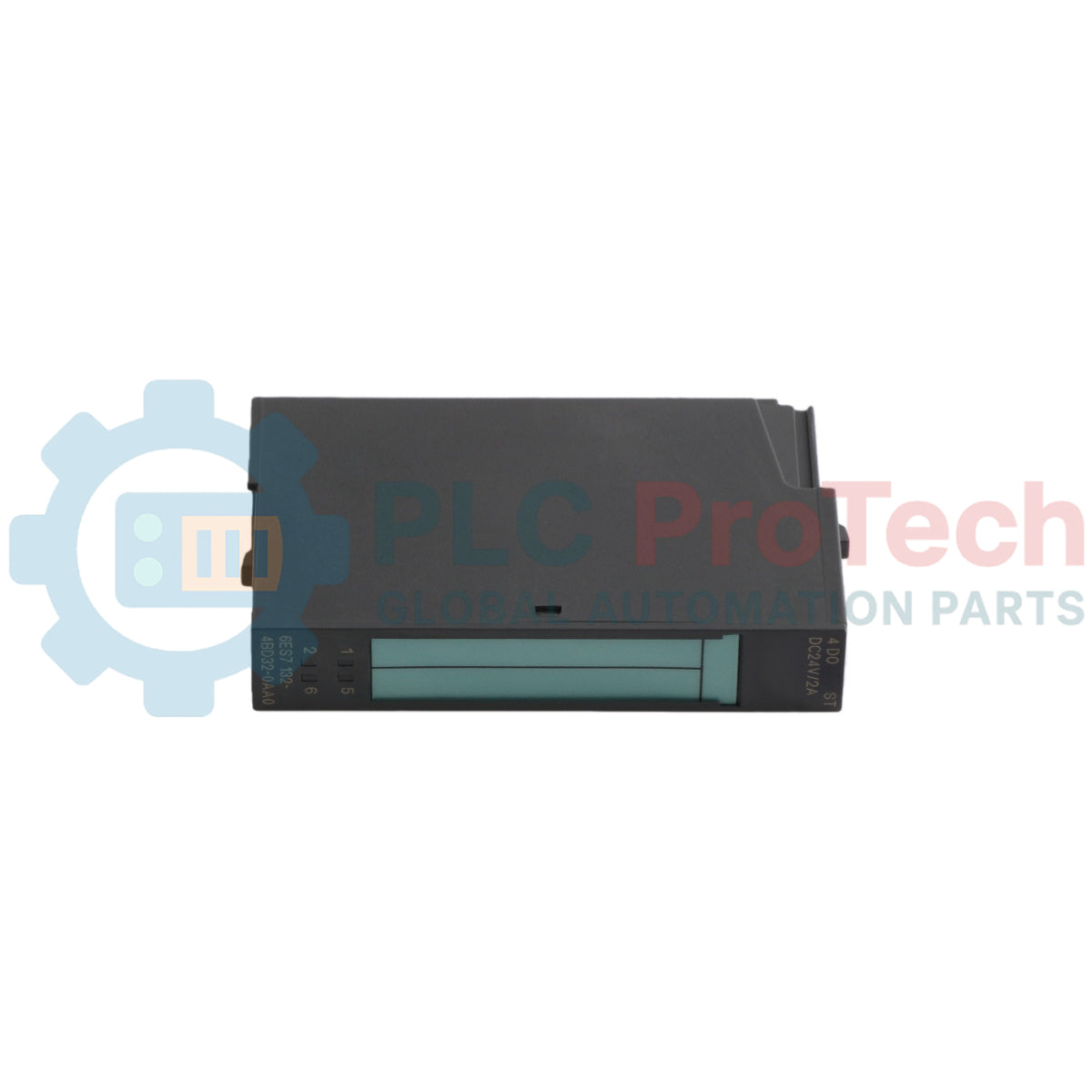

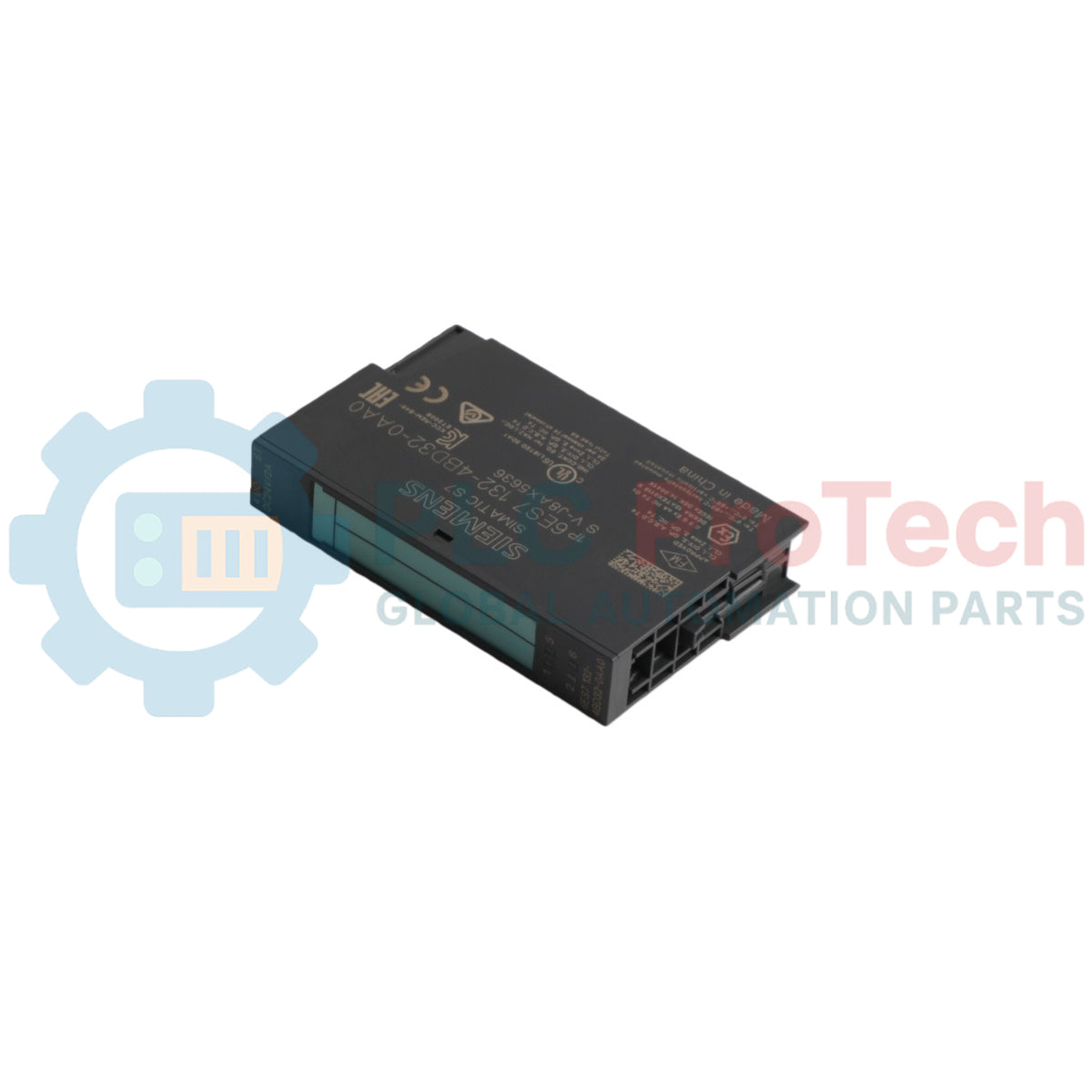

Siemens 6ES7132-4BD32-0AA0 SIMATIC ET 200S Digital Output Module

Il ne reste que 4 article(s) en stock

Fabricant : Siemens
N° de produit : 6ES7132-4BD32-0AA0
Pays d'origine :Allemagne
Type de produit : Digital Output Module
Code-barres : 8537101190
Paiement : Virement bancaire, Western Union
Poids : 950g
Dimensions : 2.5 x 5.1 x 8.4 cm
Port d'expédition : Xiamen
Garantie : 12 mois

Voir les détails complets

Description

This is a Siemens 6ES7132-4BD32-0AA0 digital output module for the SIMATIC ET 200S distributed I/O system. It provides a reliable interface for converting digital control signals into physical actions, operating field devices such as contactors, indicators, and solenoid valves. The module features four independent channels, each rated to switch 24 V DC loads at up to 2 A. Its compact 15mm width allows for high-density configurations in control cabinets, and it supports hot swapping to minimize system downtime during maintenance. This part number is typically supplied in a package of five individual modules.

Features

Four-channel digital output configuration
Rated for 24 V DC with a 2 A current capacity per channel
Supports hot swapping for module replacement during operation
Space-efficient 15mm module width for high-density I/O
Integrates with SIMATIC ET 200S stations on PROFIBUS and PROFINET networks

Applications

Decentralized control systems in manufacturing and process automation
Actuation of solenoid valves in pneumatic or hydraulic systems
Switching of motor contactors and relays
Driving indicator lamps and audible alarms on machinery

Ordering Information

Part Number	Description	Package Quantity
6ES7132-4BD32-0AA0	SIMATIC ET 200S, Digital output module, 4 DO, 24V DC/2A	5 Units

Technical Specifications

Specification	Value
Product Type	Digital Output Module
Product Series	SIMATIC ET 200S
Number of Digital Outputs	4
Output Voltage	24 V DC
Output Current per Channel	2 A
Module Width	15 mm
Hot Swapping Capability	Supported
Lifecycle Status	Active
HS Code	8537101190
Shipping Weight	0.95 kg
Package Dimensions (Calculated)	2.5 x 5.1 x 8.4 cm
Manufacturer	Siemens
Country of Origin	Germany

Installation Guidelines

CRITICAL WARNING: RISK OF ELECTRIC SHOCK

Disconnect all power sources to the ET 200S station and verify de-energization using a calibrated voltmeter before installing or removing modules. Failure to comply can result in severe injury or death. All work must be performed by qualified personnel familiar with industrial control systems and safety procedures.

De-energize System
Apply Lockout/Tagout (LOTO) procedures to the main power supply for the control cabinet and the 24 V DC power for the ET 200S station. Confirm zero voltage at the terminal module.
Position the Module
Align the electronic module with the corresponding ET 200S terminal module on the DIN rail. Ensure the coding elements on both modules match to prevent incorrect installation.
Seat the Module
Carefully press the module onto the terminal module until it clicks securely into place. Verify that it is fully seated and flush with adjacent modules.
Restore Power
Once all modules are installed and field wiring is confirmed correct, remove LOTO devices and re-energize the system. Observe the module's diagnostic LEDs for correct startup status.

Product Image	Model Number / Title	Condition	Availability	Action
	BECKHOFF EJ2889 Module enfichable EtherCAT sortie numérique 16 canaux	Original New	In Stock	View Details
	EL2878-0005 BECKHOFF Bornier de sortie numérique 8 canaux connexion câble ruban	Original New	In Stock	View Details

Key Features:

#Digital Output Module #SIMATIC ET 200S

What is the output current rating for each channel on the 6ES7132-4BD32-0AA0?

Each of the four digital output channels is rated for a maximum current of 2 Amperes at 24 V DC.

Is this module hot-swappable?

Yes, the Siemens 6ES7132-4BD32-0AA0 module supports hot swapping, allowing it to be replaced while the ET 200S station is powered and operational, which minimizes system downtime.

Which PLC system is this module designed for?

This digital output module is designed for use with the Siemens SIMATIC ET 200S distributed I/O system, which can be connected to controllers via PROFIBUS or PROFINET.

How many individual modules are included when ordering part number 6ES7132-4BD32-0AA0?

The part number 6ES7132-4BD32-0AA0 corresponds to a package containing five individual digital output modules.
