Siemens 6ES7621-1AD01-0AE3 Unité intégrée compacte SIMATIC S7-621

Overview

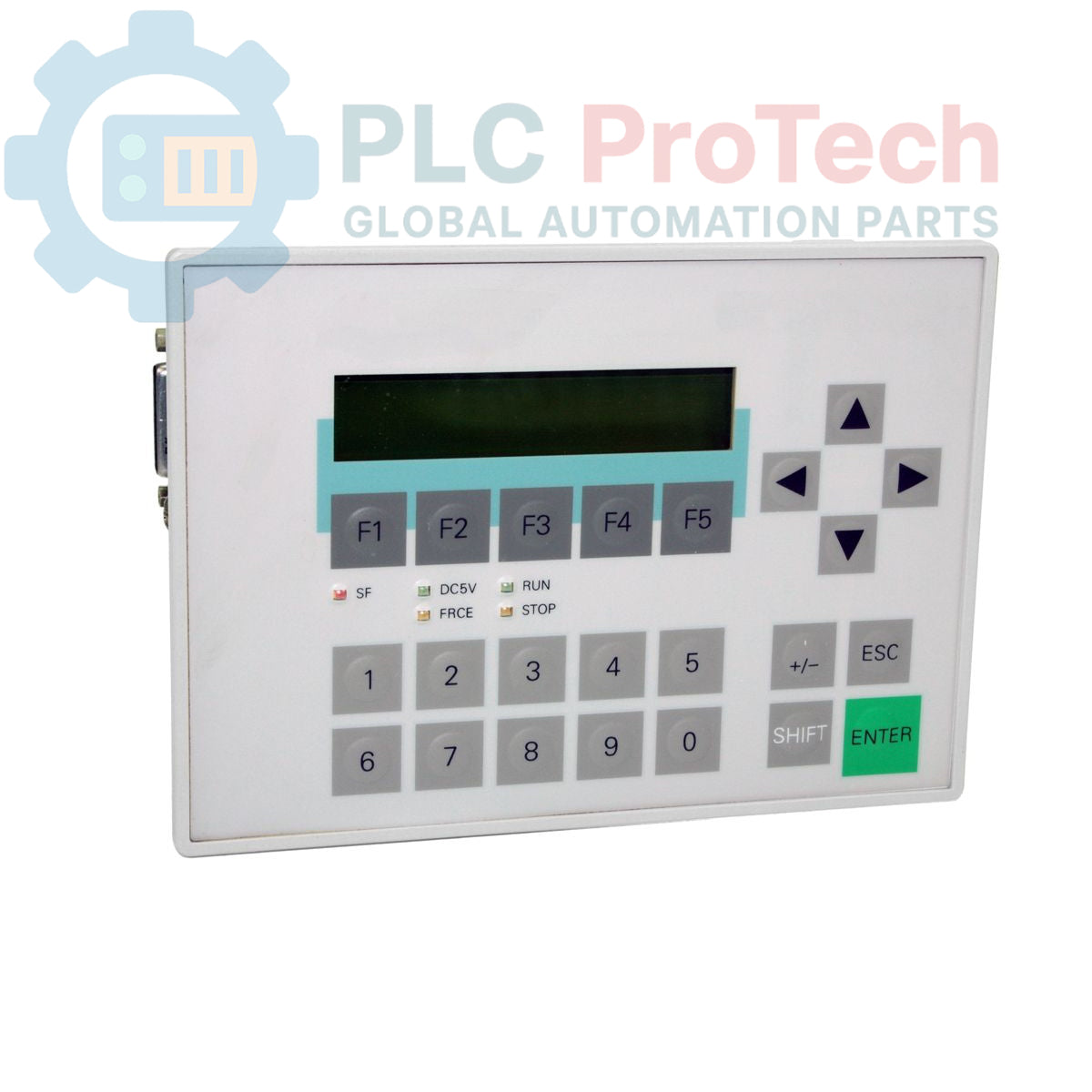

The 6ES7621-1AD01-0AE3 (6ES76211AD010AE3) is a highly integrated, "all-in-one" automation controller that merges a SIMATIC S7-300 PLC with an OP 3 operator panel. Designed with a footprint similar to the C7-633/634 and OP7/17 series, this compact unit is engineered for machine-level control where cabinet space is limited. It provides a complete control loop solution out of the box, featuring built-in digital and analog I/O alongside an IM 621 interface module for expansion. This hardware is a staple in legacy manufacturing cells, offering a unified platform for logic processing and human-machine interface (HMI).

Detailed Specifications

Operational Capabilities

The 6ES7621-1AD01-0AE3 excels in standalone machine automation. By consolidating the processor, the display, and a versatile I/O mix (including analog for temperature or pressure sensors), it significantly reduces wiring complexity and potential points of failure. The integrated IM 621 allows the unit to link with additional S7-300 expansion racks if the onboard I/O count is exceeded. Despite its "Obsolete" status, it remains a critical spare part for maintaining older production lines that rely on the specific physical mounting and communication protocols of the S7-621 range.

FAQs

Is the 6ES7621-1AD01-0AE3 directly interchangeable with its successor?

The 6ES7621-1AD02-0AE3 is the official successor. While it is functionally compatible, you should verify the firmware versions and memory requirements of your existing STEP 7 project before performing a direct swap.

How is the integrated OP 3 panel programmed?

The HMI portion is typically configured using Siemens ProTool or WinCC Flexible. The PLC logic is handled via standard STEP 7 (V5.x). Communication between the CPU and the internal OP 3 is handled via an internal bus, requiring no external MPI cabling for basic operation.
