Siemens 6ES7634-2BF00-0AE3 SIMATIC C7-634 DP Station compacte

Description

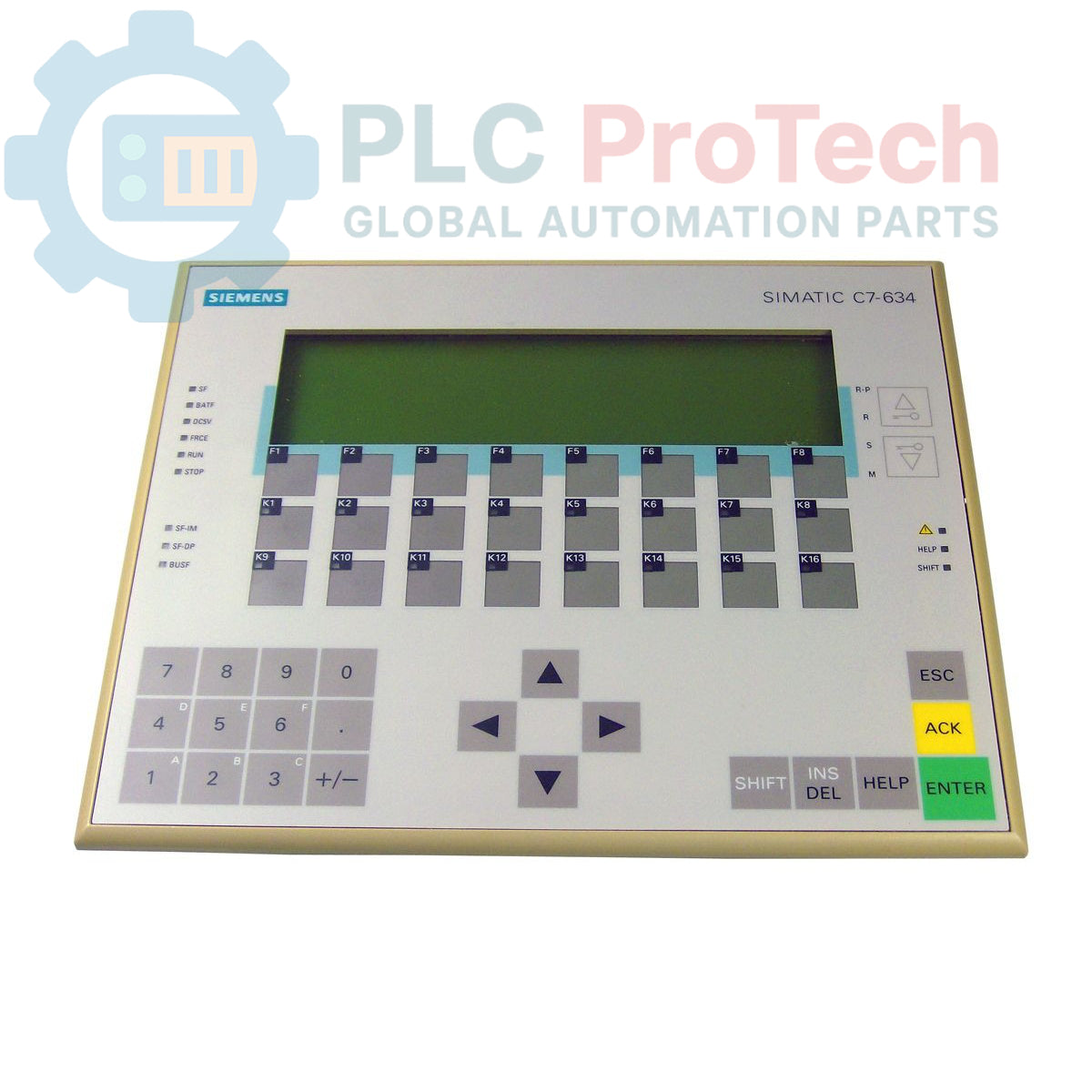

The Siemens 6ES7634-2BF00-0AE3 is a SIMATIC C7-634 DP compact station, designed as a comprehensive automation solution for industrial environments. This integrated unit combines essential components including an S7-300 CPU 315-2DP, a SIMATIC OP17 operator panel, and an IM 360 interface module. Featuring an integrated PROFIBUS DP interface, the 6ES7634-2BF00-0AE3 facilitates seamless communication and control within production lines. Its robust construction ensures consistent performance and reliability, while the modular design supports flexible installation and integration into both new and existing systems.

Features

• Integrated S7-300 CPU 315-2DP for processing and control
• Incorporates SIMATIC OP17 operator panel for HMI functionality
• Includes IM 360 interface module for system expansion
• Integrated PROFIBUS DP interface for industrial communication
• Robust industrial-grade construction for demanding environments
• Modular design for flexible installation and system integration

Applications

• General industrial automation and control systems
• Process control requiring integrated HMI and PLC functionality
• Distributed control systems utilizing PROFIBUS DP
• New automation setups requiring a compact, all-in-one solution
• Replacement or upgrade in established industrial installations

Technical Specifications

Installation Guidelines

1. De-energize System: Ensure all power to the installation area is disconnected and locked out before beginning any work.
2. Mounting: Securely mount the compact station within an appropriate industrial enclosure or panel, utilizing its modular design for stable placement.
3. Power Connection: Connect the unit to its specified power supply, observing correct polarity and voltage requirements.
4. PROFIBUS DP Connection: Terminate the PROFIBUS DP communication cables according to standard industrial practices, ensuring proper shielding and grounding for reliable data transmission.
5. I/O and Peripheral Wiring: Connect all necessary input/output devices and other peripherals to the integrated modules, verifying correct terminal assignments.
6. Configuration: Once physically installed, apply the required software configuration for the S7-300 CPU and SIMATIC OP17 to integrate the unit into the control system.
7. System Test: After installation and configuration, conduct thorough functional tests to verify correct operation and communication.
