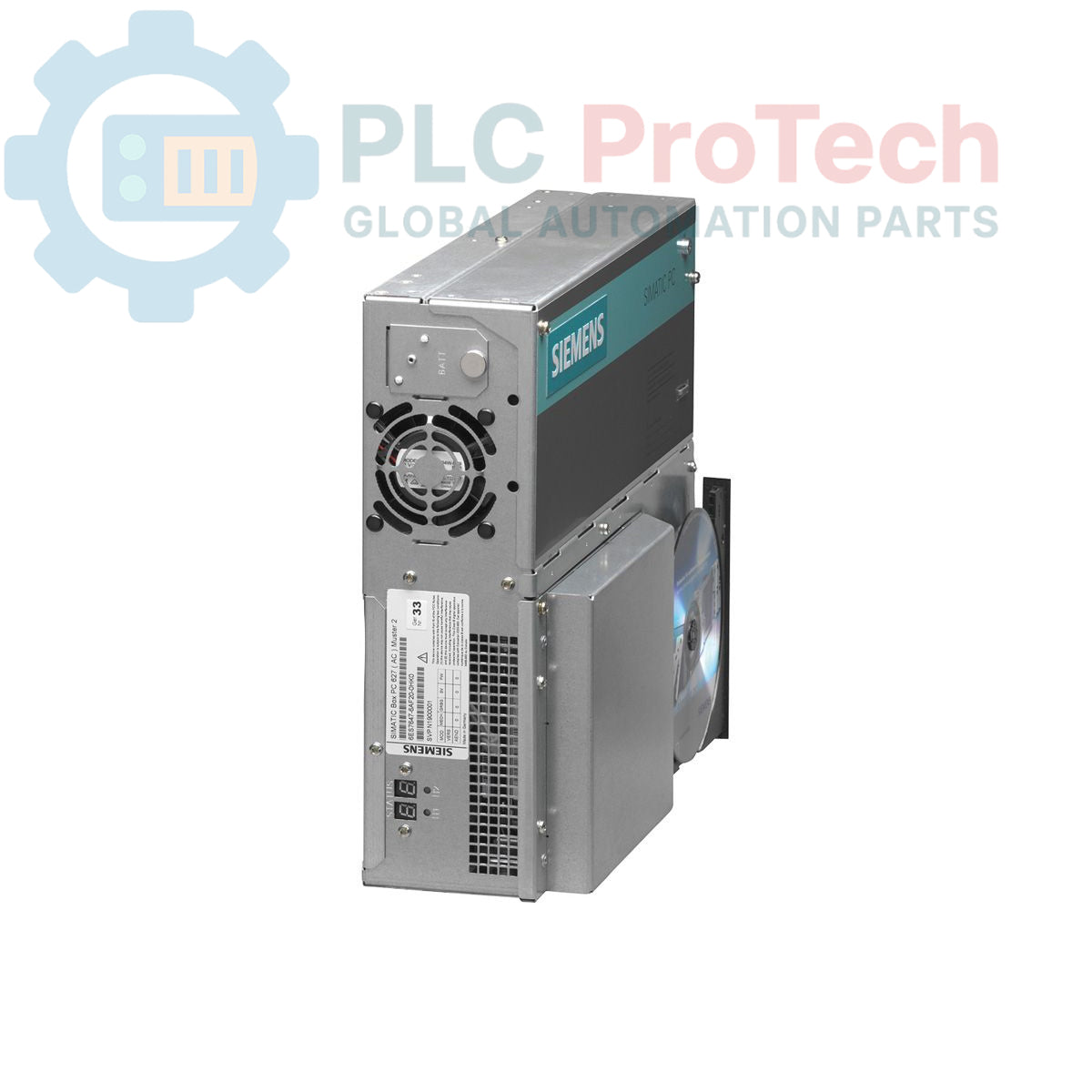

Siemens 6ES7647-6AA20-0AK0 SIMATIC Box PC 627 PC Box

Il ne reste que 7 article(s) en stock

Fabricant : Siemens
N° de produit : 6ES7647-6AA20-0AK0
Pays d'origine :Allemagne
Type de produit : PC Box
Code-barres : 85371091
Paiement : Virement bancaire, Western Union
Poids : 7050g
Dimensions : 92.00 x 21.00 x 14.00 cm
Port d'expédition : Xiamen
Garantie : 12 mois

Description

The Siemens 6ES7647-6AA20-0AK0 is a SIMATIC Box PC 627, an industrial personal computer designed for robust operation in automation environments. This unit features onboard AGP graphics with 8-128 MB shared memory, providing display capabilities for various HMI and visualization tasks. Connectivity is facilitated by two 10/100 Mbit/s Ethernet RJ45 ports, four high-current USB V2.0 ports, and one serial COM1 port. An onboard RAID controller enhances data integrity and storage flexibility. For data storage, it includes an 80 GByte SATA HDD and a slot for a Compact Flash drive. The system is equipped with monitoring functions such as a watchdog timer, temperature monitoring, and fan monitoring to ensure reliable operation. It offers two free PCI slots for further expansion and is powered by a Celeron M 370 1.5 GHz processor with 512 MByte DDR2 533 SODIMM RAM. The industrial power unit supports AC 110/230V with NAMUR compatibility and includes a European power cable. It comes pre-installed with Windows XP Professional Multi-Language SP2.

Features

Onboard AGP Graphics with 8-128 MB Shared Memory
2 x 10/100 Mbit/s Ethernet RJ45 Ports
4 x USB V2.0 Ports (High Current)
1 x Serial (COM1) Port
Onboard RAID Controller
1 x Slot for Compact Flash Drive
Watchdog, Temperature, and Fan Monitoring
2 Free PCI Expansion Slots
Celeron M 370 1.5 GHz Processor
512 MByte DDR2 533 SODIMM RAM
80 GByte SATA Hard Disk Drive
AC 110/230V Industrial Power Unit with NAMUR
Pre-installed Windows XP Professional Multi-Language SP2

Applications

The Siemens SIMATIC Box PC 627 is suitable for a wide range of industrial applications requiring a compact and robust computing platform. Typical uses include:

Human Machine Interface (HMI) and visualization systems
Data acquisition and processing
Process control and monitoring
Machine control and automation tasks
Edge computing in industrial environments
Network infrastructure for automation systems

Technical Specifications

Attribute	Value
Manufacturer	Siemens
Range	Simatic Box PC
Subrange	PC627
Product Type	PC Box
Product Phase	Obsolete
Graphics	AGP Onboard
Shared Memory	8-128 MB
Ethernet Ports	2 x 10/100 Mbit/s RJ45
USB Ports	4 x USB V2.0 (High Current)
Serial Ports	1 x COM1
RAID Controller	Onboard
Compact Flash Slot	1
Monitoring	Watchdog, Temperature, Fan
Expansion Slots	2 x PCI (Free)
Processor	Celeron M 370 1.5 GHz
Front Side Bus (FSB)	400 MHz
L2 Cache	1 MB SLC
RAM	512 MByte DDR2 533 SODIMM
Hard Drive	80 GByte SATA HDD
Power Supply	AC 110/230V Industrial Power Unit with NAMUR
Power Cable	Europe
Operating System	Windows XP Professional Multi-Language SP2 (EN, GE, FR, IT, SP)
Package Dimensions (Calculated)	92.00 x 21.00 x 14.00 cm
Shipping Weight	7.05 kg
Commodity Code	85371091
Export Control Regulations (ECCN)	N

Installation Guidelines

De-energize System: Ensure all power to the installation area is disconnected and locked out before beginning any work.
Mounting: Securely mount the SIMATIC Box PC 627 in a suitable industrial enclosure or control cabinet, ensuring adequate ventilation and access for cabling.
Power Connection: Connect the AC 110/230V industrial power unit to a stable power source. Verify correct voltage and grounding.
Grounding: Establish a proper earth ground connection for the PC chassis to minimize electrical noise and ensure safety.
Ethernet Connections: Connect industrial Ethernet cables to the RJ45 ports for network communication. Ensure proper cable routing to avoid interference.
USB and Serial Connections: Connect peripherals or communication devices to the USB V2.0 and serial (COM1) ports as required.
Display Connection: Connect a compatible display to the onboard AGP graphics output.
Cable Management: Route all cables neatly and secure them to prevent strain or accidental disconnection. Separate power and signal cables to reduce electromagnetic interference.
Environmental Considerations: Ensure the operating environment meets the specified temperature and humidity ranges for industrial PCs to maintain optimal performance and longevity.
Power On: After all connections are verified, re-energize the system and power on the Box PC.

Key Features:

What operating system is pre-installed on the 6ES7647-6AA20-0AK0?

The unit comes with Windows XP Professional Multi-Language SP2, supporting English, German, French, Italian, and Spanish.

What type of power supply does this SIMATIC Box PC use?

It uses an AC 110/230V industrial power unit that is compatible with NAMUR standards and includes a European power cable.

Can the SIMATIC Box PC 627 be expanded?

Yes, it features two free PCI slots for hardware expansions and includes a slot for a Compact Flash drive.

What are the primary communication interfaces available?

The PC is equipped with two 10/100 Mbit/s Ethernet RJ45 ports, four USB V2.0 ports (high current), and one serial COM1 port.
