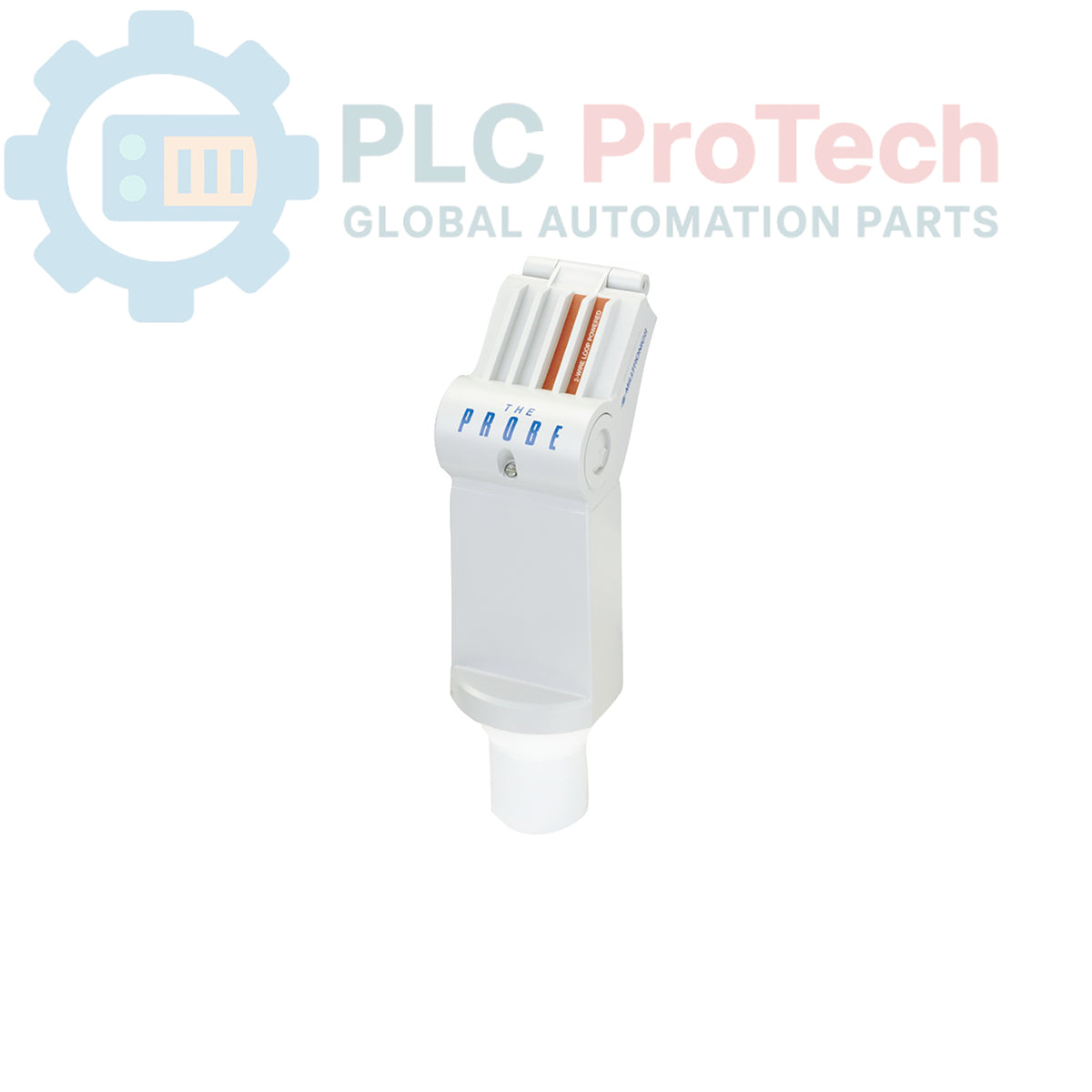

Siemens 7ML1201-1FE00 Transmetteur de niveau ultrasonique SITRANS Probe

Description

The 7ML1201-1FE00 is a SITRANS Probe ultrasonic level transmitter designed for continuous, non-contact level monitoring of liquids and slurries. This unit provides a measurement range of up to 5 meters (16.4 ft) and is equipped with a 3-wire relay output for seamless integration into industrial control systems. Engineered for durability, the transmitter features a PVDF copolymer transducer and process connection, ensuring compatibility with a variety of process fluids.

Features

• Technology: Ultrasonic non-contact level measurement.
• Range: Up to 5 meters (16.4 ft).
• Output: 3-wire relay output configuration.
• Construction: PVDF copolymer transducer and process connection.
• Process Connection: R 2" (BSPT), EN 10226.
• Power Requirement: 24 V DC operation.
• Application: Suitable for liquids and slurries.

Applications

• Water and wastewater storage tanks.
• Chemical storage and processing vessels.
• Slurry level monitoring in mining or industrial processes.
• Liquid level control in confined industrial containers.

Technical Specifications

Installation Guidelines

• Mounting: Mount the unit in a vertical position above the medium to be measured to ensure accurate ultrasonic echo returns.
• Obstructions: Ensure the sensor face has a clear, unobstructed line-of-sight to the surface of the medium, avoiding agitators, pipes, or tank walls within the beam path.
• Environmental Conditions: While the unit is robust, avoid mounting in locations subject to extreme vacuum or excessive foam, as these can interfere with ultrasonic wave propagation.
• Wiring: Utilize shielded cabling to minimize electrical interference and ensure the 24 V DC power supply is stable and properly grounded per industrial standards.
• Maintenance: Periodically clean the transducer face to prevent buildup of material that may cause measurement drift or loss of signal.
