Siemens Panneau de commande machine SINUMERIK MCP 483C PN 6FC5303-0AF22-0AA1

Description

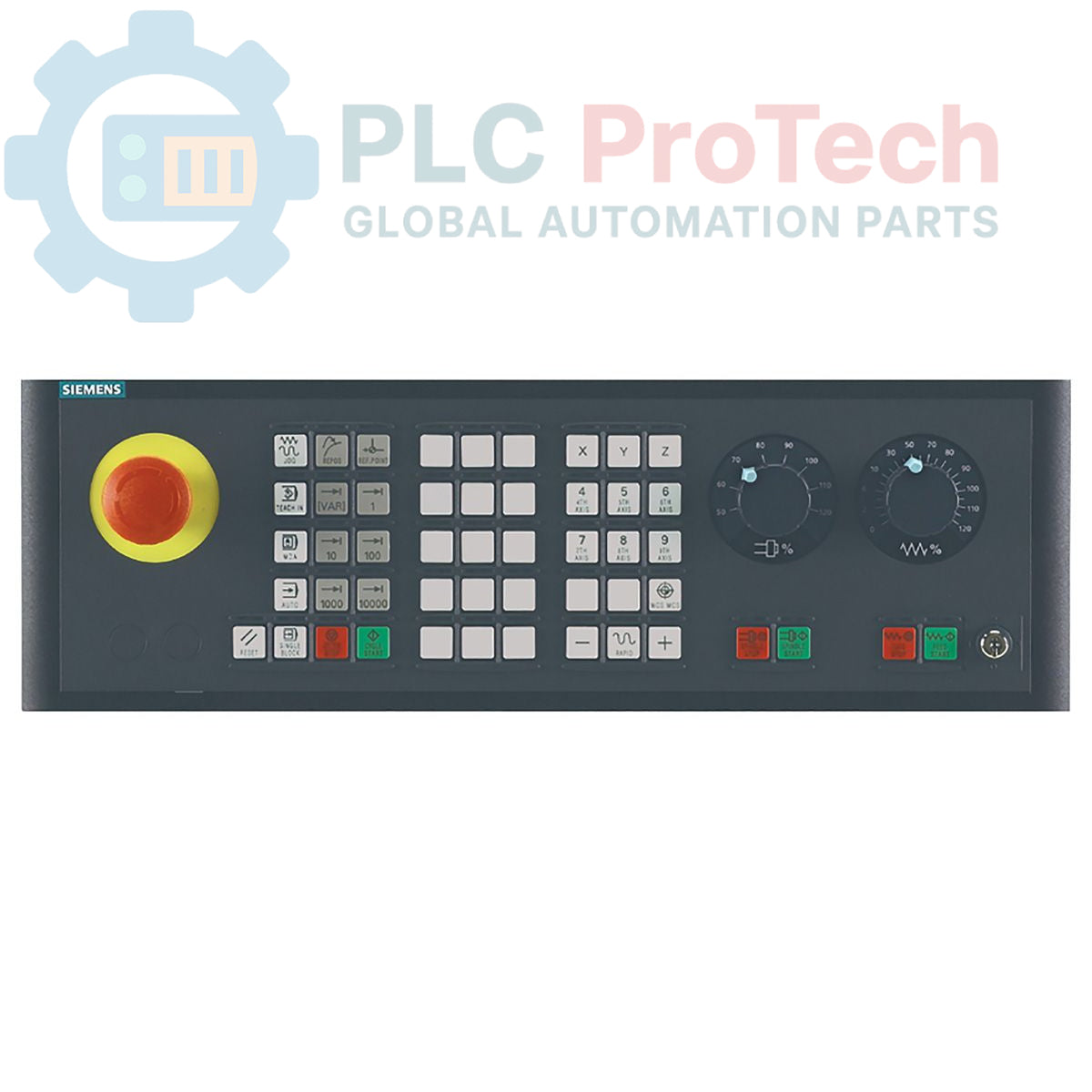

The 6FC5303-0AF22-0AA1 is a SINUMERIK Machine Control Panel (MCP 483C PN) manufactured by Siemens. This operator panel is designed for the intuitive control of machine tools, featuring a 19-inch width with mechanical keys for tactile feedback and precise operator input. It is equipped with an integrated 22 mm emergency stop button for enhanced safety. The panel supports high-performance communication via PROFINET and Industrial Ethernet, ensuring seamless integration into modern CNC automation architectures.

Features

• Mechanical keys for reliable, tactile operator control
• Integrated 22 mm emergency stop button for safety compliance
• Supports PROFINET and Industrial Ethernet connectivity
• 19-inch panel width suitable for standard control consoles
• Robust construction for demanding industrial environments

Applications

• CNC machine tool control systems
• Industrial automation production lines
• Operator interfaces for SINUMERIK control systems
• Custom machine tool interface consoles

Technical Specifications

Installation Guidelines

• Mounting: Ensure the panel is mounted securely into a machine operator station or console. Use the integrated mounting hardware to provide a vibration-resistant fit.
• Connectivity: Connect the panel to the control system via the PROFINET/Industrial Ethernet interface. Verify cable type and shielding requirements per the system manual to maintain signal integrity.
• Safety: Ensure the emergency stop circuit is wired in accordance with local safety standards and integrated into the machine safety logic.
• Environment: Install in a location that protects the rear electronic components from coolant, dust, and metallic chips.
