Clavier d'exploitation pour CENTUM VP Yokogawa AIP830-101

Product Overview

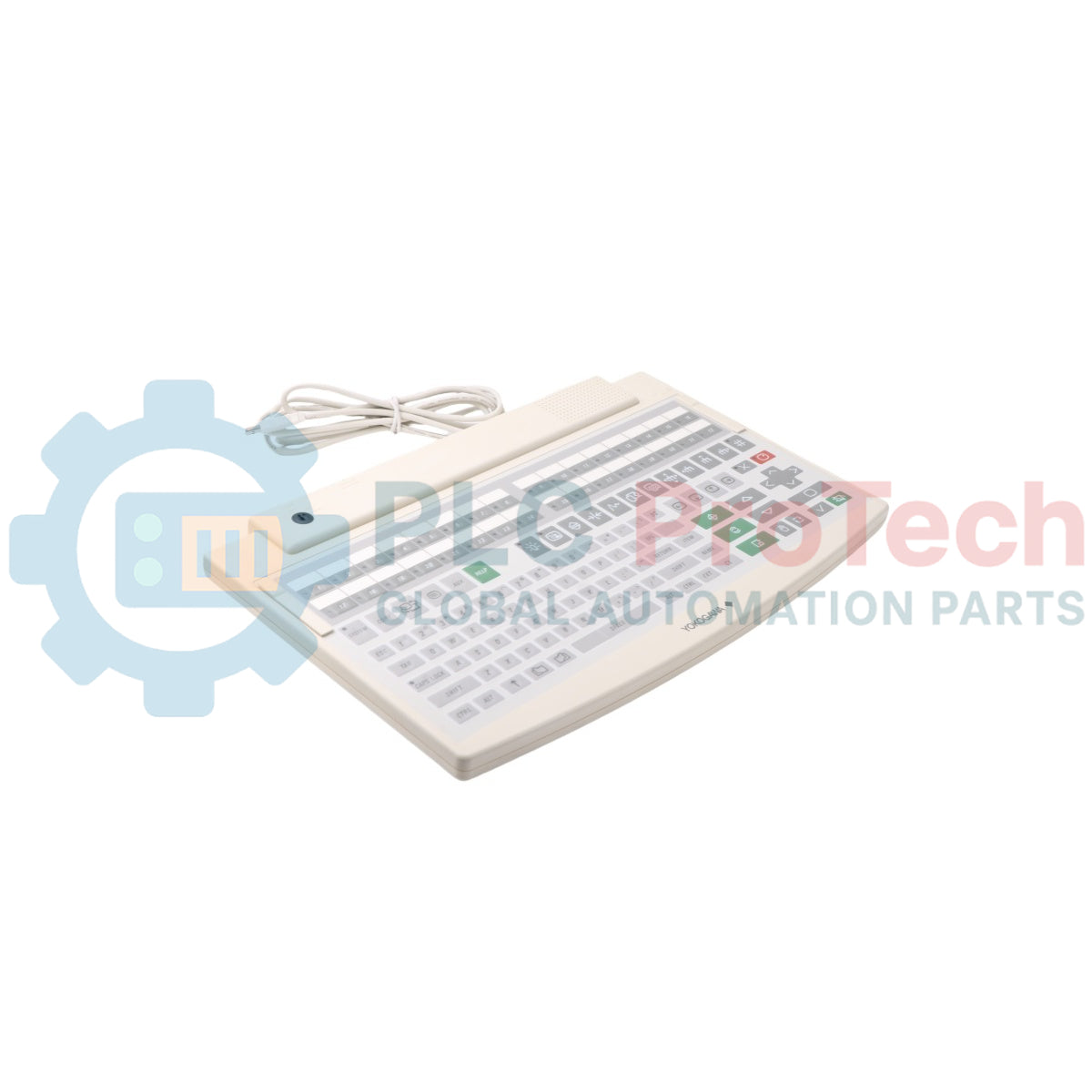

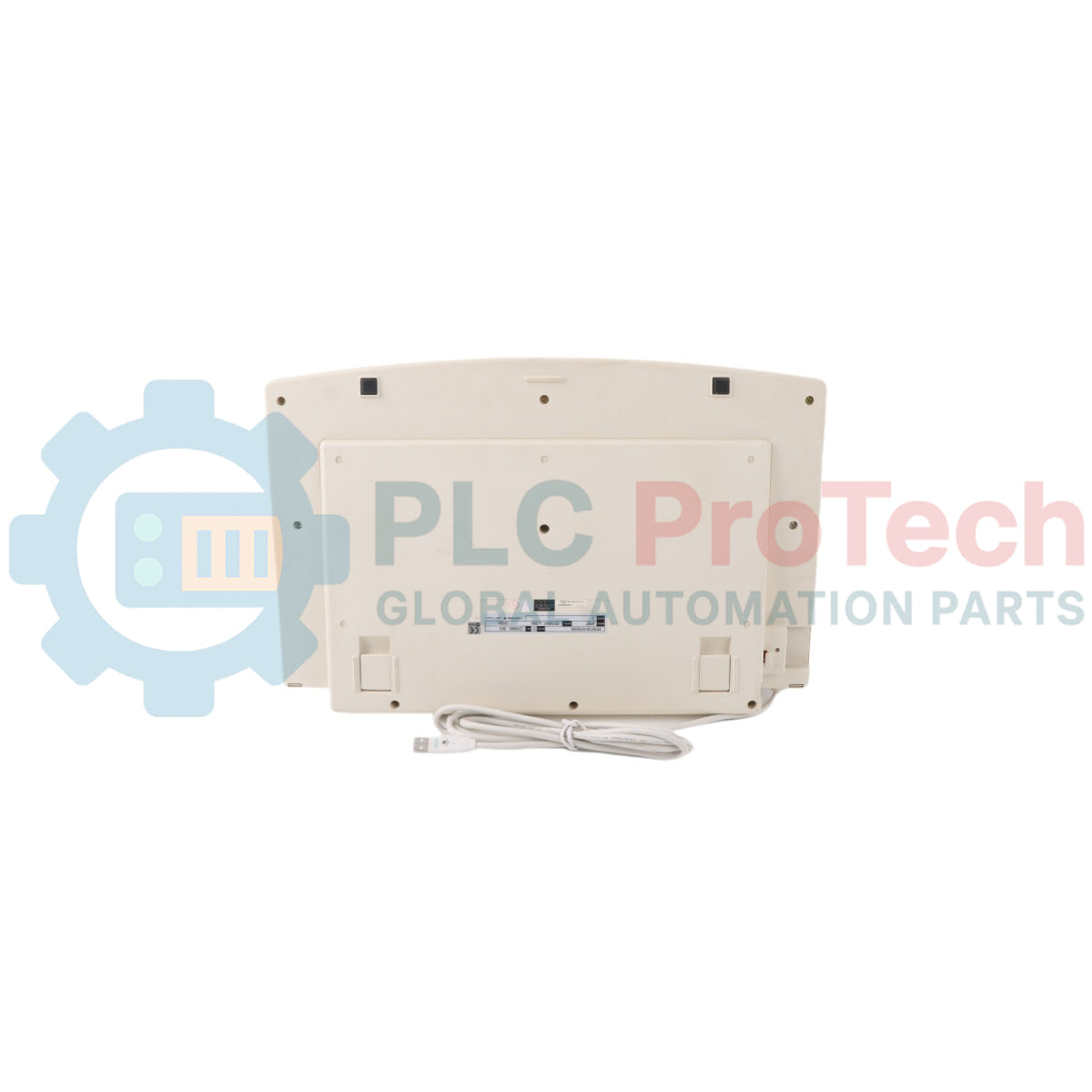

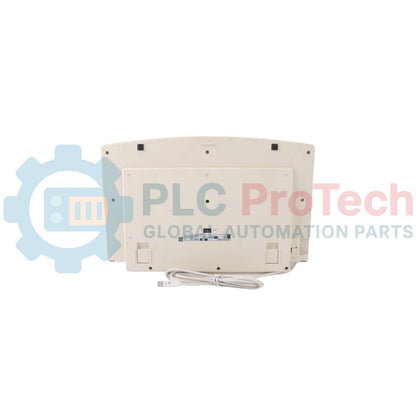

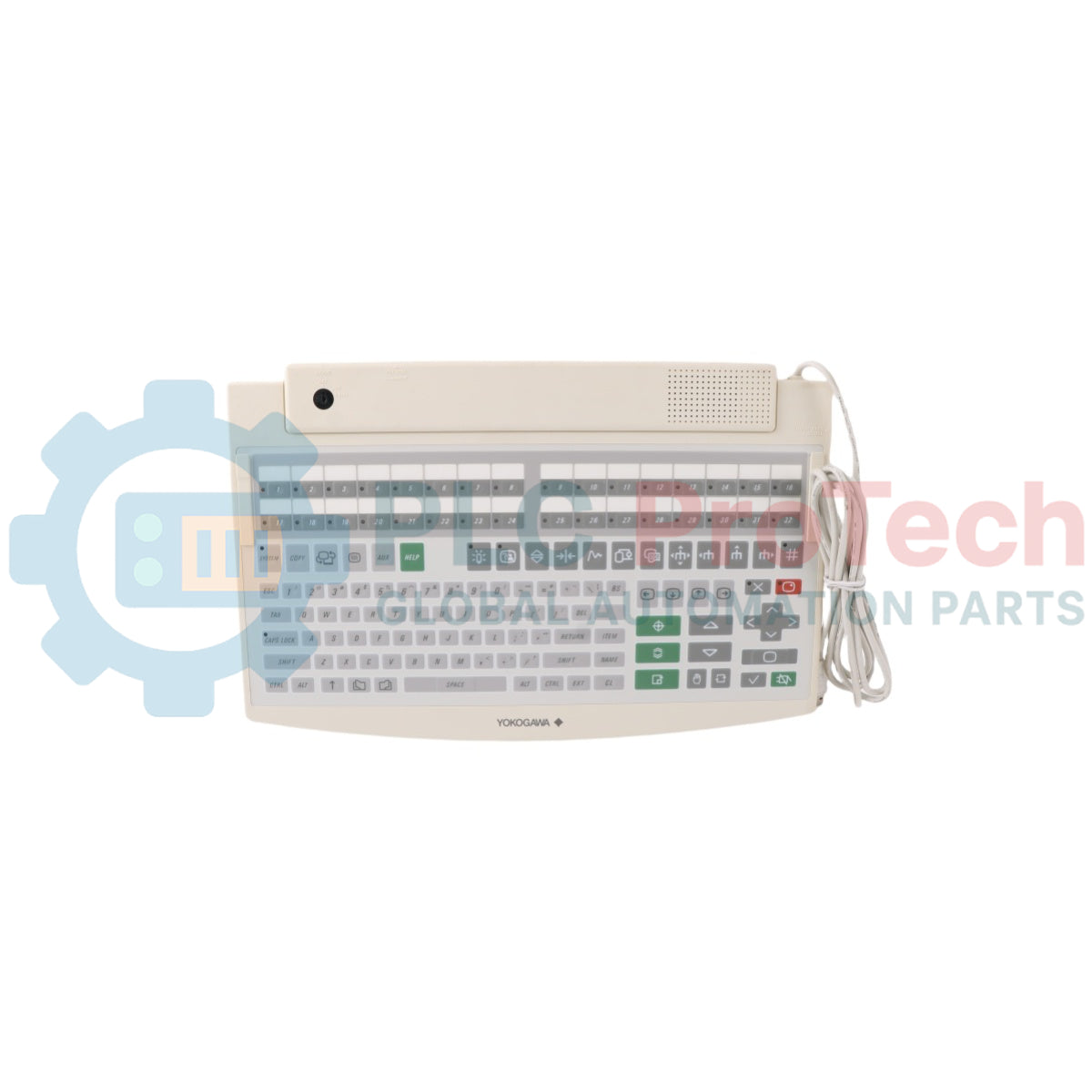

The AIP830-101 (AIP830-101) is a specialized Operation Keyboard designed for the Human Interface Station (HIS) within the Yokogawa CENTUM VP Distributed Control System (DCS). Unlike a standard PC keyboard, the AIP830-101 is engineered specifically for process control operators, featuring dedicated functional keys for rapid alarm response, window switching, and loop tuning. This keyboard is essential for high-stress control room environments—such as power plants and refineries—where every second counts during a process upset. It connects via a USB interface and is built with industrial-grade durability to withstand 24/7 continuous operation.

Functional Design & Operator Efficiency

The Yokogawa AIP830-101 architecture is centered on ergonomic efficiency and critical response. It includes a section for One-Touch Function Keys (F1–F64 via shift), allowing operators to instantly call up specific process graphics or trend groups. The integrated Control Keys (Acknowledge, Stop, Reset) provide a tactile, hardware-level interface for handling system alarms, which is significantly faster and more reliable than navigating with a mouse during emergencies. The keyboard also features a dedicated numeric keypad and a set of window-call keys that integrate seamlessly with the CENTUM VP software environment.

Technical Specifications

Technical FAQs

How does the AIP830-101 improve safety compared to a standard keyboard?

In a critical alarm scenario, an operator may need to silence a buzzer or acknowledge an alarm instantly. The AIP830-101 provides a dedicated "Global ACK" key that works regardless of which software window is currently focused, ensuring that safety-critical actions are never delayed by software navigation.

Is the AIP830-101 compatible with standard Windows PCs?

While it uses a USB interface, its full functionality (specifically the custom function and control keys) requires the Yokogawa HIS software and drivers. Without the CENTUM VP environment, it may only function as a basic alphanumeric keyboard.

What is the difference between the AIP830 and AIP831 models?

The AIP830 is the standard operation keyboard, whereas the AIP831 usually includes additional features like a built-in pointing device (trackball) or different layout variations for specific regional or system requirements. The "-101" suffix specifically denotes the English/Standard version.

Field Engineering & Installation Guide

• Driver Configuration: Ensure the "Keyboard Driver for Operation Keyboard" is selected during the HIS software installation. If the custom keys are non-responsive after a Windows update, check the Device Manager to ensure the Yokogawa-specific HID driver is correctly mapped to the USB port.

• Environmental Protection: While industrial-grade, the AIP830-101 is an electronic component. Avoid placing it in areas where liquid spills are likely. In dusty environments, use a silicone keyboard protector designed specifically for the AIP830 series to prevent mechanical sticking of the high-travel keys.

• Cable Management: Use the provided USB cable and avoid using unpowered USB hubs. For long-distance connections (e.g., if the HIS PC is in a rack room), use high-quality active USB extenders to maintain signal integrity for the rapid keystroke data.

Engineering Advantages

The AIP830-101 represents Yokogawa’s commitment to "Human-Machine Interface" (HMI) excellence. Its mechanical switches are rated for millions of actuations, providing the "tactile feedback" that operators rely on when they cannot look away from the process screen. By standardizing the operator's physical workspace, Yokogawa ensures that a technician trained on one CENTUM VP system can walk into any control room worldwide and instantly navigate the process using a familiar, high-performance interface.
