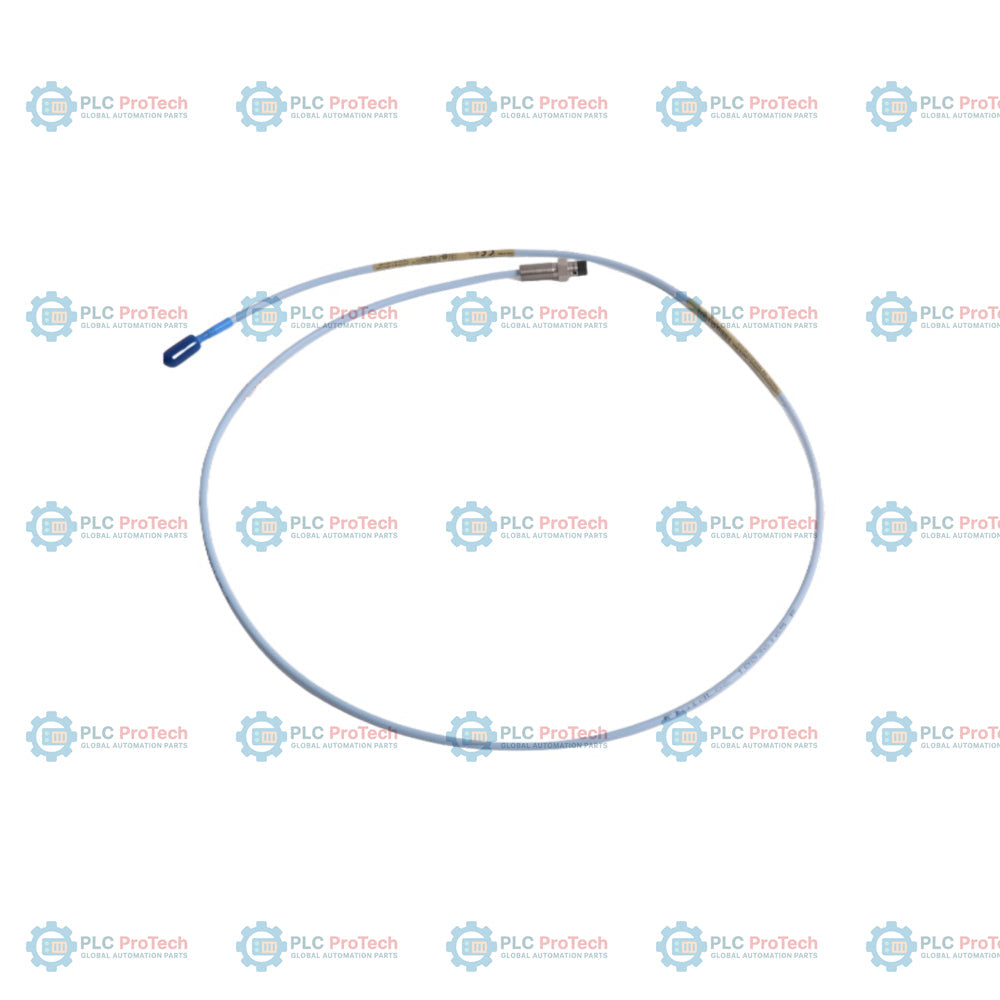

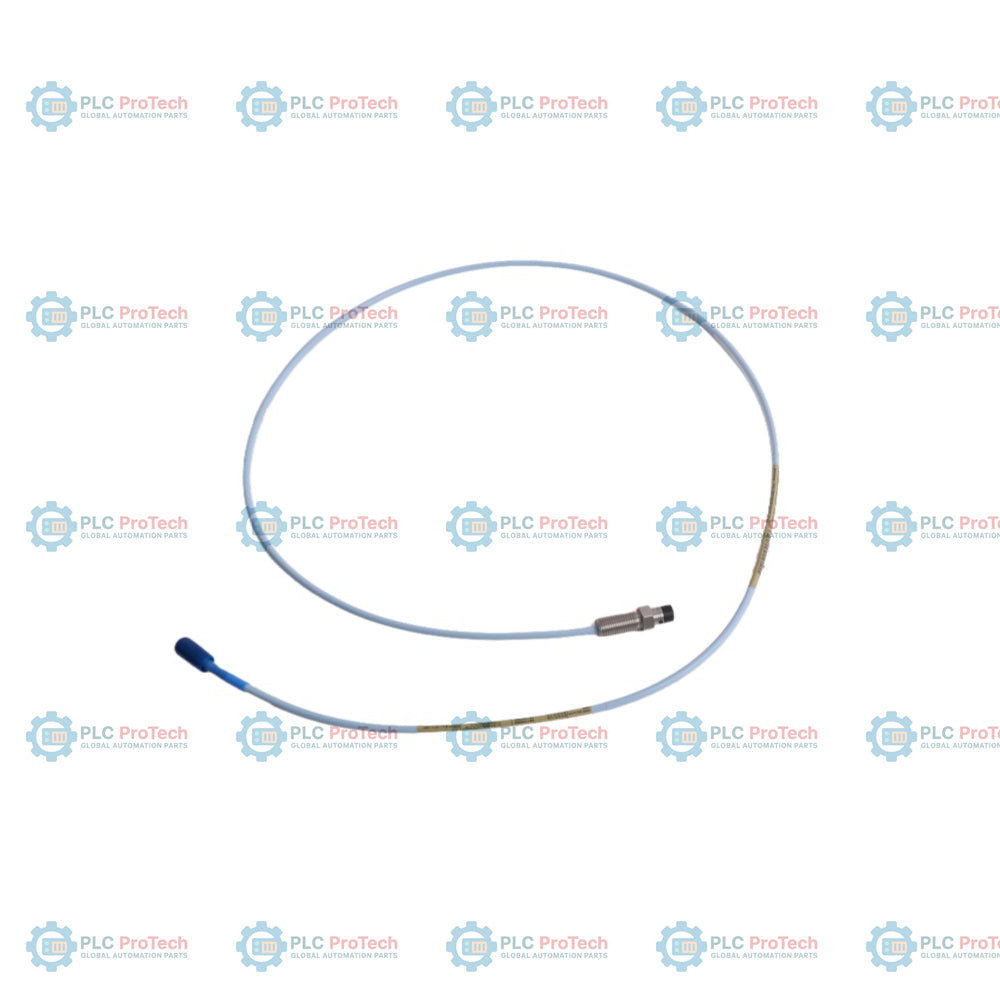

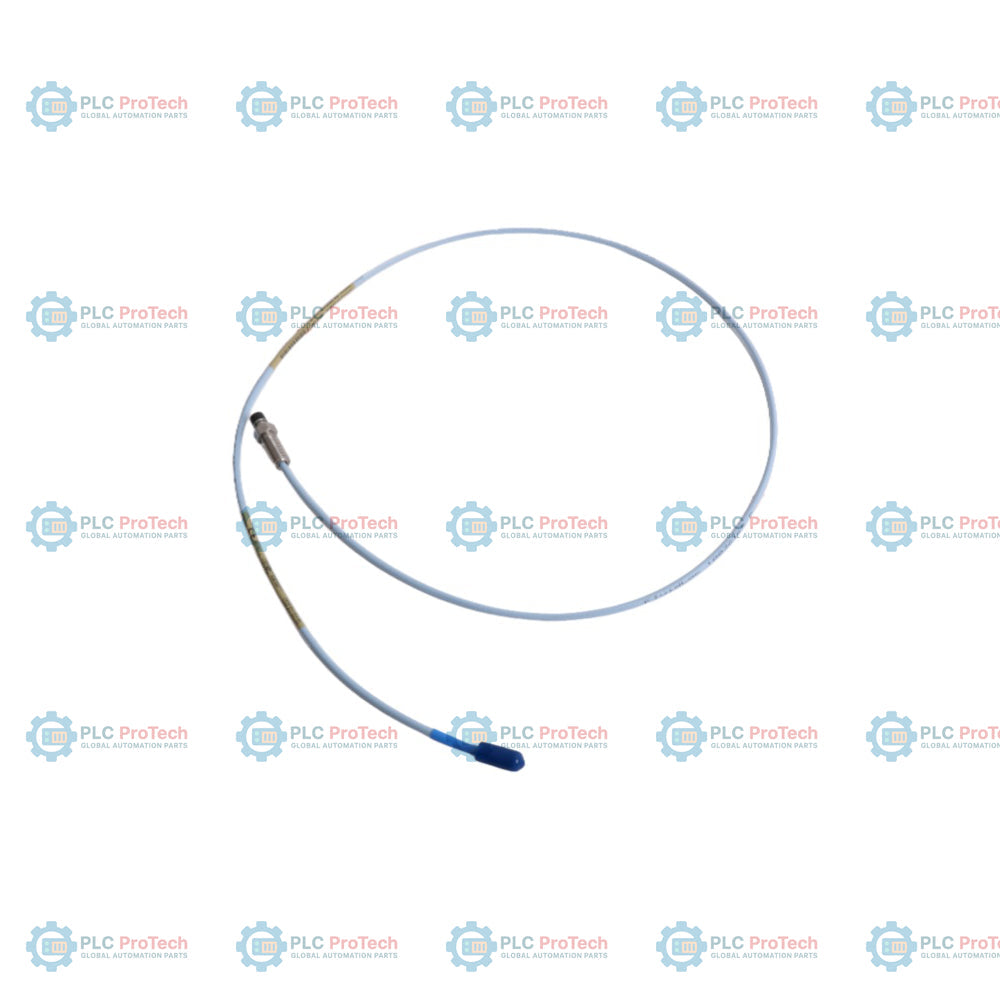

Bently Nevada 330105-02-12-10-12-05 3300 XL Reverse Mount Proximity Probe

Description

Option 02 (0.2 in unthreaded length) and Option 12 (1.2 in overall case length) specify this 330105-02-12-10-12-05 reverse mount eddy-current proximity probe, a member of the Bently Nevada 3300 XL 8 mm transducer family. This configuration has a total length of 1.0 meter (Option 10) and features a FluidLoc coaxial cable with a miniature ClickLoc connector (Option 12), backed by international hazardous area approvals under Option 05.

The reverse mount design uses standard 3/8-24 UNF-2A threads, placing the hex flange on the cable side of the installation sleeve to facilitate space-restricted mounting where standard probes cannot be easily installed or adjusted from the front. The integration of FluidLoc cable technology prevents fluid leakage or migration along the inside of the cable jacket under pressure, making it useful in applications where oil or other liquids might otherwise escape past the machine seal. This probe works with a 3300 XL Proximitor sensor and an extension cable to measure radial vibration, axial position, or speed on rotating machinery.

Features

• Option 02 specifies a fixed 0.2-inch (5 mm) unthreaded length.
• Option 12 specifies a fixed 1.2-inch (30 mm) threaded case length.
• Option 10 provides a 1.0-meter (3.3 feet) overall length.
• Option 12 integrates a FluidLoc cable to block fluid migration through the cable core.
• Option 05 designates CSA, ATEX, and IECEx hazardous area approvals.
• Reverse mount body style allows installation through a sleeve or behind a bracket.
• ClickLoc miniature coaxial connector secures the link to the extension cable.

Applications

• Sleeve-mount setups on fluid-film bearing housings with oil seals.
• Vibration and position monitoring on steam turbines, compressors, and pumps.
• Machinery protection systems requiring pressure-tight cable feedthroughs.
• Class I Division 1 and Zone 0/1 hazardous areas.

Ordering Information

Technical Specifications

Connections and Interfaces

Installation Guidelines

Reverse mount probes must be installed using a compatible reverse mount sleeve or behind a mounting bracket. Thread engagement is limited to a maximum of 0.563 inches (14.3 mm) to prevent binding or thread damage. Ensure the Viton O-ring is properly positioned if sealing is required. Route the FluidLoc cable carefully to avoid sharp bends, keeping a minimum bend radius of 25.4 mm (1.0 inch). Connectors should be hand-tightened; using pliers is not recommended for two gold ClickLoc connectors.

Compliance and Certifications

• CSA: Class I, Division 1, Groups A, B, C, and D; Class II, Groups E, F, and G; Class III
• ATEX/IECEx: Ex ia IIC T5...T1 Ga; Ex ia IIIC T90degC...T280degC Dc
• Ex nA/Ex ec: Ex nA IIC T5...T1 Gc; Ex ec IIC T5...T1 Gc
