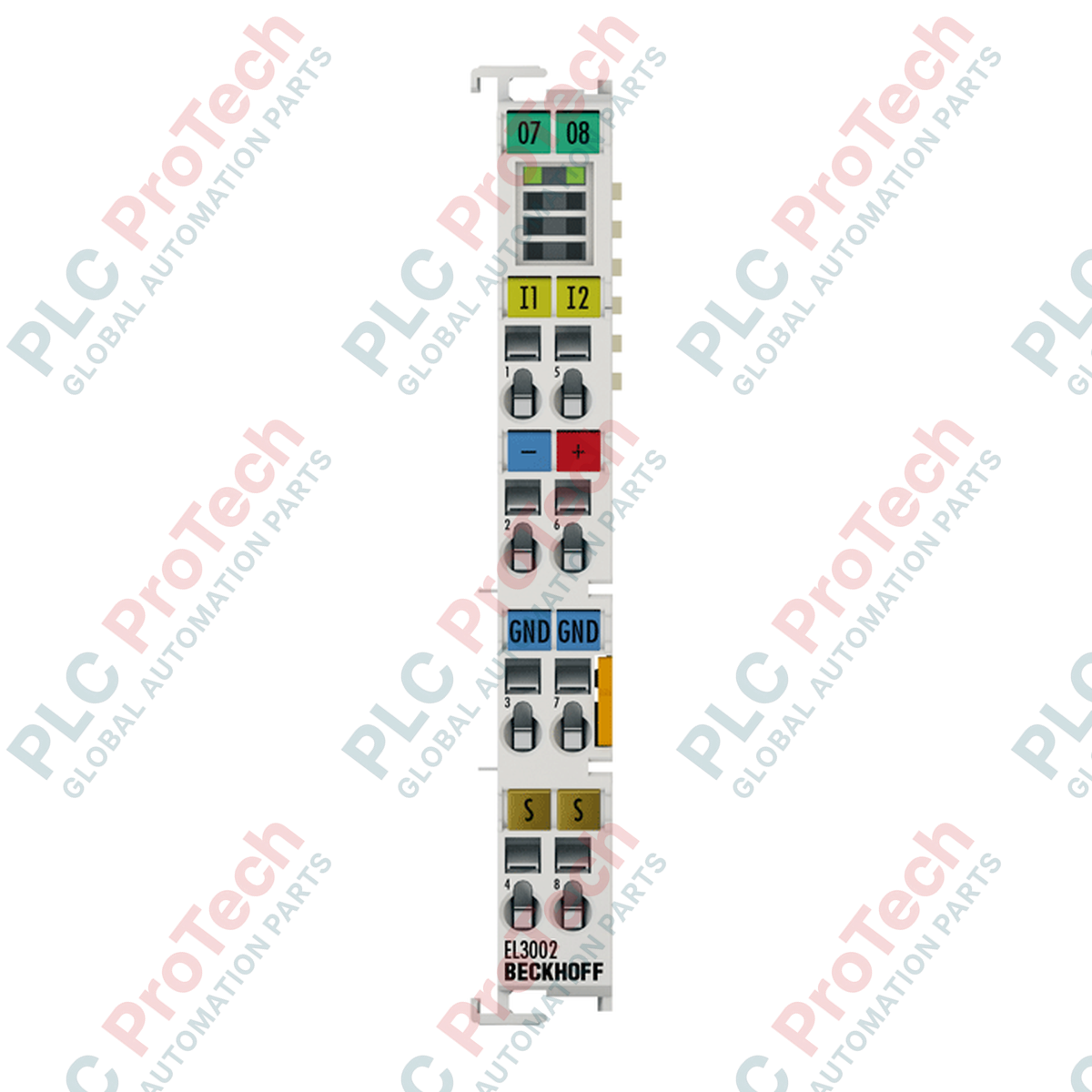

EL3002 | BECKHOFF | EtherCAT Terminal Analog Input Module

Hanya 10 item tersisa di stok

Produsen: BECKHOFF
Nomor Produk: EL3002
Negara asal:Jerman
Jenis Produk: EtherCAT Terminal
Pembayaran: T/T, Western Union
Berat: 2000g
Dimensi: 12 mm x 100 mm x 68 mm
Pelabuhan pengiriman: Xiamen
Garansi: 12 bulan

Description

The EL3002 is a 2-channel analog input terminal manufactured by Beckhoff, designed for high-precision voltage measurement within EtherCAT automation systems. It processes signals in the ±10 V range with 12-bit resolution, providing reliable data for industrial monitoring and control. The module utilizes a single-ended input technology and features configurable filtering options, including FIR and IIR filters, to ensure signal integrity.

Features

2-channel analog input (±10 V)
12-bit resolution (16-bit internal representation)
Configurable input filter limit frequency (1 kHz)
Integrated limit value monitoring and overload status indication
Electrical isolation of 500 V between E-bus and field potential
Compact housing with signal LEDs for diagnostic feedback

Technical Specifications

Feature	Specification
Manufacturer	Beckhoff
Model	EL3002
Number of Inputs	2 (single-ended)
Signal Voltage	-10 to +10 V
Resolution	12 bit
Conversion Time	0.625 ms (configurable)
Input Filter Frequency	1 kHz
Internal Resistance	> 130 kΩ
Dielectric Strength	Max. 30 V
Current Consumption (E-bus)	Typ. 130 mA
Dimensions (W x H x D)	12 mm x 100 mm x 68 mm
Operating Temperature	-25 to +60 degC
Storage Temperature	-40 to +85 degC

Installation Guidelines

DIN Rail Mounting: Secure the EL3002 onto a 35 mm DIN rail (EN 60715). Use the integrated double slot and key connection for reliable side-by-side assembly.
Wiring: The terminal accepts solid (0.08–2.5 mm²) and flexible (0.14–1.5 mm²) conductors. Use a screwdriver for spring-loaded terminal actuation. Strip wires to a length of 8–9 mm.
Environmental: The unit is IP20 rated. Ensure installation in a clean, temperature-controlled environment within the specified -25 to +60 degC range.
Hazardous Areas: Complies with ATEX (II 3 G Ex nA IIC T4 Gc). Ensure all local safety regulations are followed when integrating into potentially explosive atmospheres.

Compliance and Certifications

CE
UL
ATEX: II 3 G Ex nA IIC T4 Gc
EMC Immunity/Emission: Conforms to EN 61000-6-2 / EN 61000-6-4
Vibration/Shock: Conforms to EN 60068-2-6 / EN 60068-2-27

Key Features:

#Beckhoff #EtherCAT Analog Input Terminals

What is the voltage input range of the EL3002?

The EL3002 supports a signal voltage range of -10 V to +10 V.

Does the EL3002 require manual address configuration?

No, this EtherCAT terminal does not require any manual address or configuration settings.

What is the conversion time for the input signals?

The default conversion time is 0.625 ms, which is configurable by the user.

What kind of signal filtering is available?

The module features activatable FIR/IIR filters to help manage signal noise and improve measurement accuracy.
