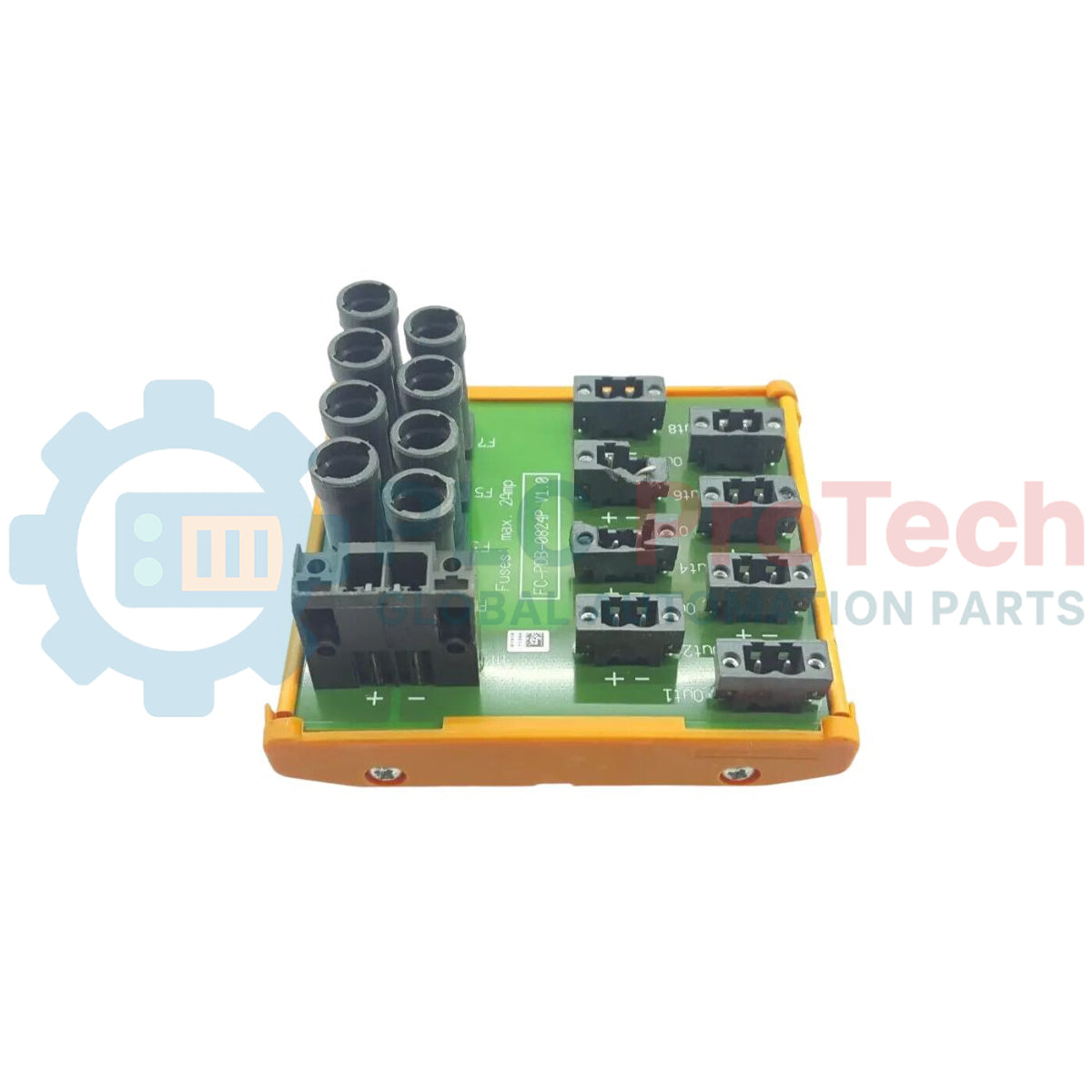

Honeywell FC-PDB-0824P Safety Manager Power Distribution Module

Hanya 7 item tersisa di stok

Produsen: Honeywell
Nomor Produk: FC-PDB-0824P
Negara asal:Amerika Serikat
Jenis Produk: Safety Manager Modules
Pembayaran: T/T, Western Union
Berat: 3000g
Dimensi: 94 mm x 109 mm x 71 mm
Pelabuhan pengiriman: Xiamen
Garansi: 12 bulan

Description

Power routing in high-integrity safety instrumented systems is managed directly by the Honeywell FC-PDB-0824P, a specialized power distribution board module designed for the Honeywell Safety Manager platform. This module distributes clean, fused power to field devices, input/output channels, and internal system components while safeguarding sensitive control electronics from field-side overcurrent conditions. Engineered for continuous operation in safety-critical ESD (Emergency Shutdown) and fire and gas monitoring applications, the Honeywell FC-PDB-0824P utilizes keyed industrial connectors to prevent installation errors and features dual DIN-rail compatibility to facilitate straightforward cabinet integration.

Features

Overcurrent Protection: Individual circuit protection via slow-acting 2 AT fuses prevents localized faults from causing system-wide outages.
Keyed Connector Interface: Prevents incorrect wiring insertion by employing specialized Weidmuller mechanical coding keys.
Dual DIN-Rail Support: Universal mounting bracket fits both G-type (TS32) and Top-Hat (TS35) profile industrial rails.
Compact Enclosure: Low-profile design maximizes cabinet density, requiring only 95 mm of linear rail space.

Applications

Emergency Shutdown (ESD) Systems
Fire and Gas (F&G) Detection Networks
High-Integrity Pressure Protection Systems (HIPPS)
Critical Loop Field Power Distribution

Technical Specifications

Manufacturer	Honeywell
Model Number	FC-PDB-0824P
Module Type	Safety Manager Power Distribution Board
Fuse Rating (Maximum)	2 AT (Slow Acting)
Fuse Physical Dimensions	5 mm x 20 mm (0.20 in x 0.79 in)
Input Connection	2-pole header with keying (Weidmuller BVZ 7.62HP/02F SN)
Coding Keys	Weidmuller BV/SV7.62HP KO
Field Connection	2-pole socket block (Weidmuller BLZ 5.08/2F SN SW)
DIN Rail Profiles	TS32 / TS35 x 7.5
Required Rail Length	95 mm (3.74 in)
Module Dimensions (L x W x H)	94 mm x 109 mm x 71 mm (3.70 in x 4.29 in x 2.80 in)
Shipping Weight (Calculated)	3.0 kg (6.61 lbs)
Safety Standards / Approvals	CE; UL, TUV, and CSA pending

Connections and Interfaces

Terminal / Port	Connector Specification	Function / Circuit Assignment
Input Power Port	Weidmuller BVZ 7.62HP/02F SN Header	Primary system voltage input; utilizes mechanical keying keys (BV/SV7.62HP KO) to prevent cross-connection.
Field Distribution Port	Weidmuller BLZ 5.08/2F SN SW Socket	Fused power delivery terminal block routing energy to downstream field loops.

Empirical Engineering Insights

Alternative Models & Compatibility

The FC-PDB-0824P module is explicitly keyed for the Honeywell Safety Manager system topology. When replacing older revisions of this power distribution board, verify that the existing field-side wiring harnesses use the corresponding Weidmuller BLZ 5.08 mating sockets. Note that changing physical key positions on the input header can cause mechanical interference if mismatched with legacy cabinet power distribution cords.

Application Pitfalls & Engineering Notes

Always respect the 2 AT slow-acting limit. Substituting fast-acting fuses of the same physical dimensions (5 x 20 mm) can lead to nuisance trips during initial capacitive startup of downstream field instruments. Ensure that total combined current draw through the distribution channels does not continuously exceed safety-derated continuous thermal thresholds within enclosed cabinet layouts.

Commissioning & Wiring Tips

Before powering up the circuit, ensure the Weidmuller coding keys (BV/SV7.62HP KO) are fully seated and matched with the supply socket. Correctly grounding the TS35 or TS32 DIN rail is critical, as transient surge paths depend on the structural metal contact of the module's integrated mounting foot to help dissipate field-side electrostatic discharge.

Installation Guidelines

CRITICAL WARNING: ELECTRICAL HAZARD

Isolate and verify de-energization of all power sources prior to servicing the distribution block, extracting fuses, or unplugging terminal connections. Failure to disable power lines can lead to electrical arcing, damage to sensitive safety components, or severe personal injury.

Ensure the G-type (TS32) or Top-Hat (TS35) DIN rail is clean, rust-free, and properly bonded to the system protective earth (PE) ground bus.

Snap the module onto the DIN rail, verifying that the integrated mounting clip is securely engaged over the rail profile. Allow at least 95 mm of physical space.

Insert the 5 x 20 mm 2 AT slow-acting fuses into the dedicated fuse holders on the board face.

Insert the Weidmuller coding keys into the designated locations on the input header, then plug in the keyed 2-pole input header and tighten the securing screws.

Connect the pre-wired field socket block (Weidmuller BLZ 5.08) to the distribution interface, ensuring the housing latch locks clean.

Key Features:

What type of replacement fuses does the FC-PDB-0824P require?

The module requires slow-acting 2 AT fuses measuring exactly 5 mm x 20 mm.

Which specific mating connectors are compatible with the power inputs?

The primary input uses a Weidmuller BVZ 7.62HP/02F SN header equipped with Weidmuller BV/SV7.62HP KO mechanical coding keys.

Does the FC-PDB-0824P mount on standard TS35 DIN rails?

Yes, its universal integrated mounting foot supports both TS32 and TS35 x 7.5 DIN EN rail profiles.

What is the physical rail space requirement for this distribution board?

The module has a width profile that requires a minimum of 95 mm of continuous DIN rail length.
