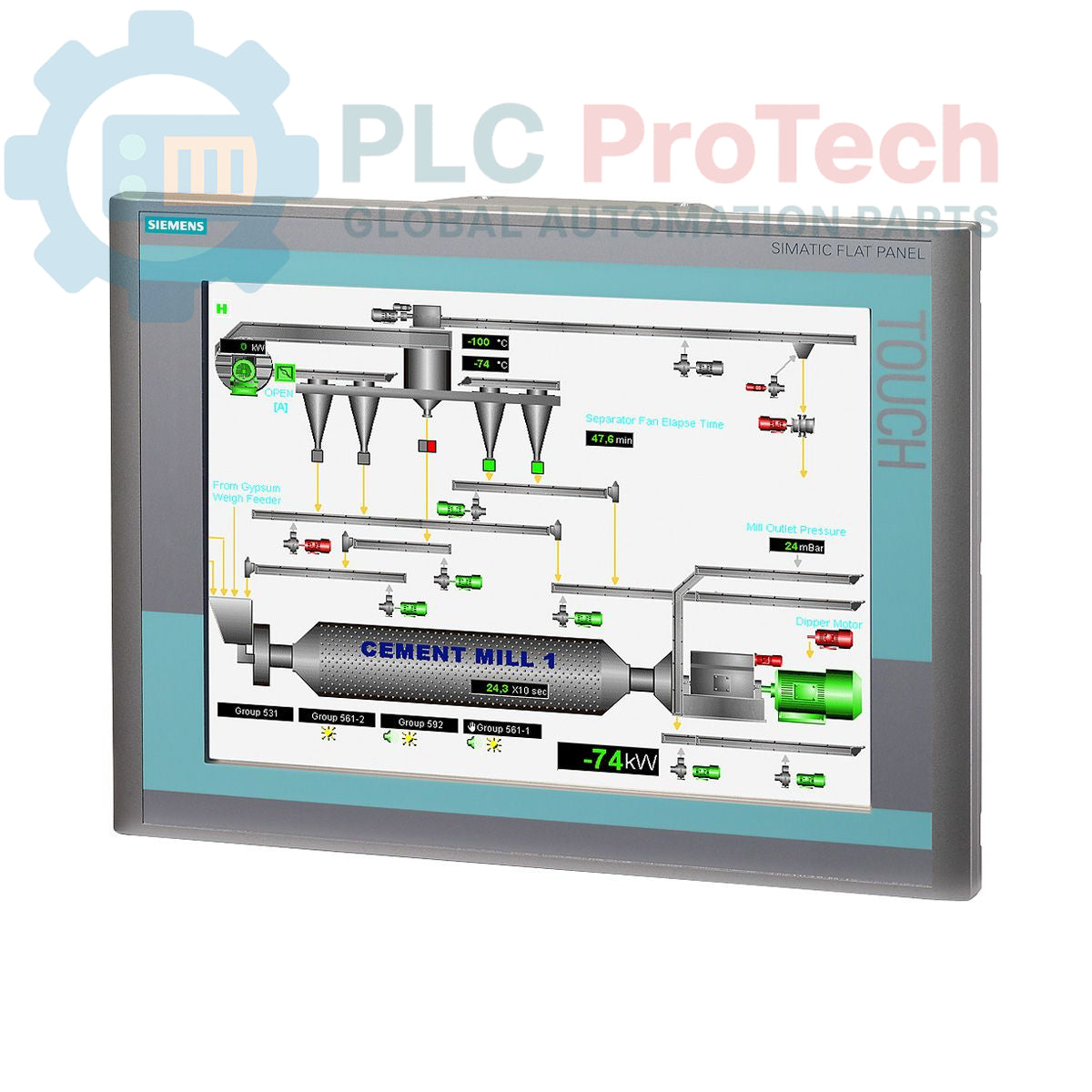

Siemens 6AV7861-5TB10-1AA0 SIMATIC FP Flat Panel

Hanya 2 item tersisa di stok

Produsen: Siemens
Nomor Produk: 6AV7861-5TB10-1AA0
Negara asal:Jerman
Jenis Produk: Flat Panel
Kode batang: 85371091
Pembayaran: T/T, Western Union
Berat: 6800g
Dimensi: 40.60 x 30.50 x 10.20 cm
Pelabuhan pengiriman: Xiamen
Garansi: 12 bulan

Description

The Siemens 6AV7861-5TB10-1AA0 is a SIMATIC Flat Panel Pro 15-inch touch TFT-display designed for industrial visualization and control applications. This robust display features a 1024x768 pixel resolution and supports dual power inputs of 24V DC and 120/240V AC. It provides versatile connectivity through VGA and DVI-D interfaces, accommodating cable lengths up to 30 meters. The unit is fully enclosed with an IP65/NEMA4 rating, making it suitable for deployment in challenging industrial environments where protection against dust and water ingress is critical.

Features

15-inch Touch TFT-Display
1024x768 Pixel Resolution
Dual Voltage Input: 24V DC and 120/240V AC
VGA and DVI-D Interface Support
IP65/NEMA4 Enclosure Rating
Supports Interface Cable Lengths up to 30m

Applications

Industrial Human-Machine Interface (HMI) systems
Process visualization and control panels
Machine operation and monitoring in manufacturing
Automation systems requiring robust display solutions

Technical Specifications

Manufacturer	Siemens
Range	SIMATIC
Subrange	FP
Product Type	Flat Panel
Display Size	15 inch
Display Type	Touch TFT-Display
Resolution	1024x768 pixels
Power Supply	24V DC, 120/240V AC
Interfaces	VGA, DVI-D
Max. Cable Length	30m
Enclosure Rating	IP65/NEMA4
Product Phase	Obsolete
Package Dimensions	40.60 x 30.50 x 10.20 cm
Shipping Weight	6.80 kg
Commodity Code	85371091
Export Control Regulations (ECCN)	EAR99
Country of Origin	Calculated

Installation Guidelines

Safety First: Ensure all power to the installation area is de-energized before beginning any work. Verify with appropriate lockout/tagout procedures.
Mounting: Securely mount the flat panel into the designated panel cutout or enclosure, ensuring a tight seal to maintain its IP65/NEMA4 rating.
Power Connection: Connect the appropriate power supply (either 24V DC or 120/240V AC) to the panel's power input terminals. Observe correct polarity for DC connections and proper phase/neutral/ground for AC connections.
Grounding: For AC power installations, ensure the panel is properly grounded to the system's protective earth to prevent electrical hazards and ensure EMC compliance.
Interface Cabling: Connect the VGA and/or DVI-D interface cables from the control system to the panel. Ensure cables are routed to prevent strain and are adequately sealed if passing through the enclosure wall to maintain the IP65/NEMA4 rating.
Sealing: Verify that all connections and mounting points are properly sealed to uphold the panel's environmental protection rating against dust and water.
Power Up: After all connections are verified, re-energize the power supply and test the panel's functionality.

Key Features:

#Flat Panel #SIMATIC FP

What is the display resolution of the 6AV7861-5TB10-1AA0?

The Siemens 6AV7861-5TB10-1AA0 features a 1024x768 pixel resolution on its 15-inch touch TFT-display.

What power supply options does this flat panel support?

It supports dual power inputs, operating on either 24V DC or 120/240V AC.

What video interfaces are available on the panel?

The flat panel is equipped with both VGA and DVI-D interfaces for video input.

What is the environmental protection rating for this unit?

The unit has an IP65/NEMA4 enclosure rating, providing protection against dust and water ingress.

Is the Siemens 6AV7861-5TB10-1AA0 still an active product?

According to the provided information, the product phase for this flat panel is listed as Obsolete.
